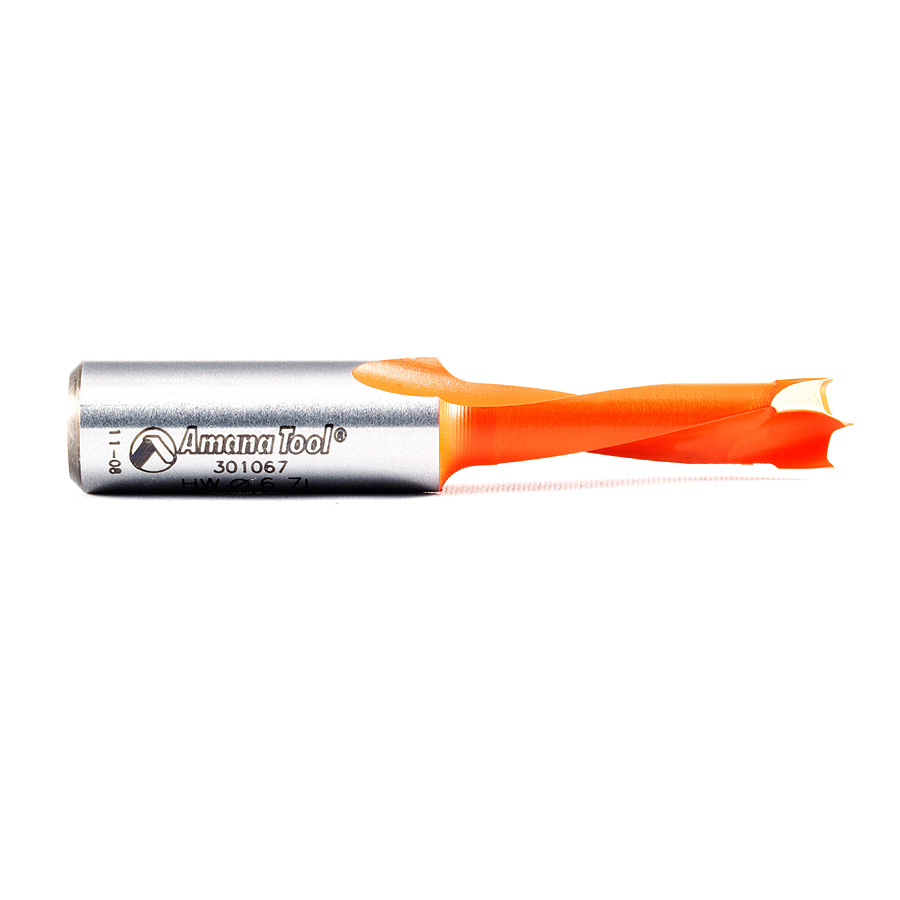

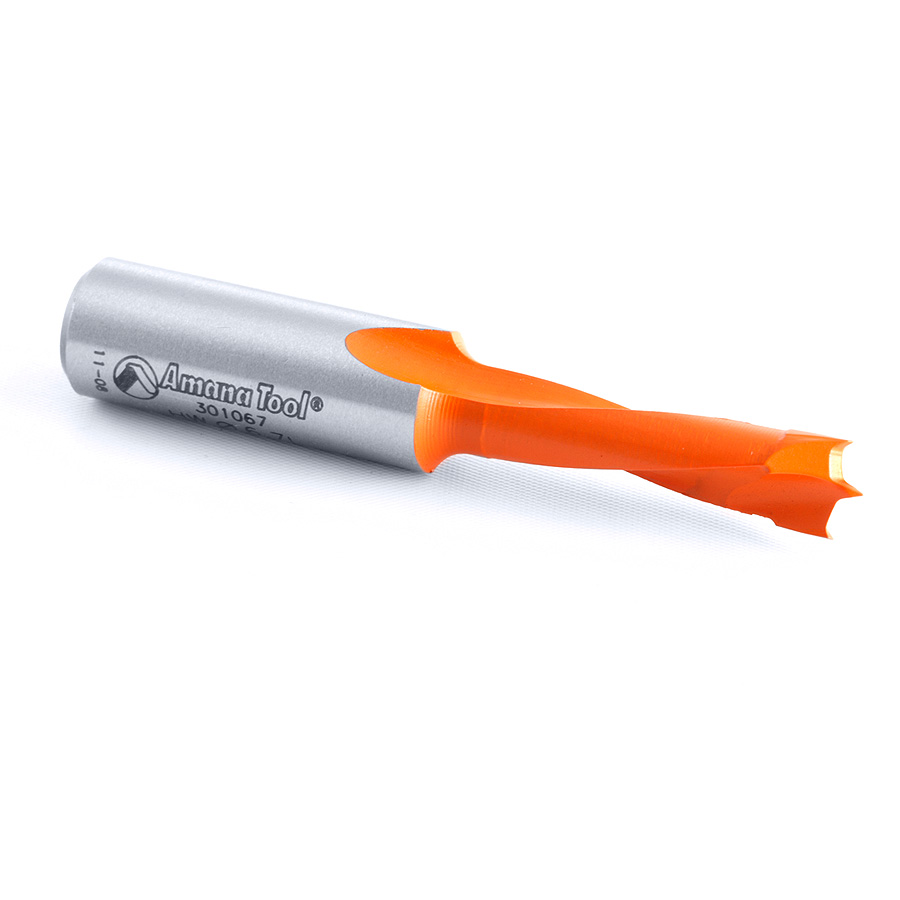

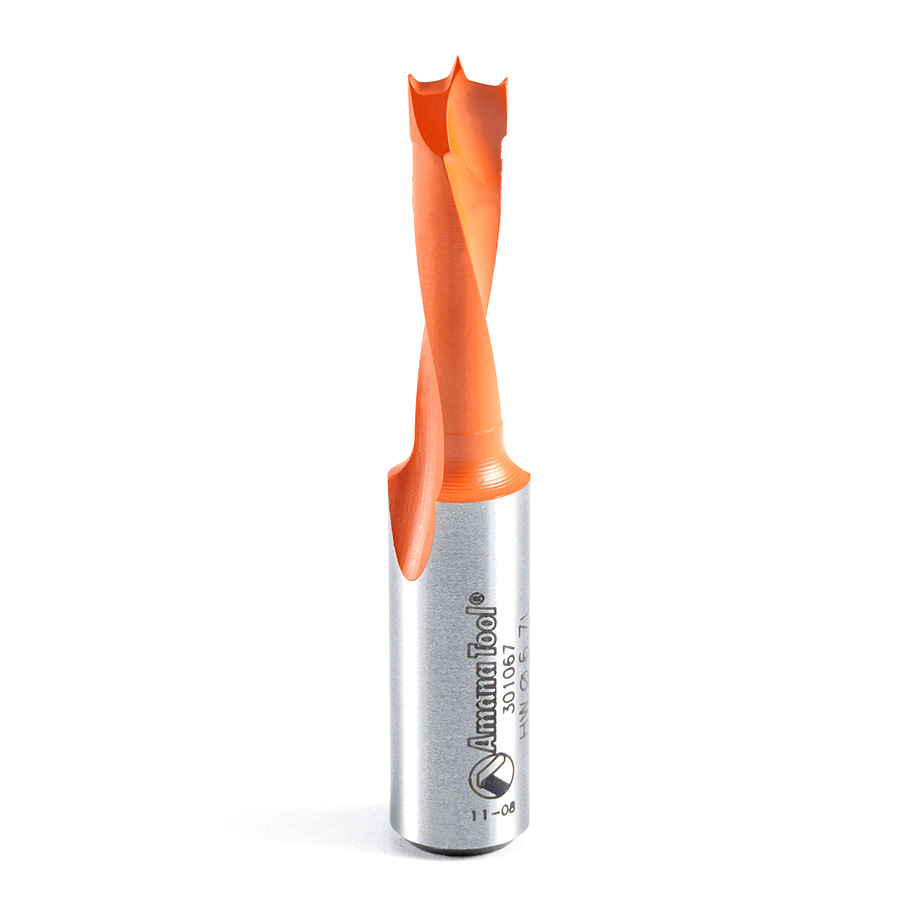

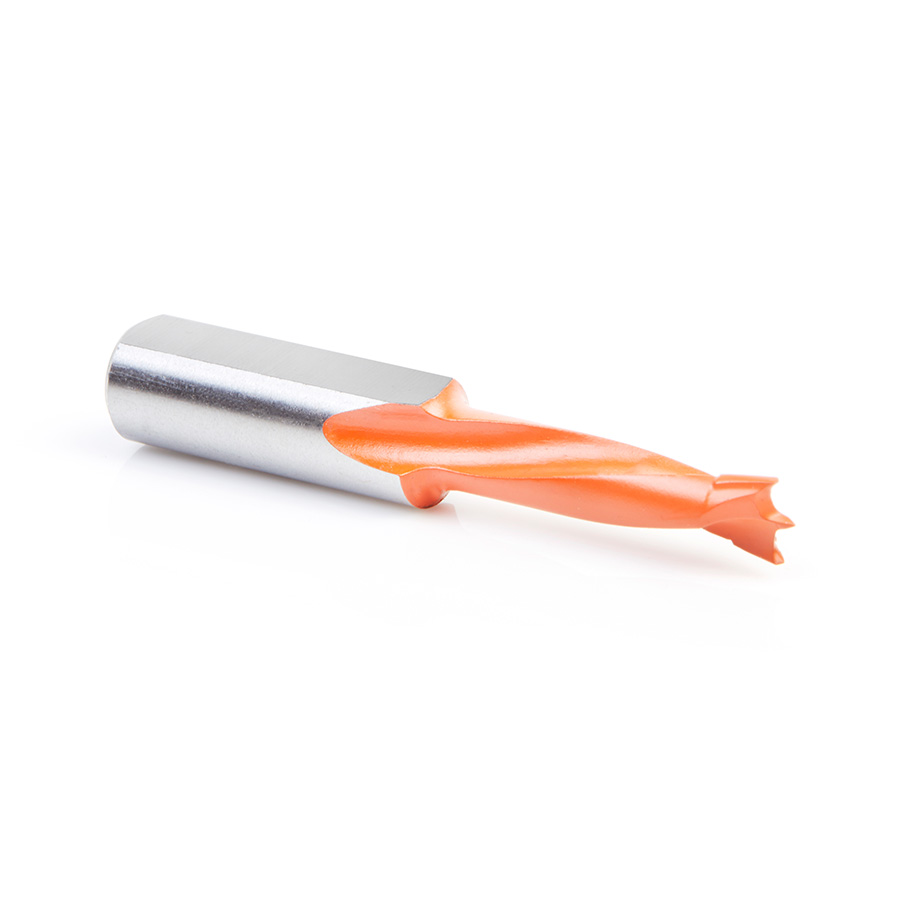

Amana 301067 Carbide Tipped Brad Point Boring Bit L/H 6.7mm Dia x 57mm Long x 10mm Shank
Original price was: $16.95.$11.87Current price is: $11.87.
6.7MM BRAD POINT L/H 57MM LONG
Item Description
Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.
Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.
Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.
Specifications
| (D) Diameter | 6.7mm |
|---|---|
| (B) Cutting Height | 27mm |
| (d) Shank | 10mm |
| Overall Length (L) | 57mm |
| Rotation | Left Hand |
Other Sizes Available
| (D) Diameter | (B) Cutting Height | (d) Shank | Overall Length (L) | Rotation | Tool No. |
|---|---|---|---|---|---|
| 3mm | 18mm | 10mm | 57mm | Right | 201003 |
| 3mm | 18mm | 10mm | 57mm | Left | 301003 |
| 3.2mm | 27mm | 10mm | 57mm | Right | 201032 |
| 3.2mm | 27mm | 10mm | 57mm | Left | 301032 |
| 4mm | 27mm | 10mm | 57mm | Right | 201004 |
| 4mm | 27mm | 10mm | 57mm | Left | 301004 |
| 4.5mm | 27mm | 10mm | 57mm | Right | 201045 |
| 5mm | 27mm | 10mm | 57mm | Right | 201005 |
| 5.1mm | 27mm | 10mm | 57mm | Right | 201051 |
| 5.2mm | 27mm | 10mm | 57mm | Right | 201052 |
| 5mm | 27mm | 10mm | 57mm | Left | 301005 |
| 5.2mm | 27mm | 10mm | 57mm | Left | 301052 |
| 5.5mm | 27mm | 10mm | 57mm | Right | 201055 |
| 5.5mm | 27mm | 10mm | 57mm | Left | 301055 |
| 6mm | 27mm | 10mm | 57mm | Right | 201006 |
| 6mm | 27mm | 10mm | 57mm | Left | 301006 |
| 1/4 (6.35mm) | 27mm | 10mm | 57mm | Right | 201007 |
| 1/4 (6.35mm) | 27mm | 10mm | 57mm | Left | 301007 |
| 6.5mm | 27mm | 10mm | 57mm | Right | 201065 |
| 7mm | 27mm | 10mm | 57mm | Right | 201070 |
| 7mm | 27mm | 10mm | 57mm | Left | 301070 |
| 7.5mm | 27mm | 10mm | 57mm | Right | 201075 |
| 7.5mm | 27mm | 10mm | 57mm | Left | 301075 |
| 8mm | 27mm | 10mm | 57mm | Right | 201008 |
| 8mm | 27mm | 10mm | 57mm | Left | 301008 |
| 8.2mm | 27mm | 10mm | 57mm | Right | 201082 |
| 8.2mm | 27mm | 10mm | 57mm | Left | 301082 |
| 9mm | 27mm | 10mm | 57mm | Right | 201090 |
| 3/8 (9.53mm) | 27mm | 10mm | 57mm | Right | 201009 |
| 3/8 (9.53mm) | 27mm | 10mm | 57mm | Left | 301009 |
| 10mm | 27mm | 10mm | 57mm | Right | 201010 |
| 10mm | 27mm | 10mm | 57mm | Left | 301010 |
| 10.5mm | 27mm | 10mm | 57mm | Right | 201105 |
| 12mm | 27mm | 10mm | 57mm | Right | 201012 |
| 1/2 (12.70mm) | 27mm | 10mm | 57mm | Right | 201013 |
| 1/2 (12.70mm) | 27mm | 10mm | 57mm | Left | 301013 |
| 14mm | 27mm | 10mm | 57mm | Right | 201014 |
| 14mm | 27mm | 10mm | 57mm | Left | 301014 |
| 15mm | 27mm | 10mm | 57mm | Right | 201015 |
| 15mm | 27mm | 10mm | 57mm | Left | 301015 |
| 17mm | 27mm | 10mm | 57mm | Right | 201017 |
| 19mm | 27mm | 10mm | 57mm | Right | 201019 |
| 20mm | 27mm | 10mm | 57mm | Right | 201020 |
| Weight | 0.06 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
Need This Tool Customized?
Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.
We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.
Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.
Common Tool Customization Options
Diameter and OD Modifications
We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.
Bore Modifications for Saw Blades
Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.
Length Adjustments
Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.
Shank Modifications
Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.
Radius, Chamfer, and Corner Changes
We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.
Step Tool Modifications
For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.
Flute and Cutting Edge Adjustments
Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.
Regrinding and Resharpening
Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.
Custom Profiles and Special Forms
For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.
Material-Specific Tool Adjustments
We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.
Have a Drawing, Sample, or Part Print?
Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.
Coating Options
Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.
Request a Custom Tool Modification
Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
