Sale!

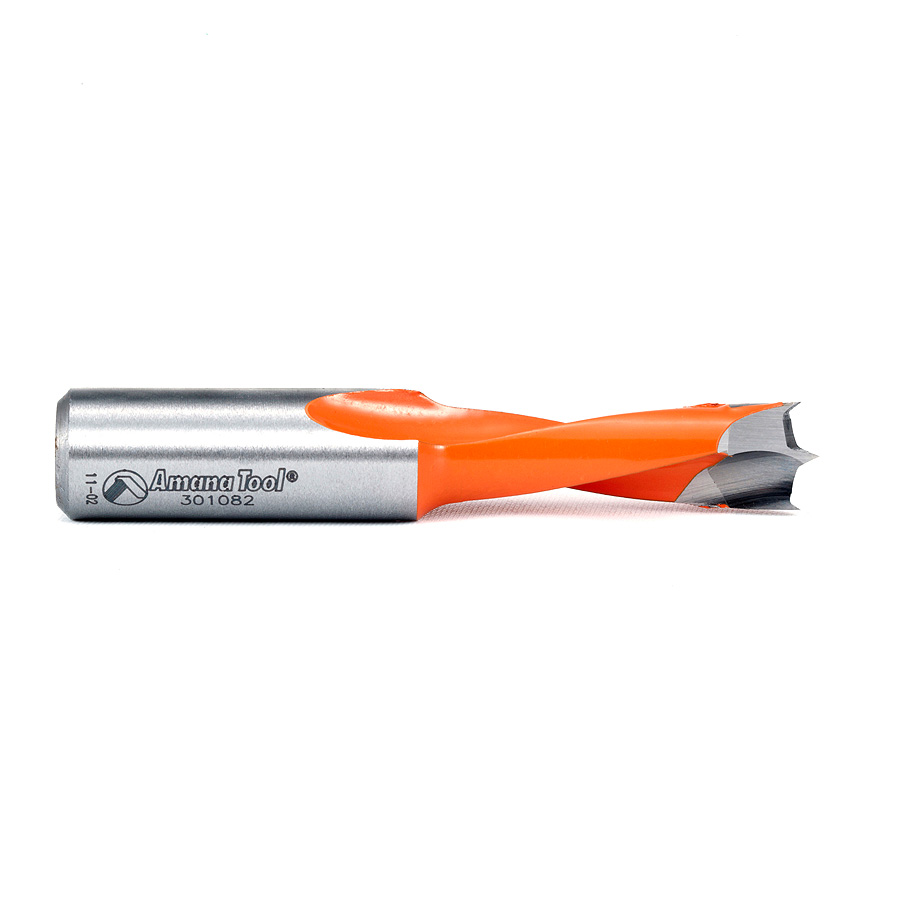

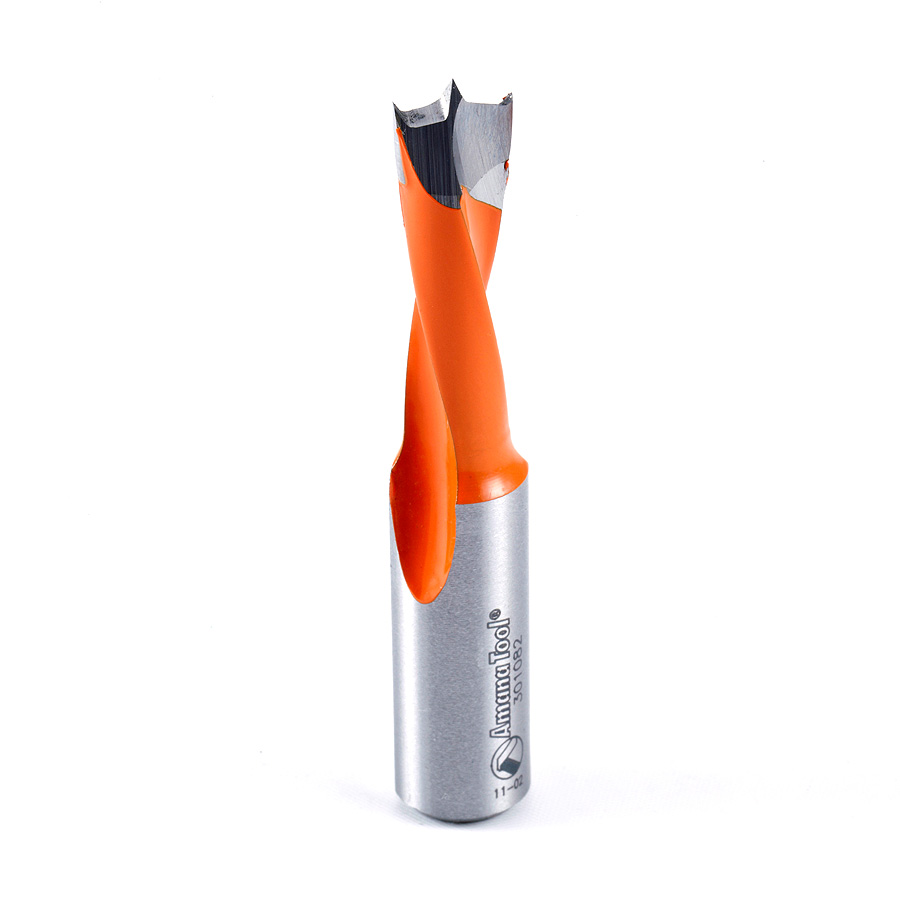

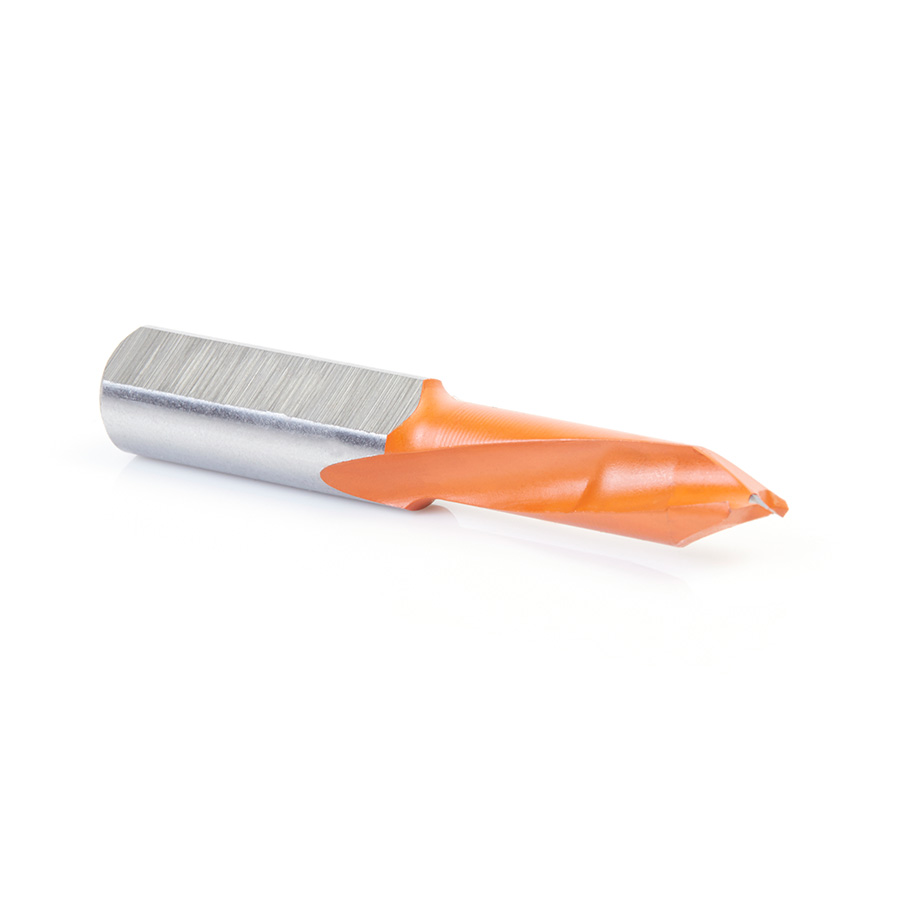

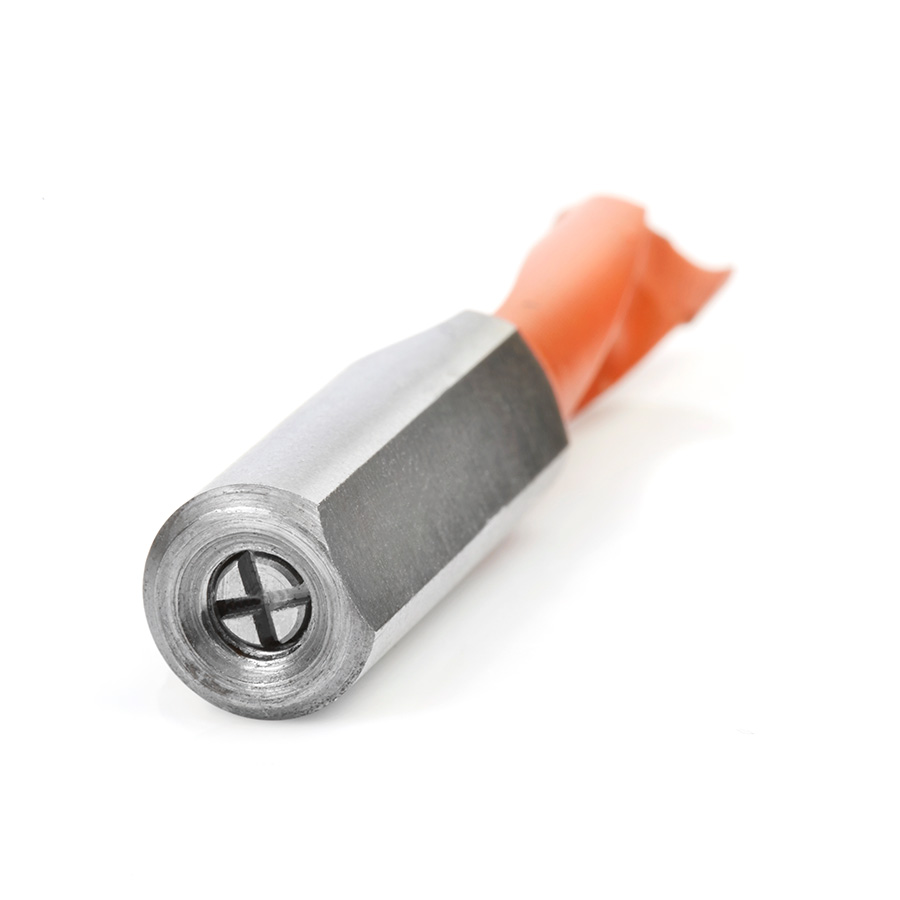

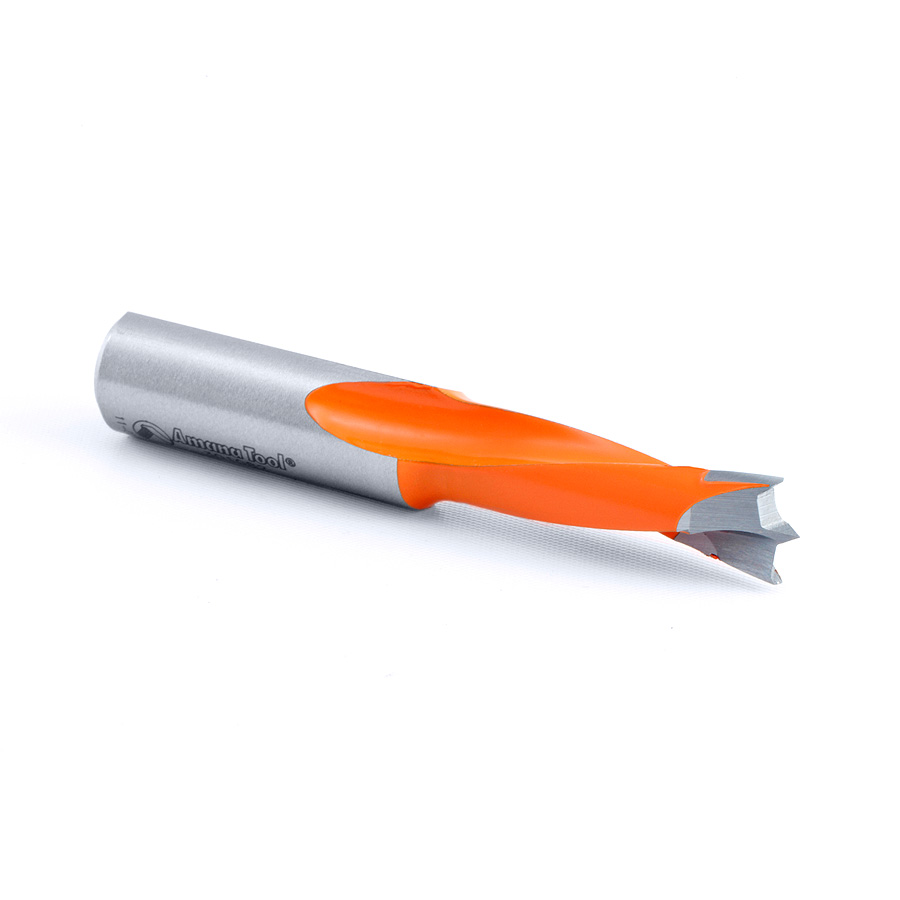

301082 Carbide Tipped Brad Point Boring Bit L/H 8.2mm Dia x 57mm Long x 10mm Shank

Amana 301082 Carbide Tipped Brad Point Boring Bit L/H 8.2mm Dia x 57mm Long x 10mm Shank

Name: Amana 301082 Carbide Tipped Brad Point Boring Bit L/H 8.2mm Dia x 57mm Long x 10mm Shank
SKU: Amana 301082
Availability: InStock

Original price was: $41.85.Current price is: $29.30.

8.2MM BORING BIT L/H 57MM LONG

UPC: 738685301883 SKU: Amana 301082 Categories: 57mm Long Brad Point Boring Bits, Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits

Item Description

Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.

Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.

Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.

Specifications

(D) Diameter	8.2mm
(B) Cutting Height	27mm
(d) Shank	10mm
Overall Length (L)	57mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
3mm	18mm	10mm	57mm	Right	201003
3mm	18mm	10mm	57mm	Left	301003
3.2mm	27mm	10mm	57mm	Right	201032
3.2mm	27mm	10mm	57mm	Left	301032
4mm	27mm	10mm	57mm	Right	201004
4mm	27mm	10mm	57mm	Left	301004
4.5mm	27mm	10mm	57mm	Right	201045
5mm	27mm	10mm	57mm	Right	201005
5.1mm	27mm	10mm	57mm	Right	201051
5.2mm	27mm	10mm	57mm	Right	201052
5mm	27mm	10mm	57mm	Left	301005
5.2mm	27mm	10mm	57mm	Left	301052
5.5mm	27mm	10mm	57mm	Right	201055
5.5mm	27mm	10mm	57mm	Left	301055
6mm	27mm	10mm	57mm	Right	201006
6mm	27mm	10mm	57mm	Left	301006
1/4 (6.35mm)	27mm	10mm	57mm	Right	201007
1/4 (6.35mm)	27mm	10mm	57mm	Left	301007
6.5mm	27mm	10mm	57mm	Right	201065
6.7mm	27mm	10mm	57mm	Left	301067
7mm	27mm	10mm	57mm	Right	201070
7mm	27mm	10mm	57mm	Left	301070
7.5mm	27mm	10mm	57mm	Right	201075
7.5mm	27mm	10mm	57mm	Left	301075
8mm	27mm	10mm	57mm	Right	201008
8mm	27mm	10mm	57mm	Left	301008
8.2mm	27mm	10mm	57mm	Right	201082
9mm	27mm	10mm	57mm	Right	201090
3/8 (9.53mm)	27mm	10mm	57mm	Right	201009
3/8 (9.53mm)	27mm	10mm	57mm	Left	301009
10mm	27mm	10mm	57mm	Right	201010
10mm	27mm	10mm	57mm	Left	301010
10.5mm	27mm	10mm	57mm	Right	201105
12mm	27mm	10mm	57mm	Right	201012
1/2 (12.70mm)	27mm	10mm	57mm	Right	201013
1/2 (12.70mm)	27mm	10mm	57mm	Left	301013
14mm	27mm	10mm	57mm	Right	201014
14mm	27mm	10mm	57mm	Left	301014
15mm	27mm	10mm	57mm	Right	201015
15mm	27mm	10mm	57mm	Left	301015
17mm	27mm	10mm	57mm	Right	201017
19mm	27mm	10mm	57mm	Right	201019
20mm	27mm	10mm	57mm	Right	201020

Weight	0.05 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
