Sale!

301032 Solid Carbide Cutting Edge Brad Point Boring Bit L/H 3.2mm Dia x 57mm Long x 10mm Shank

Amana 301032 Solid Carbide Cutting Edge Brad Point Boring Bit L/H 3.2mm Dia x 57mm Long x 10mm Shank

Name: Amana 301032 Solid Carbide Cutting Edge Brad Point Boring Bit L/H 3.2mm Dia x 57mm Long x 10mm Shank
SKU: Amana 301032
Availability: InStock

Original price was: $53.20.Current price is: $37.24.

3.2MM BRAD POINT L/H 57MM LNG

UPC: 738685323014 SKU: Amana 301032 Categories: 57mm Long Brad Point Boring Bits, Amana Tool, Boring & Drilling Bits, Brad Point Boring Bits

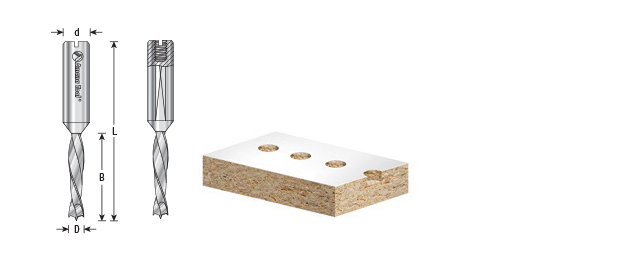

Specifications

(D) Diameter	3.2mm
(B) Cutting Height	27mm
(d) Shank	10mm
Overall Length (L)	57mm
Rotation	Left Hand

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Rotation	Tool No.
3mm	18mm	10mm	57mm	Right	201003
3mm	18mm	10mm	57mm	Left	301003
3.2mm	27mm	10mm	57mm	Right	201032
4mm	27mm	10mm	57mm	Right	201004
4mm	27mm	10mm	57mm	Left	301004
4.5mm	27mm	10mm	57mm	Right	201045
5mm	27mm	10mm	57mm	Right	201005
5.1mm	27mm	10mm	57mm	Right	201051
5.2mm	27mm	10mm	57mm	Right	201052
5mm	27mm	10mm	57mm	Left	301005
5.2mm	27mm	10mm	57mm	Left	301052
5.5mm	27mm	10mm	57mm	Right	201055
5.5mm	27mm	10mm	57mm	Left	301055
6mm	27mm	10mm	57mm	Right	201006
6mm	27mm	10mm	57mm	Left	301006
1/4 (6.35mm)	27mm	10mm	57mm	Right	201007
1/4 (6.35mm)	27mm	10mm	57mm	Left	301007
6.5mm	27mm	10mm	57mm	Right	201065
6.7mm	27mm	10mm	57mm	Left	301067
7mm	27mm	10mm	57mm	Right	201070
7mm	27mm	10mm	57mm	Left	301070
7.5mm	27mm	10mm	57mm	Right	201075
7.5mm	27mm	10mm	57mm	Left	301075
8mm	27mm	10mm	57mm	Right	201008
8mm	27mm	10mm	57mm	Left	301008
8.2mm	27mm	10mm	57mm	Right	201082
8.2mm	27mm	10mm	57mm	Left	301082
9mm	27mm	10mm	57mm	Right	201090
3/8 (9.53mm)	27mm	10mm	57mm	Right	201009
3/8 (9.53mm)	27mm	10mm	57mm	Left	301009
10mm	27mm	10mm	57mm	Right	201010
10mm	27mm	10mm	57mm	Left	301010
10.5mm	27mm	10mm	57mm	Right	201105
12mm	27mm	10mm	57mm	Right	201012
1/2 (12.70mm)	27mm	10mm	57mm	Right	201013
1/2 (12.70mm)	27mm	10mm	57mm	Left	301013
14mm	27mm	10mm	57mm	Right	201014
14mm	27mm	10mm	57mm	Left	301014
15mm	27mm	10mm	57mm	Right	201015
15mm	27mm	10mm	57mm	Left	301015
17mm	27mm	10mm	57mm	Right	201017
19mm	27mm	10mm	57mm	Right	201019
20mm	27mm	10mm	57mm	Right	201020

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
