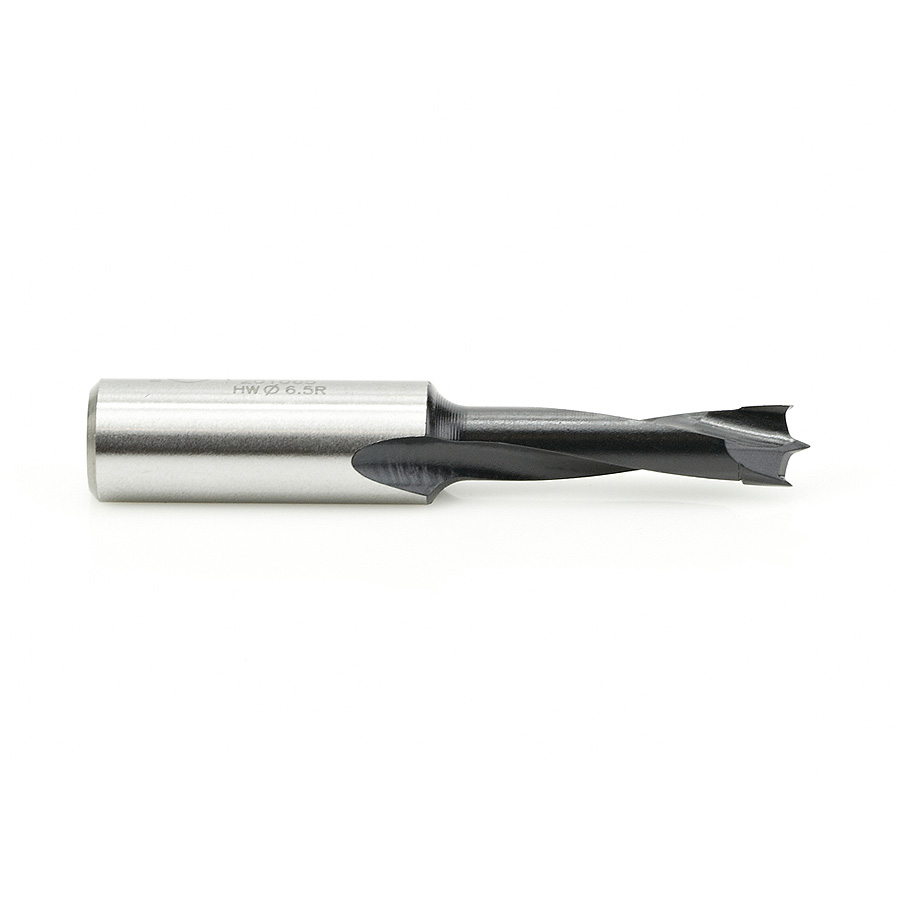

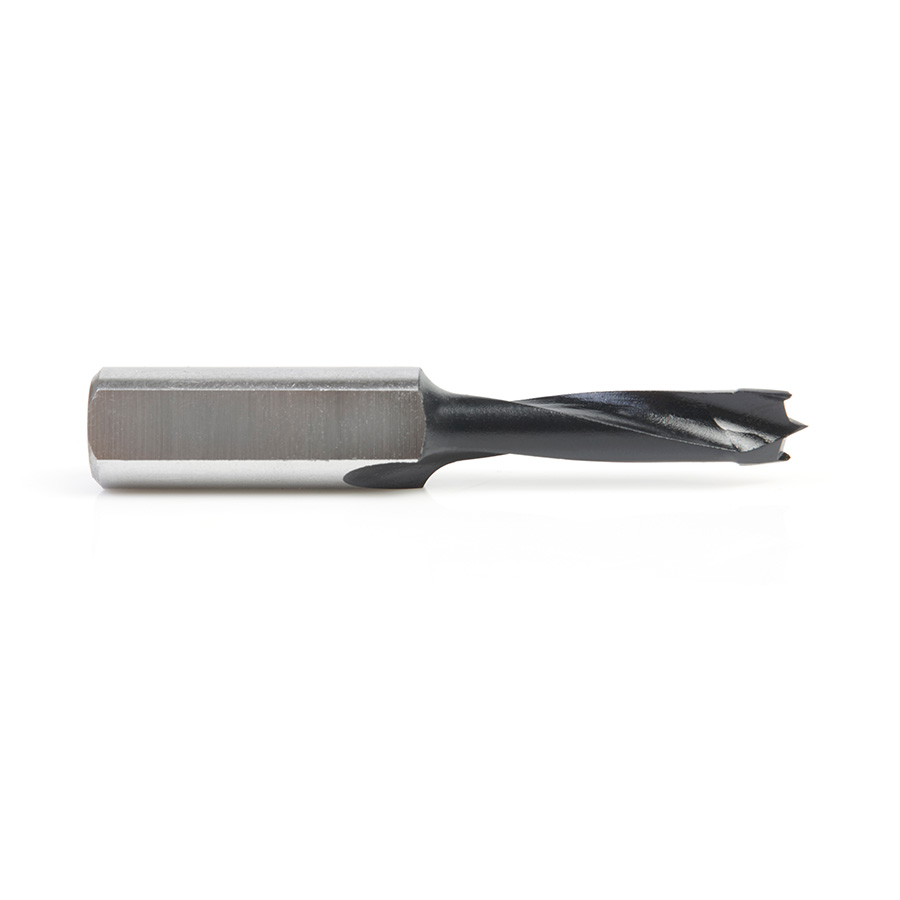

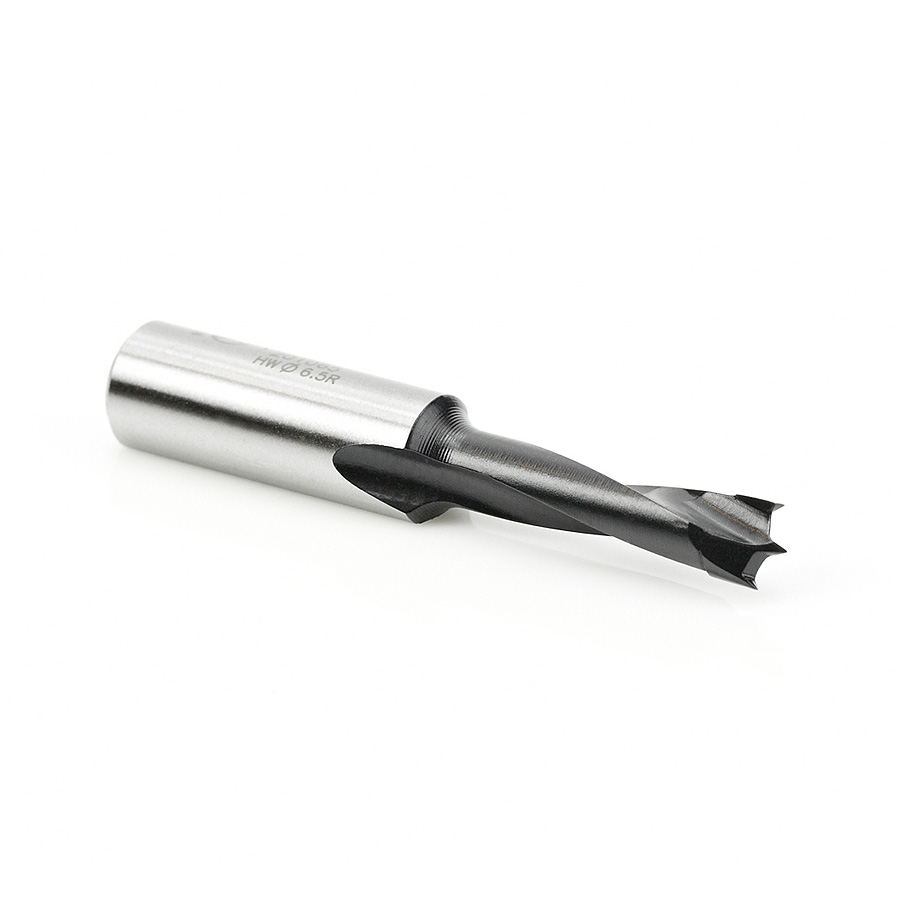

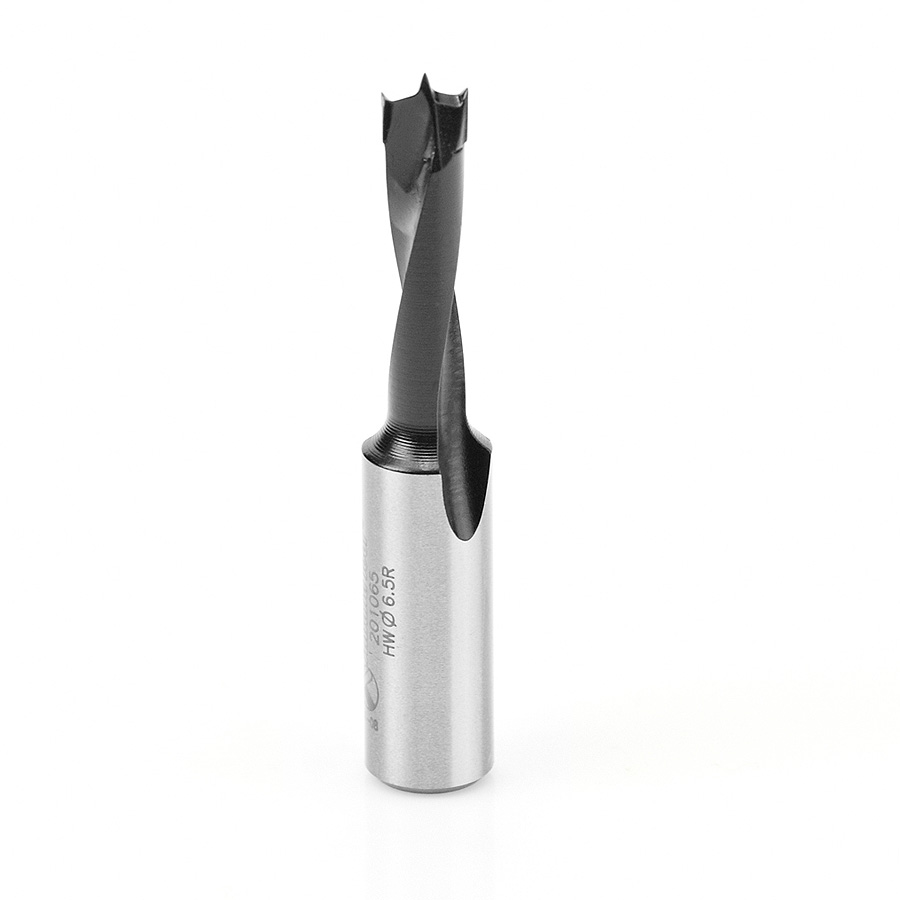

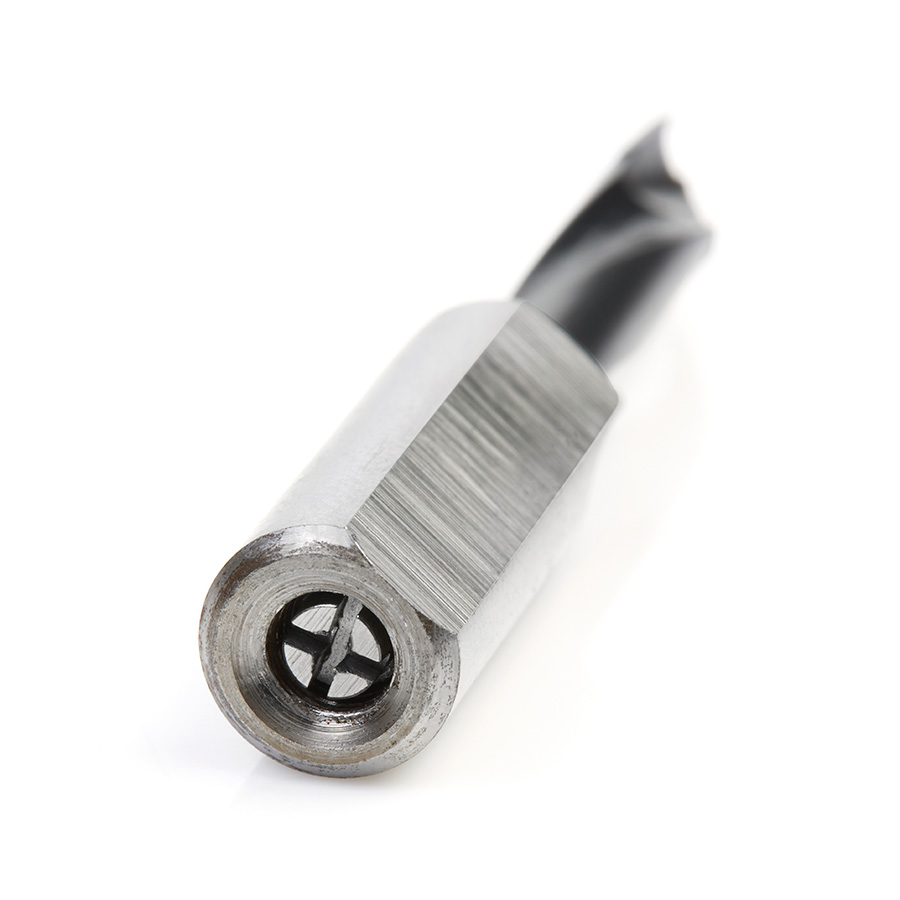

Amana 201065 Carbide Tipped Brad Point Boring Bit R/H 6.5mm Dia x 57mm Long x 10mm Shank
Original price was: $43.20.$30.24Current price is: $30.24.
6.5MM BRAD POINT R/H 57MM LONG
Item Description
Industrial Brad Point Boring Bits are coated with a non-stick coating for longer lasting cutting edge and tool life.
Amana Tool® dowel drills are coated with a special Polytetrafluoroethylene (PTFE), a non-stick color coating. In cases where the carbide tip cutting edges are coated, there is no need to sand the coating off before use. Once the tool starts drilling, the coating is cleared off the needed cutting edge right away.
Amana’s coating is applied onto the bit at a temperature of 570° F. The coating reduces the friction between the chip and the body inside the flute and it helps to clear the chips out of the hole during the drilling creating a cooler drilling area, no burning and longer lasting cutting edge.
Specifications
| (D) Diameter | 6.5mm |
|---|---|
| (B) Cutting Height | 27mm |
| (d) Shank | 10mm |
| Overall Length (L) | 57mm |
| Rotation | Right Hand |
Other Sizes Available
| (D) Diameter | (B) Cutting Height | (d) Shank | Overall Length (L) | Rotation | Tool No. |
|---|---|---|---|---|---|
| 3mm | 18mm | 10mm | 57mm | Right | 201003 |
| 3mm | 18mm | 10mm | 57mm | Left | 301003 |
| 3.2mm | 27mm | 10mm | 57mm | Right | 201032 |
| 3.2mm | 27mm | 10mm | 57mm | Left | 301032 |
| 4mm | 27mm | 10mm | 57mm | Right | 201004 |
| 4mm | 27mm | 10mm | 57mm | Left | 301004 |
| 4.5mm | 27mm | 10mm | 57mm | Right | 201045 |
| 5mm | 27mm | 10mm | 57mm | Right | 201005 |
| 5.1mm | 27mm | 10mm | 57mm | Right | 201051 |
| 5.2mm | 27mm | 10mm | 57mm | Right | 201052 |
| 5mm | 27mm | 10mm | 57mm | Left | 301005 |
| 5.2mm | 27mm | 10mm | 57mm | Left | 301052 |
| 5.5mm | 27mm | 10mm | 57mm | Right | 201055 |
| 5.5mm | 27mm | 10mm | 57mm | Left | 301055 |
| 6mm | 27mm | 10mm | 57mm | Right | 201006 |
| 6mm | 27mm | 10mm | 57mm | Left | 301006 |
| 1/4 (6.35mm) | 27mm | 10mm | 57mm | Right | 201007 |
| 1/4 (6.35mm) | 27mm | 10mm | 57mm | Left | 301007 |
| 6.7mm | 27mm | 10mm | 57mm | Left | 301067 |
| 7mm | 27mm | 10mm | 57mm | Right | 201070 |
| 7mm | 27mm | 10mm | 57mm | Left | 301070 |
| 7.5mm | 27mm | 10mm | 57mm | Right | 201075 |
| 7.5mm | 27mm | 10mm | 57mm | Left | 301075 |
| 8mm | 27mm | 10mm | 57mm | Right | 201008 |
| 8mm | 27mm | 10mm | 57mm | Left | 301008 |
| 8.2mm | 27mm | 10mm | 57mm | Right | 201082 |
| 8.2mm | 27mm | 10mm | 57mm | Left | 301082 |
| 9mm | 27mm | 10mm | 57mm | Right | 201090 |
| 3/8 (9.53mm) | 27mm | 10mm | 57mm | Right | 201009 |
| 3/8 (9.53mm) | 27mm | 10mm | 57mm | Left | 301009 |
| 10mm | 27mm | 10mm | 57mm | Right | 201010 |
| 10mm | 27mm | 10mm | 57mm | Left | 301010 |
| 10.5mm | 27mm | 10mm | 57mm | Right | 201105 |
| 12mm | 27mm | 10mm | 57mm | Right | 201012 |
| 1/2 (12.70mm) | 27mm | 10mm | 57mm | Right | 201013 |
| 1/2 (12.70mm) | 27mm | 10mm | 57mm | Left | 301013 |
| 14mm | 27mm | 10mm | 57mm | Right | 201014 |
| 14mm | 27mm | 10mm | 57mm | Left | 301014 |
| 15mm | 27mm | 10mm | 57mm | Right | 201015 |
| 15mm | 27mm | 10mm | 57mm | Left | 301015 |
| 17mm | 27mm | 10mm | 57mm | Right | 201017 |
| 19mm | 27mm | 10mm | 57mm | Right | 201019 |
| 20mm | 27mm | 10mm | 57mm | Right | 201020 |
| Weight | 0.05 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
