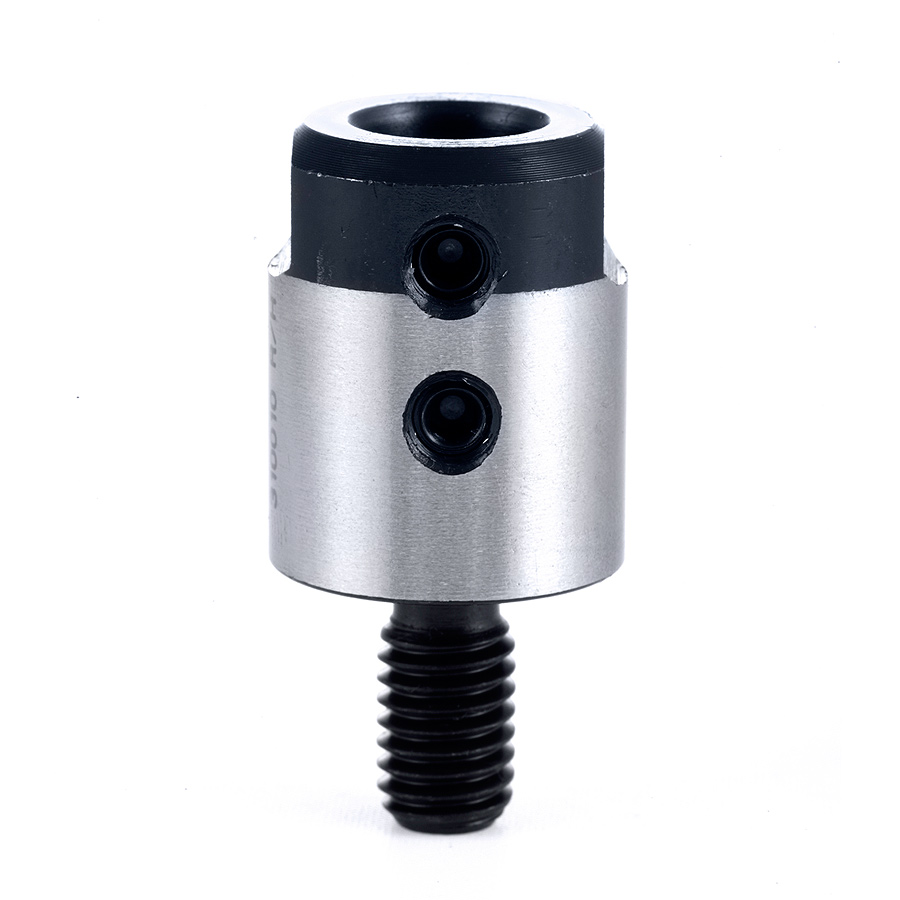

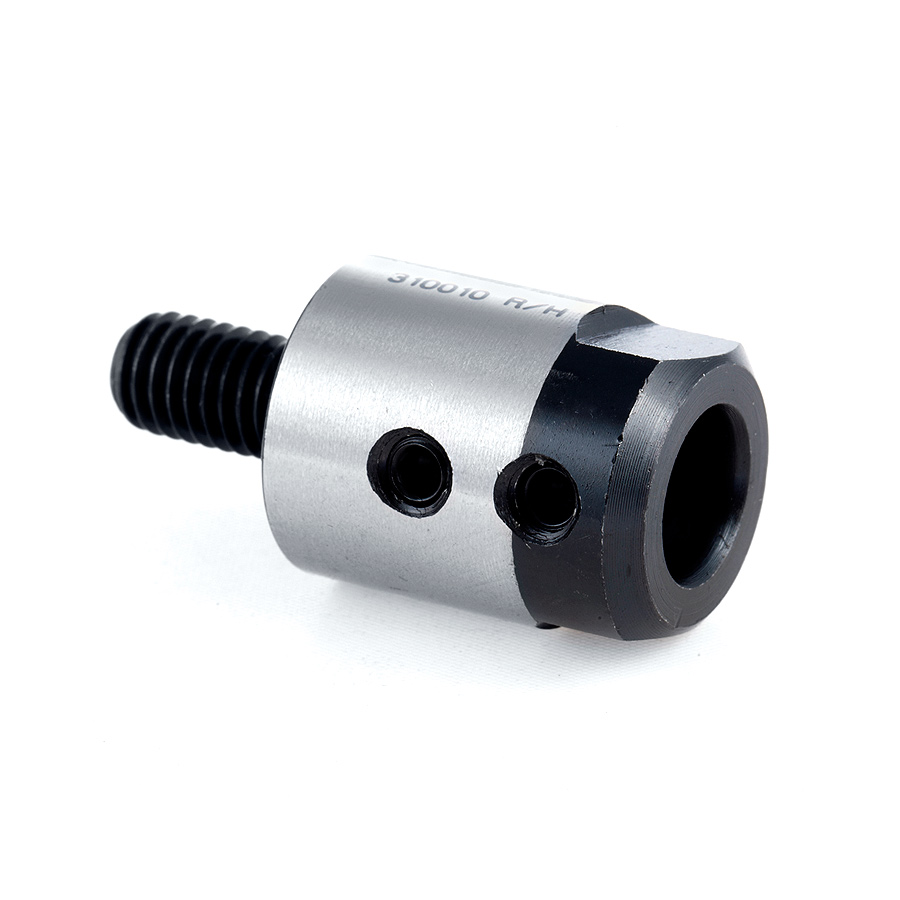

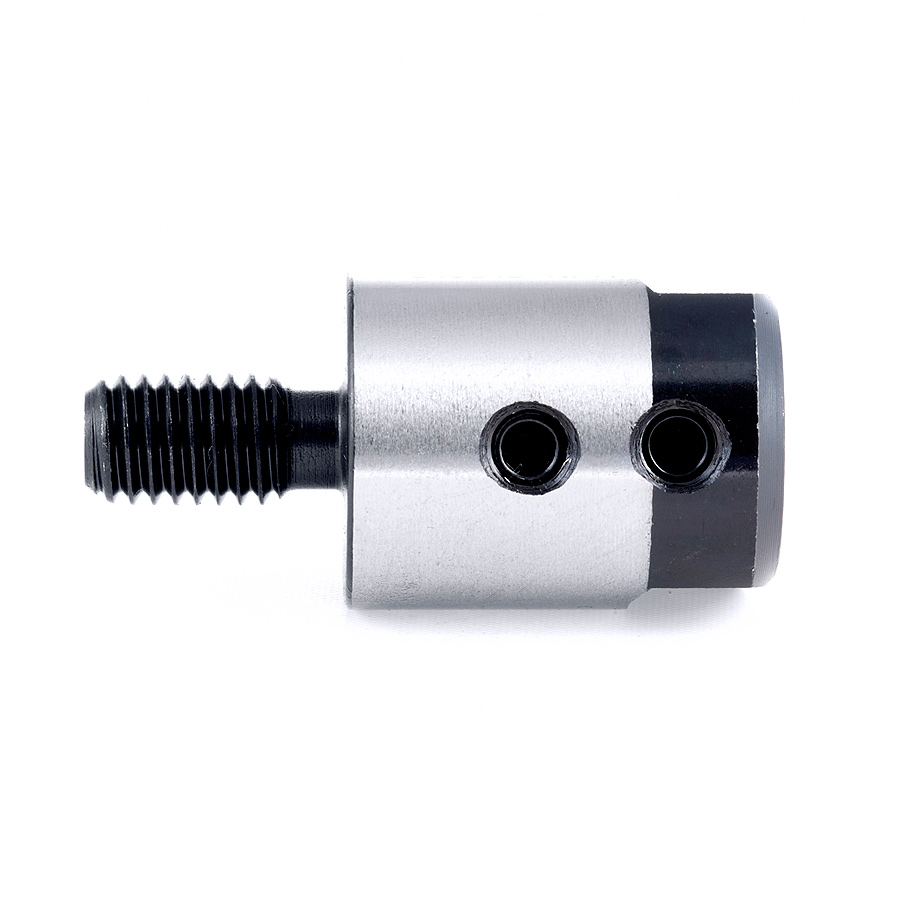

310010 R/H Boring Machine Replacement Chuck for 10mm Shank

Amana 310010 R/H Boring Machine Replacement Chuck for 10mm Shank

Name: Amana 310010 R/H Boring Machine Replacement Chuck for 10mm Shank
SKU: Amana 310010
Availability: InStock

Original price was: $25.60.Current price is: $17.92.

10MM CHUCK R/H

UPC: 738685663103 SKU: Amana 310010 Categories: Amana Tool, Boring & Drilling Bits, Boring Machine Accessories, Boring Machine Replacement Chucks for In-Line Boring Machines3

Item Description

Application: Replace worn or damaged chucks. In stock for immediate delivery. Meets or exceeds O.E.M. specifications.

Due to many different styles, please order carefully.

Right hand tools rotate clockwise.

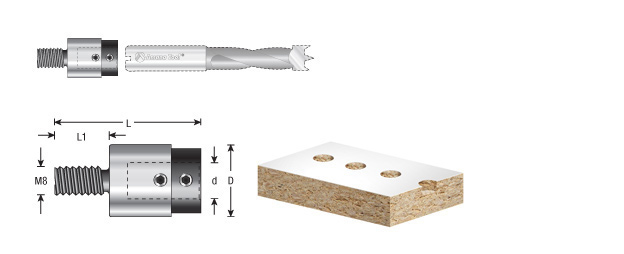

Specifications

(D) Diameter	19.5mm
(d) Shank	10mm
Overall Length (L)	40mm
Rotation	Right Hand
Chuck for	Nottmeyer Machines
M	(8mm)
Description	Style 310
L1	(15mm)
Set Screw	67097

Other Sizes Available

Chuck for	(D) Diameter	L1	(a°) Angle	M	(d) Shank	Overall Length (L)	Rotation	Description	Tool No.
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Right	304	304010
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Left	304	304105
Morbidelli/Nottmeyer	19.3mm	(15mm)0.59	–	(8mm)0.31	10mm	41mm	Right	358	358010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Right	302	302010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Left	302	302105
Busselatto/Ompec	19.5mm	(11mm)0.43	30°	(10mm)0.39	10mm	46mm	Right	303	303010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Right	305	305010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Left	305	305105
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Left	310	310105
Scheer	19.5mm	–	–	(10mm)0.39	10mm	42mm	Left	359	359105

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
