358010 R/H Boring Machine Replacement Chuck for 10mm Shank

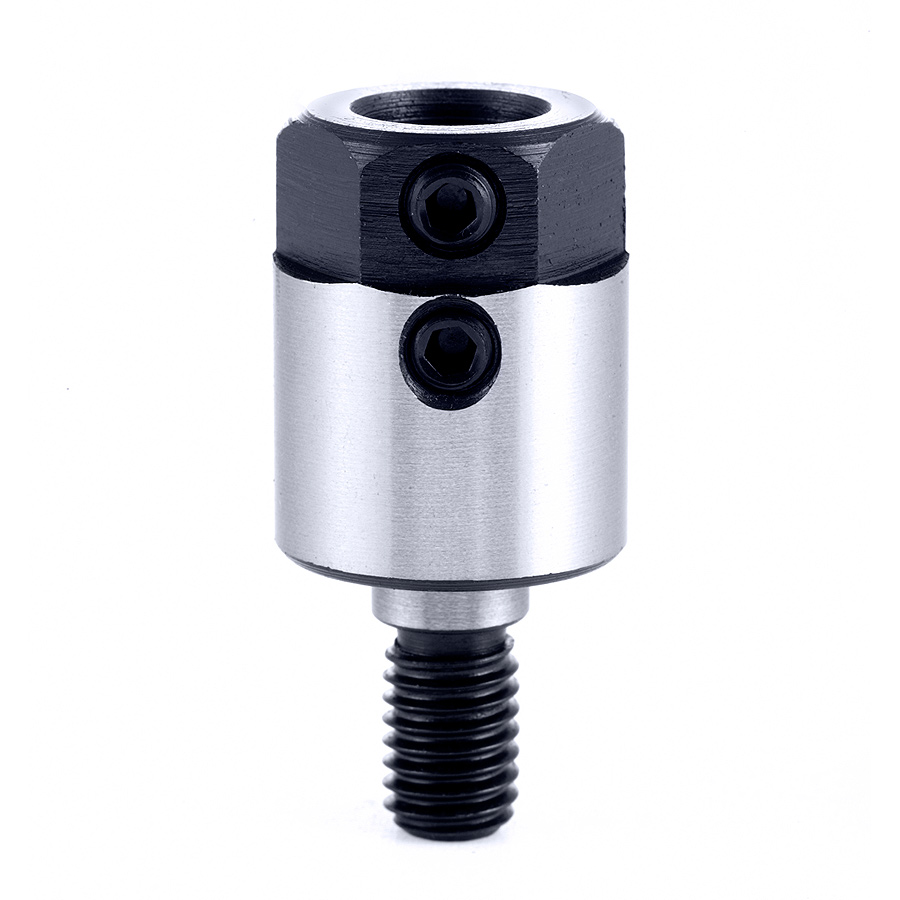

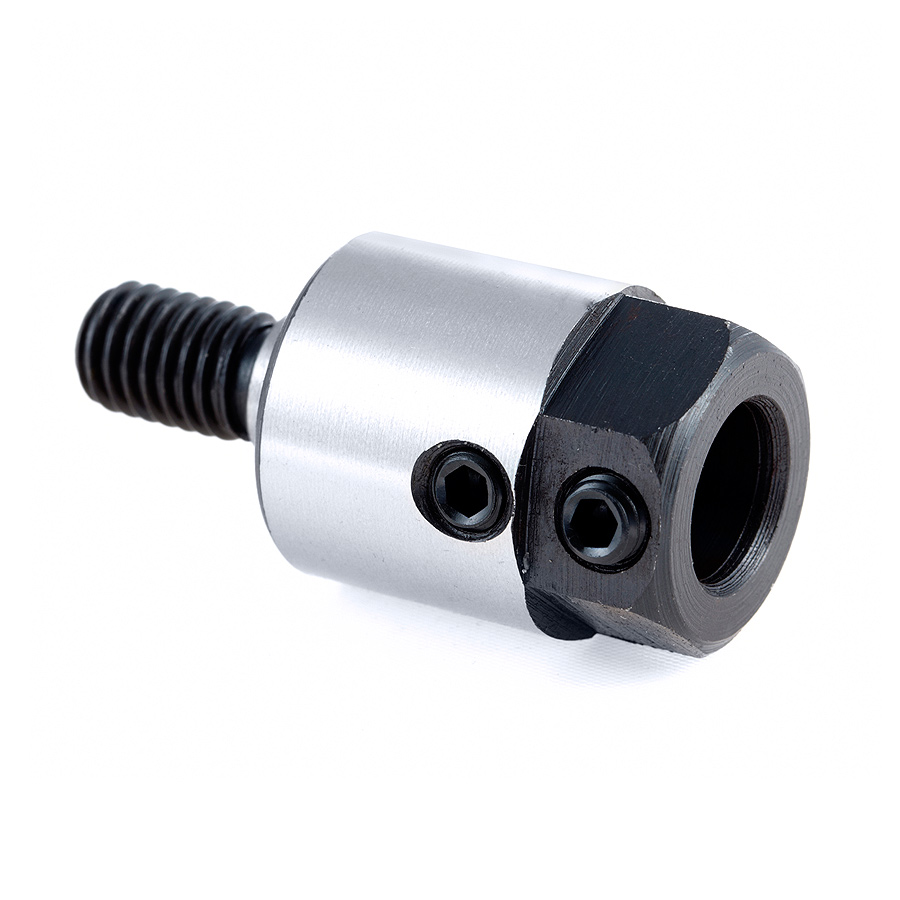

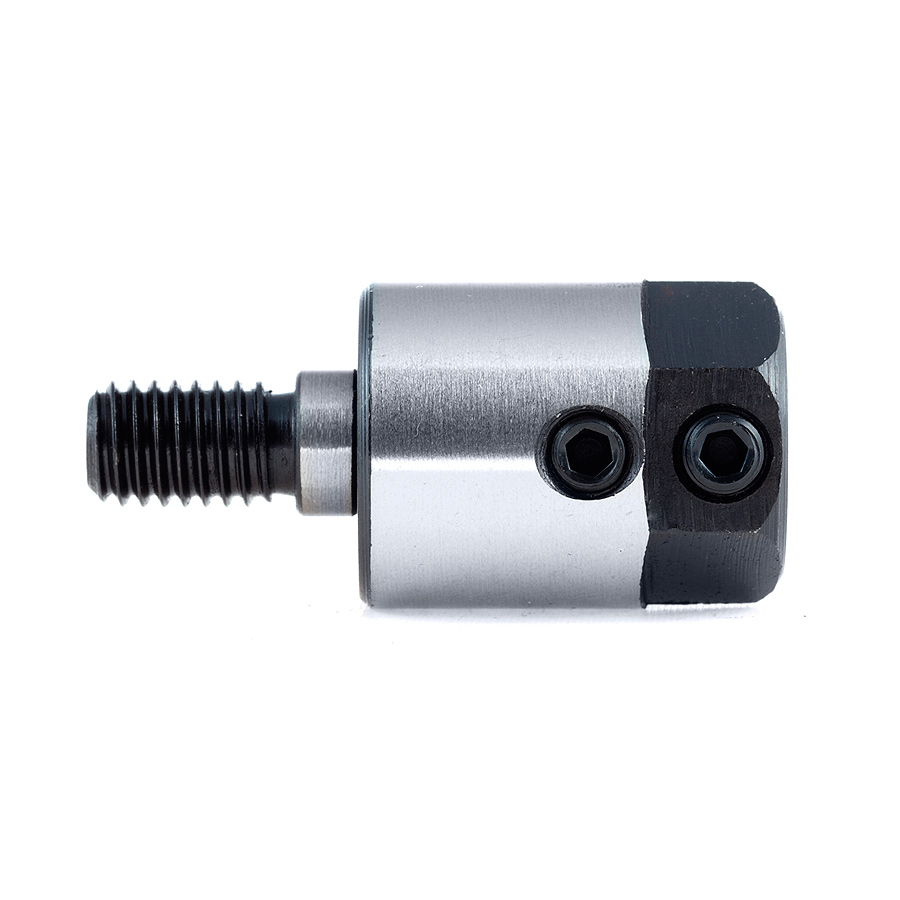

Amana 358010 R/H Boring Machine Replacement Chuck for 10mm Shank

Name: Amana 358010 R/H Boring Machine Replacement Chuck for 10mm Shank
SKU: Amana 358010
Availability: InStock

Original price was: $21.80.Current price is: $15.26.

10MM CHUCK R/H

UPC: 738685358108 SKU: Amana 358010 Categories: Amana Tool, Boring & Drilling Bits, Boring Machine Accessories, Boring Machine Replacement Chucks for In-Line Boring Machines3

Item Description

Application: Replace worn or damaged chucks. In stock for immediate delivery. Meets or exceeds O.E.M. specifications.Due to many different styles, please order carefully.

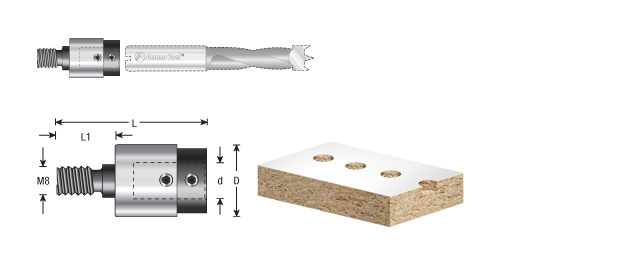

Specifications

(D) Diameter	19.3mm
(d) Shank	10mm
Overall Length (L)	41mm
Rotation	Right Hand
Chuck for	Morbidelli/Nottmeyer Machines
M	(8mm)
Description	Style 358
L1	(15mm)
Set Screw	67097

Other Sizes Available

Chuck for	(D) Diameter	L1	(a°) Angle	M	(d) Shank	Overall Length (L)	Rotation	Description	Tool No.
–	3mm	–	–	–	10mm	57mm	Right	–	201003
–	3.2mm	–	–	–	10mm	57mm	Right	–	201032
–	4mm	–	–	–	10mm	57mm	Right	–	201004
–	4.5mm	–	–	–	10mm	57mm	Right	–	201045
–	5mm	–	–	–	10mm	57mm	Right	–	201005
–	5.1mm	–	–	–	10mm	57mm	Right	–	201051
–	5.2mm	–	–	–	10mm	57mm	Right	–	201052
–	5.5mm	–	–	–	10mm	57mm	Right	–	201055
–	6mm	–	–	–	10mm	57mm	Right	–	201006
–	6.5mm	–	–	–	10mm	57mm	Right	–	201065
–	7mm	–	–	–	10mm	57mm	Right	–	201070
–	7.5mm	–	–	–	10mm	57mm	Right	–	201075
–	8mm	–	–	–	10mm	57mm	Right	–	201008
–	8.2mm	–	–	–	10mm	57mm	Right	–	201082
–	9mm	–	–	–	10mm	57mm	Right	–	201090
–	3/8 (9.53mm)	–	–	–	10mm	57mm	Right	–	201009
–	10mm	–	–	–	10mm	57mm	Right	–	201010
–	10.5mm	–	–	–	10mm	57mm	Right	–	201105
–	12mm	–	–	–	10mm	57mm	Right	–	201012
–	1/2 (12.70mm)	–	–	–	10mm	57mm	Right	–	201013
–	14mm	–	–	–	10mm	57mm	Right	–	201014
–	15mm	–	–	–	10mm	57mm	Right	–	201015
–	17mm	–	–	–	10mm	57mm	Right	–	201017
–	19mm	–	–	–	10mm	57mm	Right	–	201019
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Right	304	304010
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Left	304	304105
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Right	302	302010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Left	302	302105
Busselatto/Ompec	19.5mm	(11mm)0.43	30°	(10mm)0.39	10mm	46mm	Right	303	303010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Right	305	305010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Left	305	305105
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Right	310	310010
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Left	310	310105
Scheer	19.5mm	–	–	(10mm)0.39	10mm	42mm	Left	359	359105
–	20mm	–	–	–	10mm	57mm	Right	–	201020

Weight	0.1 lbs
