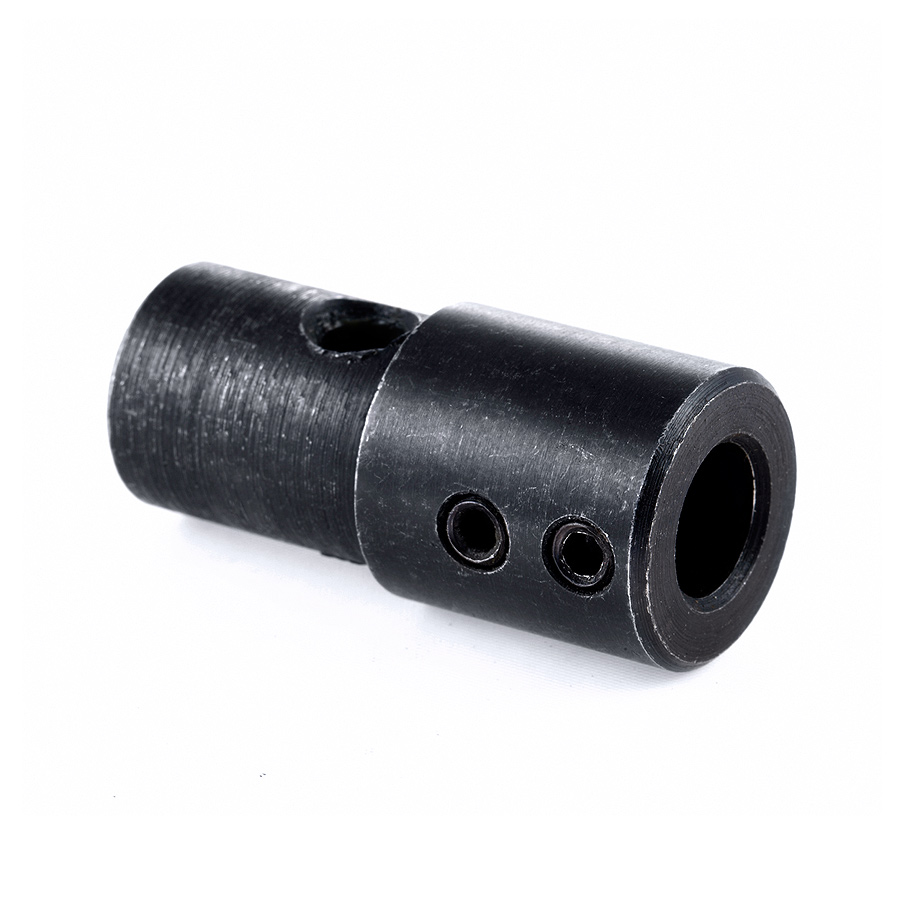

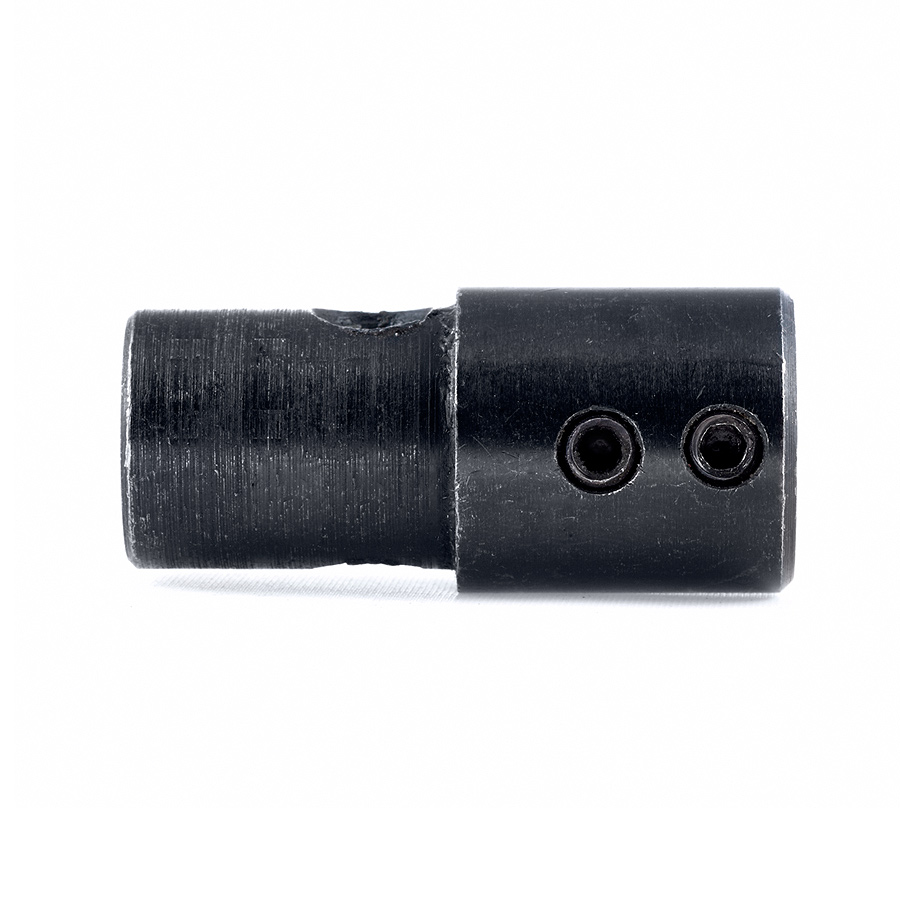

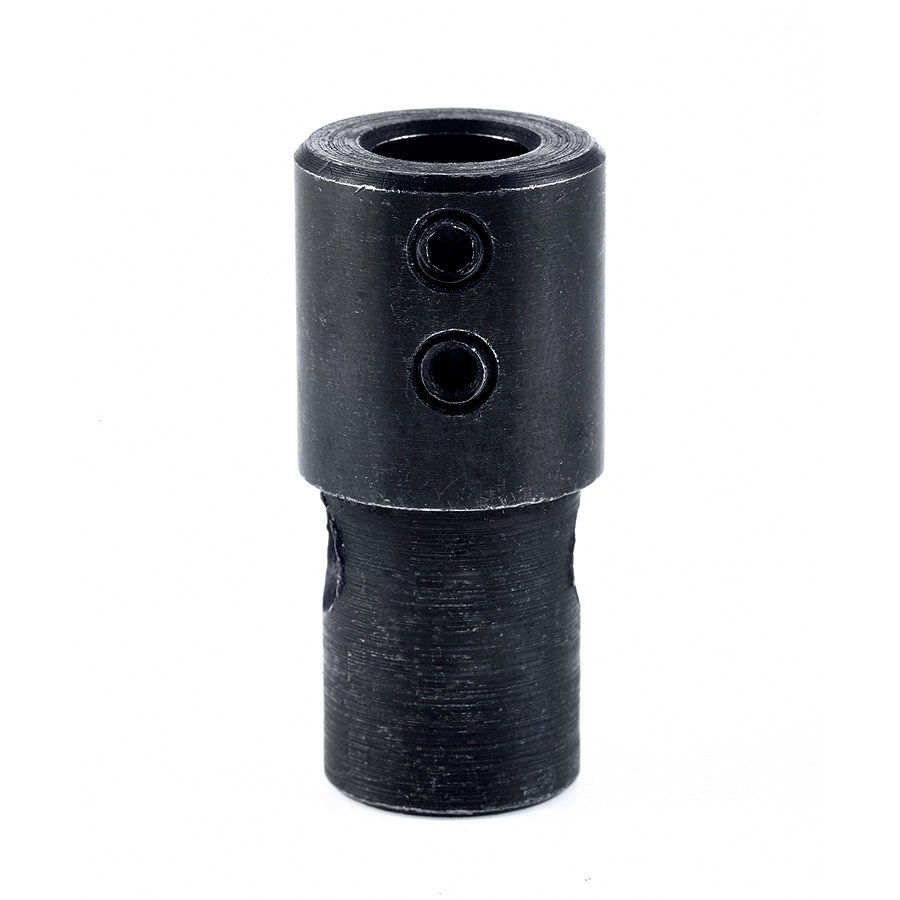

359105 L/H Boring Machine Replacement Chuck for 10mm Shank

Amana 359105 L/H Boring Machine Replacement Chuck for 10mm Shank

Name: Amana 359105 L/H Boring Machine Replacement Chuck for 10mm Shank
SKU: Amana 359105
Availability: InStock

Original price was: $40.70.Current price is: $28.49.

10MM CHUCK L/H

UPC: 738685359150 SKU: Amana 359105 Categories: Amana Tool, Boring & Drilling Bits, Boring Machine Accessories, Boring Machine Replacement Chucks for In-Line Boring Machines3

Item Description

Application: Replace worn or damaged chucks. In stock for immediate delivery. Meets or exceeds O.E.M. specifications.Due to many different styles, please order carefully. Left hand tools rotate counter-clockwise.

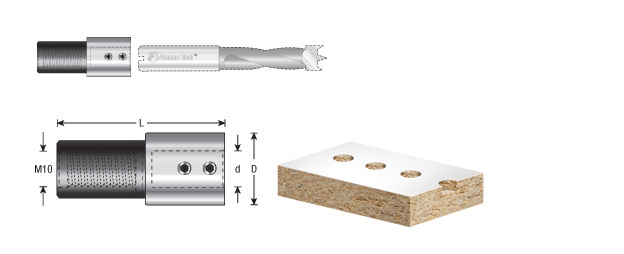

Specifications

(D) Diameter	19.5mm
(d) Shank	10mm
Overall Length (L)	42mm
Rotation	Left Hand
Chuck for	Scheer Machines
M	(10mm)
Description	Style 359
Set Screw	67097

Other Sizes Available

Chuck for	(D) Diameter	L1	(a°) Angle	M	(d) Shank	Overall Length (L)	Rotation	Description	Tool No.
–	3mm	–	–	–	10mm	57mm	Right	–	201003
–	3.2mm	–	–	–	10mm	57mm	Right	–	201032
–	4mm	–	–	–	10mm	57mm	Right	–	201004
–	4.5mm	–	–	–	10mm	57mm	Right	–	201045
–	5mm	–	–	–	10mm	57mm	Right	–	201005
–	5.1mm	–	–	–	10mm	57mm	Right	–	201051
–	5.2mm	–	–	–	10mm	57mm	Right	–	201052
–	5.5mm	–	–	–	10mm	57mm	Right	–	201055
–	6mm	–	–	–	10mm	57mm	Right	–	201006
–	1/4 (6.35mm)	–	–	–	10mm	57mm	Right	–	201007
–	6.5mm	–	–	–	10mm	57mm	Right	–	201065
–	7mm	–	–	–	10mm	57mm	Right	–	201070
–	7.5mm	–	–	–	10mm	57mm	Right	–	201075
–	8mm	–	–	–	10mm	57mm	Right	–	201008
–	8.2mm	–	–	–	10mm	57mm	Right	–	201082
–	9mm	–	–	–	10mm	57mm	Right	–	201090
–	10mm	–	–	–	10mm	57mm	Right	–	201010
–	10.5mm	–	–	–	10mm	57mm	Right	–	201105
–	12mm	–	–	–	10mm	57mm	Right	–	201012
–	1/2 (12.70mm)	–	–	–	10mm	57mm	Right	–	201013
–	14mm	–	–	–	10mm	57mm	Right	–	201014
–	15mm	–	–	–	10mm	57mm	Right	–	201015
–	17mm	–	–	–	10mm	57mm	Right	–	201017
–	19mm	–	–	–	10mm	57mm	Right	–	201019
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Right	304	304010
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Left	304	304105
Morbidelli/Nottmeyer	19.3mm	(15mm)0.59	–	(8mm)0.31	10mm	41mm	Right	358	358010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Right	302	302010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Left	302	302105
Busselatto/Ompec	19.5mm	(11mm)0.43	30°	(10mm)0.39	10mm	46mm	Right	303	303010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Right	305	305010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Left	305	305105
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Right	310	310010
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Left	310	310105
–	20mm	–	–	–	10mm	57mm	Right	–	201020

Weight	0.15 lbs
