Sale!

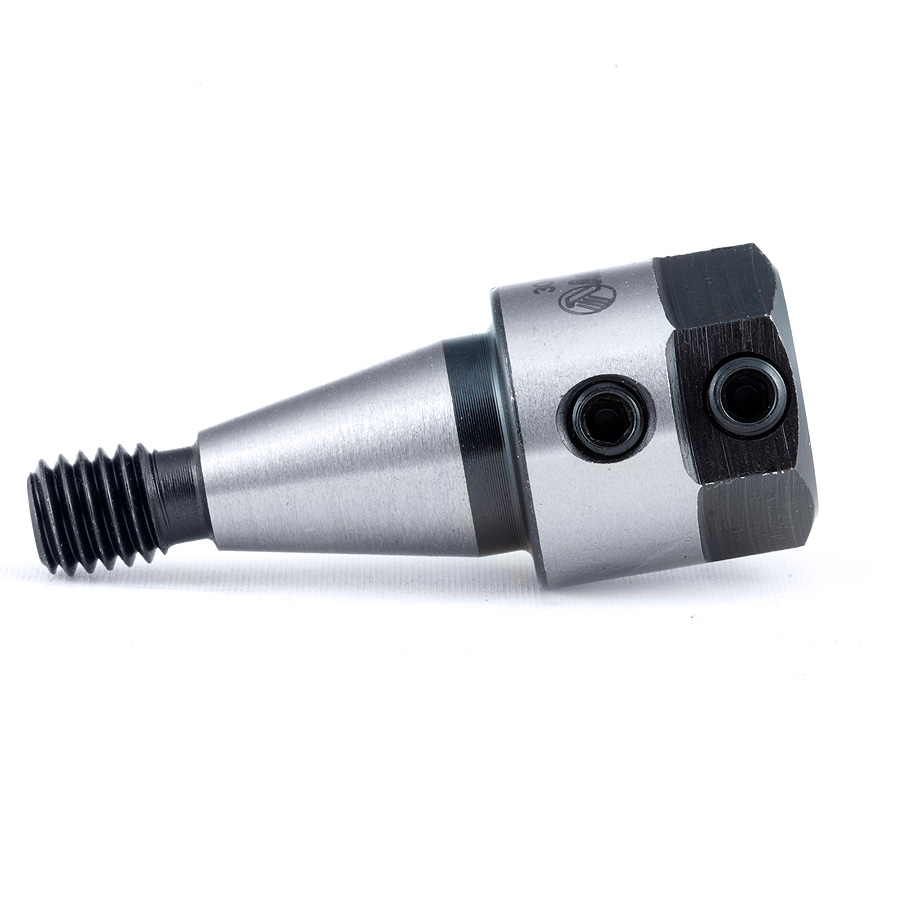

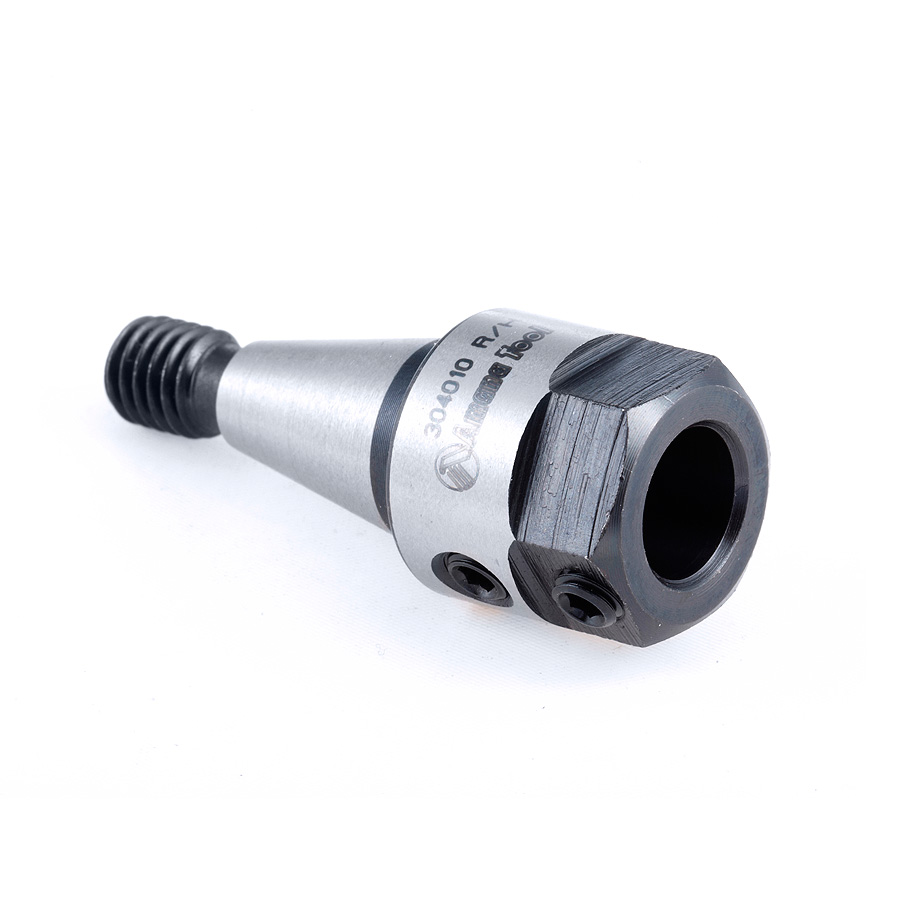

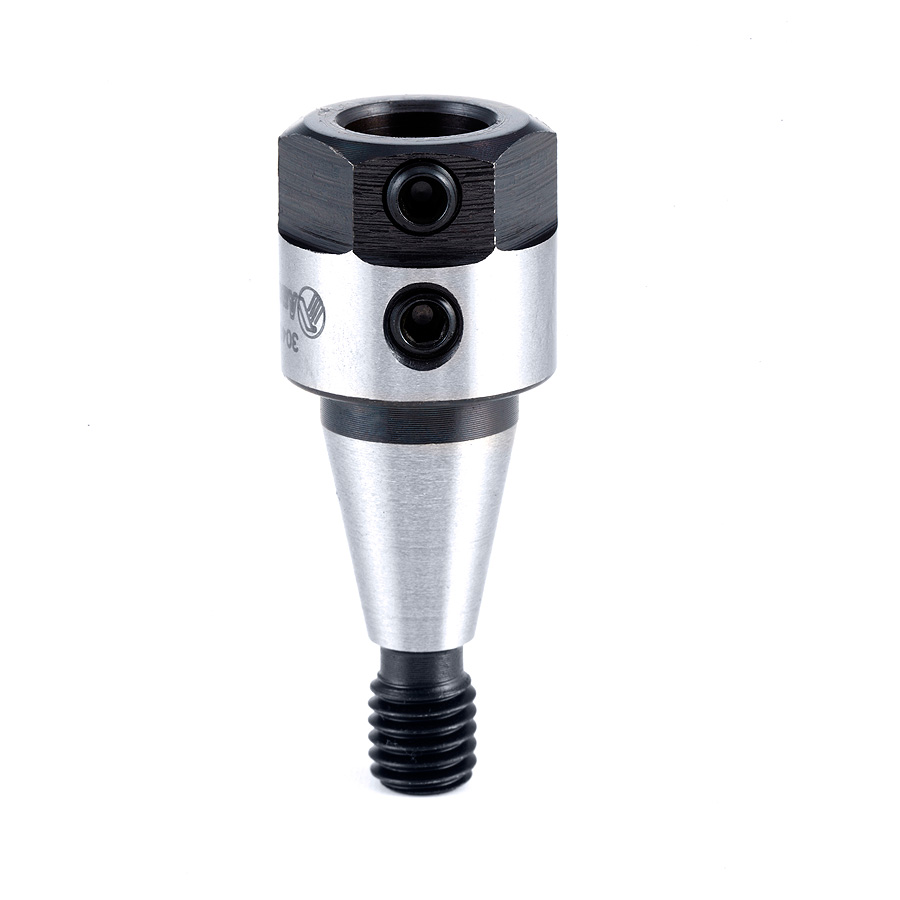

304010 R/H Boring Machine Replacement Chuck for 10mm Shank

Amana 304010 R/H Boring Machine Replacement Chuck for 10mm Shank

Original price was: $21.80.Current price is: $15.26.

10MM CHUCK R/H

UPC: 738685340103 SKU: Amana 304010 Categories: Amana Tool, Boring & Drilling Bits, Boring Machine Accessories, Boring Machine Replacement Chucks for In-Line Boring Machines3

Item Description

Application: Replace worn or damaged chucks. In stock for immediate delivery. Meets or exceeds O.E.M. specifications.Due to many different styles, please order carefully. Right hand tools rotate clockwise.

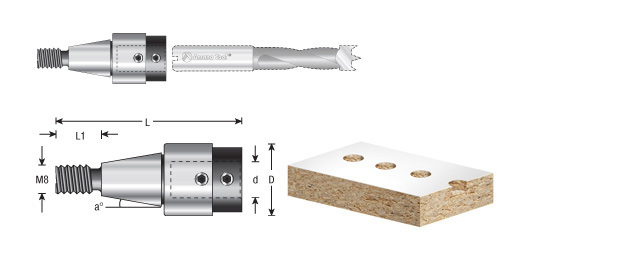

Specifications

(a°) Angle	20.8°
(D) Diameter	19.3mm
(d) Shank	10mm
Overall Length (L)	48mm
Rotation	Right Hand
Chuck for	Bilek Machines
M	(8mm)
Description	Style 304
L1	(11mm)
Set Screw	67097

Other Sizes Available

Chuck for	(D) Diameter	L1	(a°) Angle	M	(d) Shank	Overall Length (L)	Rotation	Description	Tool No.
Bilek	19.3mm	(11mm)0.43	20.8°	(8mm)0.31	10mm	48mm	Left	304	304105
Morbidelli/Nottmeyer	19.3mm	(15mm)0.59	–	(8mm)0.31	10mm	41mm	Right	358	358010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Right	302	302010
Torwegge/Ayen	19.5mm	(15mm)0.59	–	(10mm)0.39	10mm	40mm	Left	302	302105
Busselatto/Ompec	19.5mm	(11mm)0.43	30°	(10mm)0.39	10mm	46mm	Right	303	303010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Right	305	305010
Holz-Her/S.C.M.I./Morbidelli/	19.5mm	(16mm)0.63	–	(10mm)0.39	10mm	41mm	Left	305	305105
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Right	310	310010
Nottmeyer	19.5mm	(15mm)0.59	–	(8mm)0.31	10mm	40mm	Left	310	310105
Scheer	19.5mm	–	–	(10mm)0.39	10mm	42mm	Left	359	359105

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.

Need This Tool Customized?

Every machining application is different. If this tool is close to what you need but not an exact fit, General Cutting Tools can help modify it for your specific job, machine, material, or production requirement.

We work with CNC shops, industrial manufacturers, tool rooms, and production facilities to provide tool modifications that improve fit, function, performance, and efficiency. Whether you need a small adjustment or a more specialized cutting tool solution, our team can review your requirements and recommend the best option.

Custom tool modifications can help reduce setup time, improve accuracy, extend tool life, solve clearance issues, and support more consistent production results.

Common Tool Customization Options

Diameter and OD Modifications

We can modify tool diameters to better match your application requirements, including cutting diameter changes, OD modifications, pilot diameter adjustments, step diameters, and shank diameter modifications.

Bore Modifications for Saw Blades

Custom saw blade bore modifications are available for hole diameter changes, pinholes, mounting holes, and keyway cutouts to help match your machine setup and cutting requirements.

Length Adjustments

Tools can be modified for specific reach, clearance, or setup needs. This may include overall length changes, flute length adjustments, reduced neck sections, extended reach designs, or shortened tools for improved rigidity.

Shank Modifications

Shank modifications can help ensure the tool fits properly in your holder, spindle, or machine setup. Common options include shank diameter changes, flats, Weldon flats, reduced shanks, and custom holding requirements.

Radius, Chamfer, and Corner Changes

We can customize corner radius, chamfer angles, edge breaks, and other profile details to meet part print requirements or improve cutting performance.

Step Tool Modifications

For applications that require multiple diameters or operations in a single tool, we can create or modify step tools to help reduce tool changes and improve production efficiency.

Flute and Cutting Edge Adjustments

Depending on the tool and application, flute length, cutting edge geometry, end cutting features, relief angles, and cutting edge shape may be modified to improve chip evacuation, cutting action, and tool performance.

Regrinding and Resharpening

Many cutting tools can be reground or resharpened to restore performance, extend tool life, and reduce replacement costs.

Custom Profiles and Special Forms

For unique part features, we can help provide special forms, custom profiles, custom radii, counterbores, countersinks, keyseat cutters, form tools, and other application-specific tooling solutions.

Material-Specific Tool Adjustments

We can help modify or recommend tooling based on the material being machined, including aluminum, brass, bronze, plastics, stainless steel, hardened steel, cast iron, composites, and other industrial materials.

Have a Drawing, Sample, or Part Print?

Send us your print, sketch, CAD file, photo, tool number, sample, or application details. For the fastest quote, include the material being cut, quantity needed, required dimensions, tolerances, and any machine or holder requirements.

Coating Options

Tool coatings can be selected or added to improve wear resistance, heat resistance, lubricity, and performance in specific materials such as steel, stainless steel, aluminum, cast iron, and high-temperature alloys.

Request a Custom Tool Modification

Need this tool changed for your application? Contact General Cutting Tools today to discuss your custom tooling needs. We can help you find the right solution for your machine, material, and production goals.
