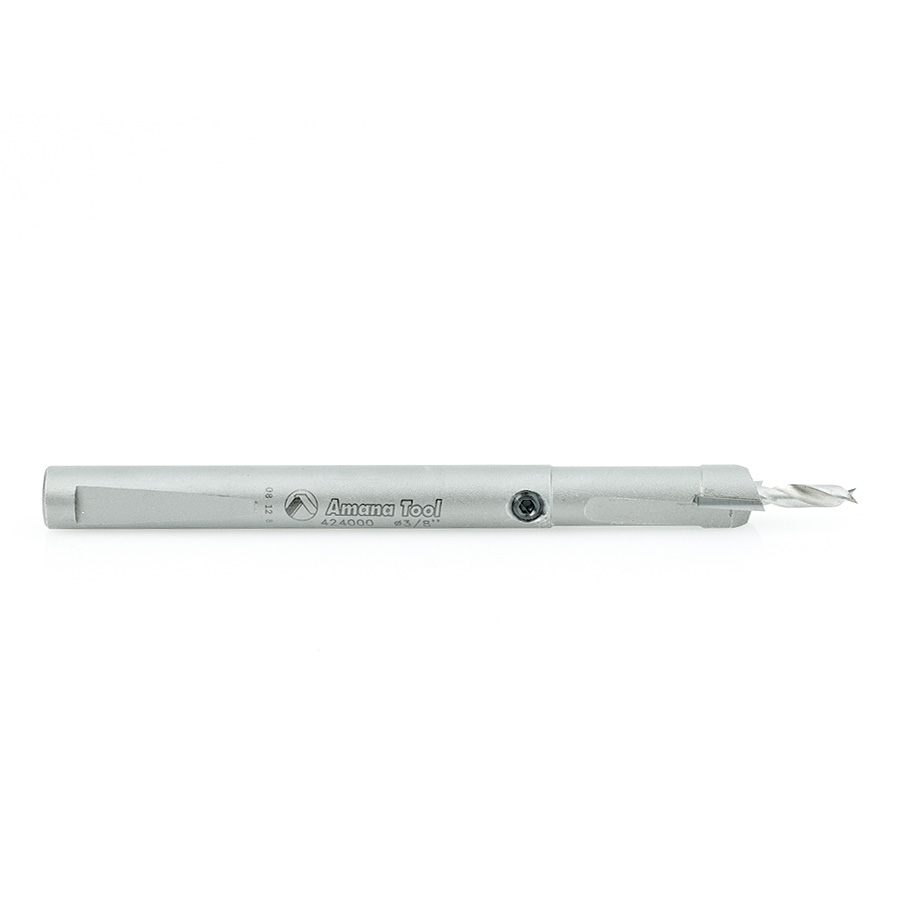

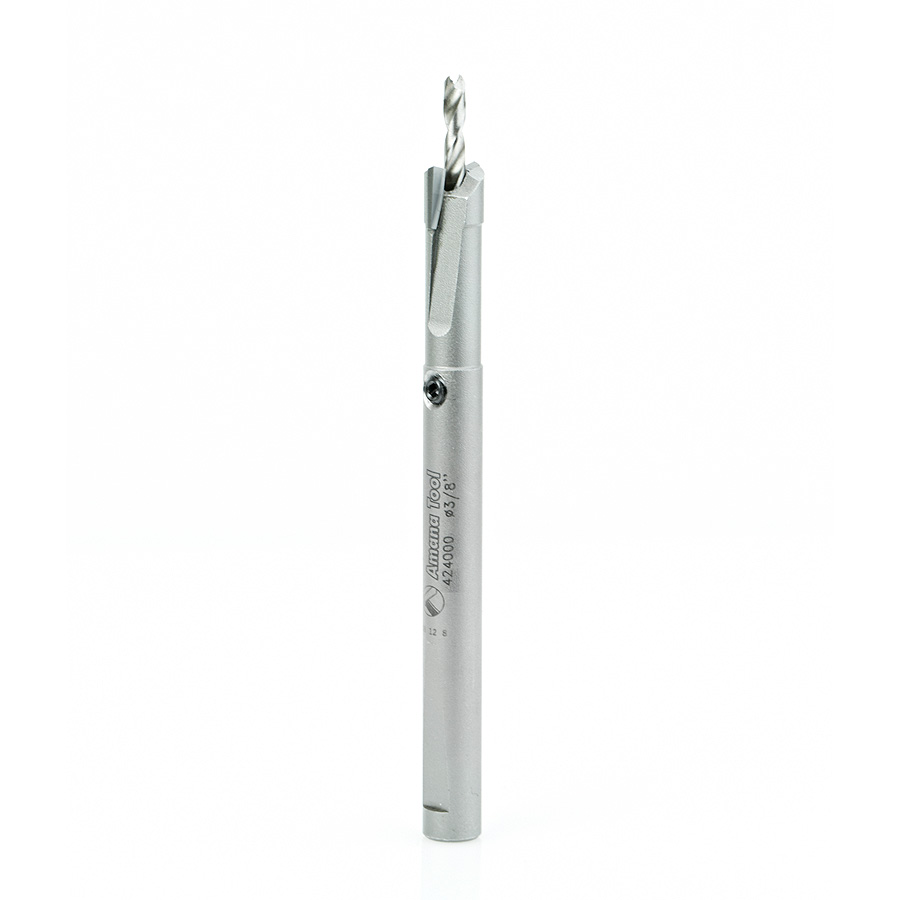

424000 Face Frame Counterbore/Drill for Face Frame Machines 3/8 Dia x 9mm Shank

Amana 424000 Face Frame Counterbore/Drill for Face Frame Machines 3/8 Dia x 9mm Shank

Name: Amana 424000 Face Frame Counterbore/Drill for Face Frame Machines 3/8 Dia x 9mm Shank
SKU: Amana 424000
Availability: InStock

Original price was: $70.95.Current price is: $53.22.

FACE FRAME COUNTERBORE NO.1

UPC: 738685240007 SKU: Amana 424000 Categories: Amana Tool, Boring & Drilling Bits, Counterbore Bits, Counterbores for Frame Machines

Item Description

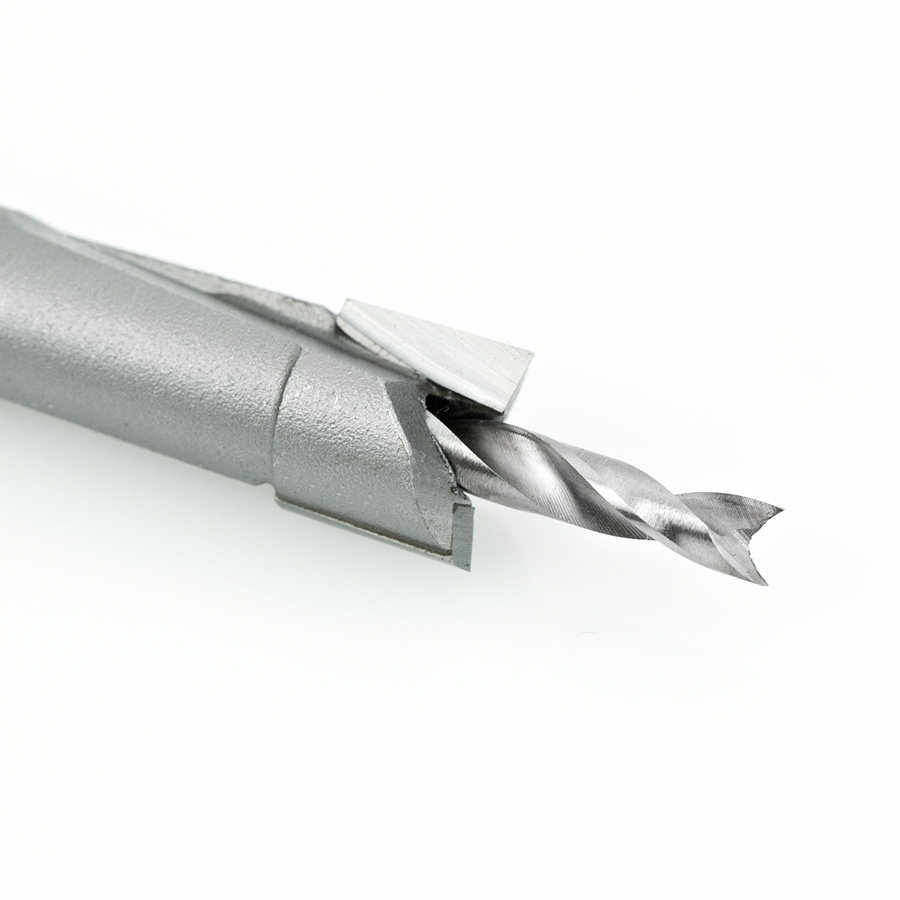

Application: Features include precision ground carbide-tipped counterbore for splinter-free cutting, non-slip surface treatment for positive clamping, wide web design for superior strength and replaceable HSS fishtail drills. Available for face frame machines. Will fit Evans, Ritter, Unique, Marcon and Norfield face frame machines.

Replacement Parts

Tool No.	Set Screw
424000	67010

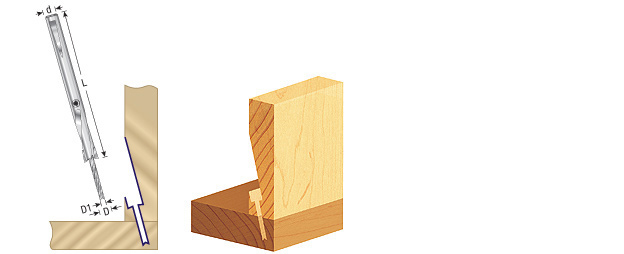

Specifications

(D) Diameter	3/8
(d) Shank	9mm
Overall Length (L)	4
Type	1
D1	0.136
Description	Counterbore/drill for face frame machines.

Other Sizes Available

Description	(D) Diameter	D1	(d) Shank	Overall Length (L)	Tool No.
8-32	–	–	–	–	67010
#29	–	0.136 (3.56mm)	–	2-7/8	424004
/	–	0.136 (3.56mm)	–	2-7/8	424006

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
