45253 Carbide Tipped Straight Plunge 12mm Dia x 38mm x 12mm Shank

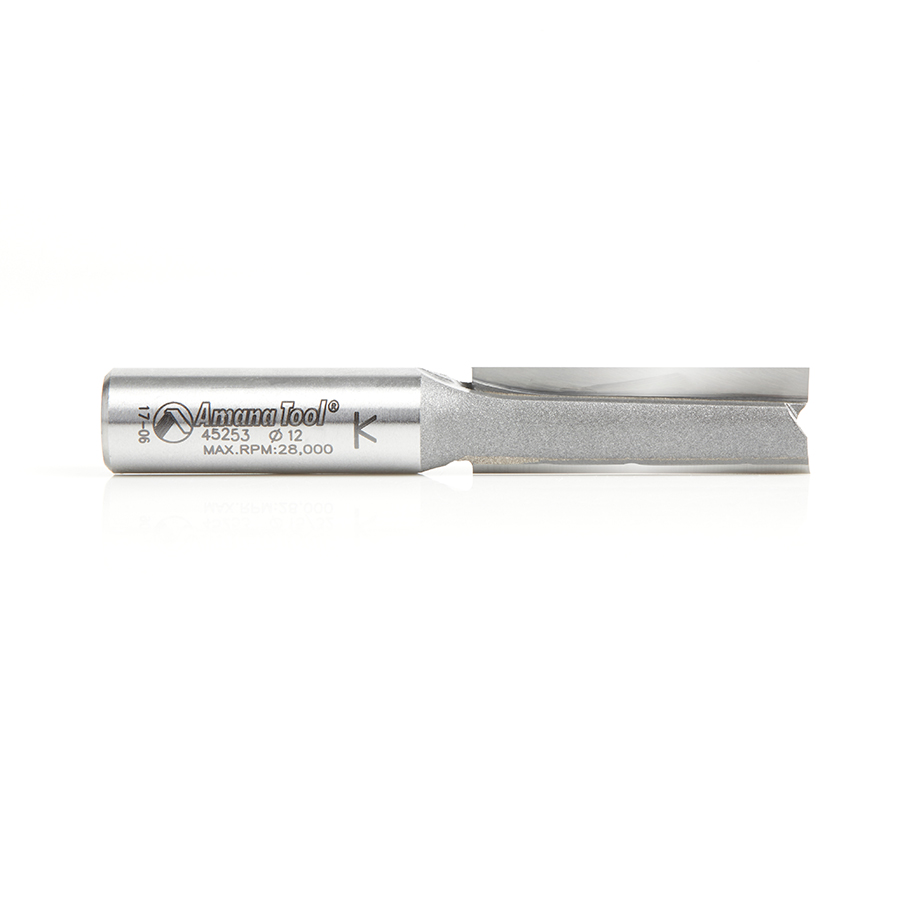

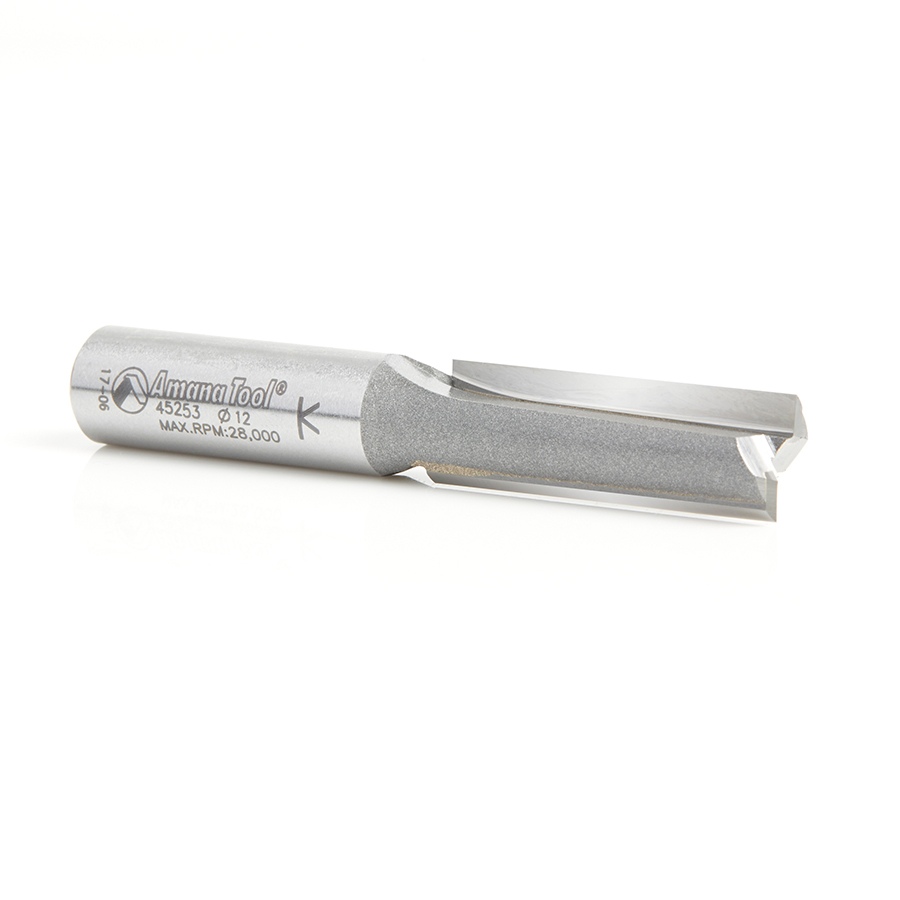

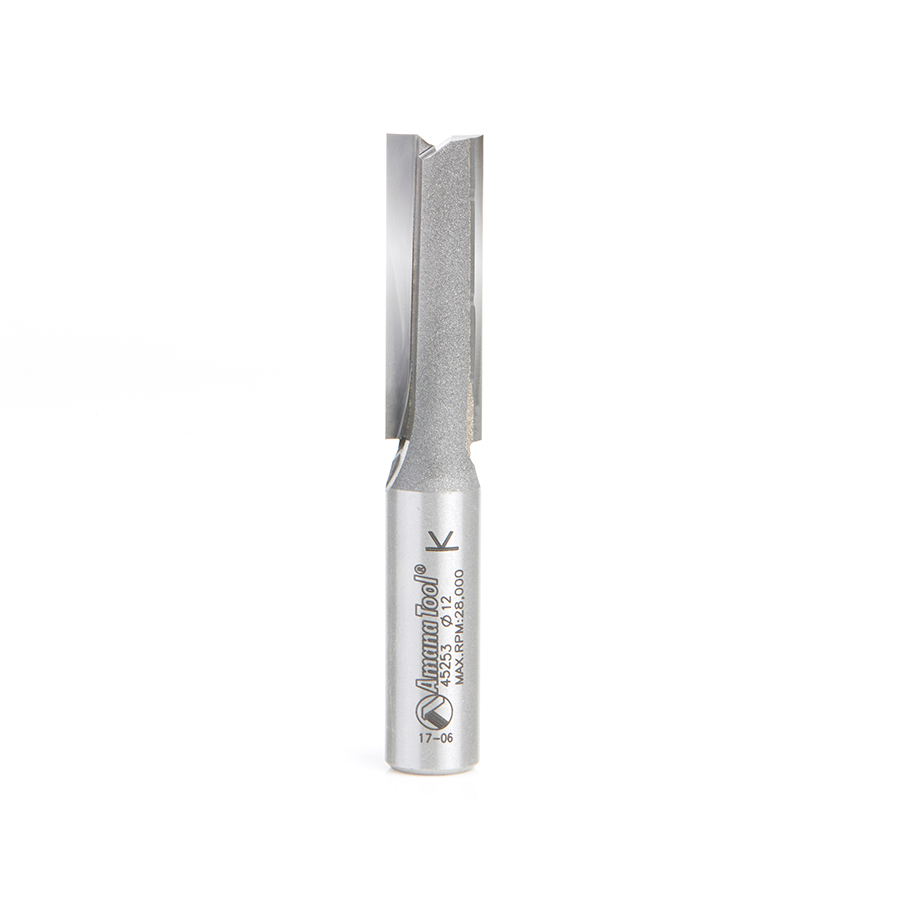

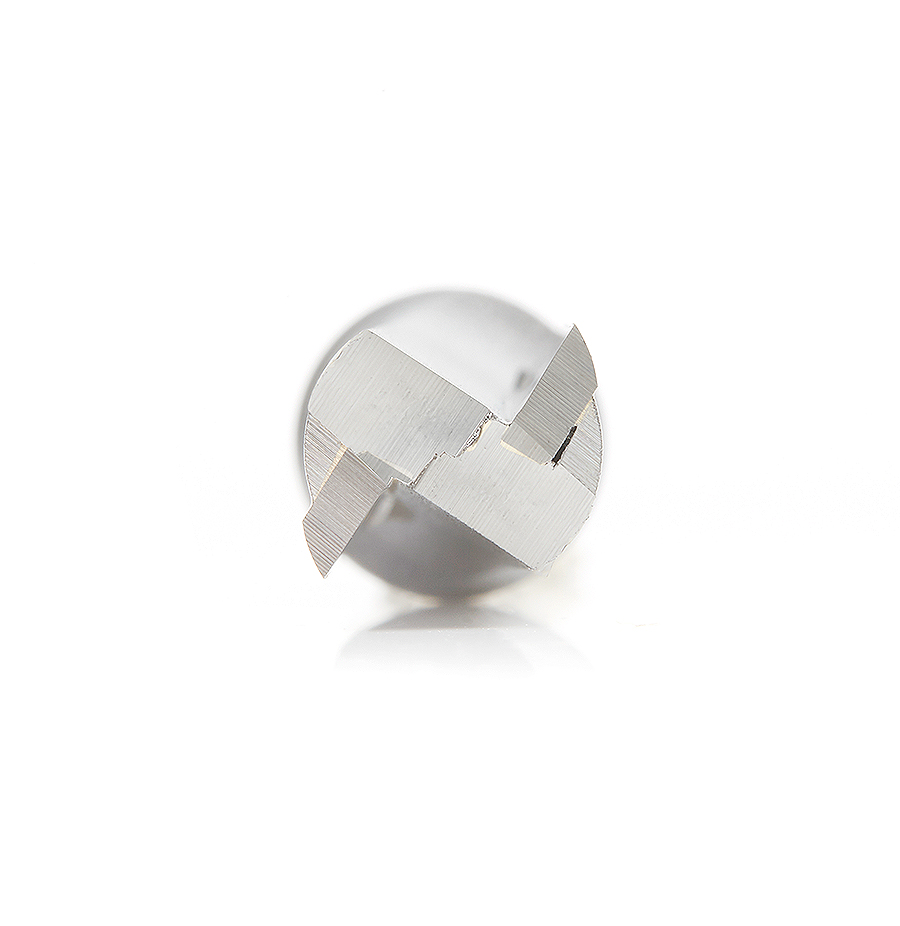

Amana 45253 Carbide Tipped Straight Plunge 12mm Dia x 38mm x 12mm Shank

Name: Amana 45253 Carbide Tipped Straight Plunge 12mm Dia x 38mm x 12mm Shank
SKU: Amana 45253
Availability: InStock

Original price was: $38.45.Current price is: $28.84.

2 FLUTE 12MM DIA. 12MM SHANK

UPC: 738685452530 SKU: Amana 45253 Categories: Amana Tool, Router Bits, Straight Plunge Metric Router Bits, Straight Plunge Router Bits

Item Description

Many standard metric plunge bits from 3mm through 51mm are available on

special order. Please allow 2 to 3 weeks for delivery. See below for metric sized

plywood bits.

Vectric and Fusion 360 compatible tool files for 45253 available for download,click here.

Specifications

Diameter (D)	12mm
Cutting Height (B)	38mm
Shank (d)	12mm
Overall Length (L)	79mm
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Plywood Thickness	Flutes	Tool No.
15/64 (5.95mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	1/4	2	45203
6mm	25mm	6mm	57mm	–	2	45213
8mm	25mm	8mm	63mm	–	2	45215
10mm	19mm	1/4 (6.35mm)	2-1/8	–	2	45219
10mm	19mm	1/2 (12.70mm)	2-1/2	–	2	45417
12mm	1-1/4	1/2 (12.70mm)	2-7/8	12mm	2	45488
14mm	25mm	1/2 (12.70mm)	2-5/8	–	2	45431
18mm	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	18mm	2	45256
18mm	1-1/4	1/2 (12.70mm)	2-7/8	18mm	2	45498

Weight	0.14 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
