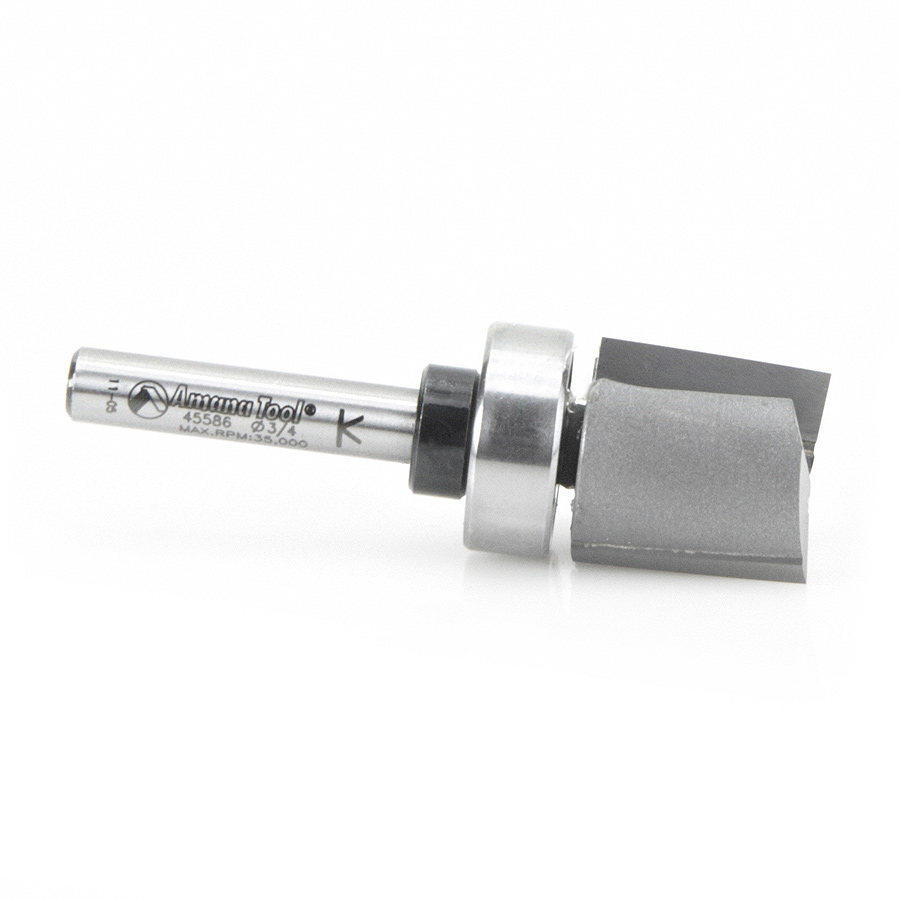

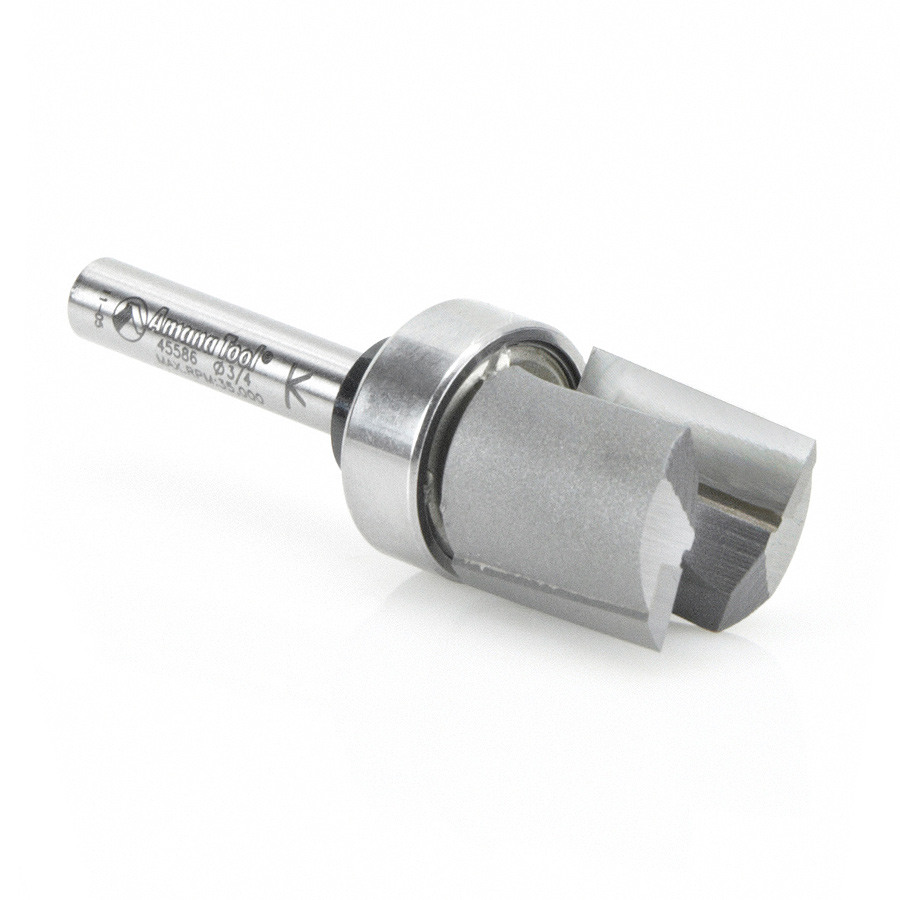

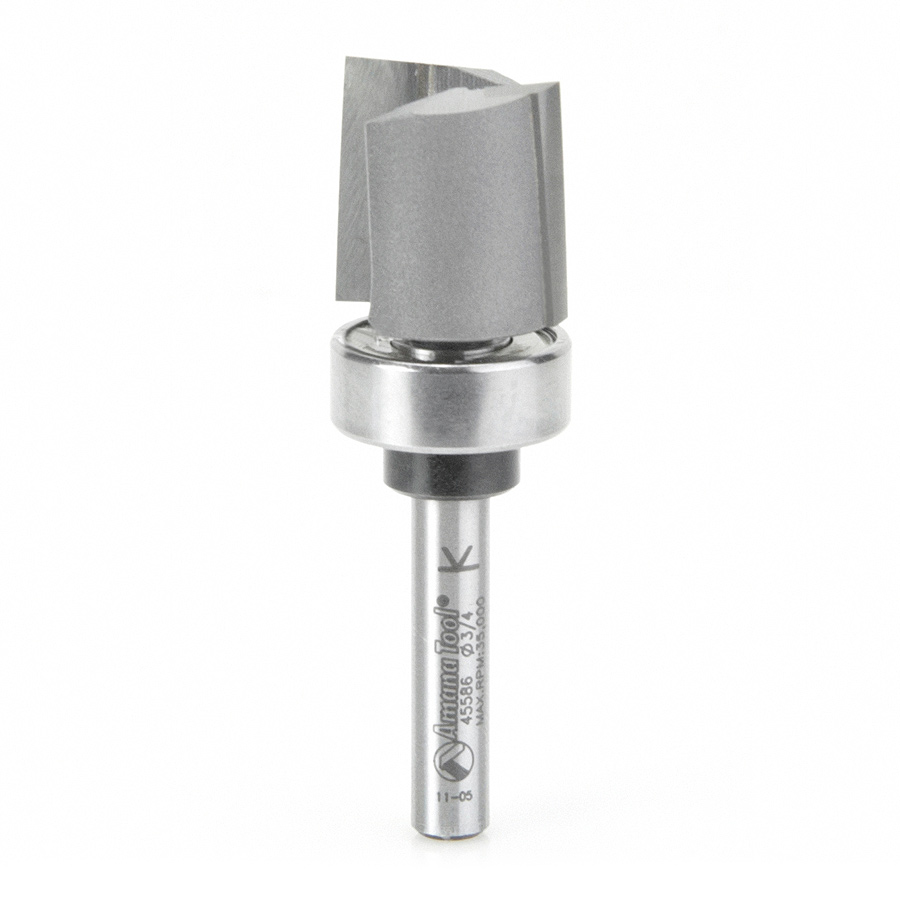

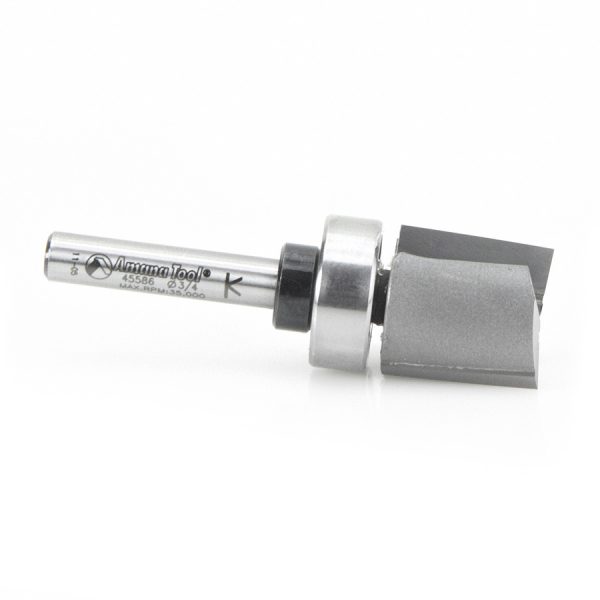

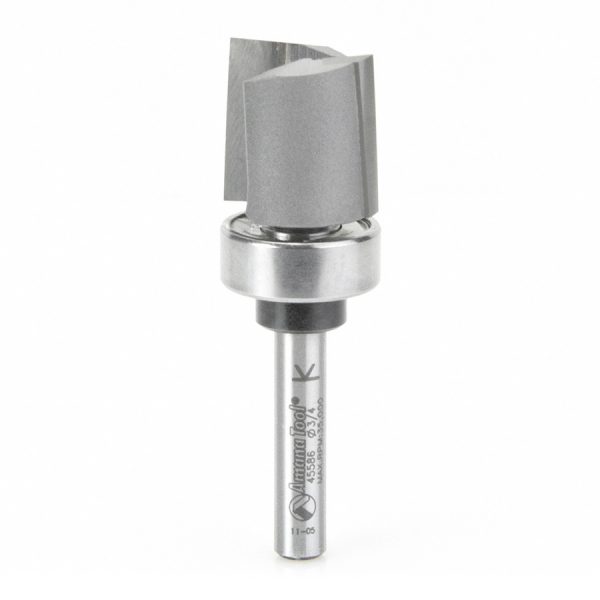

45586 Carbide Tipped Mortising 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Amana 45586 Carbide Tipped Mortising 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB

Name: Amana 45586 Carbide Tipped Mortising 3/4 Dia x 3/4 x 1/4 Inch Shank with Upper BB
SKU: Amana 45586
Availability: InStock

Original price was: $66.90.Current price is: $50.18.

MORTISING 3/4 DIA. WITH B.B

UPC: 738685455869 SKU: Amana 45586 Categories: Amana Tool, Mortising Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

There is no faster method for producing multiple mortises than with a template. And the accuracy achieved with a template is unparallel. These mortise bits are specially designed for use with templates, both linear and curved.

If you’ve ever used a bushing with template work then you’ll appreciate these bearing-guided bits; there’s no need to calculate offset – ever. Instead, the mortise is sized exactly to the template. And, unlike a bushing on the router sub-base, the guide bearing is always concentric to the cutting circle of the bit. This ensures precise cuts each and every time.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw	Collar Set Screw Only
45586	47714	47724	67091

Specifications

Diameter (D)	3/4
Cutting Height (B)	3/4
Shank (d)	1/4
Overall Length (L)	2-7/16
Replacement Collar	47724
Replacement Bearing	47714
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Replacement Collar	Tool No.
1/2 (12.70mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/8	2	47701	47724	45582
5/8 (15.88mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-3/8	2	47712	47724	45584
1-1/4	1/2 (12.70mm)	1/2 (12.70mm)	2-5/8	2	47756	47740	45590

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
