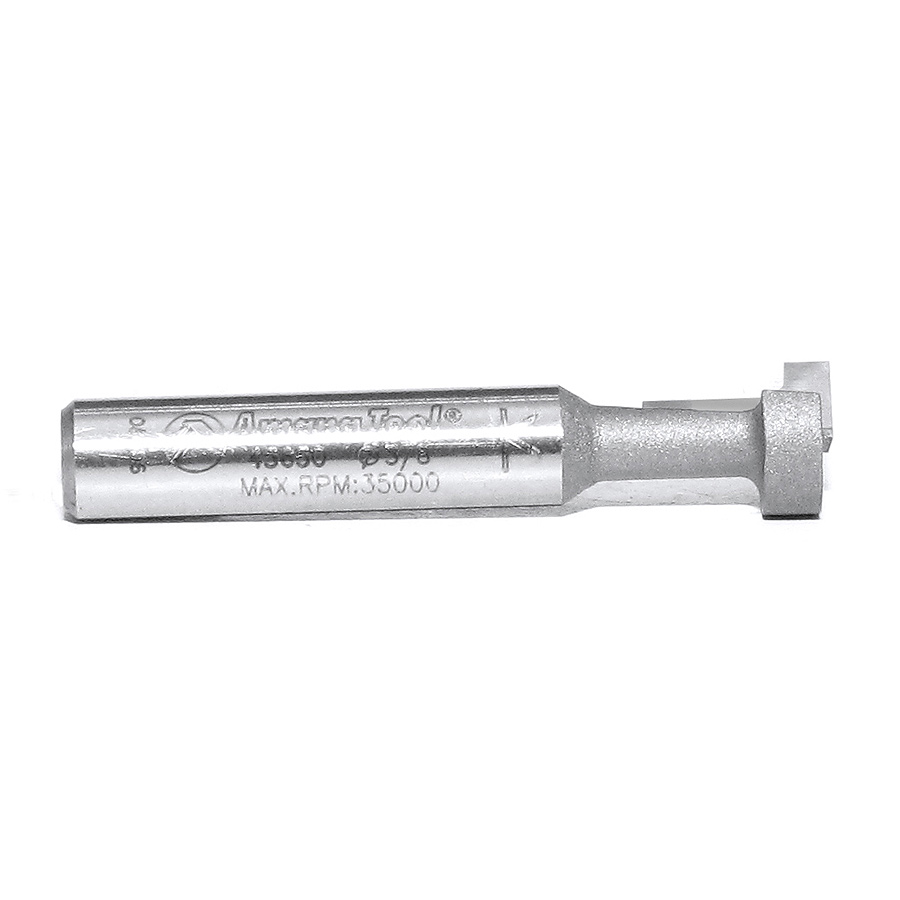

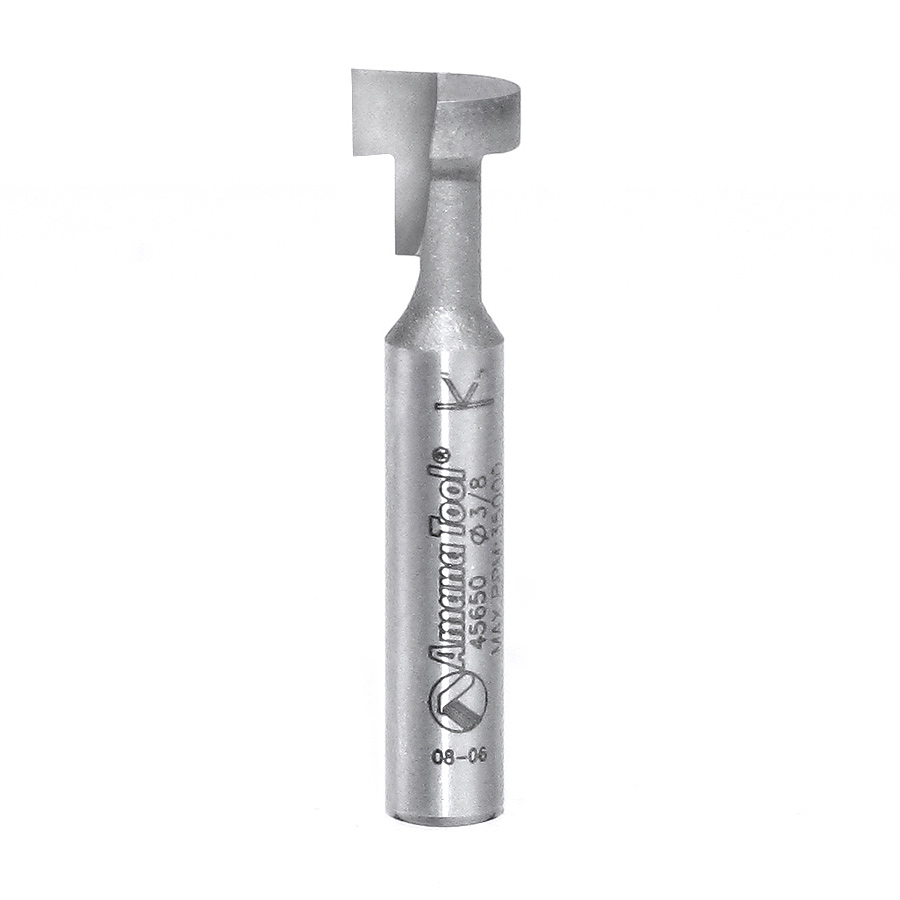

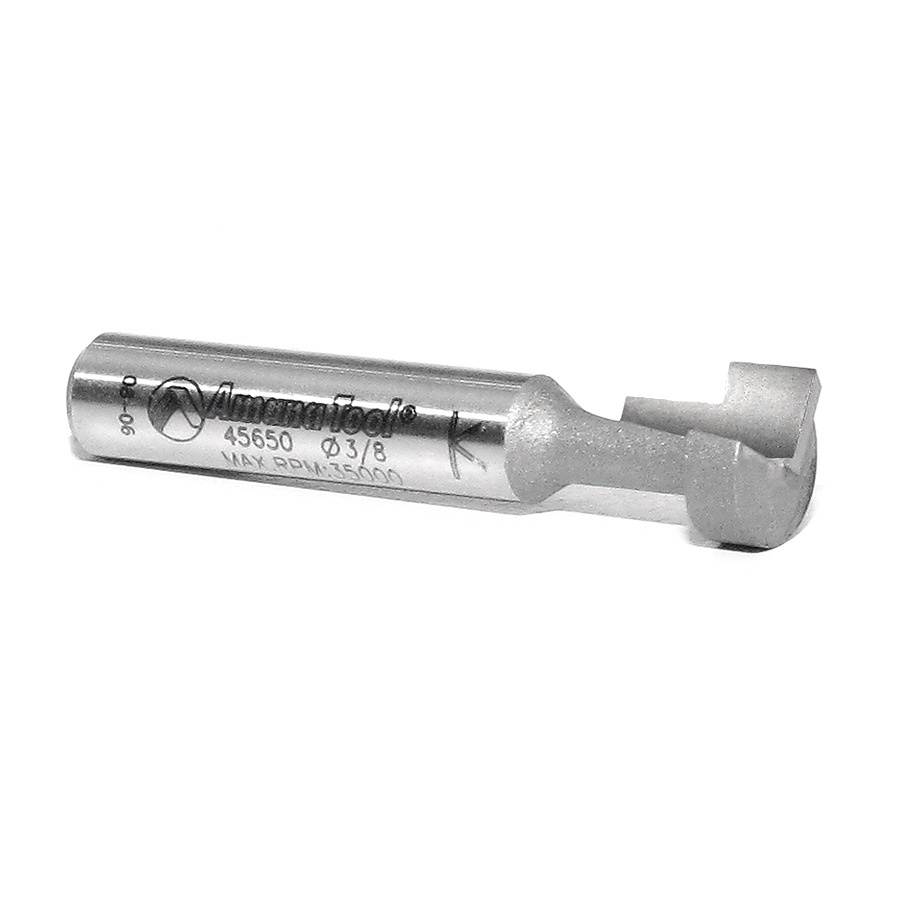

45650 Carbide Tipped Keyhole 3/8 Dia x 3/8 x 1/4 Inch Shank

Amana 45650 Carbide Tipped Keyhole 3/8 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 45650 Carbide Tipped Keyhole 3/8 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 45650
Availability: InStock

Original price was: $45.30.Current price is: $33.98.

3/8 KEY HOLE BIT 1/4 SHANK

UPC: 738685856505 SKU: Amana 45650 Categories: Amana Tool, Jointing Router Bits, Keyhole Router Bits, Router Bits

Item Description

Form keyhole slots in plaques, picture frames, and other wall-hanging items with this plunge-cutting bit. Plunge to form the entry, then advance the router to cut a short T-slot. Use in a handheld plunge router.

Vectric and Fusion 360 compatible tool files for 45650 available for download, click here.

Specifications

Diameter (D)	3/8
D1	13/64
Cutting Height (B)	3/8
B1	3/16
Shank (d)	1/4
Overall Length (L)	1-37/64
Flutes	1

Other Sizes Available

Diameter (D)	D1	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Flutes	Tool No.
3/8 (9.53mm)	13/64 (5.16mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-37/64	1	45650-5
1/2 (12.70mm)	5/16 (7.94mm)	3/8 (9.53mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-1/2	1	45652

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
