Sale!

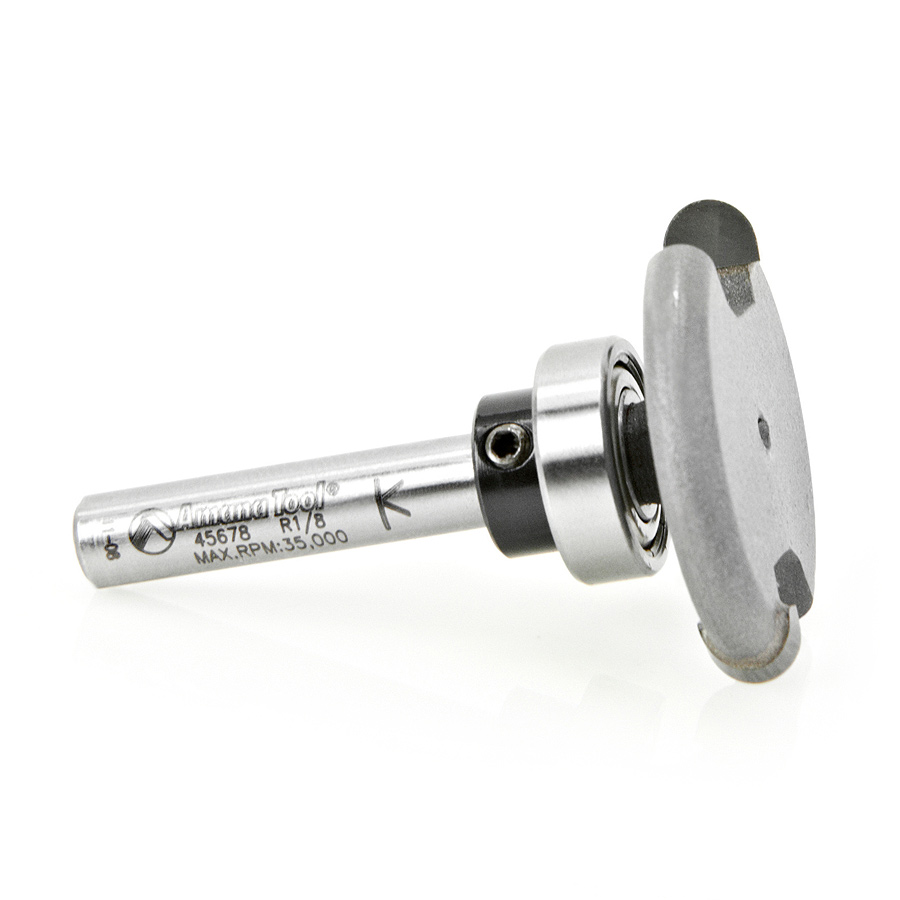

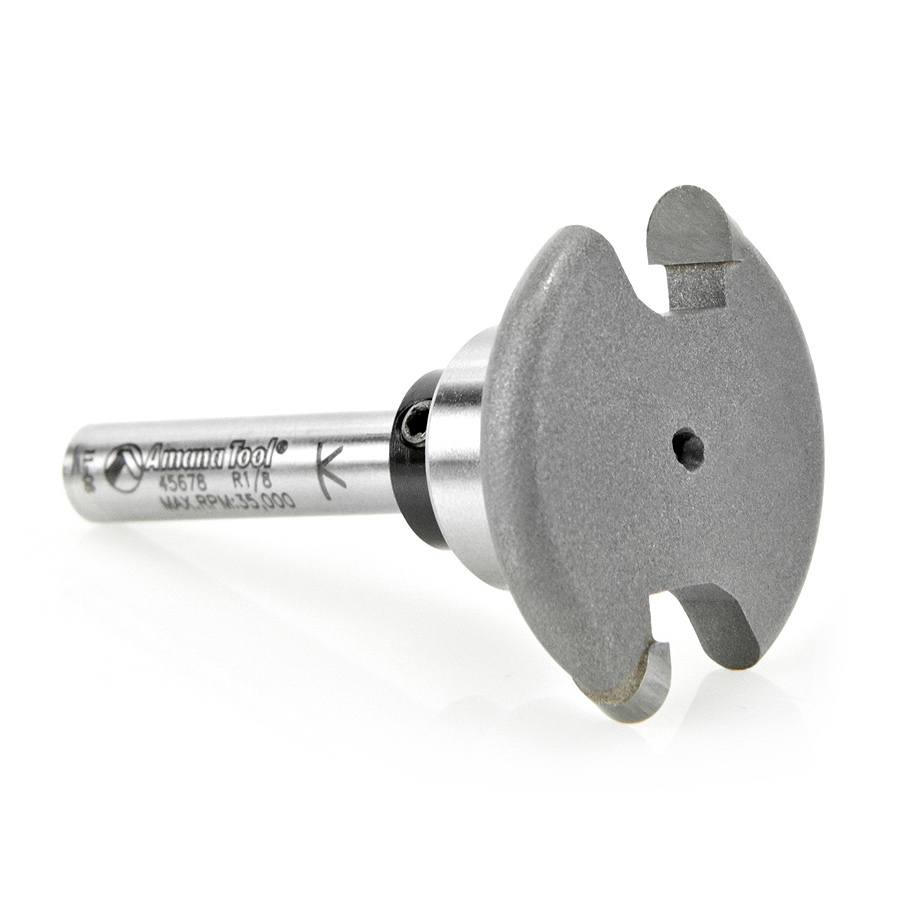

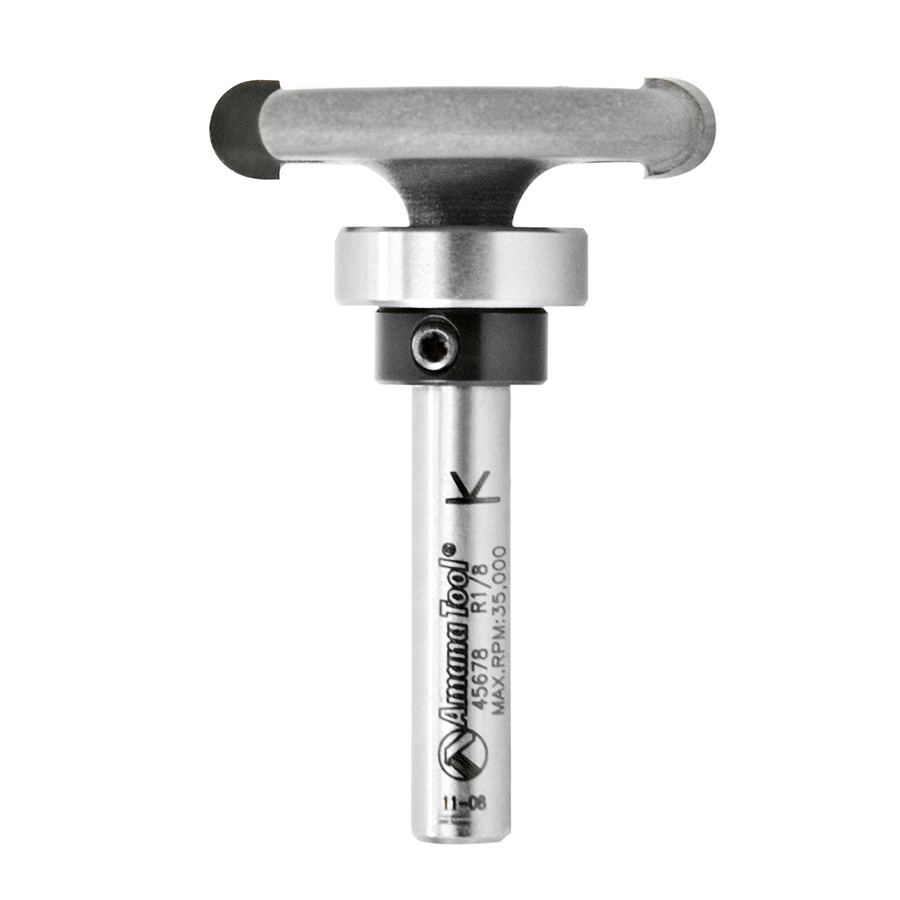

45678 Carbide Tipped Flooring Rounded Dedicated Cutter 1/8 Radius x 1-1/4 Dia x 1/4 x 1/4 Inch Shank with Upper BB

Amana 45678 Carbide Tipped Flooring Rounded Dedicated Cutter 1/8 Radius x 1-1/4 Dia x 1/4 x 1/4 Inch Shank with Upper BB

Name: Amana 45678 Carbide Tipped Flooring Rounded Dedicated Cutter 1/8 Radius x 1-1/4 Dia x 1/4 x 1/4 Inch Shank with Upper BB
SKU: Amana 45678
Price: 68.96 USD
Availability: InStock

Original price was: $91.95.Current price is: $68.96.

1/4 KERF 1-1/4 ROUND UPPER BB

UPC: 738685456781 SKU: Amana 45678 Categories: Amana Tool, Flooring Router Bits, Rounded Dedicated Cutter with Changeable Bearing Router Bits for Flooring, Router Bits

Item Description

These bits are designed for slotting wood flooring, inlays and medallions.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45678	47712	47724

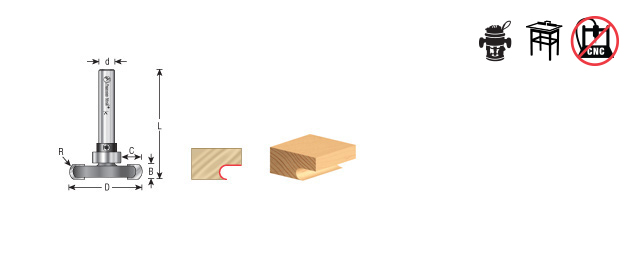

Specifications

Diameter (D)	1-1/4
Radius (R)	1/8
Cutting Height (B)	1/4
Shank (d)	1/4
Overall Length (L)	1-7/8
Type	Rounded
Replacement Collar	47724
Replacement Bearing	47712
Flutes	2
C	5/16

Other Sizes Available

Diameter (D)	Radius (R)	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Replacement Collar	Type	Tool No.
0.894 (22.61mm)	–	5.0mm	4.5mm	1/4 (6.35mm)	2-1/4	47701	47724	Straight	45663
1-1/8	–	1/4 (6.35mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-7/8	47712	47724	Straight	45672
1-39/64	–	9/64 (3.57mm)	7/64 (2.78mm)	1/4 (6.35mm)	1-41/64	47778	47724	Straight	45680
1-1/4	–	3/8 (9.53mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	47701	47724	Straight	45668
1-1/4	–	1/4 (6.35mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	47714	47724	Straight	45669
1-1/4	–	3/16 (4.76mm)	5/32 (3.97mm)	1/4 (6.35mm)	1-7/8	47708	47724	Straight	45674
1-1/4	1/8 (3.18mm)	3/8 (9.53mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	47701	47724	Rounded	45676
1-1/4	1/8 (3.18mm)	5/16 (7.94mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	47712	47724	Rounded	45678-5

Weight	0.12 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
