Sale!

45672 Carbide Tipped Flooring Straight Dedicated Cutter 1-1/8 Dia x 1/8 x 1/4 Inch Shank with Upper BB

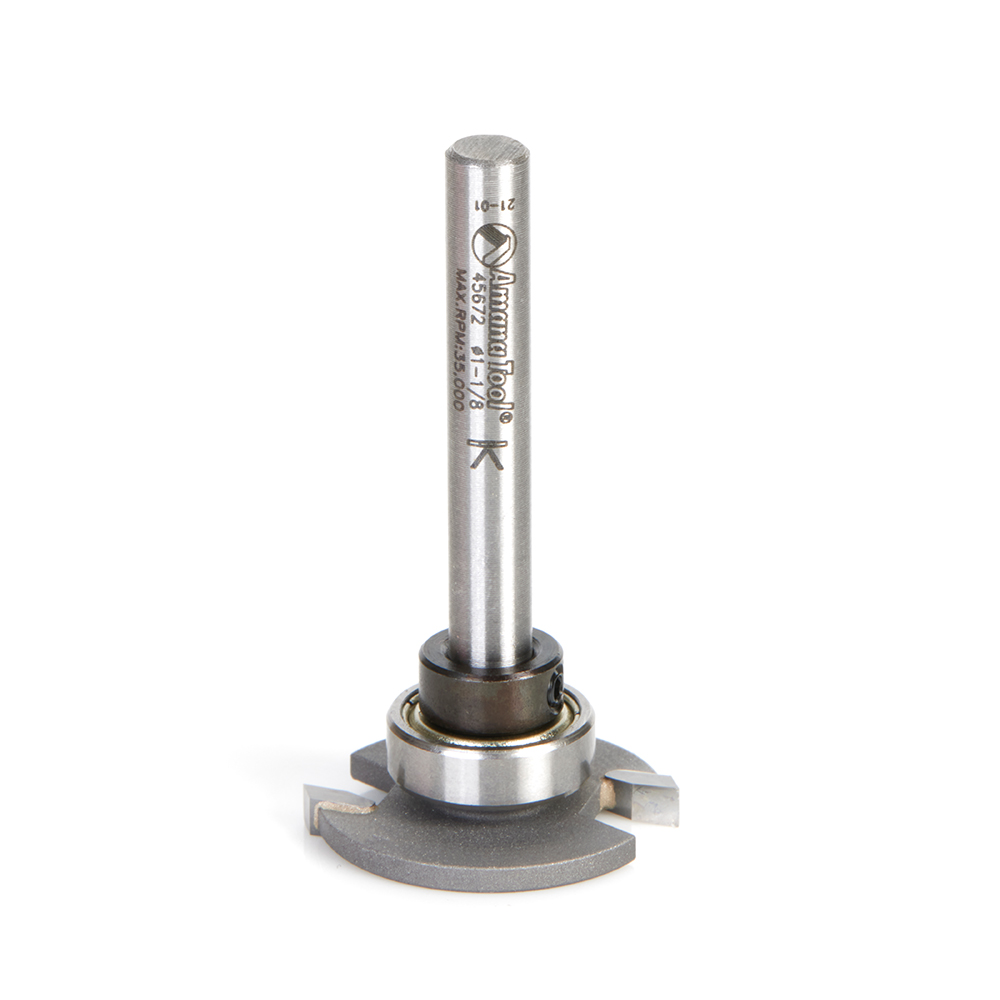

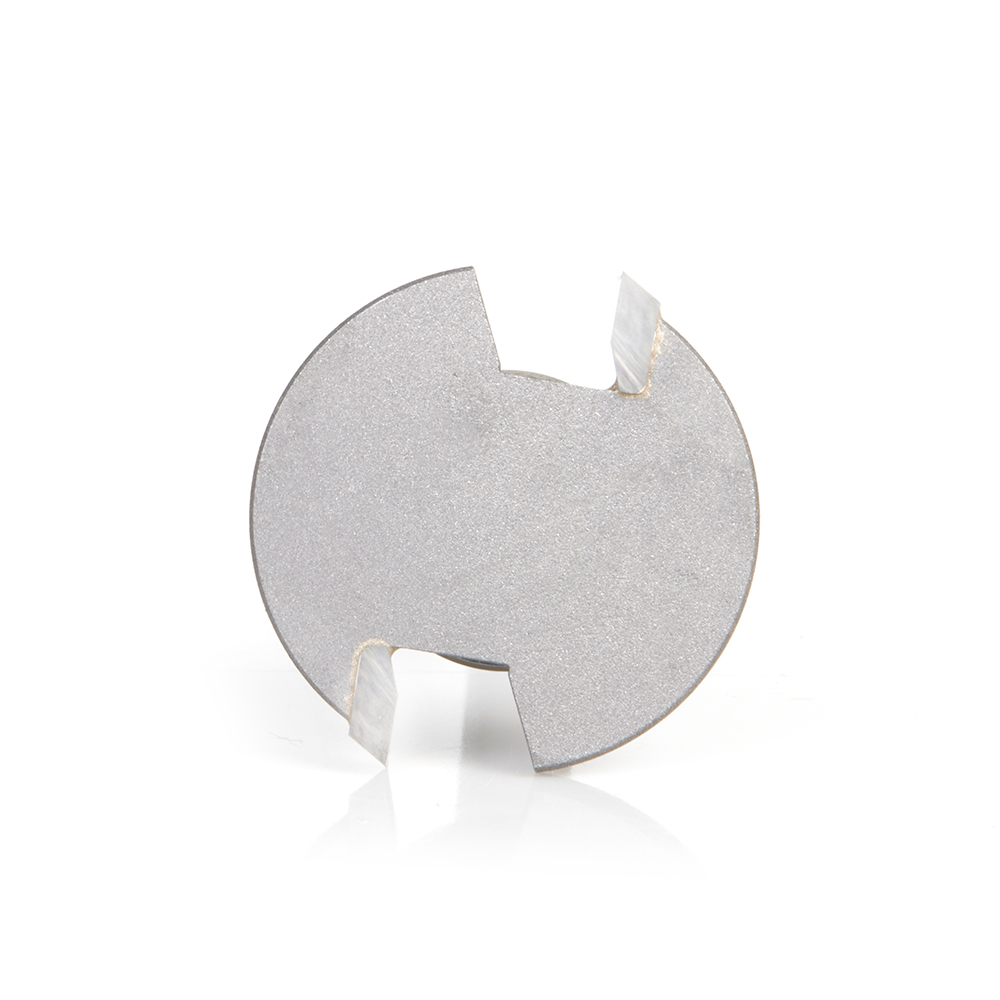

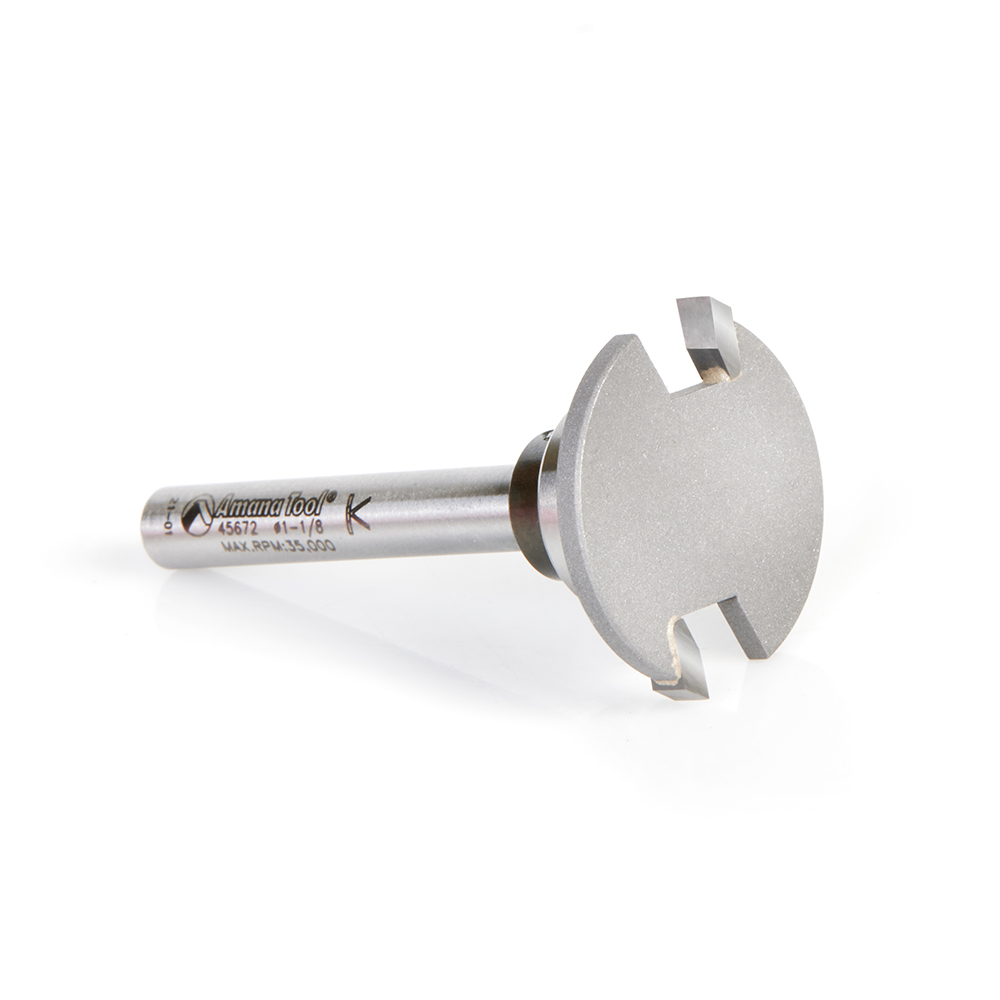

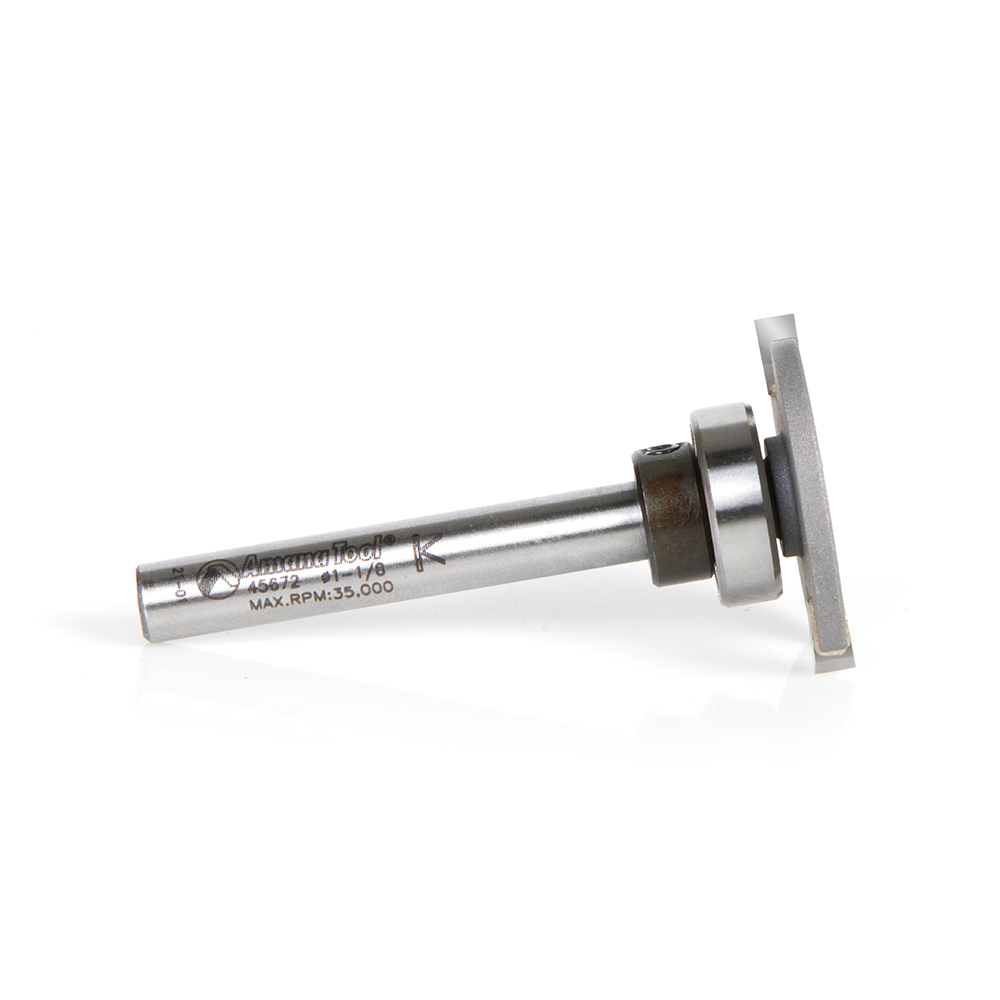

Amana 45672 Carbide Tipped Flooring Straight Dedicated Cutter 1-1/8 Dia x 1/8 x 1/4 Inch Shank with Upper BB

Name: Amana 45672 Carbide Tipped Flooring Straight Dedicated Cutter 1-1/8 Dia x 1/8 x 1/4 Inch Shank with Upper BB
SKU: Amana 45672
Availability: InStock

Original price was: $98.10.Current price is: $73.58.

1/8 KERF 1-1/8 T-SLOT UPPER BB

UPC: 738685456729 SKU: Amana 45672 Categories: Amana Tool, Flooring Router Bits, Router Bits, Straight Dedicated Cutter with Changeable Bearing Router Bits for Flooring Tags: 1/4" shank, 45672, amana tool, bearing, carbide tipped, flooring, router bit, slot, slotter, undercut, Upper Bearing

Item Description

These bits are designed for slotting wood flooring, inlays and medallions.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45672	47712	47724

Specifications

Diameter (D)	1-1/8
Cutting Height (B)	1/8
Shank (d)	1/4
Overall Length (L)	1-7/8
Type	Straight
Replacement Collar	47724
Replacement Bearing	47712
Flutes	2
C	1/4

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Collar	Replacement Bearing	Flutes	C	Tool No.
0.894 (22.61mm)	–	4.5mm	1/4 (6.35mm)	2-1/4	Straight	47724	47701	2	5.0mm	45663
1-39/64	–	7/64 (2.78mm)	1/4 (6.35mm)	1-41/64	Straight	47724	47778	2	9/64 (3.57mm)	45680
1-1/4	–	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	Straight	47724	47701	2	3/8 (9.53mm)	45668
1-1/4	–	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	Straight	47724	47714	2	1/4 (6.35mm)	45669
1-1/4	–	5/32 (3.97mm)	1/4 (6.35mm)	1-7/8	Straight	47724	47708	2	3/16 (4.76mm)	45674
1-1/4	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	Rounded	47724	47701	2	3/8 (9.53mm)	45676
1-1/4	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	Rounded	47724	47712	2	5/16 (7.94mm)	45678
1-1/4	1/8 (3.18mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-7/8	Rounded	47724	47712	2	5/16 (7.94mm)	45678-5

Weight	0.09 lbs
