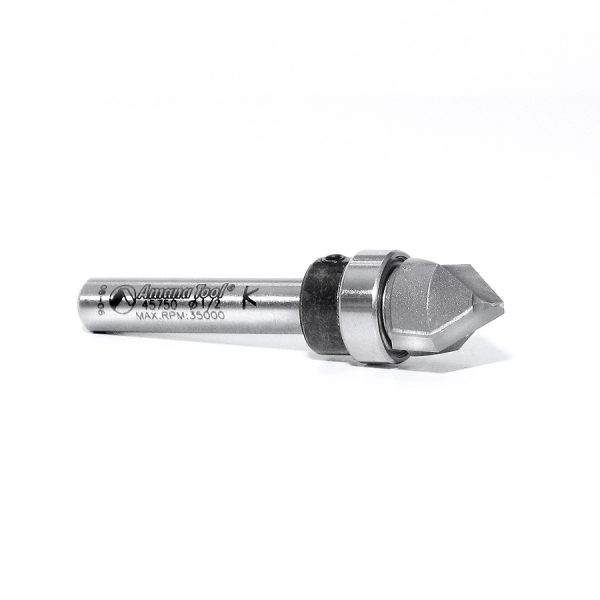

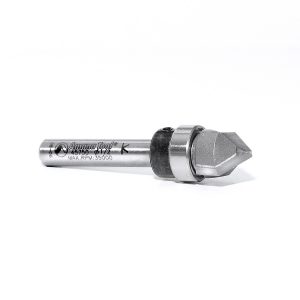

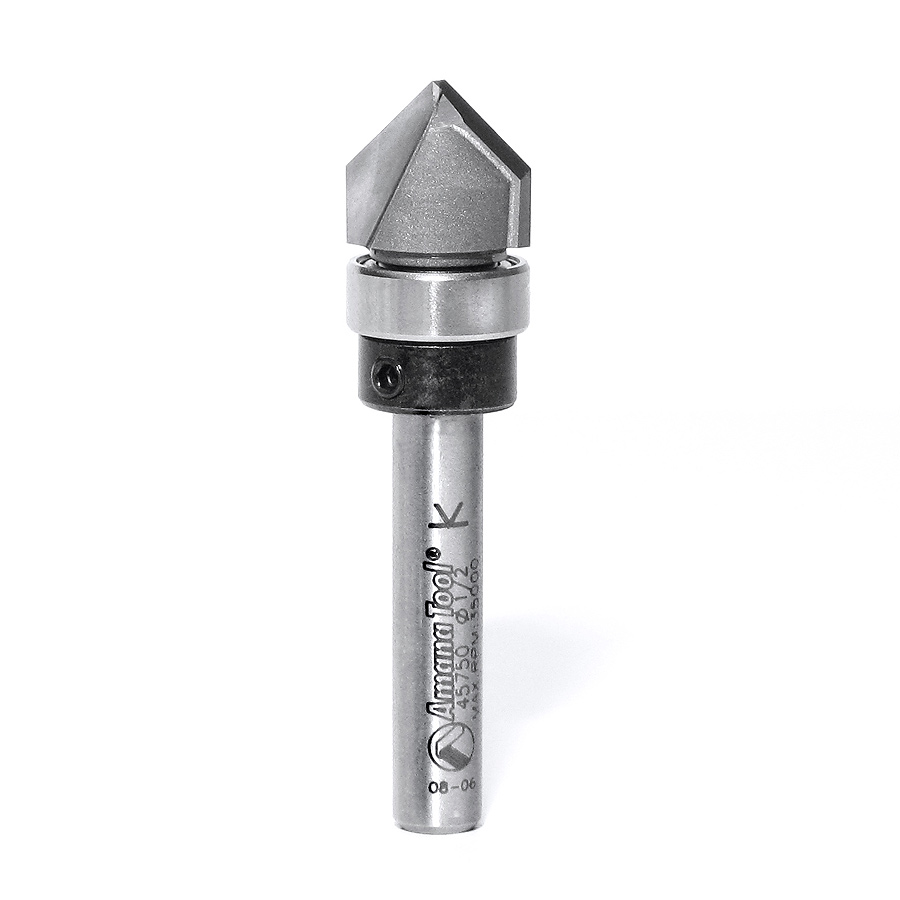

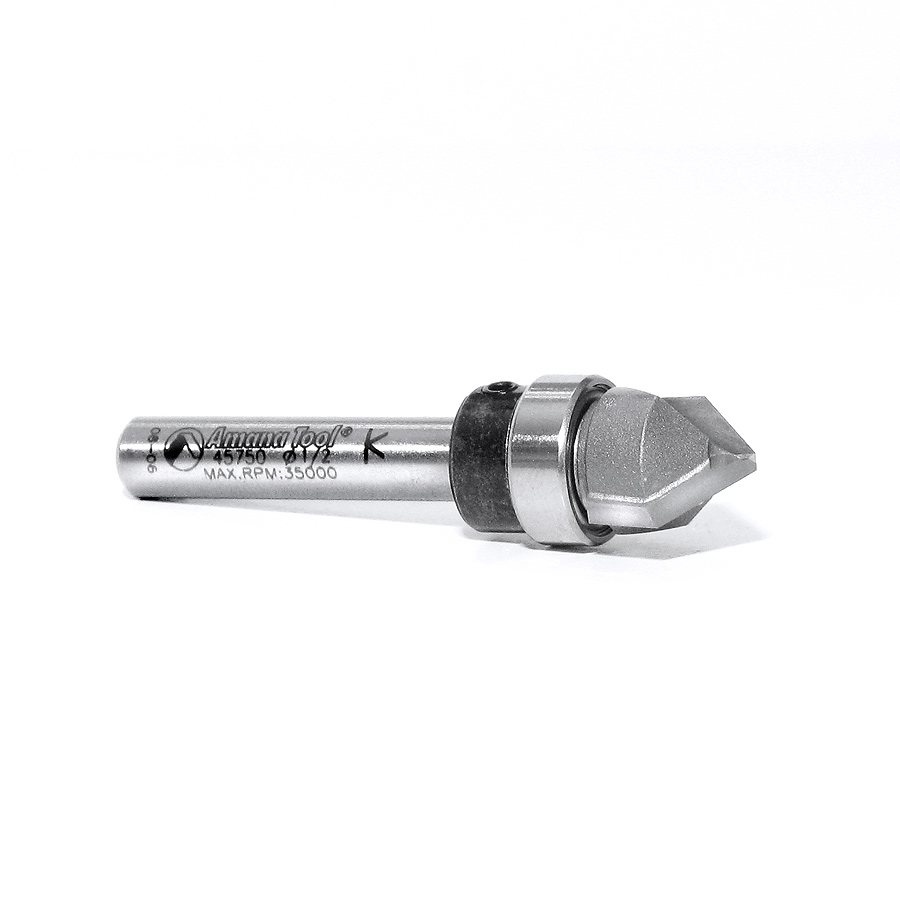

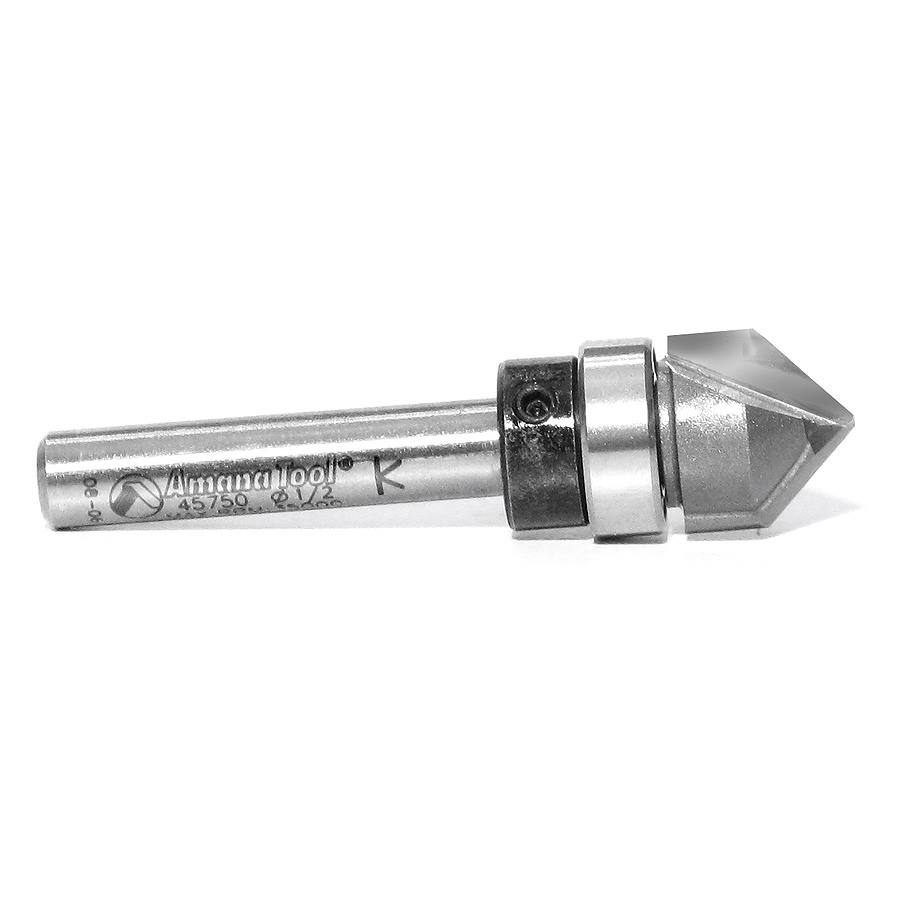

45750 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank with Upper BB

Amana 45750 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank with Upper BB

Name: Amana 45750 Carbide Tipped V-Groove 90 Deg x 1/2 Dia x 1/4 x 1/4 Inch Shank with Upper BB
SKU: Amana 45750
Availability: InStock

Original price was: $77.20.Current price is: $57.90.

90D VGROOVE 1/2 DIA. UPPER B.B

UPC: 738685857502 SKU: Amana 45750 Categories: Amana Tool, Router Bits, Signmaking Router Bits, V Groove Router Bits

Item Description

Designed for fluting and V-grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be on bottom of the workpiece. 90° V-Groove bit is for decorative purposes and is not intended for ‘miter-folding’, etc.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45750	47701	47724

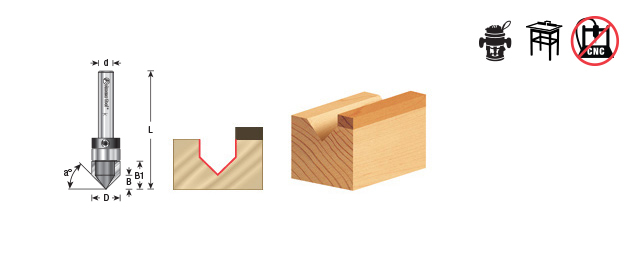

Specifications

Angle (a°)	90°
Diameter (D)	1/2
Cutting Height (B)	1/4
B1	1/2
Shank (d)	1/4
Overall Length (L)	2
Type	V-Groove
Replacement Collar	47724
Replacement Bearing	47701
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Collar	Replacement Bearing	Flutes	Tool No.
1/2 (12.70mm)	–	5/8 (15.88mm)	1/4 (6.35mm)	2-1/4	–	–	–	2	45711
1/2 (12.70mm)	1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2 (50.80mm)	Core Box	47724	47701	2	45950

Weight	0.02 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
