Item Description

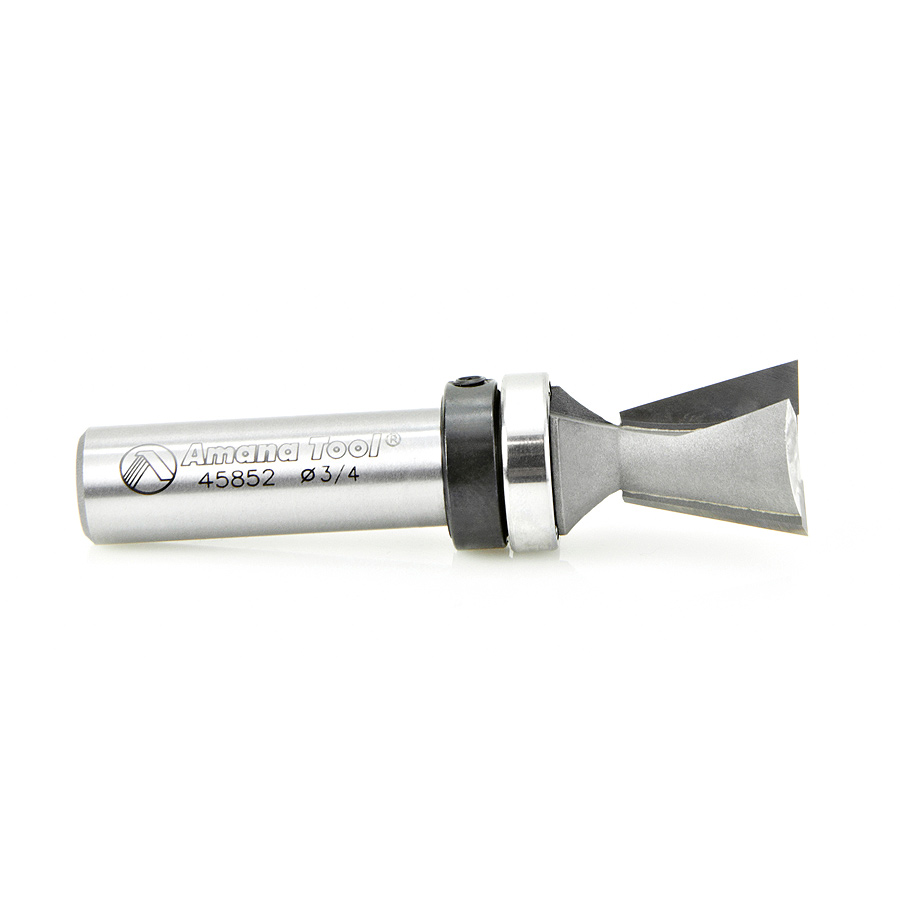

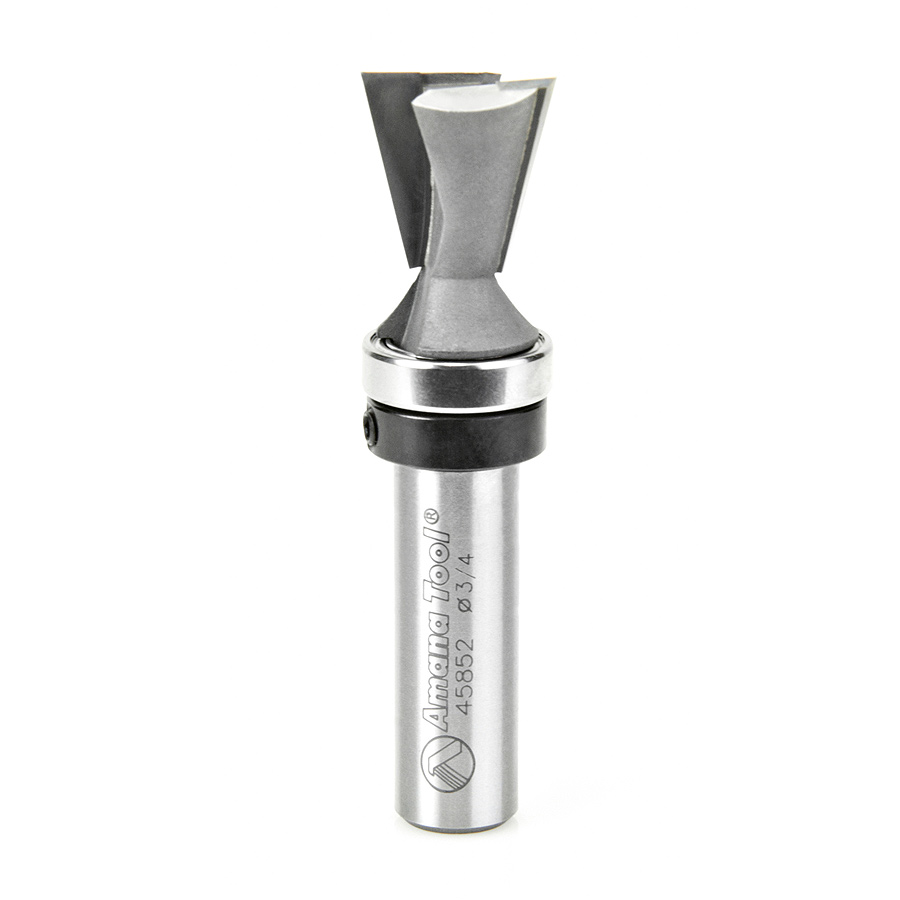

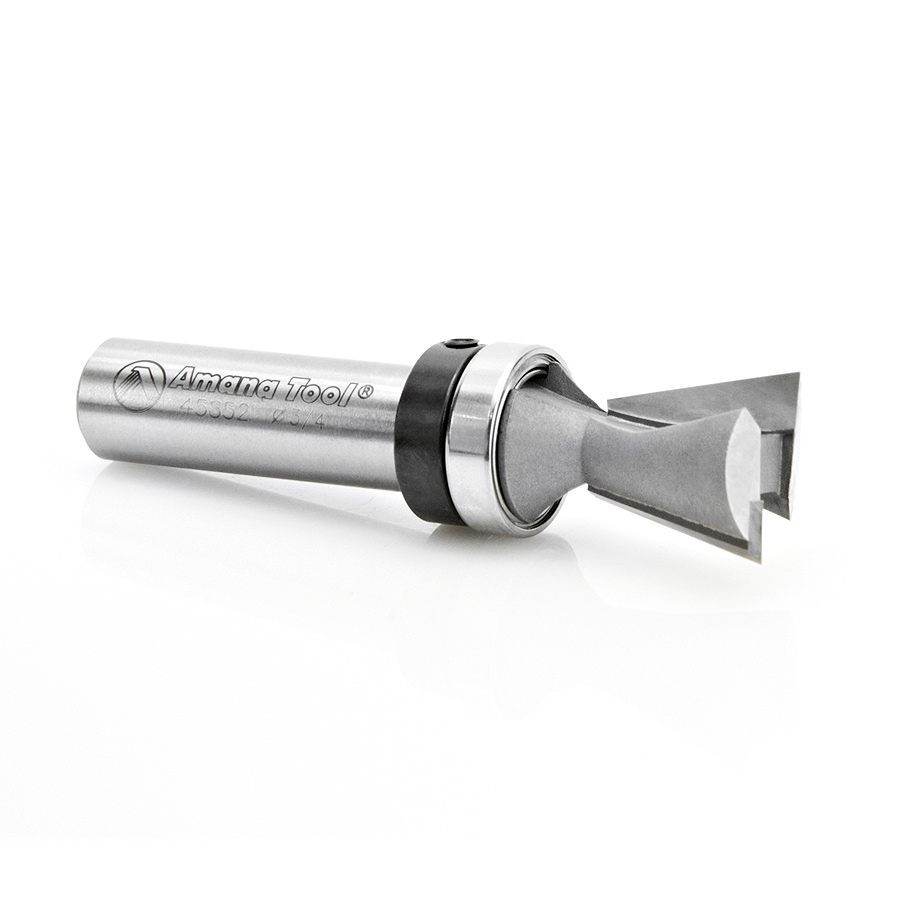

This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.
For pattern cutting or jigs.
Replacement Parts
| Tool No. | Bearing(s) | Collar w/Set Screw |
|---|---|---|
| 45852 | 47701 | 47739 |
Specifications
| Angle (a°) | 14° |
|---|---|
| Diameter (D) | 3/4 |
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3 |
| Replacement Collar | 47739 |
| Replacement Bearing | 47721 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | Angle (a°) | Cutting Height (B) | Shank (d) | Overall Length (L) | Replacement Collar | Replacement Bearing | Flutes | Tool No. |
|---|---|---|---|---|---|---|---|---|
| 1/2 (12.70mm) | 14° | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | 47724 | 47701 | 2 | 45850 |
