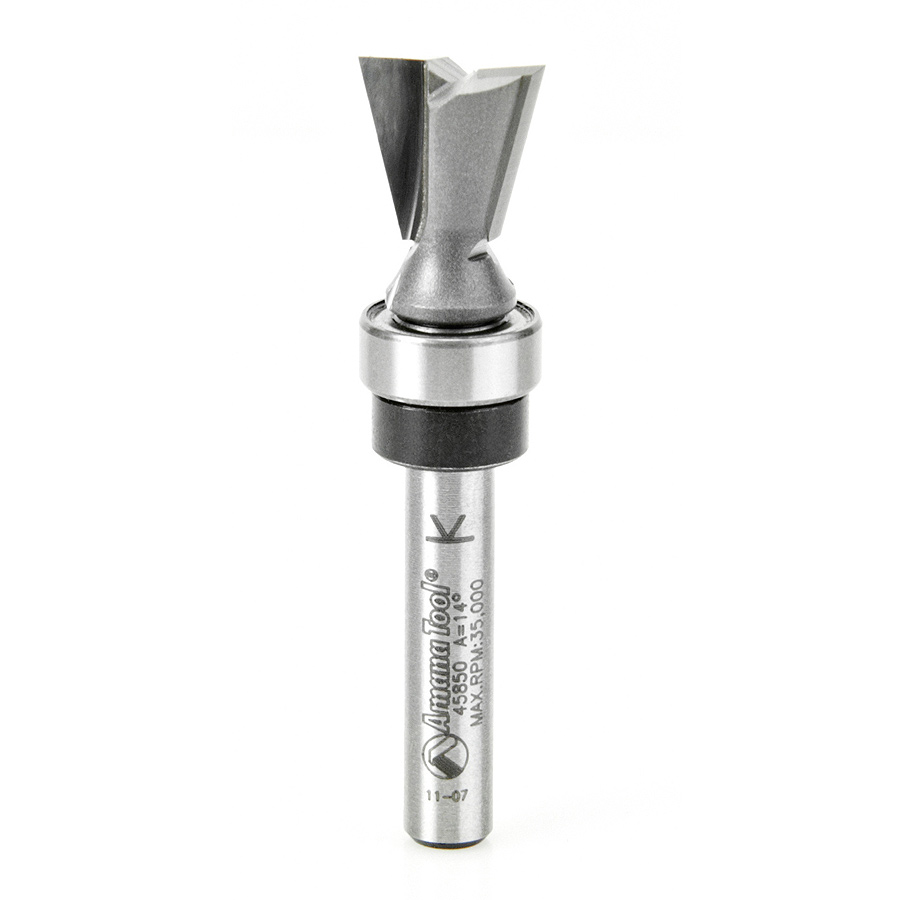

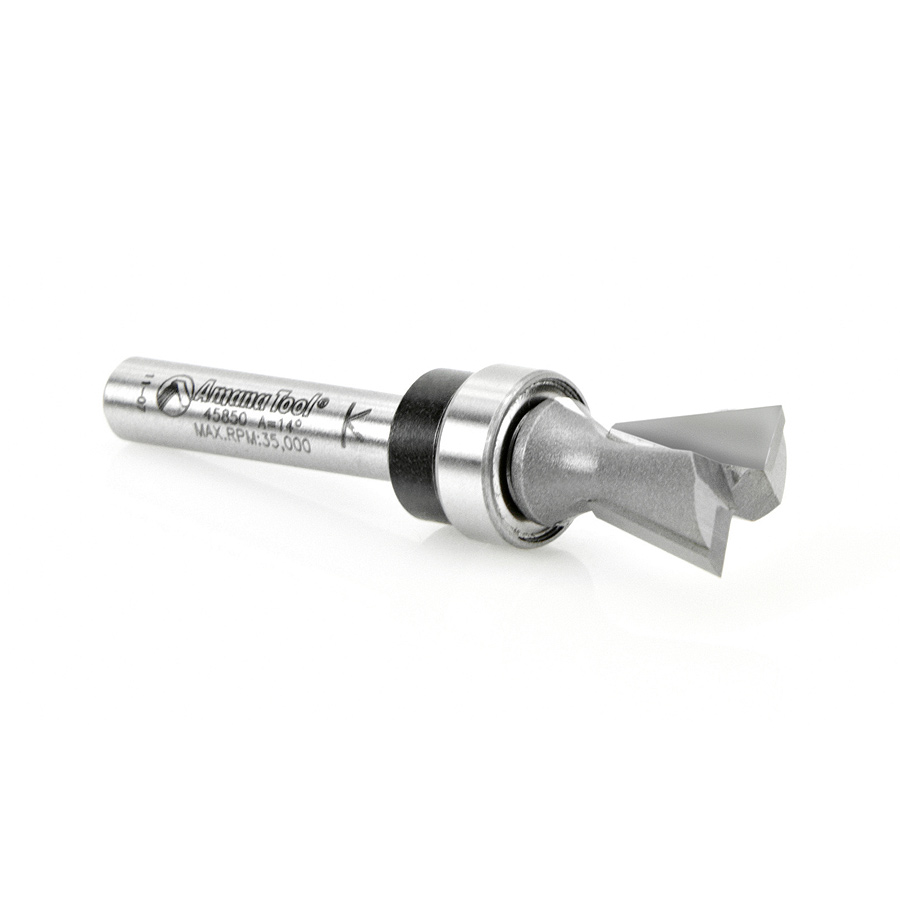

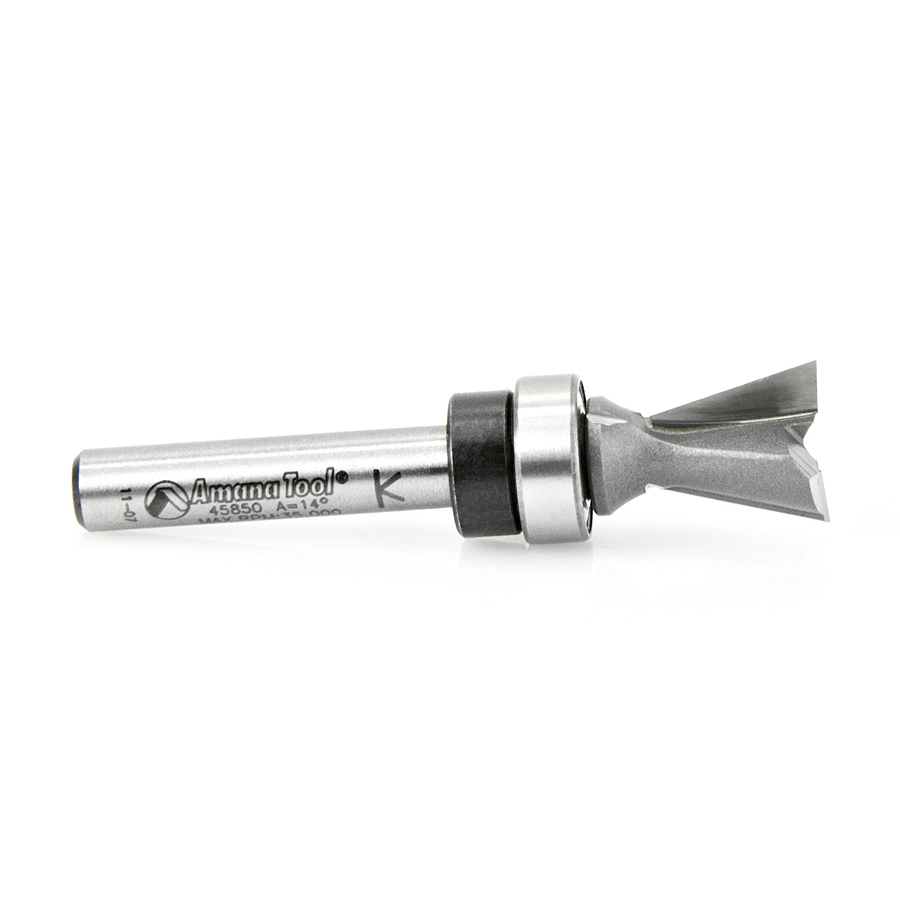

45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Amana 45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB

Name: Amana 45850 Carbide Tipped Dovetail 14 Deg x 1/2 Dia x 1/2 x 1/4 Inch Shank with Upper BB
SKU: Amana 45850
Availability: InStock

Original price was: $64.75.Current price is: $48.57.

DOVETAIL 1/2 DIA W/UPPER BB

UPC: 738685858509 SKU: Amana 45850 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45850	47701	47724

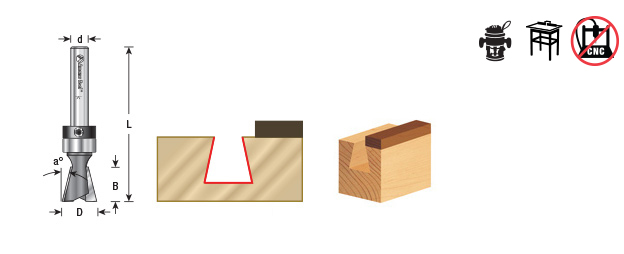

Specifications

Angle (a°)	14°
Diameter (D)	1/2
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/4
Replacement Collar	47724
Replacement Bearing	47701
Flutes	2

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Replacement Collar	Tool No.
3/4 (19.05mm)	14°	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	47721	47739	45852

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
