Sale!

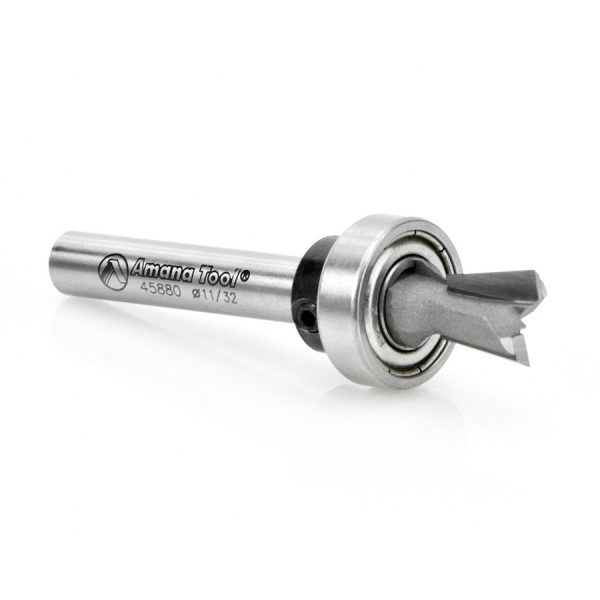

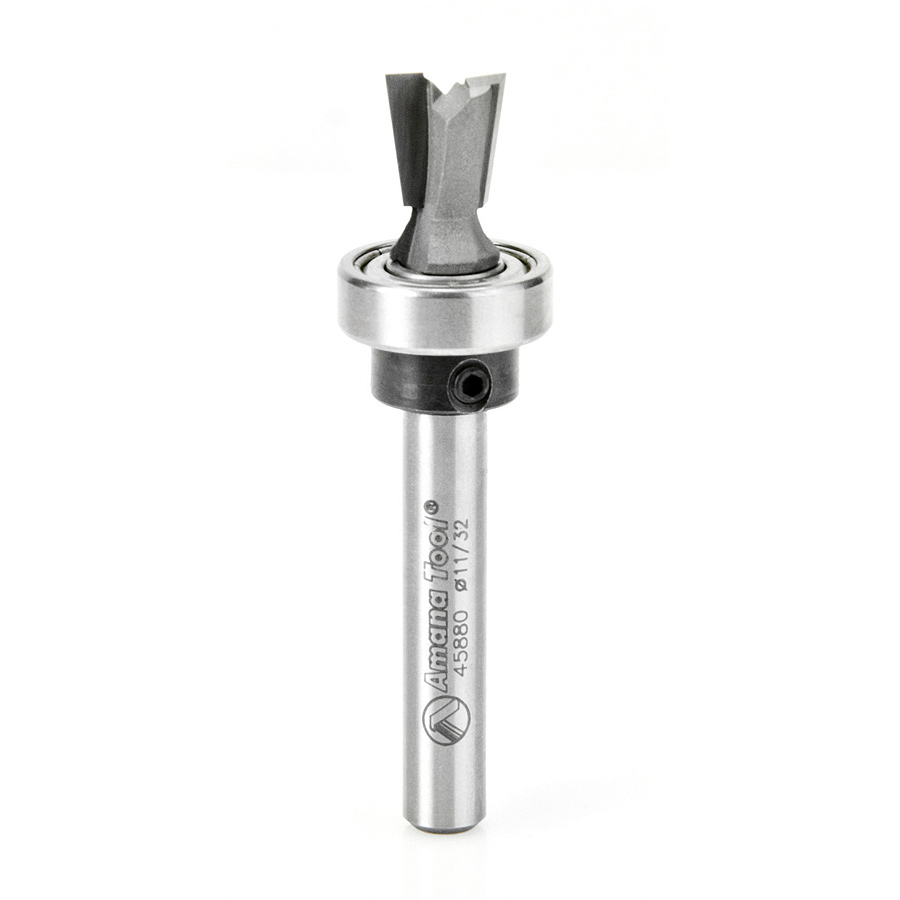

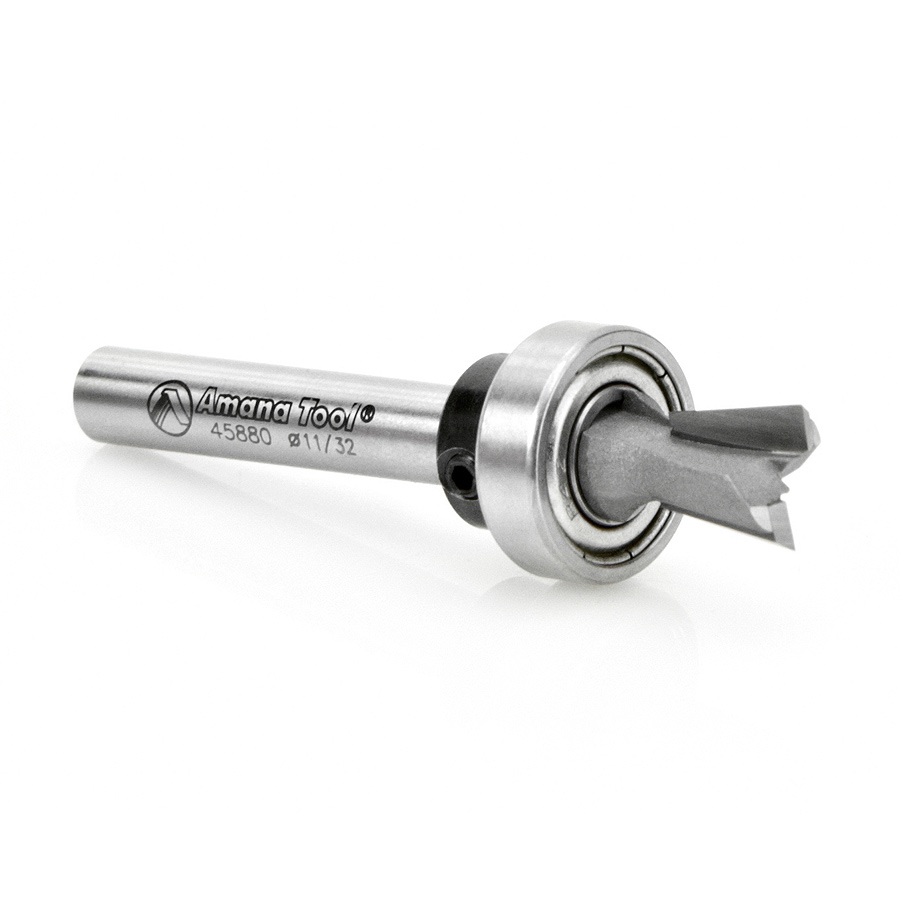

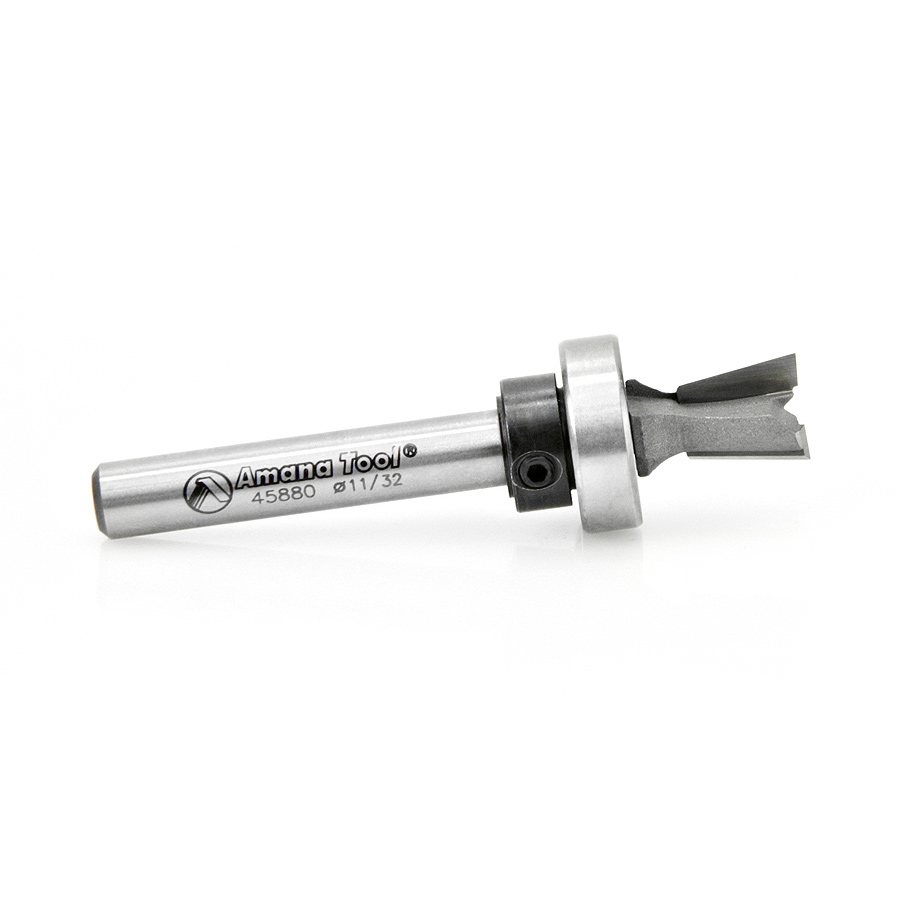

45880 Carbide Tipped Keller Dovetail 7 Deg x 11/32 Dia x 3/8 x 1/4 Inch Shank with Upper BB

Amana 45880 Carbide Tipped Keller Dovetail 7 Deg x 11/32 Dia x 3/8 x 1/4 Inch Shank with Upper BB

Name: Amana 45880 Carbide Tipped Keller Dovetail 7 Deg x 11/32 Dia x 3/8 x 1/4 Inch Shank with Upper BB
SKU: Amana 45880
Availability: InStock

Original price was: $31.70.Current price is: $23.78.

7 DEGREE KELLER DOVETAIL BIT

UPC: 738685458808 SKU: Amana 45880 Categories: Amana Tool, Dovetail Router Bits, Jointing Router Bits, Router Bits

Item Description

The popular Keller™ Templates require the use of bits with shank-mounted pilot bearings.

This bit is specifically designed for use in the Keller™ system.

Replacement Parts

Tool No.	Bearing(s)	Collar w/Set Screw
45880	47712	47724

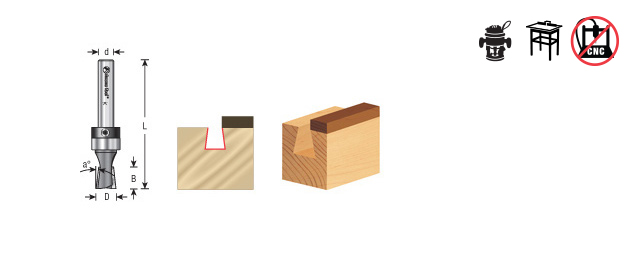

Specifications

Angle (a°)	7°
Diameter (D)	11/32
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	2-1/4
Type	Dovetail
Replacement Bearing	47712
Keller Number	1631/1531
Flutes	2

Other Sizes Available

Diameter (D)	Angle (a°)	Cutting Height (B)	Shank (d)	Overall Length (L)	Type	Replacement Bearing	Keller Number	Flutes	Tool No.
7/16 (11.11mm)	7°	3/4 (19.05mm)	1/4 (6.35mm)	2-5/8	Dovetail	47712	1633/1533 (27.06mm)	2	45882
5/8 (15.88mm)	7°	1 (25.40mm)	3/8 (9.53mm)	2-5/8	Dovetail	47741	2435	—-	45884

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
