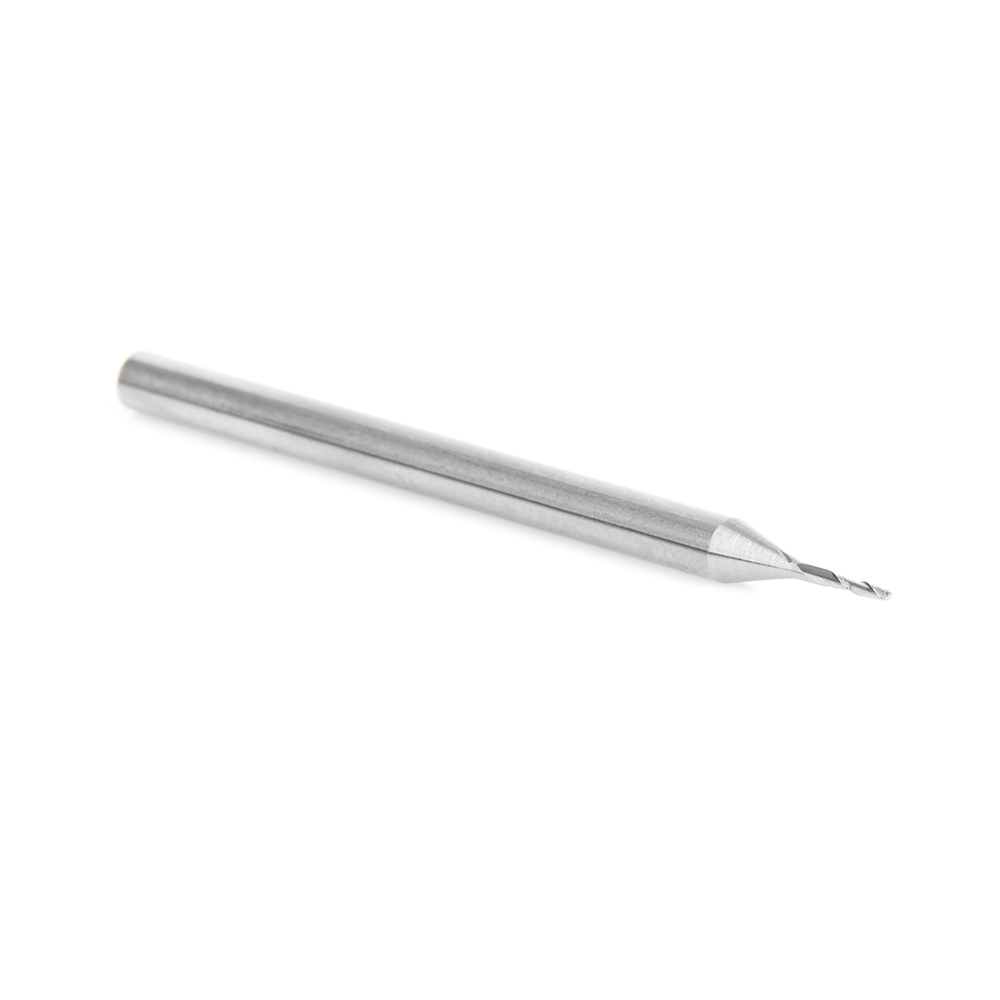

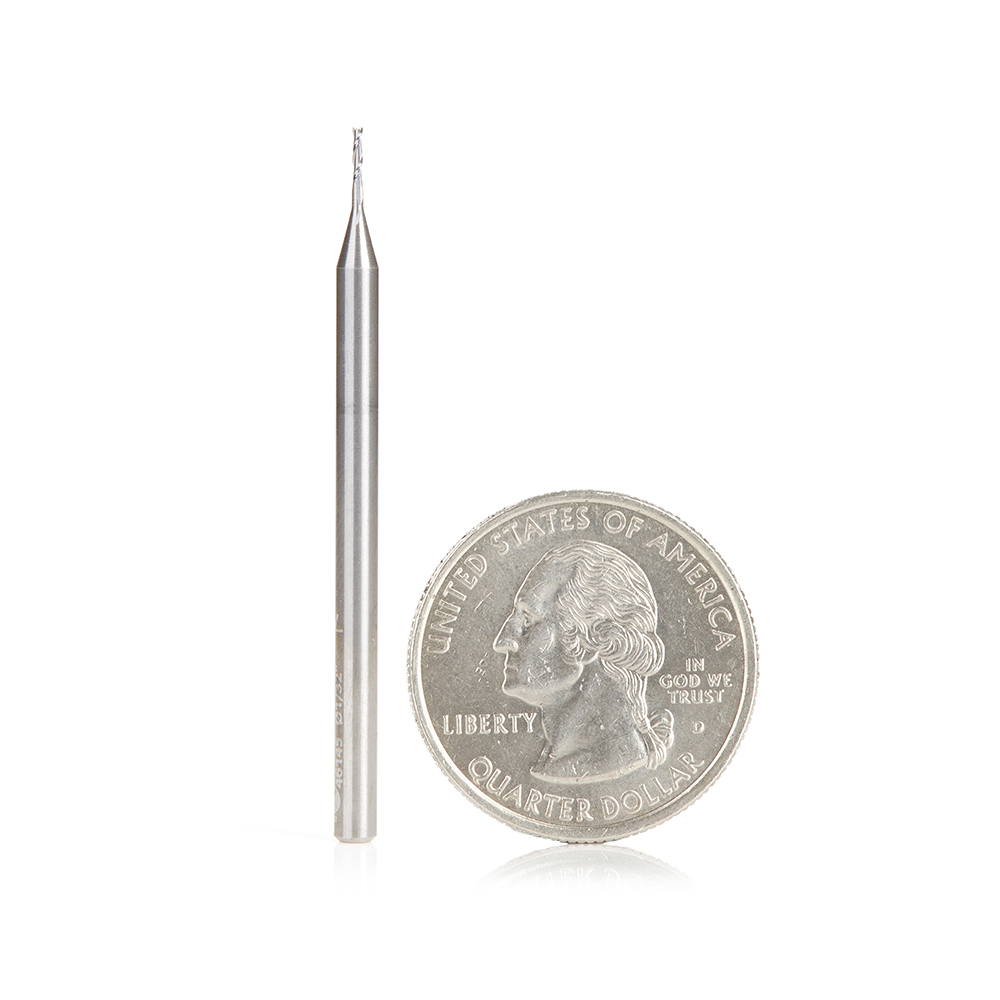

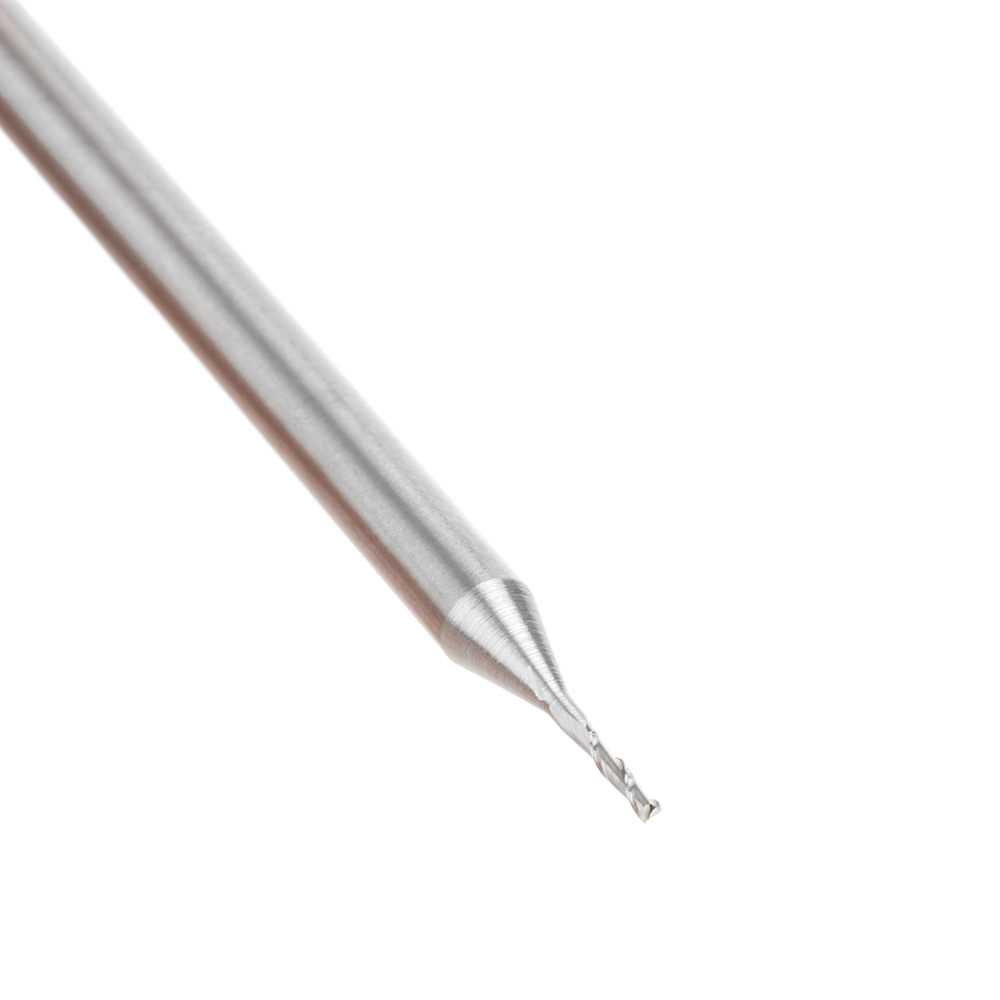

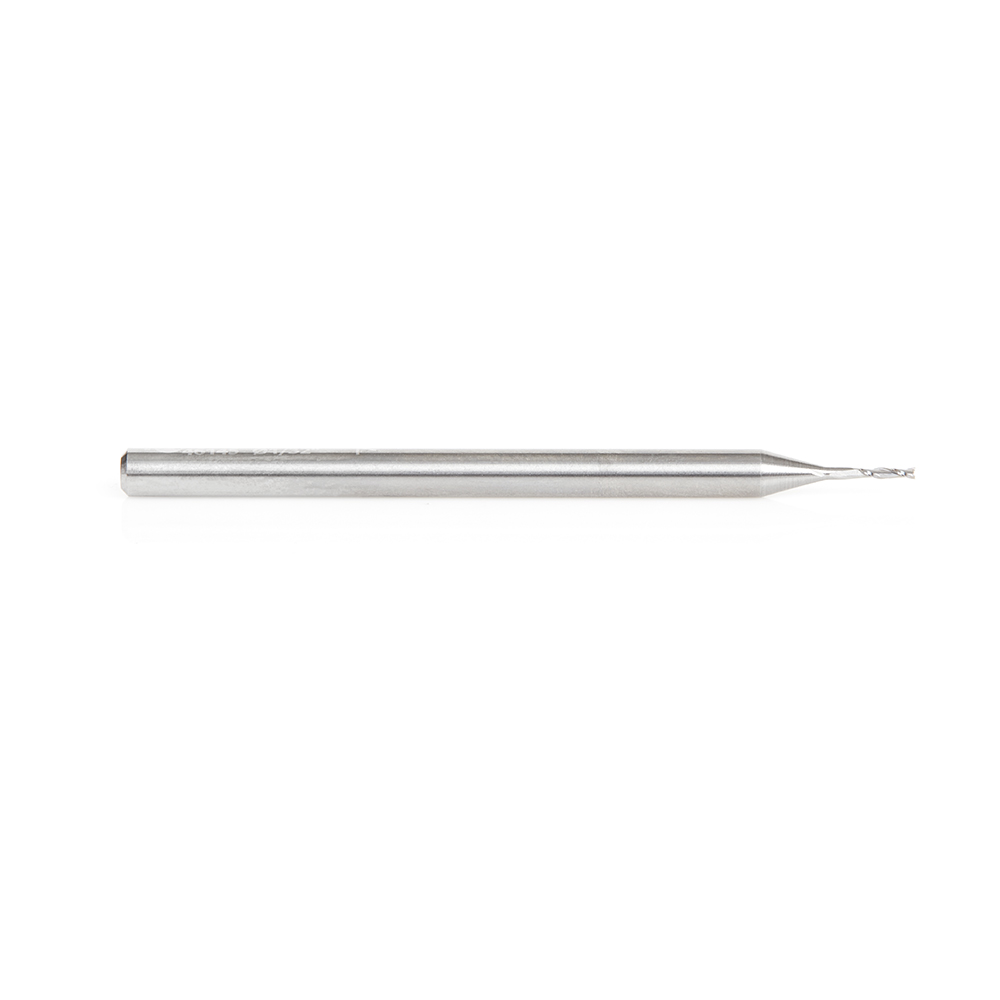

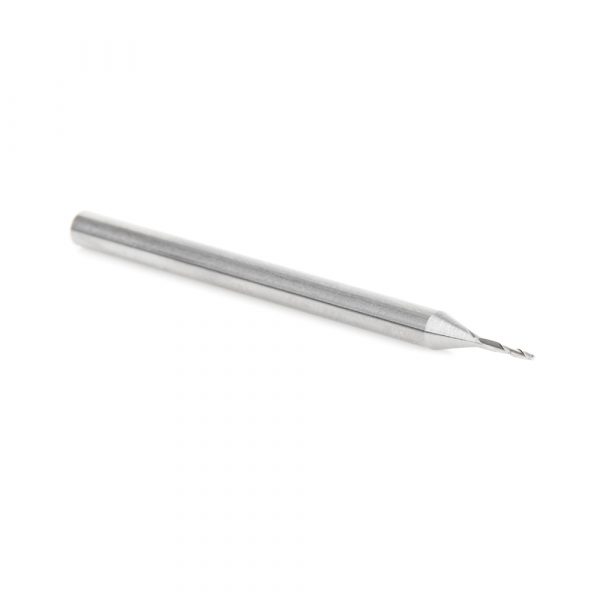

46145 Solid Carbide Spiral Plunge 1/32 Dia x 1/8 x 1/8 Shank x 2 Inch Long Up-Cut

Amana 46145 Solid Carbide Spiral Plunge 1/32 Dia x 1/8 x 1/8 Shank x 2 Inch Long Up-Cut

Name: Amana 46145 Solid Carbide Spiral Plunge 1/32 Dia x 1/8 x 1/8 Shank x 2 Inch Long Up-Cut
SKU: Amana 46145
Availability: InStock

Original price was: $51.50.Current price is: $38.63.

S.C SPIRAL 1/32″ DIA UP-CUT

UPC: 738685461457 SKU: Amana 46145 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral Plunge CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Warning!** Due to the extremely small diameters involved, bits are not guaranteed against breakage. Please exercise caution to the accurate calculations of all feed and speed rates.

Disclaimer:** It is important to understand that these values are only recommendations.

Vectric compatible tool file for 46145 available for download,click here.

Specifications

Direction	Up-Cut
(D) Diameter	1/32
(B) Cutting Height	1/8
(d) Shank	1/8
Overall Length (L)	2
Flutes	2

Other Sizes Available

(D) Diameter	(B) Cutting Height	(d) Shank	Overall Length (L)	Direction	Description	Tool No.
1/64 (0.40mm)	3/32 (2.38mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	–	46143
1/64 (0.40mm)	3/32 (2.38mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46402
1/32 (0.79mm)	1/8 (3.18mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46229
3/64 (1.19mm)	1/8 (3.18mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46231
1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	–	46009
1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	5	46009-5
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	–	46147
1/16 (1.59mm)	3/16 (4.76mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46237
1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	–	46403
1/16 (1.59mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	5	46403-5
5/64 (1.98mm)	1/8 (3.18mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46406
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	–	46004
3/32 (2.38mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46239
7/64 (2.78mm)	1/4 (6.35mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	–	46005
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	–	46100
1/8 (3.18mm)	13/16 (20.64mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46125
1/8 (3.18mm)	13/16 (20.64mm)	1/4 (6.35mm)	2-1/2	Up-Cut	5	46125-5
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Up-Cut	–	46127
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	–	46200
1/8 (3.18mm)	13/16 (20.64mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46225
1/8 (3.18mm)	1/2 (12.70mm)	1/8 (3.18mm)	2 (50.80mm)	Down-Cut	–	46227
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	Up-Cut	–	46333
1/8 (3.18mm)	1/2 (12.70mm)	1/4 (6.35mm)	2-1/4	Down-Cut	–	46433
5/32 (3.97mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46310
5/32 (3.97mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46410
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	Up-Cut	–	46101
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46131
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2 (50.80mm)	Down-Cut	–	46201
3/16 (4.76mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46331
5mm	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46062
7/32 (5.56mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46314
7/32 (5.56mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46414
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46102
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Up-Cut	5	46102-5
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	Up-Cut	–	46102-S
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46202
1/4 (6.35mm)	3/4 (19.05mm)	1/4 (6.35mm)	2-1/4	Down-Cut	–	46202-S
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46315
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Up-Cut	5	46315-5
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	–	46316
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	Up-Cut	–	46321
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	Up-Cut	–	46338
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46415
1/4 (6.35mm)	1 (25.40mm)	1/4 (6.35mm)	2-1/2	Down-Cut	5	46415-5
1/4 (6.35mm)	1-1/8	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	–	46416
1/4 (6.35mm)	1-1/4	1/4 (6.35mm)	3 (76.20mm)	Down-Cut	–	46421
1/4 (6.35mm)	3/8 (9.53mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46437
1/4 (6.35mm)	5/8 (15.88mm)	1/4 (6.35mm)	2-1/2	Down-Cut	–	46438
9/32 (7.14mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46117
9/32 (7.14mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46217
9/32 (7.14mm)	1 (25.40mm)	5/16 (7.94mm)	2-1/2	Up-Cut	–	46317
9/32 (7.14mm)	1 (25.40mm)	5/16 (7.94mm)	2-1/2	Down-Cut	–	46417
8mm	3/4 (19.05mm)	3/8 (9.53mm)	2-1/2	Up-Cut	–	46063
8mm	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46064
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46119
5/16 (7.94mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46219
5/16 (7.94mm)	1 (25.40mm)	5/16 (7.94mm)	2-1/2	Up-Cut	–	46325
5/16 (7.94mm)	1 (25.40mm)	5/16 (7.94mm)	2-1/2	Down-Cut	–	46422
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	3 (76.20mm)	Up-Cut	–	46007
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	Up-Cut	–	46103
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46104
3/8 (9.53mm)	1 (25.40mm)	3/8 (9.53mm)	2-1/2	Down-Cut	–	46203
3/8 (9.53mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46204
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	Up-Cut	–	46320
3/8 (9.53mm)	1-1/2	3/8 (9.53mm)	4 (101.60mm)	Up-Cut	–	46323
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	3 (76.20mm)	Up-Cut	–	46339
3/8 (9.53mm)	1-1/4	3/8 (9.53mm)	3 (76.20mm)	Down-Cut	–	46420
3/8 (9.53mm)	1-1/2	3/8 (9.53mm)	4 (101.60mm)	Down-Cut	–	46423
3/8 (9.53mm)	7/8 (22.23mm)	3/8 (9.53mm)	3 (76.20mm)	Down-Cut	–	46439
3/8 (9.53mm)	1-5/8	3/8 (9.53mm)	4 (101.60mm)	Down-Cut	–	46445
10mm	3/4 (19.05mm)	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46065
7/16 (11.11mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46335
7/16 (11.11mm)	1 (25.40mm)	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46435
1/2 (12.70mm)	2-1/8	1/2 (12.70mm)	4 (101.60mm)	Up-Cut	–	46006
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46106
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	Up-Cut	–	46107
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46206
1/2 (12.70mm)	1-5/8	1/2 (12.70mm)	3-1/2	Down-Cut	–	46207
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Up-Cut	–	46329
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	Up-Cut	–	46336
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4 (101.60mm)	Down-Cut	–	46429
1/2 (12.70mm)	1-1/8	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46436
1/2 (12.70mm)	7/8 (22.23mm)	1/2 (12.70mm)	3 (76.20mm)	Down-Cut	–	46447
5/8 (15.88mm)	1-5/8	5/8 (15.88mm)	3-1/2	Down-Cut	–	46208
–	–	–	–	–	–	AMS-121
–	–	–	–	–	–	AMS-125
–	–	–	–	Down-Cut	–	AMS-126

Weight	0.02 lbs
