Sale!

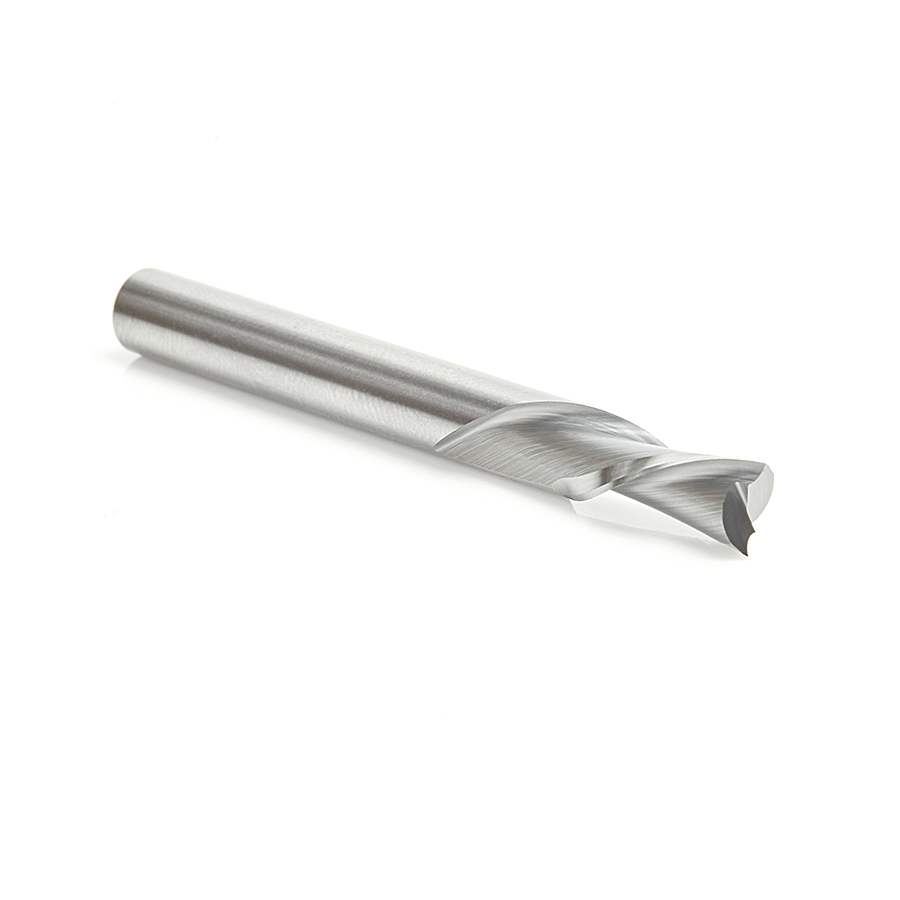

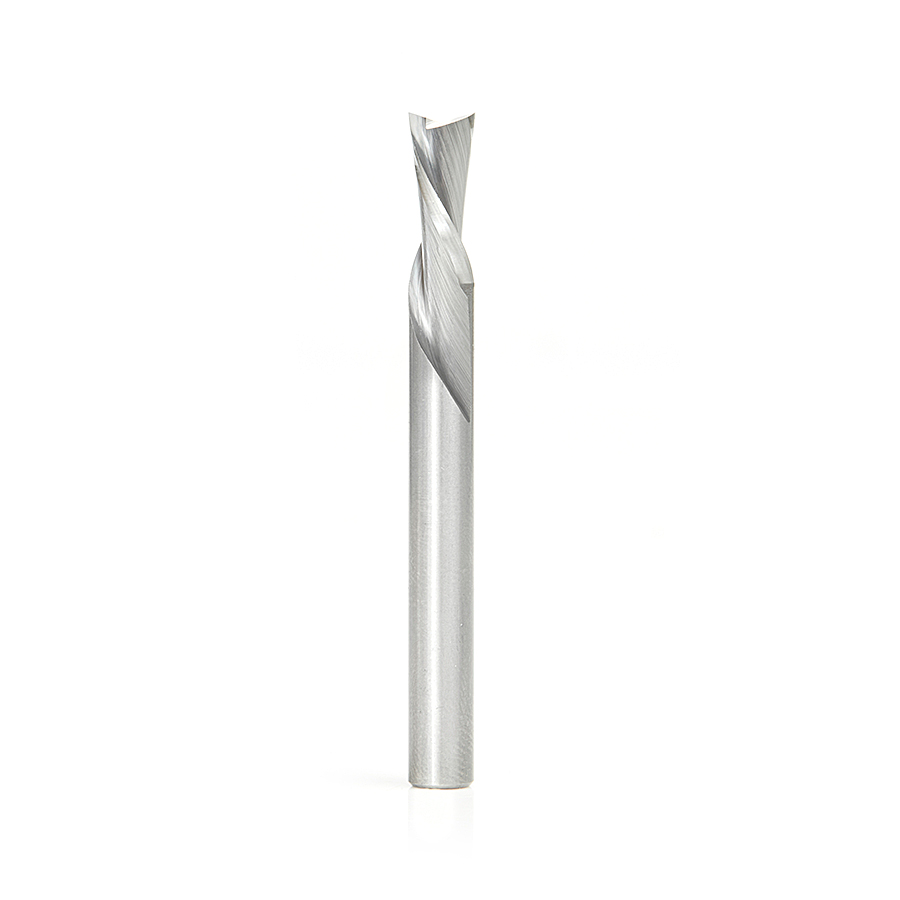

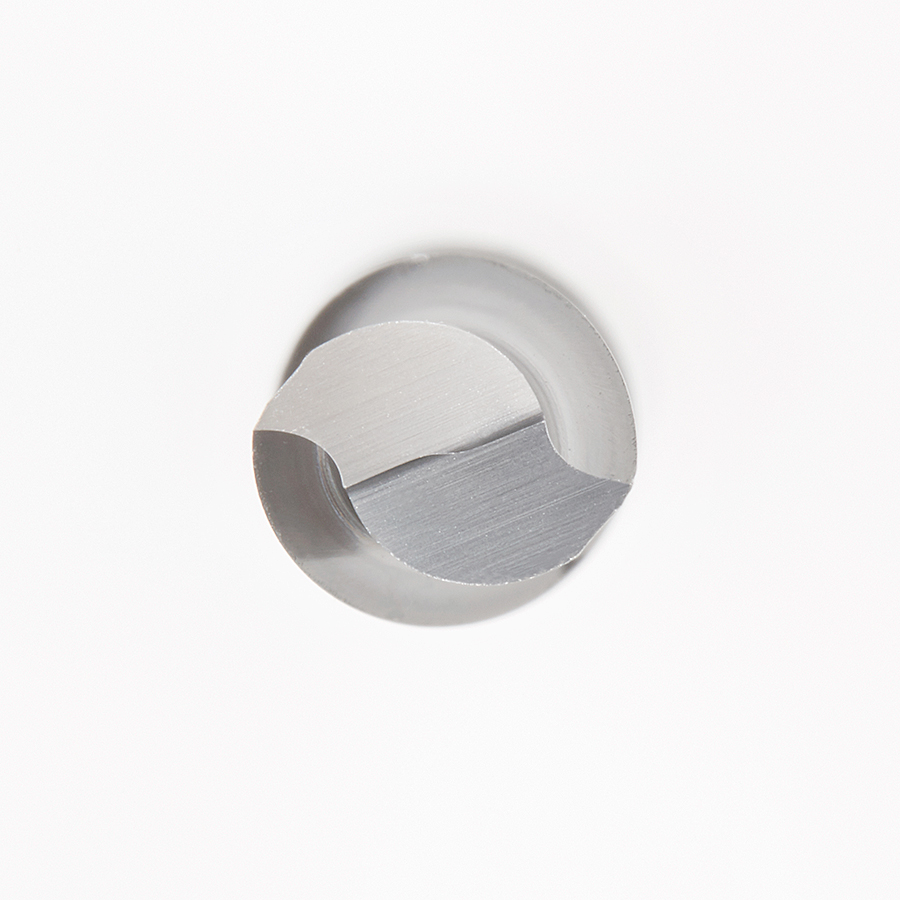

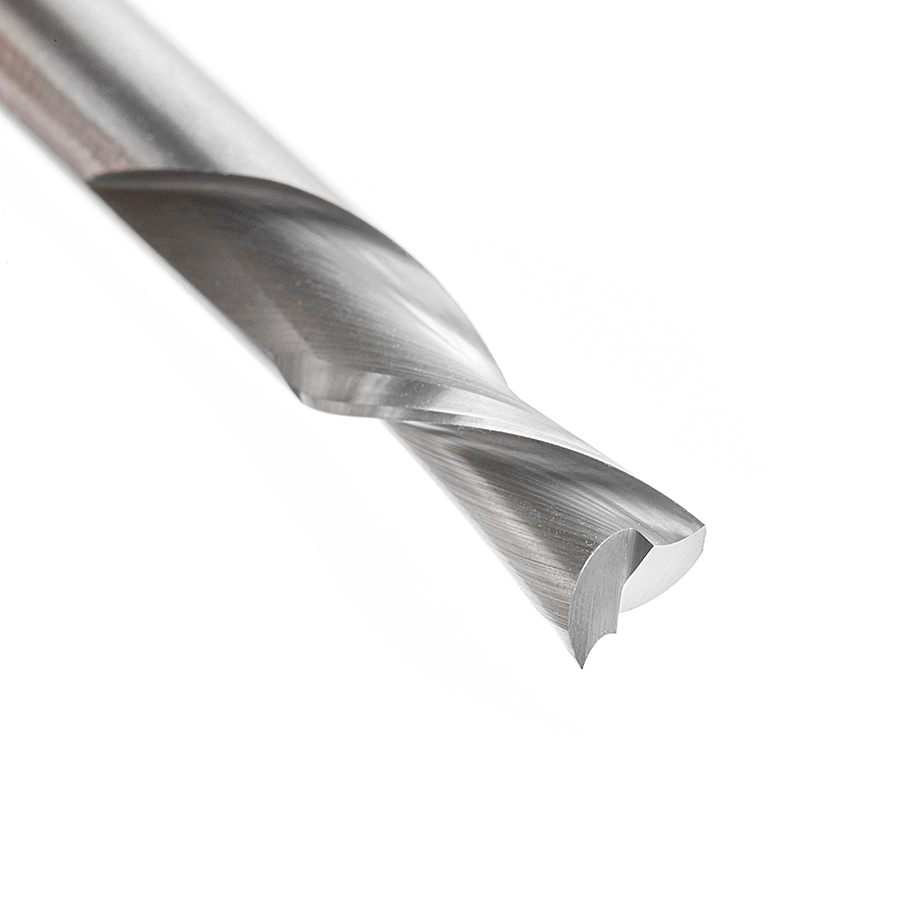

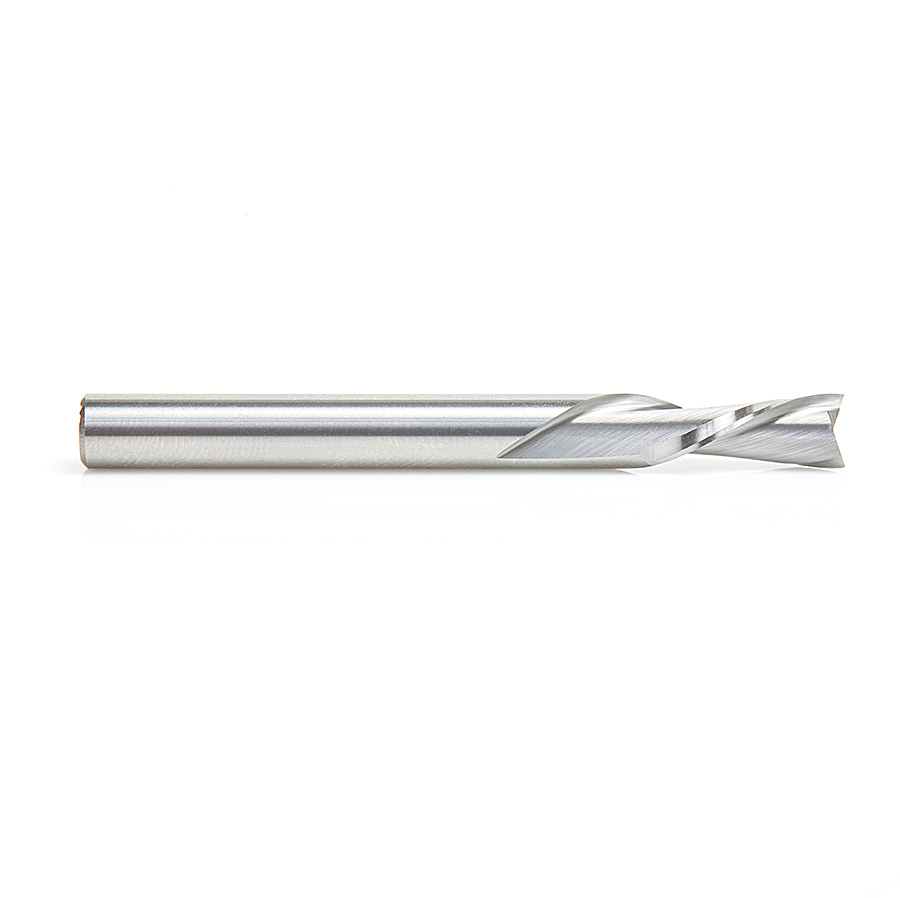

46438 Solid Carbide Spiral Plunge 1/4 Dia x 5/8 x 1/4 Inch Shank Down-Cut

Amana 46438 Solid Carbide Spiral Plunge 1/4 Dia x 5/8 x 1/4 Inch Shank Down-Cut

Name: Amana 46438 Solid Carbide Spiral Plunge 1/4 Dia x 5/8 x 1/4 Inch Shank Down-Cut
SKU: Amana 46438
Availability: InStock

Original price was: $48.80.Current price is: $36.60.

SC.SPIRAL DOWNCUT 1/4Dx1/4″SHK

UPC: 738685464380 SKU: Amana 46438 Categories: Amana Tool, CNC Router Bits, Solid Carbide Spiral Plunge CNC Router Bits, Spiral & Compression CNC Router Bits

Item Description

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.

The ‘Down-Cut’ cuts from the surface down leaving a smooth edge at the surface.

Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.

Vectric and Fusion 360 compatible tool files for 46438 available for download, click here.

Specifications

Direction	Down-Cut
(D) Diameter	1/4
(B) Cutting Height	5/8
(d) Shank	1/4
Overall Length (L)	2-1/2
Flutes	2

Weight	0.08 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
