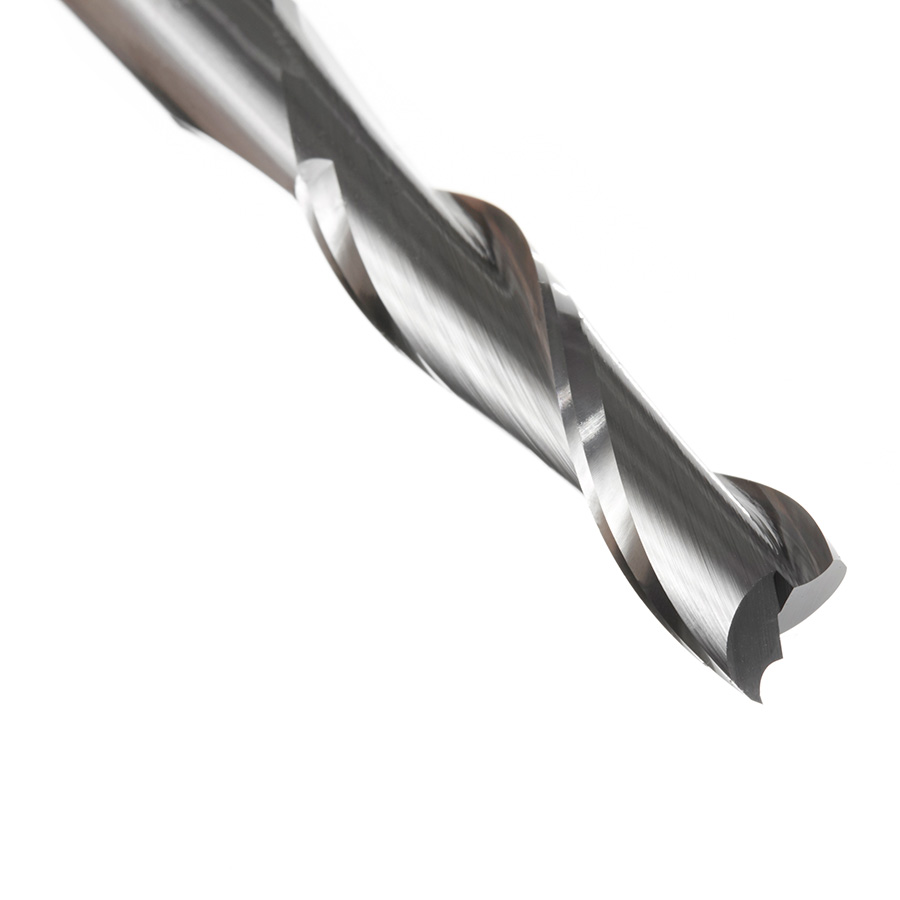

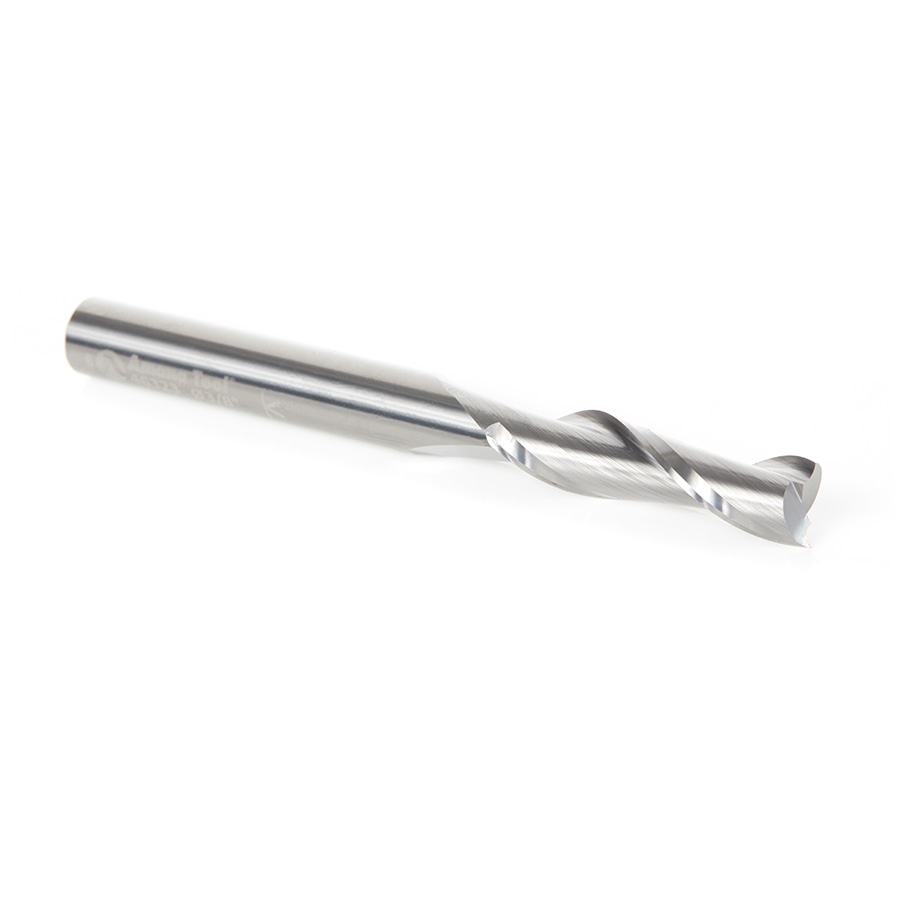

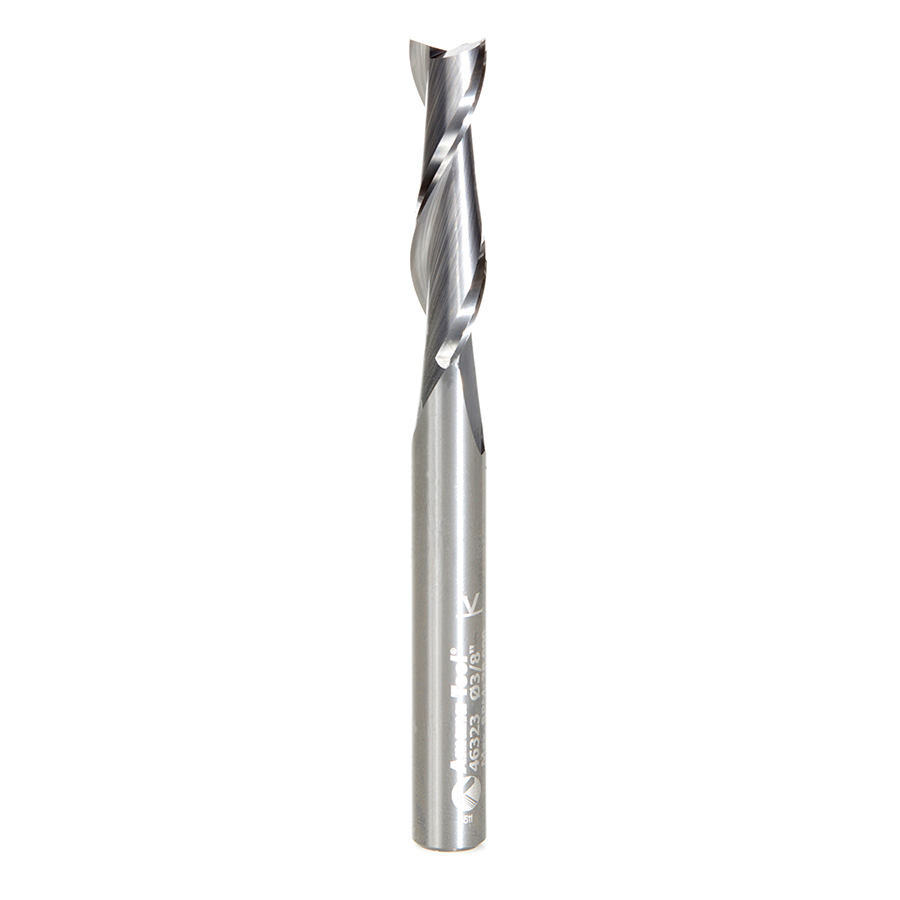

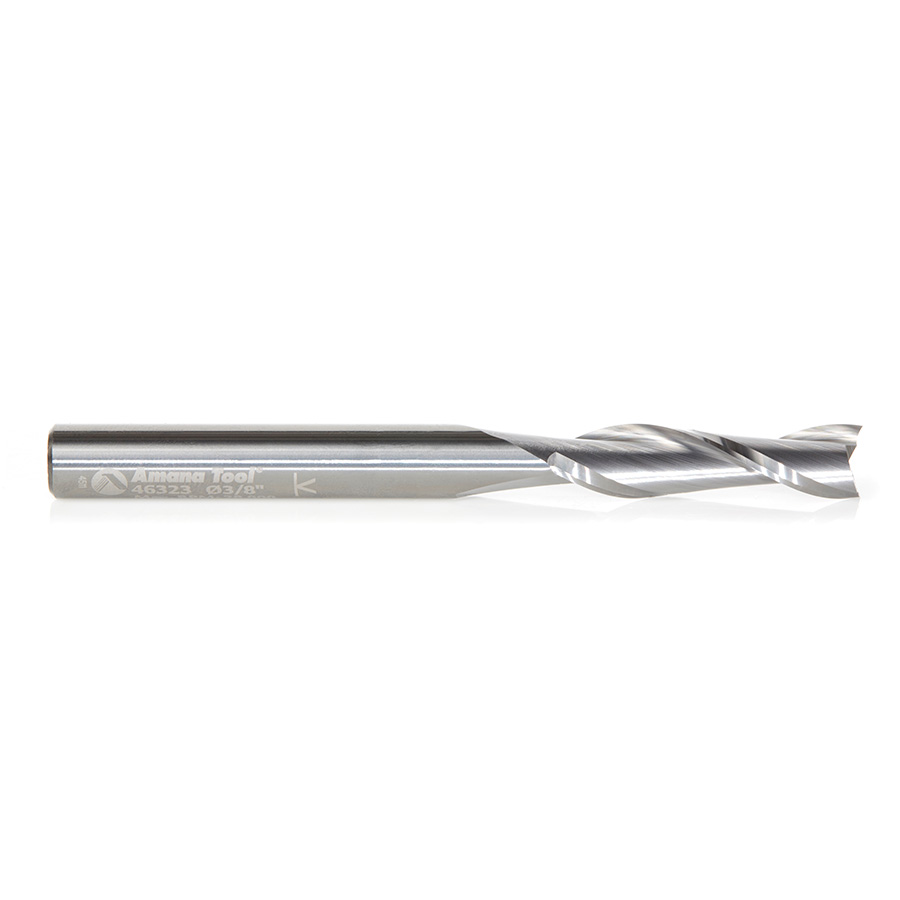

Amana 46323 Solid Carbide Spiral Plunge 3/8 Dia x 1-1/2 x 3/8 Inch Shank Up-Cut
Original price was: $127.60.$95.70Current price is: $95.70.
SPIRAL S.C 3/8″x1-1/2″x3/8″SHK
Item Description
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut.
The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising.
Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.
Vectric compatible tool file for 46323 available for download,click here.
Specifications
| Direction | Up-Cut |
|---|---|
| (D) Diameter | 3/8 |
| (B) Cutting Height | 1-1/2 |
| (d) Shank | 3/8 |
| Overall Length (L) | 4 |
| Flutes | 2 |
Other Sizes Available
| (D) Diameter | (B) Cutting Height | (d) Shank | Overall Length (L) | Direction | Description | Tool No. |
|---|---|---|---|---|---|---|
| 1/64 (0.40mm) | 3/32 (2.38mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46143 |
| 1/64 (0.40mm) | 3/32 (2.38mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46402 |
| 1/32 (0.79mm) | 1/8 (3.18mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46145 |
| 1/32 (0.79mm) | 1/8 (3.18mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46229 |
| 3/64 (1.19mm) | 1/8 (3.18mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46231 |
| 1/16 (1.59mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Up-Cut | – | 46009 |
| 1/16 (1.59mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Up-Cut | 5 | 46009-5 |
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46147 |
| 1/16 (1.59mm) | 3/16 (4.76mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46237 |
| 1/16 (1.59mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Down-Cut | – | 46403 |
| 1/16 (1.59mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Down-Cut | 5 | 46403-5 |
| 5/64 (1.98mm) | 1/8 (3.18mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46406 |
| 3/32 (2.38mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46004 |
| 3/32 (2.38mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46239 |
| 7/64 (2.78mm) | 1/4 (6.35mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46005 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Up-Cut | – | 46100 |
| 1/8 (3.18mm) | 13/16 (20.64mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46125 |
| 1/8 (3.18mm) | 13/16 (20.64mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | 5 | 46125-5 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | Up-Cut | – | 46127 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2 (50.80mm) | Down-Cut | – | 46200 |
| 1/8 (3.18mm) | 13/16 (20.64mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46225 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/8 (3.18mm) | 2 (50.80mm) | Down-Cut | – | 46227 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | Up-Cut | – | 46333 |
| 1/8 (3.18mm) | 1/2 (12.70mm) | 1/4 (6.35mm) | 2-1/4 | Down-Cut | – | 46433 |
| 5/32 (3.97mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46310 |
| 5/32 (3.97mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46410 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | Up-Cut | – | 46101 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46131 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2 (50.80mm) | Down-Cut | – | 46201 |
| 3/16 (4.76mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46331 |
| 5mm | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46062 |
| 7/32 (5.56mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46314 |
| 7/32 (5.56mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46414 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46102 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | 5 | 46102-5 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | Up-Cut | – | 46102-S |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46202 |
| 1/4 (6.35mm) | 3/4 (19.05mm) | 1/4 (6.35mm) | 2-1/4 | Down-Cut | – | 46202-S |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46315 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | 5 | 46315-5 |
| 1/4 (6.35mm) | 1-1/8 | 1/4 (6.35mm) | 3 (76.20mm) | Up-Cut | – | 46316 |
| 1/4 (6.35mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | Up-Cut | – | 46321 |
| 1/4 (6.35mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | Up-Cut | – | 46338 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46415 |
| 1/4 (6.35mm) | 1 (25.40mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | 5 | 46415-5 |
| 1/4 (6.35mm) | 1-1/8 | 1/4 (6.35mm) | 3 (76.20mm) | Down-Cut | – | 46416 |
| 1/4 (6.35mm) | 1-1/4 | 1/4 (6.35mm) | 3 (76.20mm) | Down-Cut | – | 46421 |
| 1/4 (6.35mm) | 3/8 (9.53mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46437 |
| 1/4 (6.35mm) | 5/8 (15.88mm) | 1/4 (6.35mm) | 2-1/2 | Down-Cut | – | 46438 |
| 9/32 (7.14mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46117 |
| 9/32 (7.14mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46217 |
| 9/32 (7.14mm) | 1 (25.40mm) | 5/16 (7.94mm) | 2-1/2 | Up-Cut | – | 46317 |
| 9/32 (7.14mm) | 1 (25.40mm) | 5/16 (7.94mm) | 2-1/2 | Down-Cut | – | 46417 |
| 8mm | 3/4 (19.05mm) | 3/8 (9.53mm) | 2-1/2 | Up-Cut | – | 46063 |
| 8mm | 3/4 (19.05mm) | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46064 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46119 |
| 5/16 (7.94mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46219 |
| 5/16 (7.94mm) | 1 (25.40mm) | 5/16 (7.94mm) | 2-1/2 | Up-Cut | – | 46325 |
| 5/16 (7.94mm) | 1 (25.40mm) | 5/16 (7.94mm) | 2-1/2 | Down-Cut | – | 46422 |
| 3/8 (9.53mm) | 1 (25.40mm) | 3/8 (9.53mm) | 3 (76.20mm) | Up-Cut | – | 46007 |
| 3/8 (9.53mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-1/2 | Up-Cut | – | 46103 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46104 |
| 3/8 (9.53mm) | 1 (25.40mm) | 3/8 (9.53mm) | 2-1/2 | Down-Cut | – | 46203 |
| 3/8 (9.53mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46204 |
| 3/8 (9.53mm) | 1-1/4 | 3/8 (9.53mm) | 3 (76.20mm) | Up-Cut | – | 46320 |
| 3/8 (9.53mm) | 7/8 (22.23mm) | 3/8 (9.53mm) | 3 (76.20mm) | Up-Cut | – | 46339 |
| 3/8 (9.53mm) | 1-1/4 | 3/8 (9.53mm) | 3 (76.20mm) | Down-Cut | – | 46420 |
| 3/8 (9.53mm) | 1-1/2 | 3/8 (9.53mm) | 4 (101.60mm) | Down-Cut | – | 46423 |
| 3/8 (9.53mm) | 7/8 (22.23mm) | 3/8 (9.53mm) | 3 (76.20mm) | Down-Cut | – | 46439 |
| 3/8 (9.53mm) | 1-5/8 | 3/8 (9.53mm) | 4 (101.60mm) | Down-Cut | – | 46445 |
| 10mm | 3/4 (19.05mm) | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46065 |
| 7/16 (11.11mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46335 |
| 7/16 (11.11mm) | 1 (25.40mm) | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46435 |
| 1/2 (12.70mm) | 2-1/8 | 1/2 (12.70mm) | 4 (101.60mm) | Up-Cut | – | 46006 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46106 |
| 1/2 (12.70mm) | 1-5/8 | 1/2 (12.70mm) | 3-1/2 | Up-Cut | – | 46107 |
| 1/2 (12.70mm) | 1-1/4 | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46206 |
| 1/2 (12.70mm) | 1-5/8 | 1/2 (12.70mm) | 3-1/2 | Down-Cut | – | 46207 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | Up-Cut | – | 46329 |
| 1/2 (12.70mm) | 1-1/8 | 1/2 (12.70mm) | 3 (76.20mm) | Up-Cut | – | 46336 |
| 1/2 (12.70mm) | 2 (50.80mm) | 1/2 (12.70mm) | 4 (101.60mm) | Down-Cut | – | 46429 |
| 1/2 (12.70mm) | 1-1/8 | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46436 |
| 1/2 (12.70mm) | 7/8 (22.23mm) | 1/2 (12.70mm) | 3 (76.20mm) | Down-Cut | – | 46447 |
| 5/8 (15.88mm) | 1-5/8 | 5/8 (15.88mm) | 3-1/2 | Down-Cut | – | 46208 |
| – | – | – | – | – | – | AMS-121 |
| – | – | – | – | – | – | AMS-125 |
| – | – | – | – | Down-Cut | – | AMS-126 |
| Weight | 0.24 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
