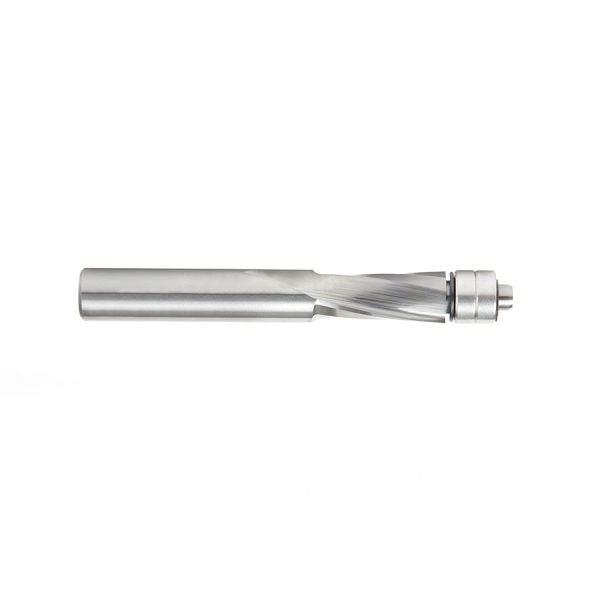

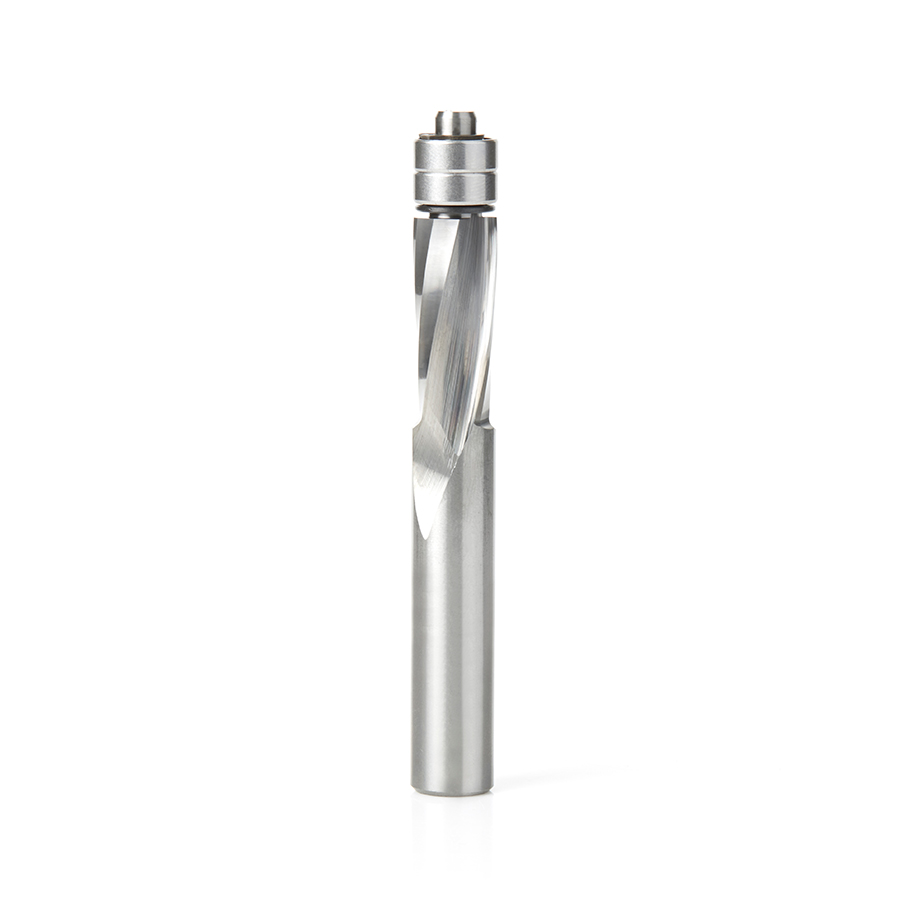

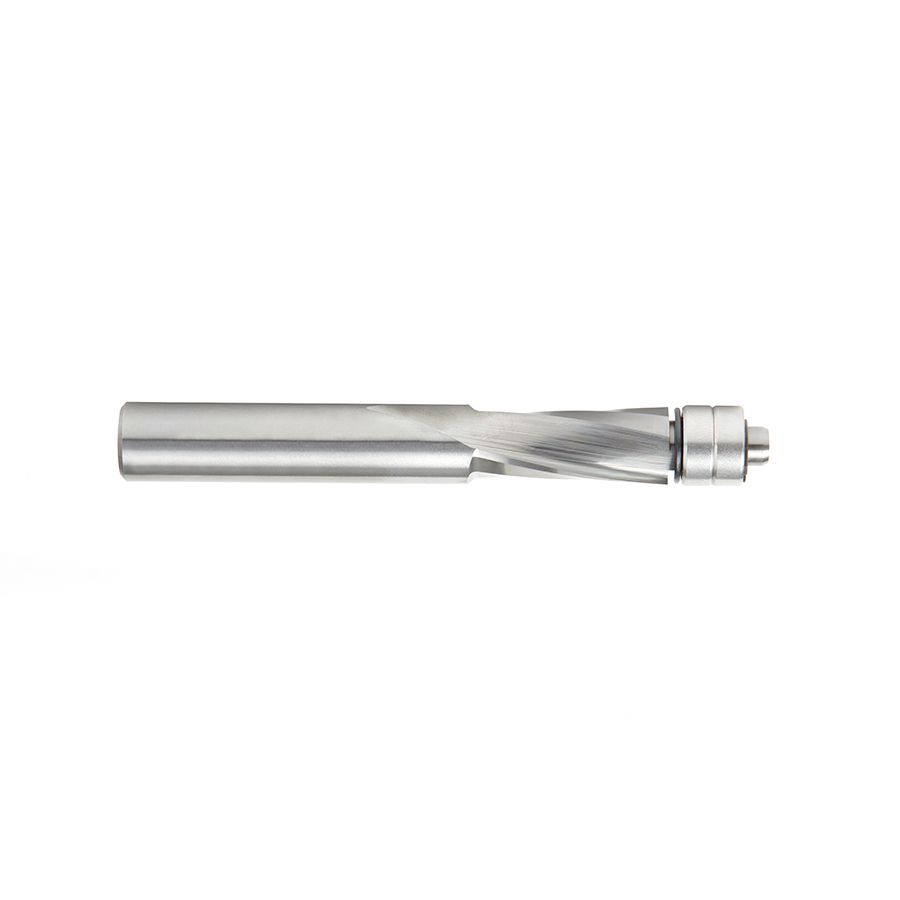

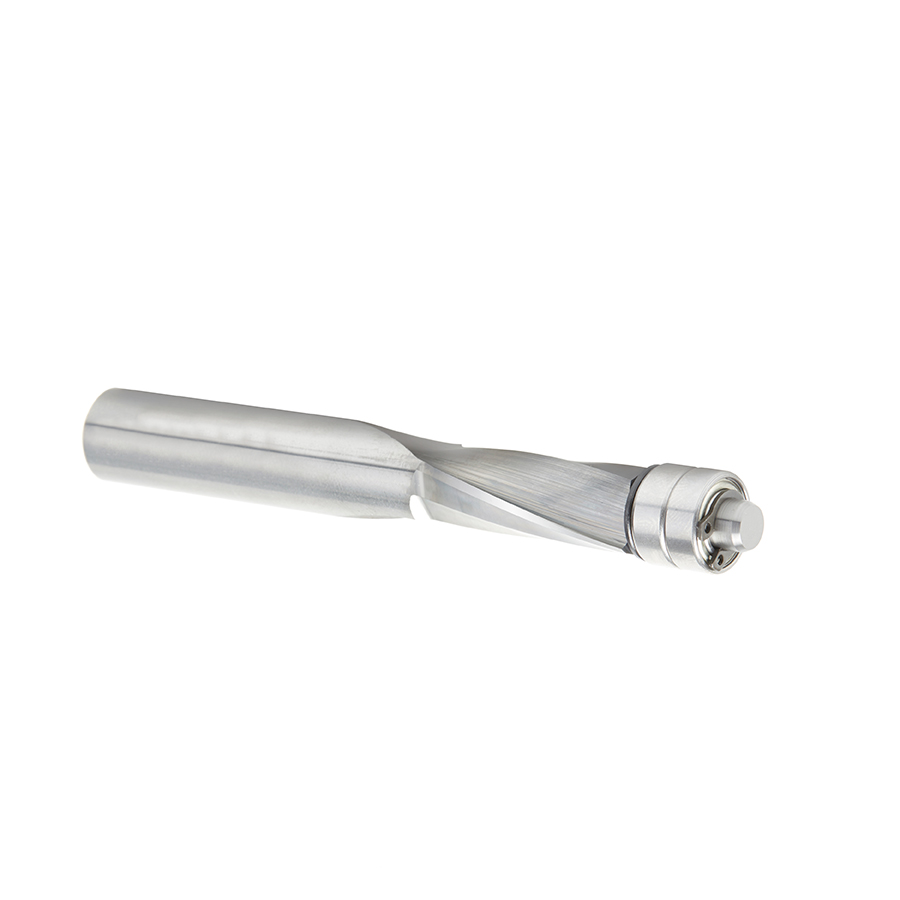

46300 Solid Carbide UltraTrim Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Lower Ball Bearing Up-Cut

Amana 46300 Solid Carbide UltraTrim Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Lower Ball Bearing Up-Cut

Name: Amana 46300 Solid Carbide UltraTrim Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank with Double Lower Ball Bearing Up-Cut
SKU: Amana 46300
Availability: InStock

Original price was: $217.80.Current price is: $163.35.

SC SPIRAL FLUSH TRIM 1-1/4 2BB

UPC: 738685463000 SKU: Amana 46300 Categories: Amana Tool, Router Bits, Solid Carbide Ultratrim Sprial Trim Router Bits, Trimming Router Bits

Item Description

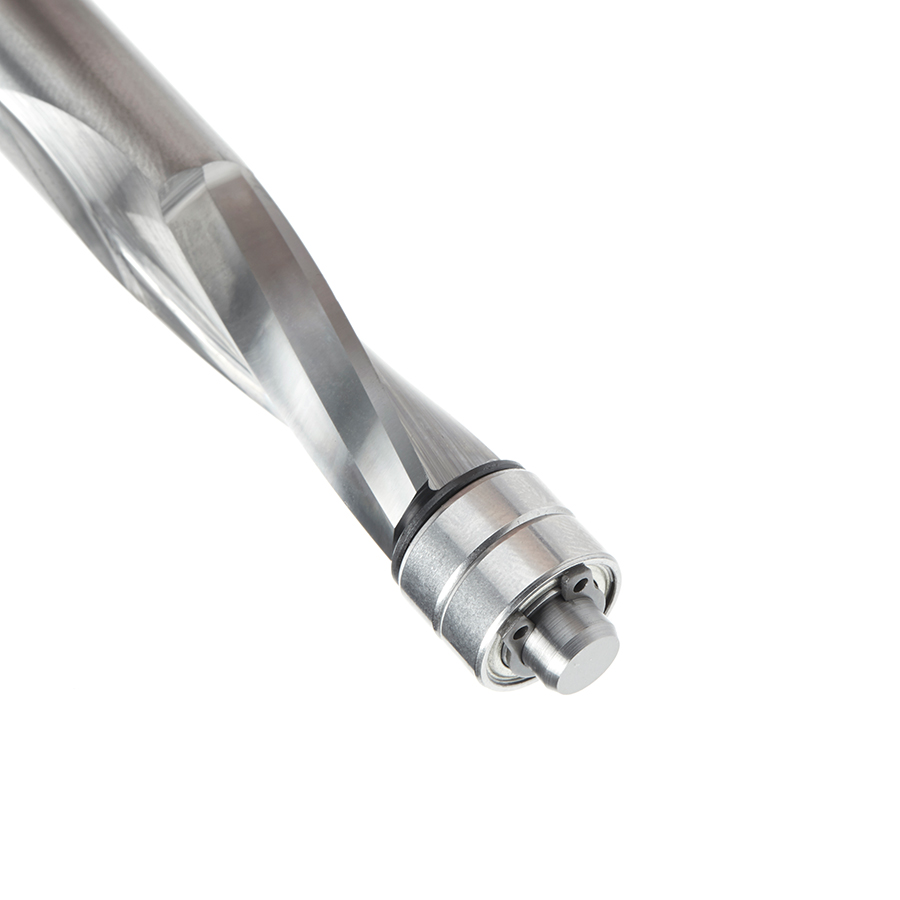

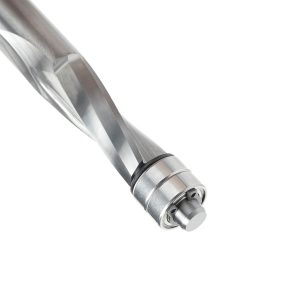

For the ultimate, chip-free finish in laminate, melamine, solid surface, fragile veneers and for template work of all kinds. The twin ball-bearing pilot enhances the stability of the tool. Available in ‘Up-Cut’ and ‘Down-Cut’ spirals.

Replacement Parts

Tool No.	Bearing(s)	Lock Ring	Washer
46300	47701 (2)	47752	67053

Specifications

Direction	Up-Cut
Diameter (D)	1/2
Cutting Height (B)	1-1/4
Shank (d)	1/2
Overall Length (L)	4
Type	Up-Cut
Replacement Bearing	47701 (2)
Washer	67053
Locking Ring	47752
L1	5/32
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	L1	Flutes	Direction	Tool No.
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	5 (127.00mm)	5/32 (3.97mm)	2	Up-Cut	46304
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	4 (101.60mm)	5/32 (3.97mm)	2	Down-Cut	46400
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	5 (127.00mm)	5/32 (3.97mm)	2	Down-Cut	46404
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	–	3	Up-Cut	58120
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	–	3	Down-Cut	58220

Weight	0.32 lbs
