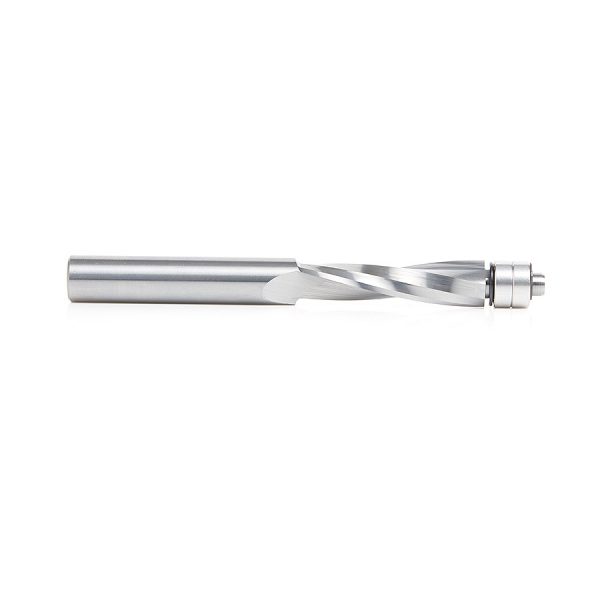

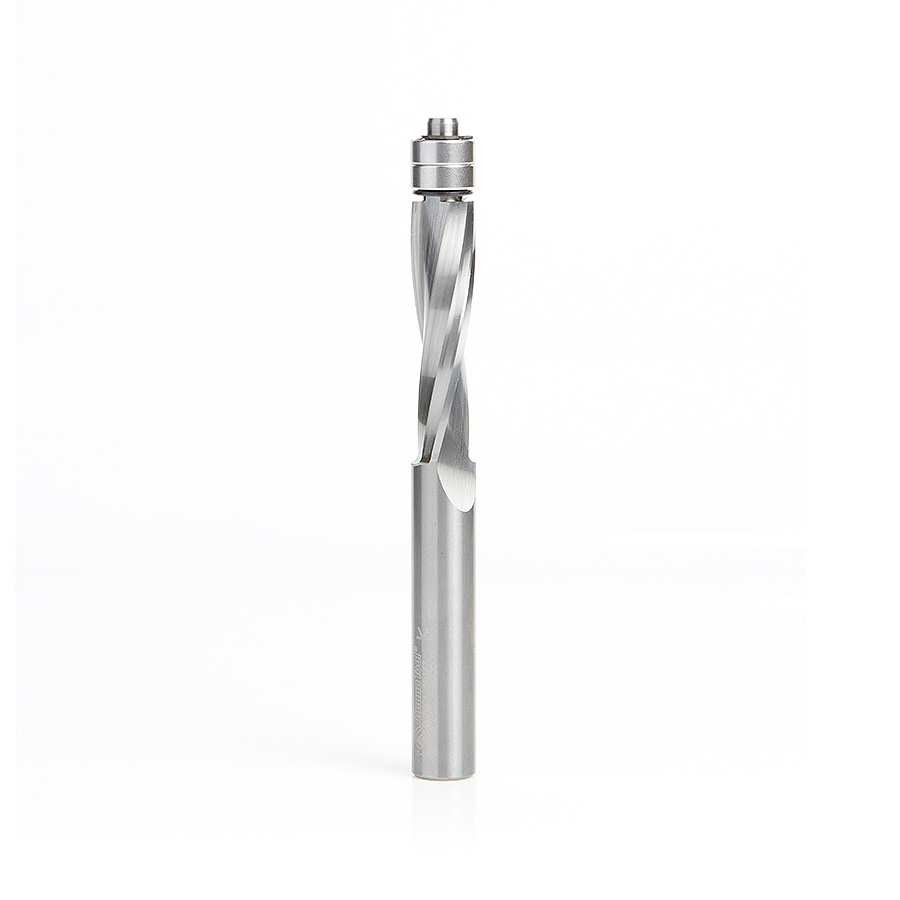

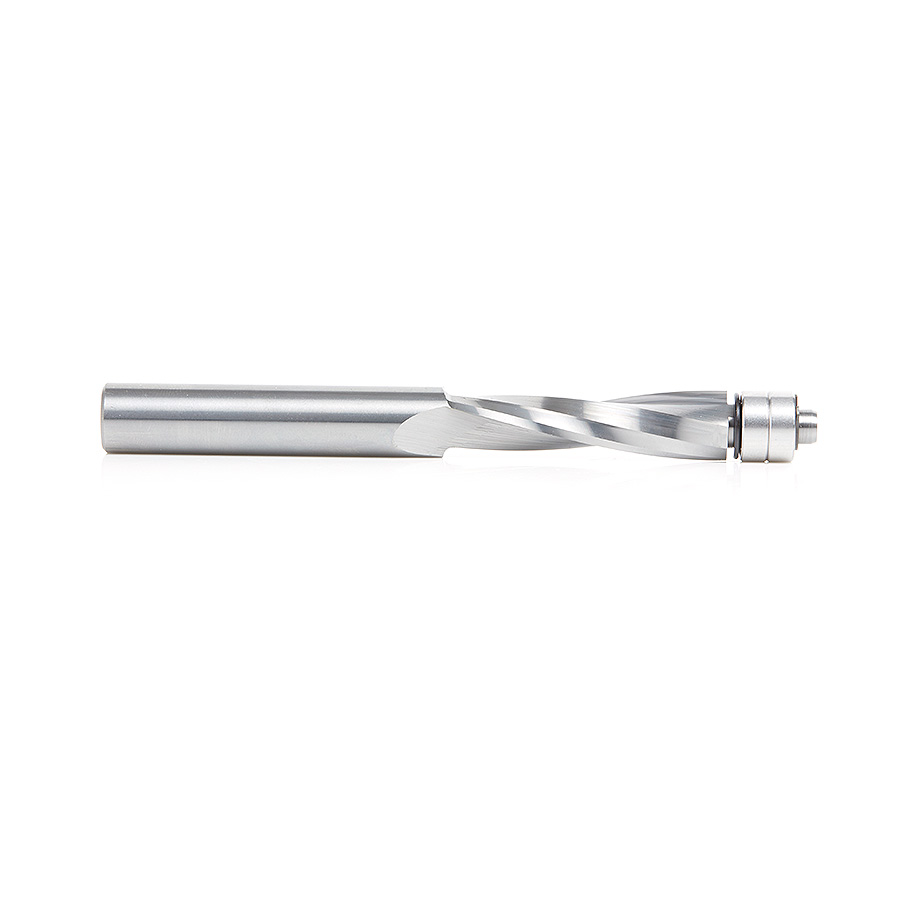

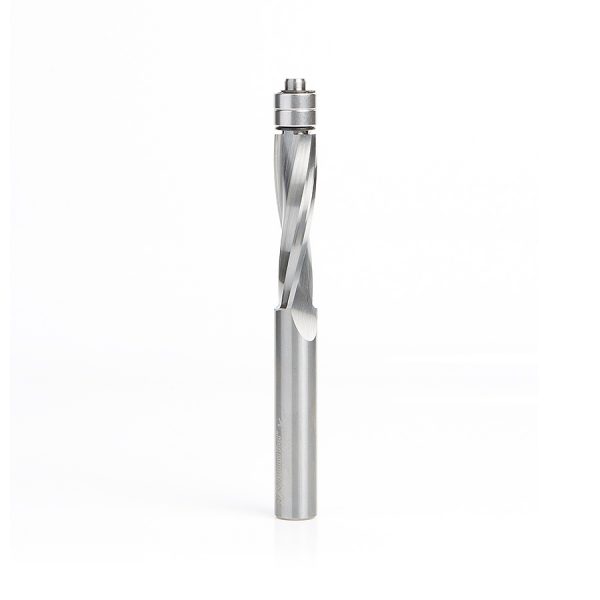

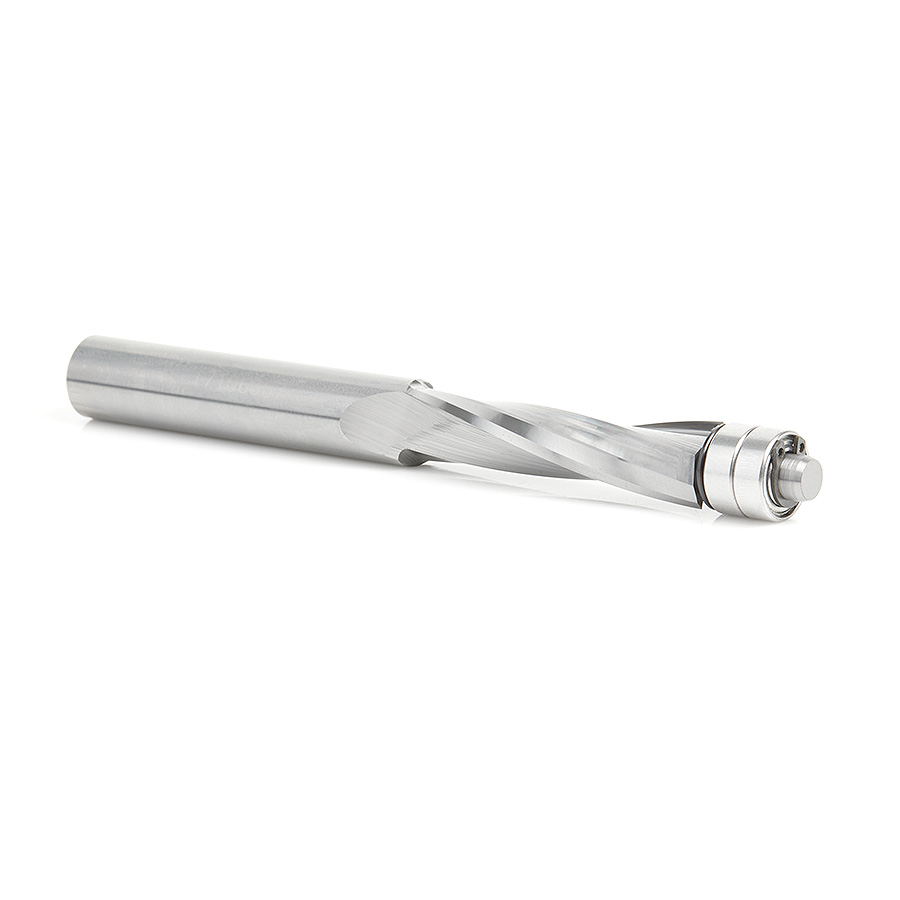

46304 Solid Carbide UltraTrim Spiral 1/2 Dia x 2 Inch x 1/2 Shank with Double Lower Ball Bearing Up-Cut

Amana 46304 Solid Carbide UltraTrim Spiral 1/2 Dia x 2 Inch x 1/2 Shank with Double Lower Ball Bearing Up-Cut

Name: Amana 46304 Solid Carbide UltraTrim Spiral 1/2 Dia x 2 Inch x 1/2 Shank with Double Lower Ball Bearing Up-Cut
SKU: Amana 46304
Availability: InStock

Original price was: $256.25.Current price is: $192.19.

SC SPIRAL FLUSH TRIM 2″ CL 2BB

UPC: 738685464038 SKU: Amana 46304 Categories: Amana Tool, Router Bits, Solid Carbide Ultratrim Sprial Trim Router Bits, Trimming Router Bits

Item Description

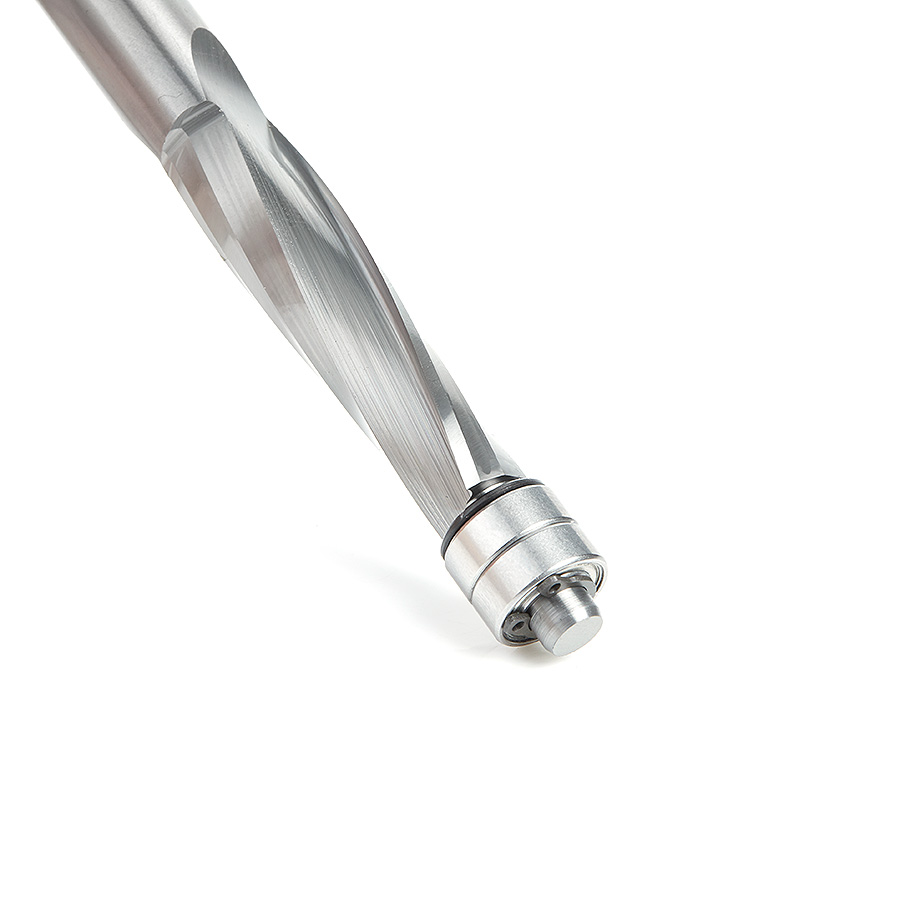

For the ultimate, chip-free finish in laminate, melamine, solid surface, fragile veneers and for template work of all kinds. The twin ball-bearing pilot enhances the stability of the tool. Available in ‘Up-Cut’ and ‘Down-Cut’ spirals.

Replacement Parts

Tool No.	Bearing(s)	Lock Ring	Washer
46304	47701 (2)	47752	67053

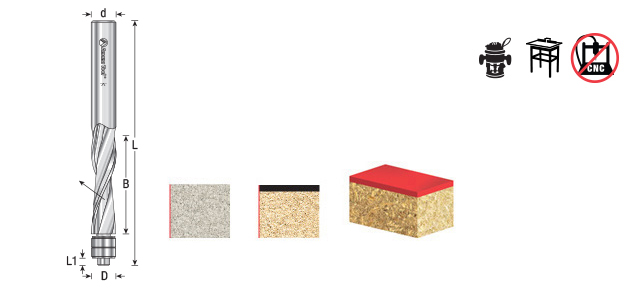

Specifications

Direction	Up-Cut
Diameter (D)	1/2
Cutting Height (B)	2
Shank (d)	1/2
Overall Length (L)	5
Type	Up-Cut
Replacement Bearing	47701 (2)
Washer	67053
Locking Ring	47752
L1	5/32
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	L1	Flutes	Direction	Tool No.
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	4 (101.60mm)	5/32 (3.97mm)	2	Up-Cut	46300
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	4 (101.60mm)	5/32 (3.97mm)	2	Down-Cut	46400
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	5 (127.00mm)	5/32 (3.97mm)	2	Down-Cut	46404
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	–	3	Up-Cut	58120
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	–	3	Up-Cut	58122
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	–	3	Down-Cut	58220
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	–	3	Down-Cut	58222

Weight	0.35 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
