Sale!

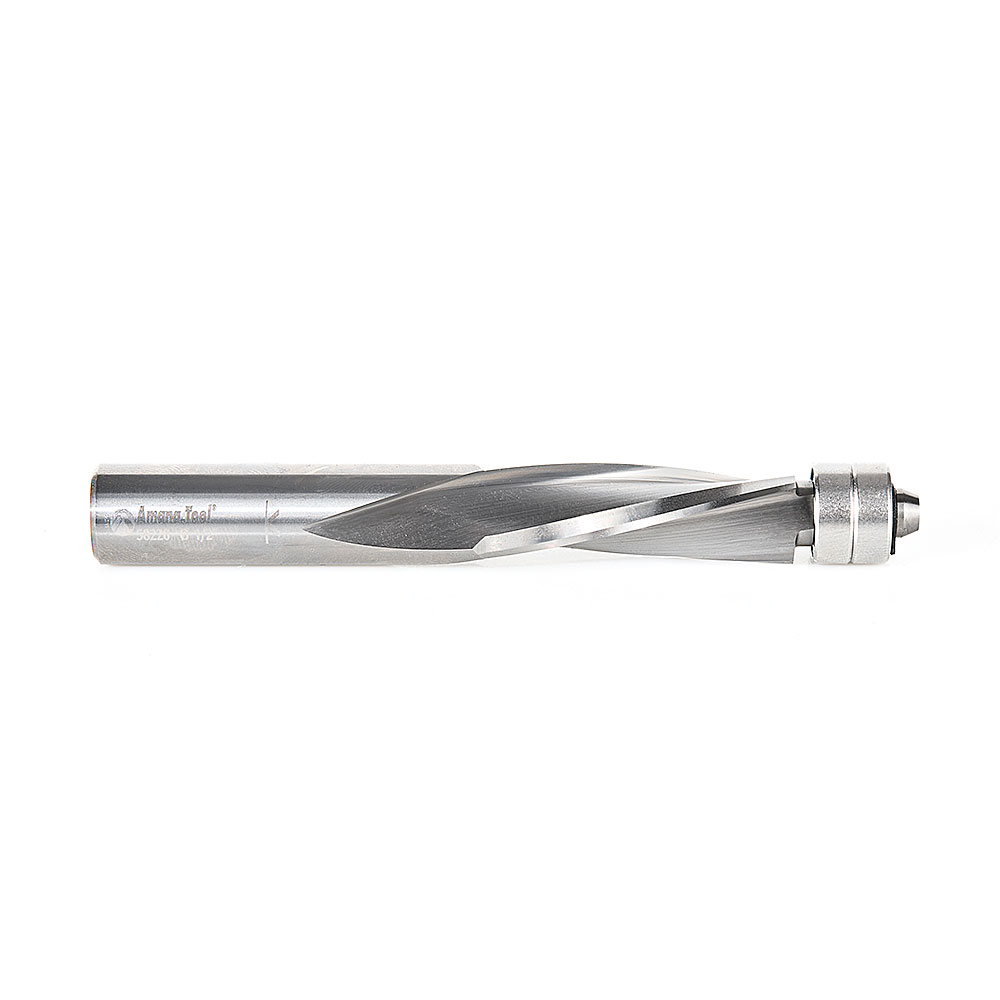

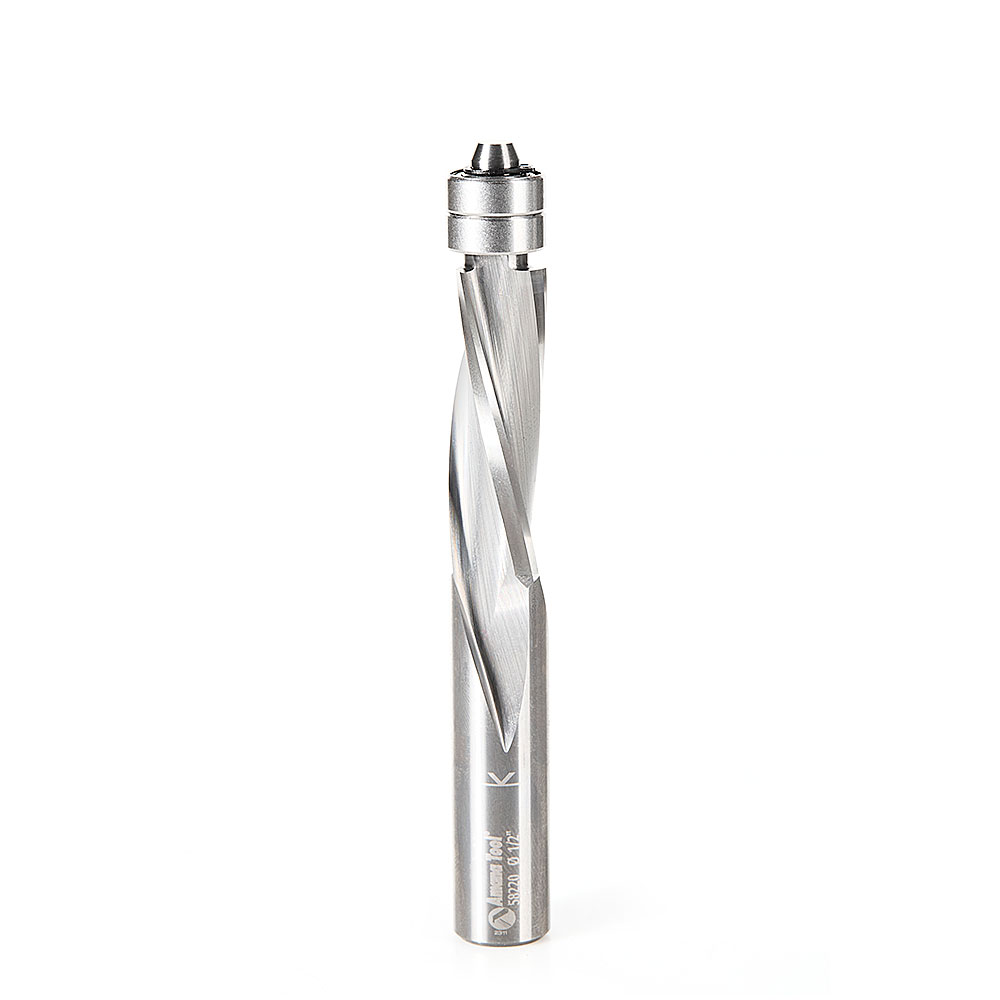

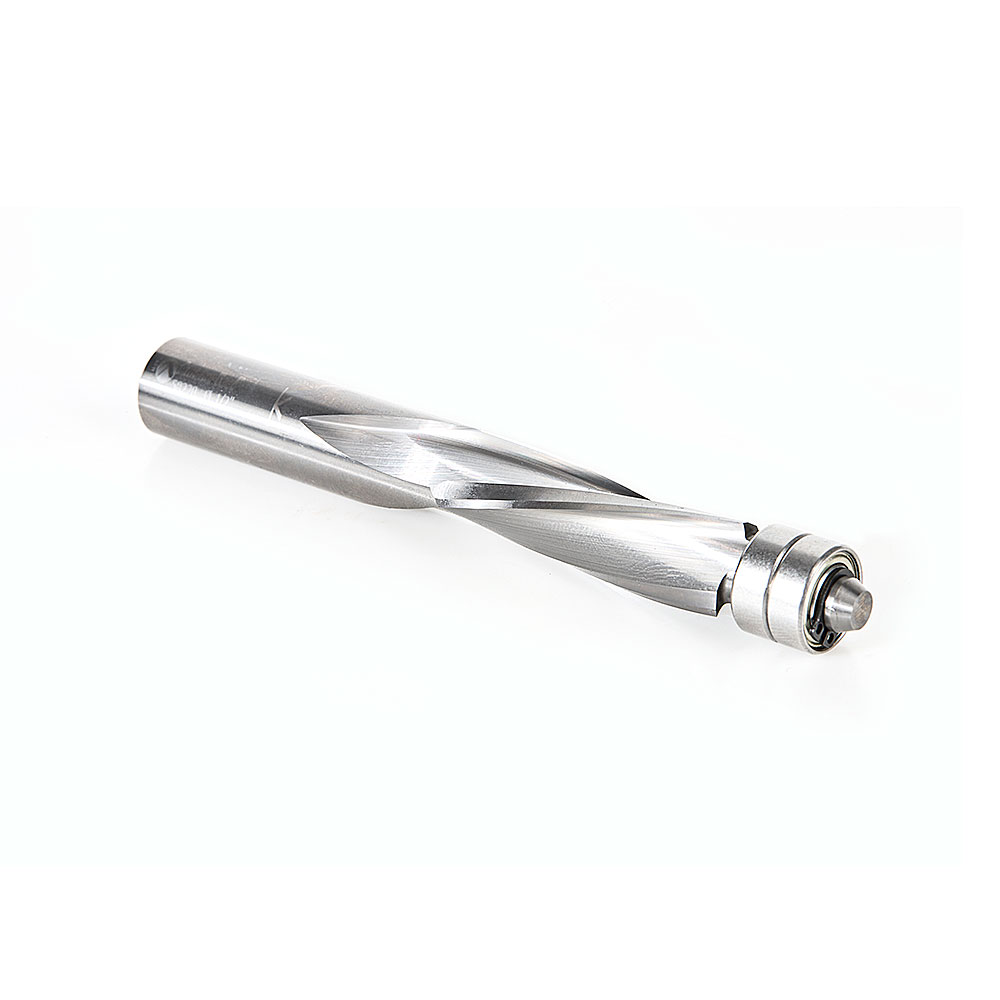

58220 Solid Carbide UltraTrim Spiral 3 Flute 1/2 Dia x 1-1/2 x 1/2 Inch Shank with Double Lower Ball Bearing Down-Cut

Amana 58220 Solid Carbide UltraTrim Spiral 3 Flute 1/2 Dia x 1-1/2 x 1/2 Inch Shank with Double Lower Ball Bearing Down-Cut

Name: Amana 58220 Solid Carbide UltraTrim Spiral 3 Flute 1/2 Dia x 1-1/2 x 1/2 Inch Shank with Double Lower Ball Bearing Down-Cut
SKU: Amana 58220
Availability: InStock

Original price was: $243.45.Current price is: $182.59.

SC 3FL SPIRAL FLUSHTRIM 1-1/2

UPC: N/A SKU: Amana 58220 Categories: Amana Tool, Router Bits, Solid Carbide Ultratrim Sprial Trim Router Bits, Trimming Router Bits

Item Description

For the ultimate, chip-free finish in laminate, melamine, solid surface, fragile veneers and for template work of all kinds. The twin ball-bearing pilot enhances the stability of the tool. Available in ‘Up-Cut’ and ‘Down-Cut’ spirals.

Replacement Parts

Tool No.	Bearing(s)
58220	47701 (2)

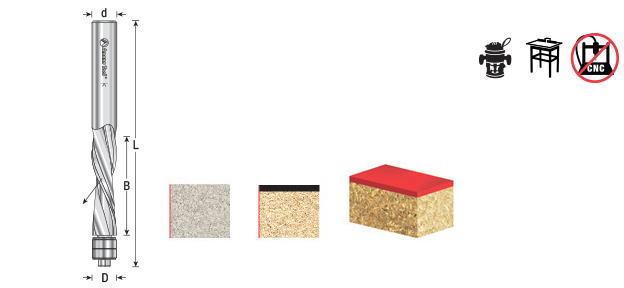

Specifications

Direction	Down-Cut
Diameter (D)	1/2
Cutting Height (B)	1-1/2
Shank (d)	1/2
Overall Length (L)	4
Replacement Bearing	47701 (2)
Flutes	3

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	L1	Flutes	Direction	Tool No.
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	4 (101.60mm)	5/32 (3.97mm)	2	Up-Cut	46300
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	5 (127.00mm)	5/32 (3.97mm)	2	Up-Cut	46304
1/2 (12.70mm)	1-1/4	1/2 (12.70mm)	4 (101.60mm)	5/32 (3.97mm)	2	Down-Cut	46400
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	5 (127.00mm)	5/32 (3.97mm)	2	Down-Cut	46404
1/2 (12.70mm)	1-1/2	1/2 (12.70mm)	4 (101.60mm)	–	3	Up-Cut	58120
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	–	3	Up-Cut	58122
1/2 (12.70mm)	2 (50.80mm)	1/2 (12.70mm)	4-1/2	–	3	Down-Cut	58222

Weight	0.35 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
