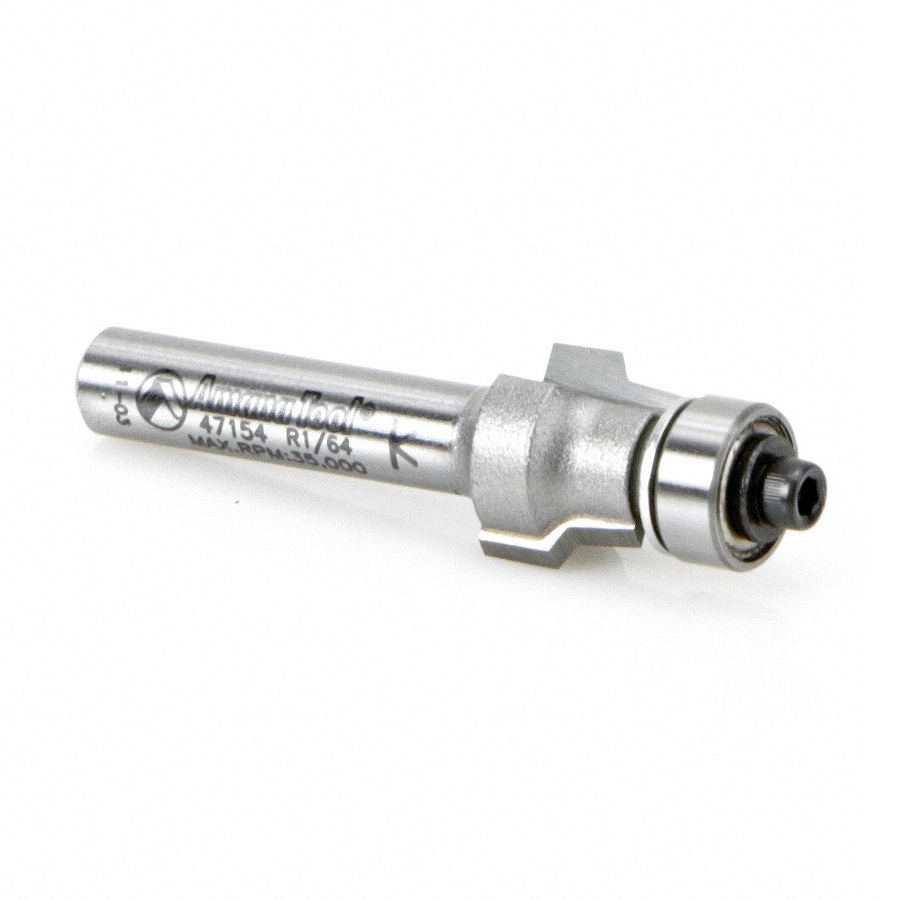

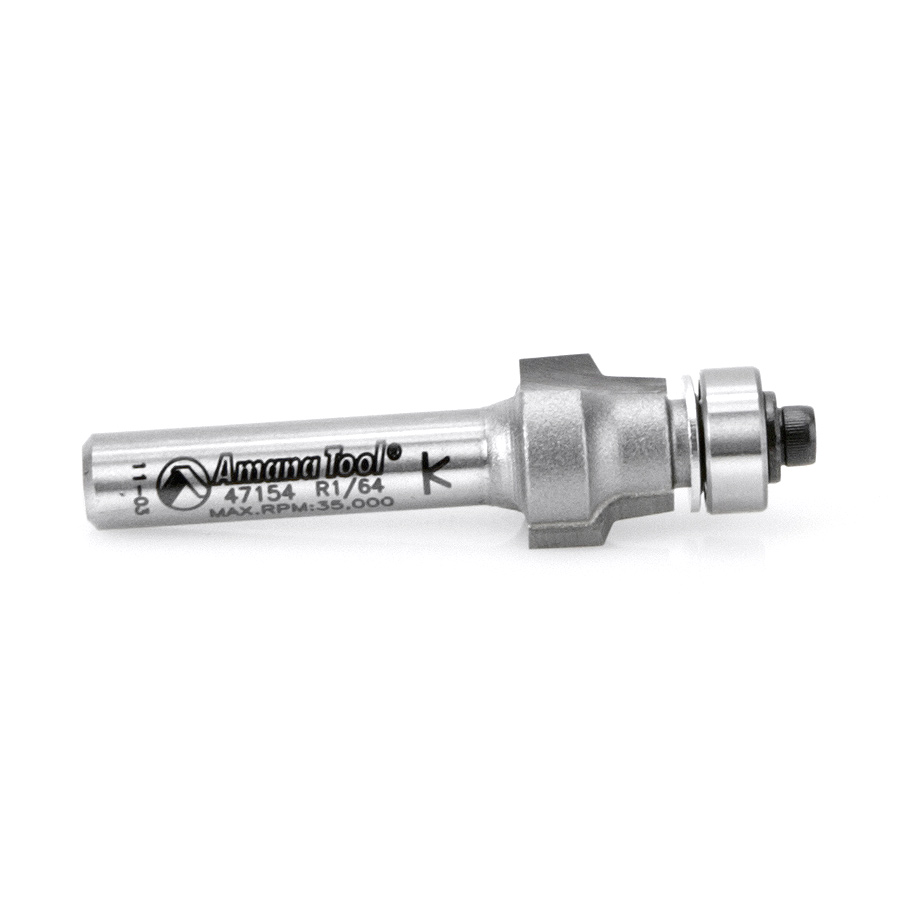

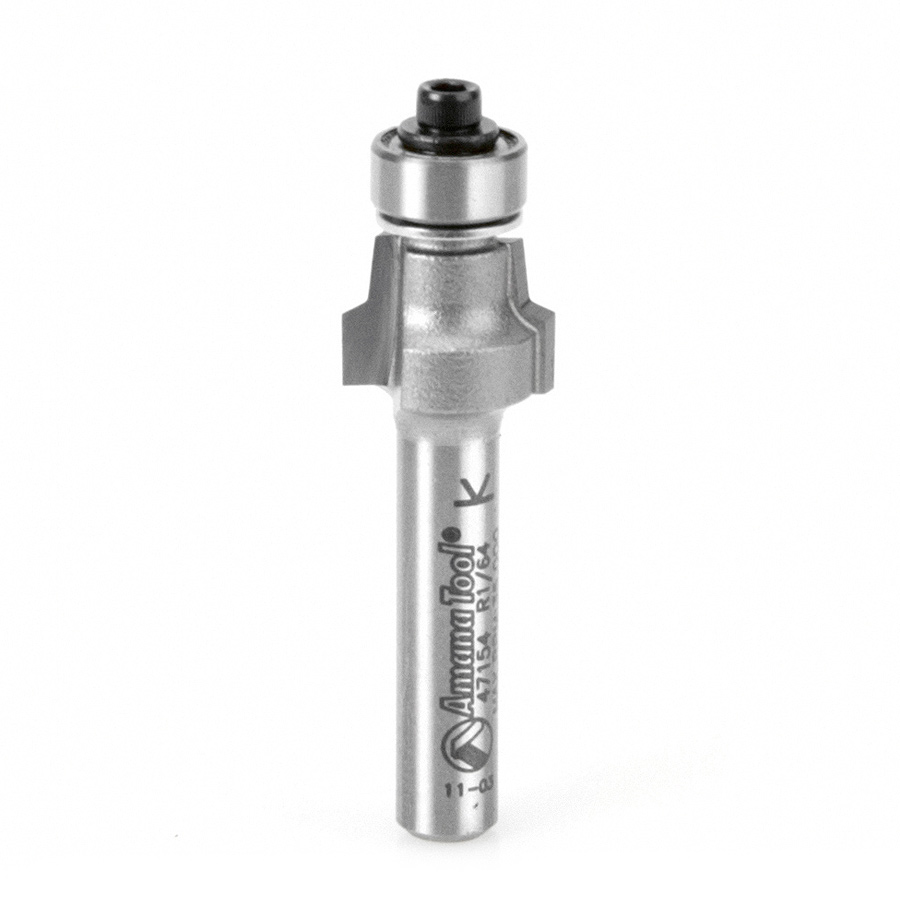

47154 Carbide Tipped No-File Trim .015 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Amana 47154 Carbide Tipped No-File Trim .015 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank

Name: Amana 47154 Carbide Tipped No-File Trim .015 Radius x 1/2 Dia x 3/8 x 1/4 Inch Shank
SKU: Amana 47154
Availability: InStock

Original price was: $56.60.Current price is: $42.45.

NO-FILE TRIM .025-.038 LAMINAT

UPC: 738685451748 SKU: Amana 47154 Categories: Amana Tool, No-File Trim Router Bits, Router Bits, Trimming Router Bits Tags: .015 radius, 0.4mm radius, 1/4" shank, amana tool, ball bearing, bearing, carbide tipped, no file, router bit, Straight Flute, trim

Item Description

Eliminate the time-consuming hand-filing that normally follows each trimming cut on a laminate job. Our No-File™ bit “breaks” the sharp edge as it trims the laminate flush. When used properly, the resulting edge is smooth and has a slight radius.

AMAX Extended Life Features:

200% longer life time even when working with abrasive materials
Superior geometric design
Advanced grinding technology that improves the carbides’ resistance to wear
Super clean cuts

Specifications

Diameter (D)	1/2
Radius (R)	.015 (.4mm)
Cutting Height (B)	3/8
Shank (d)	1/4
Overall Length (L)	1-7/8
Replacement Bearing	47704
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Radius (R)	Shank (d)	Overall Length (L)	Tool No.
1/2 (12.70mm)	3/8 (9.53mm)	.059	1/4 (6.35mm)	1-7/8	47150
1/2 (12.70mm)	3/8 (9.53mm)	.059	1/4 (6.35mm)	1-7/8	47150-5
1/2 (12.70mm)	3/8 (9.53mm)	.015	1/4 (6.35mm)	1-7/8	47154-5

Weight	0.04 lbs
brands	Amana Tools

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
