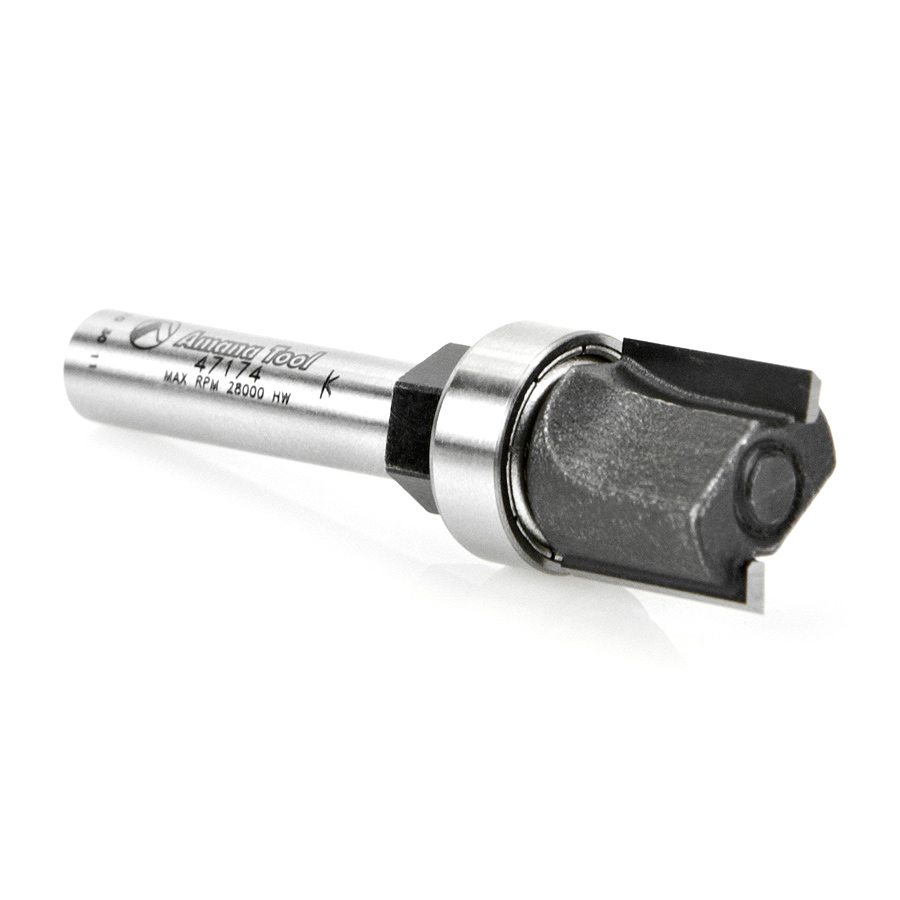

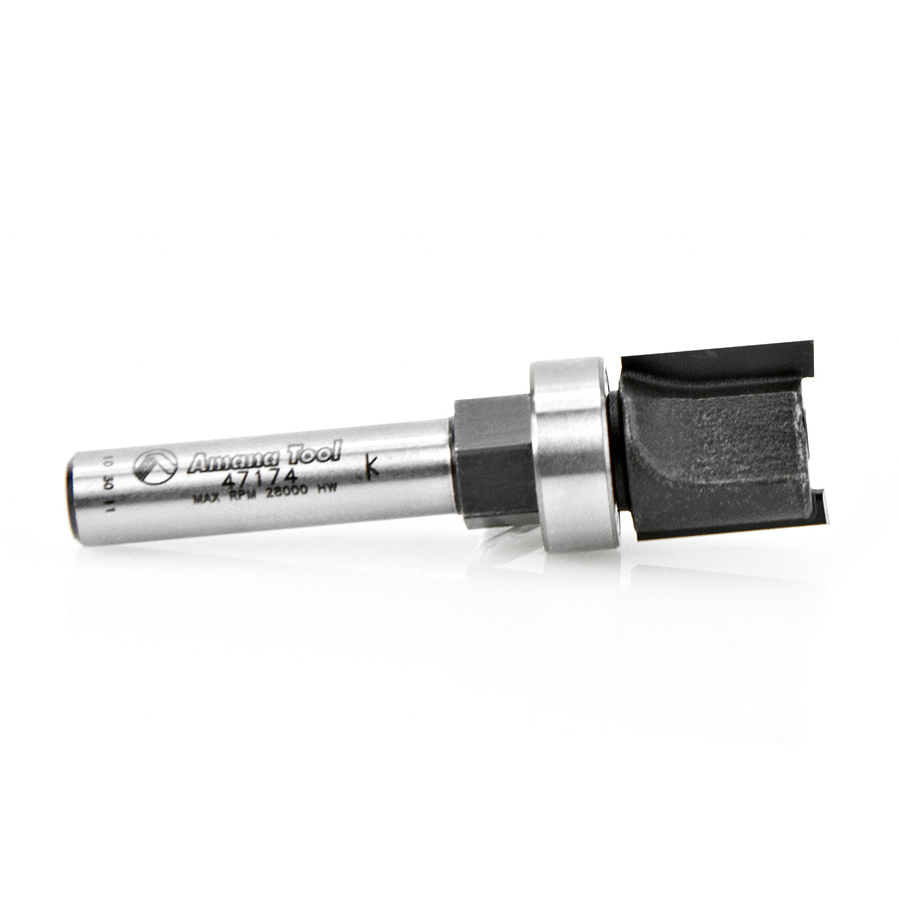

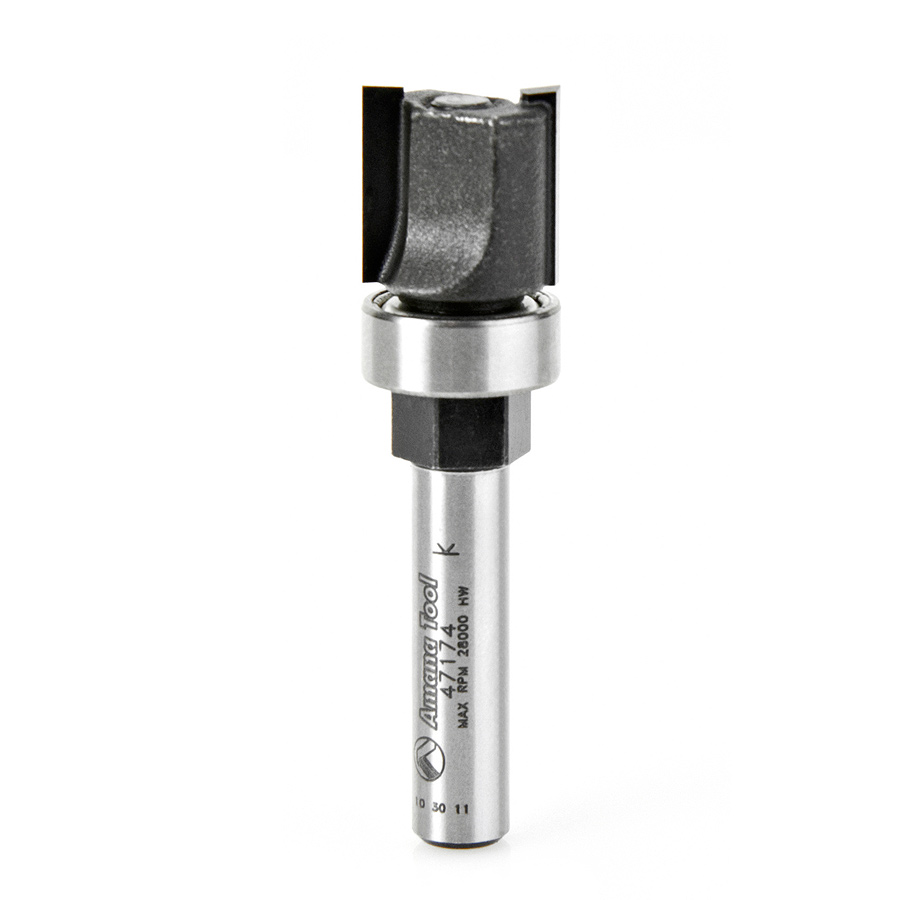

47174 Carbide Tipped Template Cutter Assembly (Replaces Ocemco #TA-170)

Amana 47174 Carbide Tipped Template Cutter Assembly (Replaces Ocemco #TA-170)

Name: Amana 47174 Carbide Tipped Template Cutter Assembly (Replaces Ocemco #TA-170)
SKU: Amana 47174
Availability: InStock

Original price was: $44.15.Current price is: $33.12.

TEMPLAT UPPER BB/OCEMCO TA-170

UPC: 738685471746 SKU: Amana 47174 Categories: Amana Tool, E-Z Change Replacement Head Router Bits, Router Bits, Trimming Router Bits

Item Description

E-Z Change™ router bits are an economical alternative to standard router bits. They feature replaceable head carbide tipped cutters, saving you money by replacing only the cutters when the knives become dull, instead of the entire tool. You won’t need a second bit while yours is in the sharpening shop; instead, just change the cutters. You won’t even lose your set-up because the E-Z Change™ cutters can be replaced with the bit in the router collet. The interlocking hex design guarantees that the cutting surfaces will not slip during use.

Excellent for Cutting:

Laminates
MDF
Plywood
Wood
Acrylic

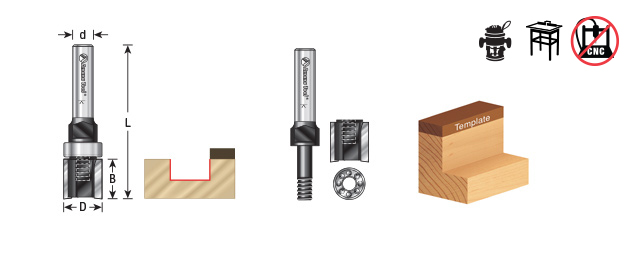

Specifications

Diameter (D)	1/2
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	1-15/16
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1/2 (12.70mm)	1/4 (6.35mm)	1/4 (6.35mm)	1-11/16	47706	2	47173
–	–	1/4 (6.35mm)	–	–	—-	47626
–	–	–	–	–	—-	47628
–	–	–	–	–	—-	55173
–	–	–	–	–	—-	55174

Weight	0.06 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
