49342 Binding/Rabbeting 15mm (19/32) Dia x 11.5mm (7/16) x 1/4 Inch Shank 3 Flute Router Bit Set

Amana 49342 Binding/Rabbeting 15mm (19/32) Dia x 11.5mm (7/16) x 1/4 Inch Shank 3 Flute Router Bit Set

Name: Amana 49342 Binding/Rabbeting 15mm (19/32) Dia x 11.5mm (7/16) x 1/4 Inch Shank 3 Flute Router Bit Set
SKU: Amana 49342
Availability: InStock

Original price was: $87.80.Current price is: $65.85.

RABBETTING 15mm DIA.1/4 SHANK

UPC: 738685493427 SKU: Amana 49342 Categories: Amana Tool, Binding/Rabbeting Router Bit Sets, Guitarmaking/Luthier Router Bits & Saw Blades, Router Bits Tags: Binding, Guitarmaking, Rabbeting

Item Description

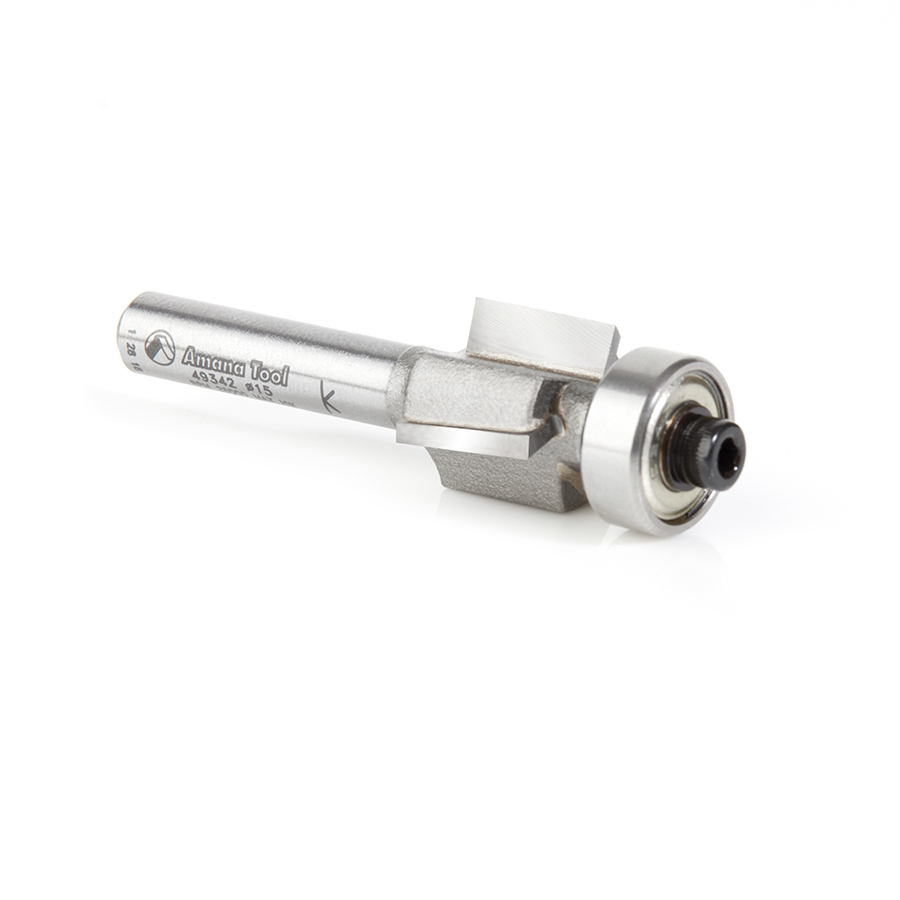

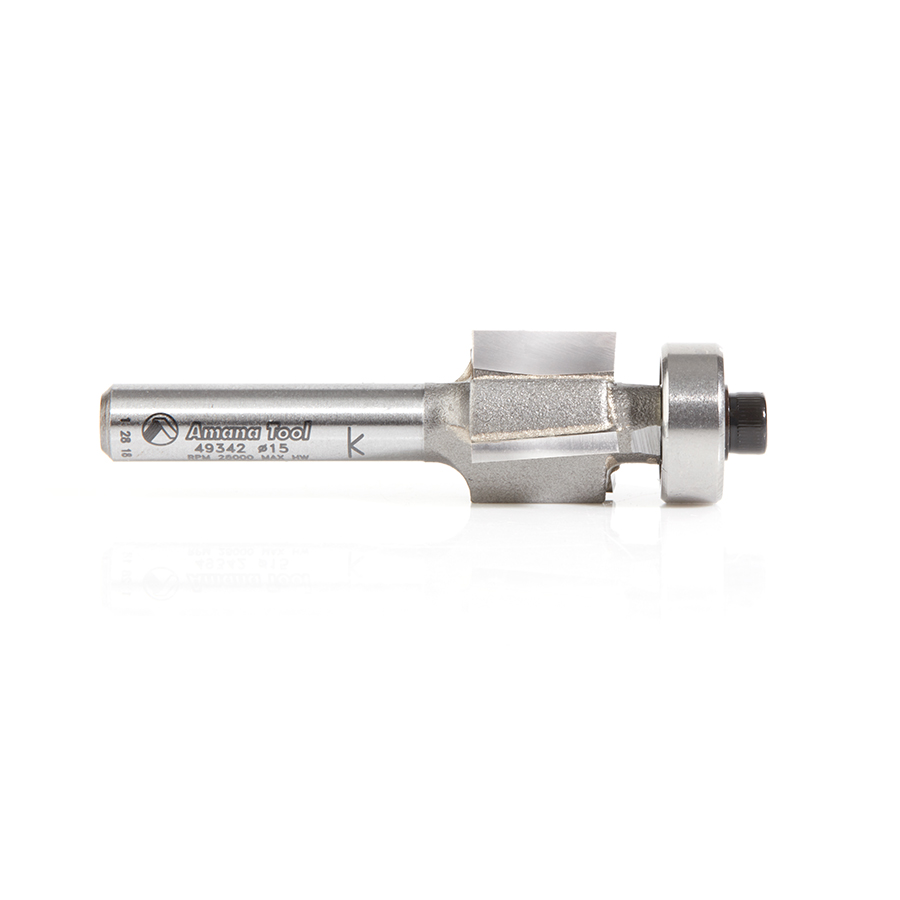

Carbide Tipped – Down shear angle – 3 Flute with ball bearing guide.

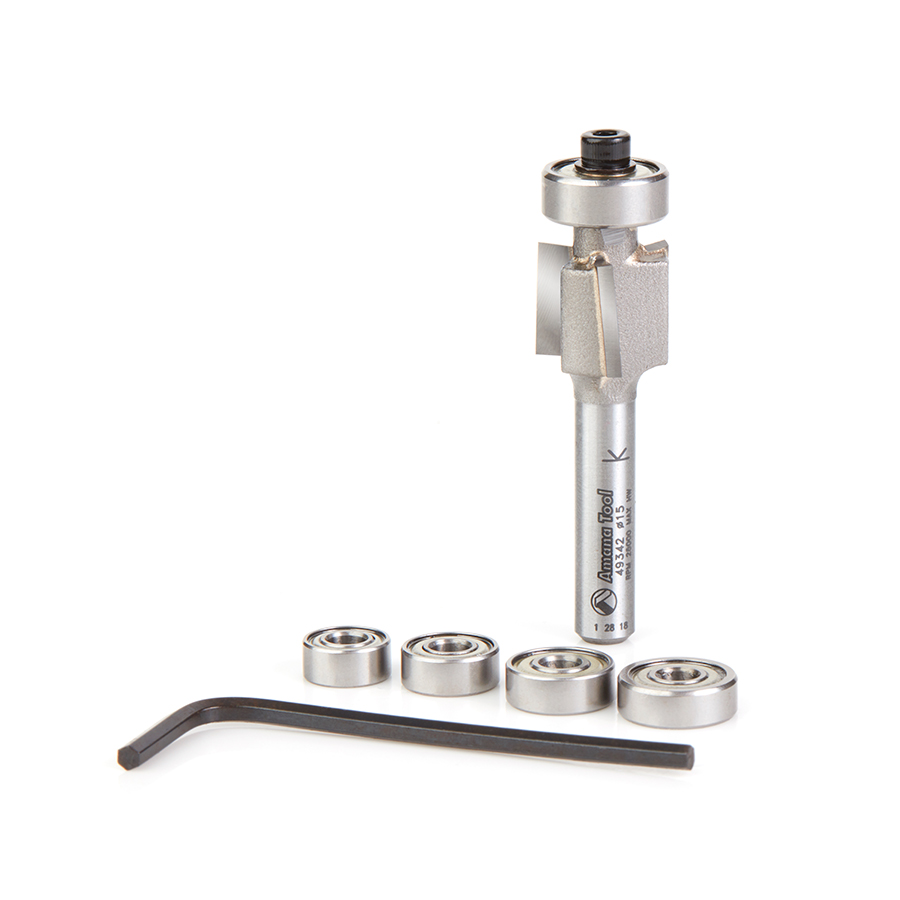

Special set designed for Luthier. This set includes five different bearings that will give five rabbet sizes (Ledge cut).

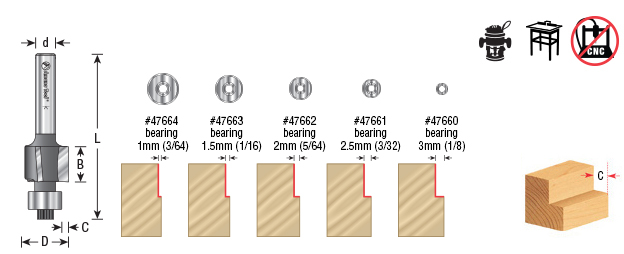

Included Ball Bearings

C (Ledge cut) Ball Bearing

1mm (3/64) Rabbet 47664

1.5mm (1/16) Rabbet 47663

2mm (5/64) Rabbet 47662

2.5mm (3/32) Rabbet 47661

3mm (1/8) Rabbet 47660

Replacement Parts

Tool No.	Replacement Bearing 9mm	Replacement Bearing 10mm	Replacement Bearing 11mm	Replacement Bearing 12mm	Replacement Bearing 13mm	Replacement Screw
49342	47660	47661	47662	47663	47664	67096

Specifications

Diameter (D)	15mm (19/32)
Cutting Height (B)	11.5mm (7/16)
Shank (d)	1/4
Overall Length (L)	2-1/8
Flutes	3
C	1.0mm (3/64) – 3.0mm (1/8)

Other Sizes Available

Diameter (D)	C	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Tool No.
20mm	3.5mm	13.5mm	1/4 (6.35mm)	2-1/8	3	49346

Weight	0.1 lbs
