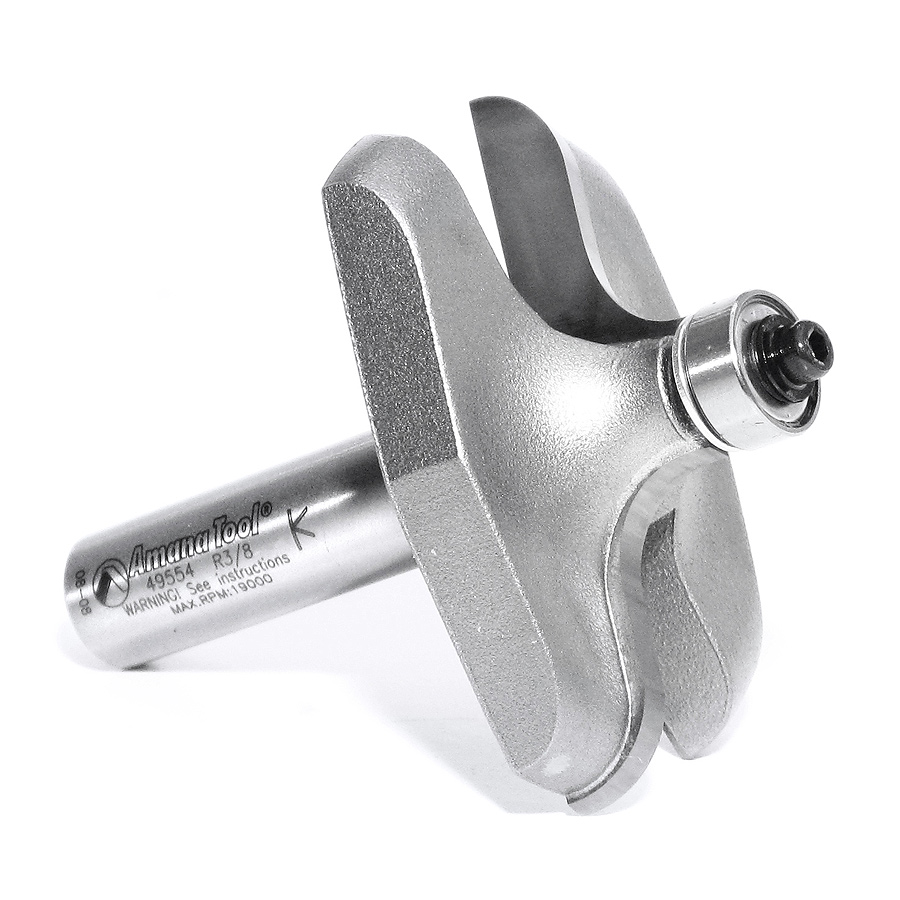

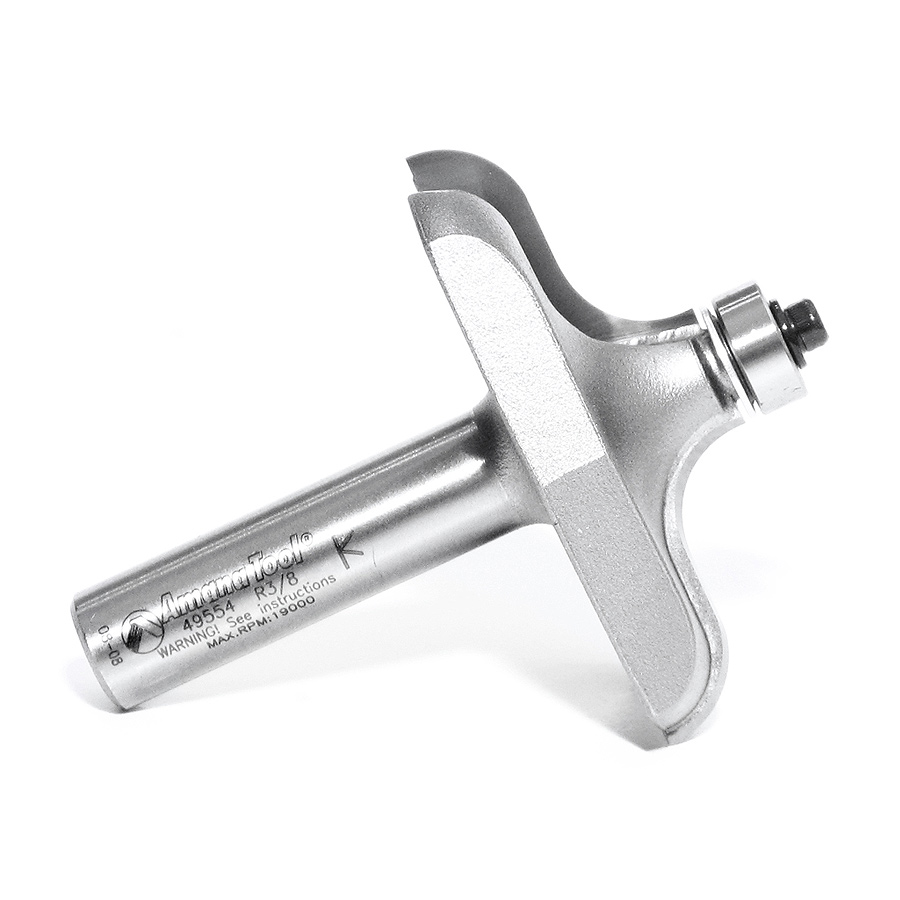

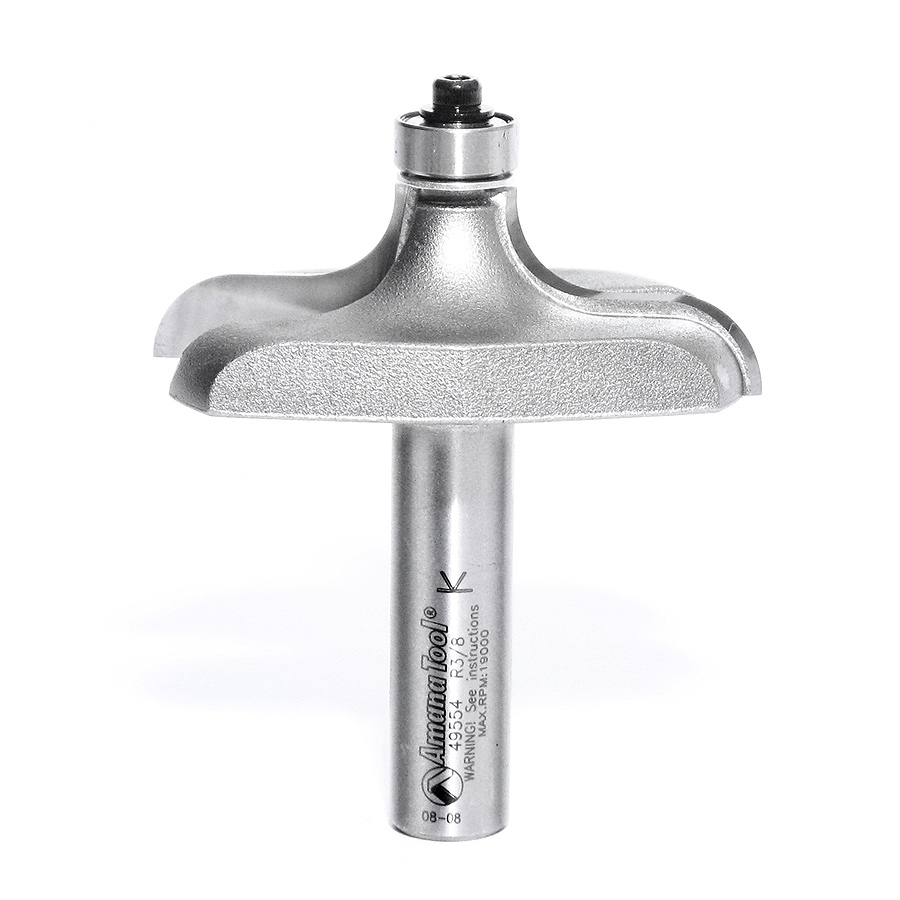

49554 Carbide Tipped Table Edge Ogee 3/8 Radius x 2-1/2 Dia x 3/4 x 1/2 Inch Shank

Amana 49554 Carbide Tipped Table Edge Ogee 3/8 Radius x 2-1/2 Dia x 3/4 x 1/2 Inch Shank

Name: Amana 49554 Carbide Tipped Table Edge Ogee 3/8 Radius x 2-1/2 Dia x 3/4 x 1/2 Inch Shank
SKU: Amana 49554
Availability: InStock

Original price was: $160.55.Current price is: $120.42.

TABLE EDGE TRADITIONAL 1/2 SHK

UPC: 738685895542 SKU: Amana 49554 Categories: Amana Tool, Profiling Router Bits, Router Bits, Table Edge Router Bits

Item Description

Cuts a shallow ogee into the tabletop surface coupled with a bead at the edge. Bit will produce a fillet if set to cut deep enough. With the optional 3/8″ bearing, it will produce a fillet at the cut’s edge. Good choice for handrails.

These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits.

Maximum RPM 16,000.

Optional 3/8″ bearing #47702 (order separately).

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49554	47706	67096	67098	67202

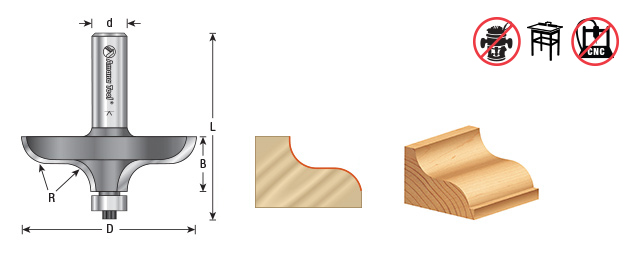

Specifications

Diameter (D)	2-1/2
Radius (R)	3/8
Cutting Height (B)	3/4
Shank (d)	1/2
Overall Length (L)	2-3/4
Max RPM	16,000
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	B1	B2	Shank (d)	Overall Length (L)	Tool No.
2-23/32	1-11/16	–	5/8 (15.88mm)	–	–	1/2 (12.70mm)	2-59/64	49550
2-1/2	13/32 (10.32mm)	13/64 (5.16mm)	25/32 (19.84mm)	43/64 (17.07mm)	7/64 (2.78mm)	1/2 (12.70mm)	2-3/4	49556

Weight	0.38 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
