Sale!

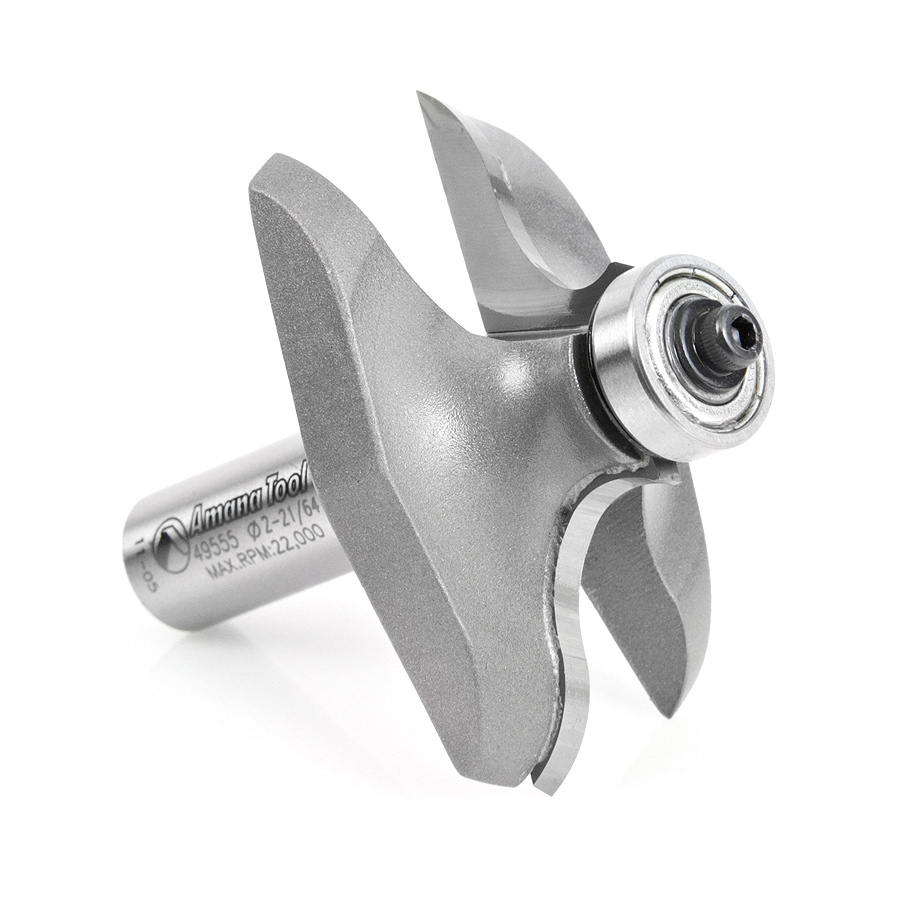

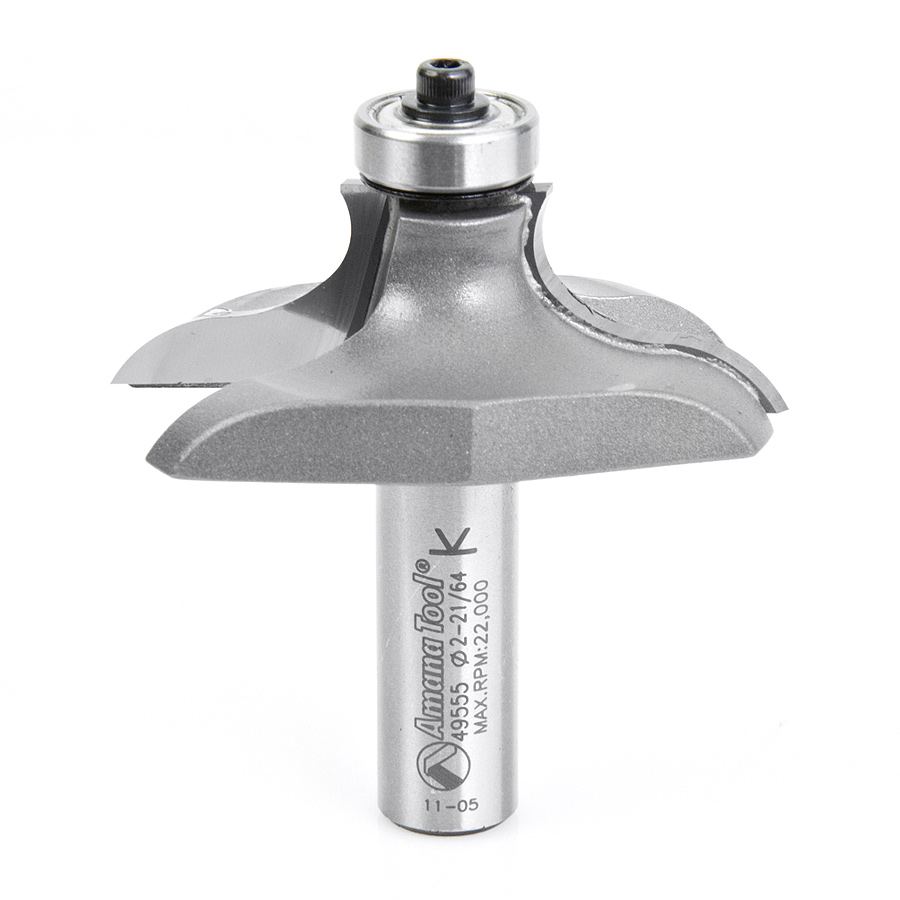

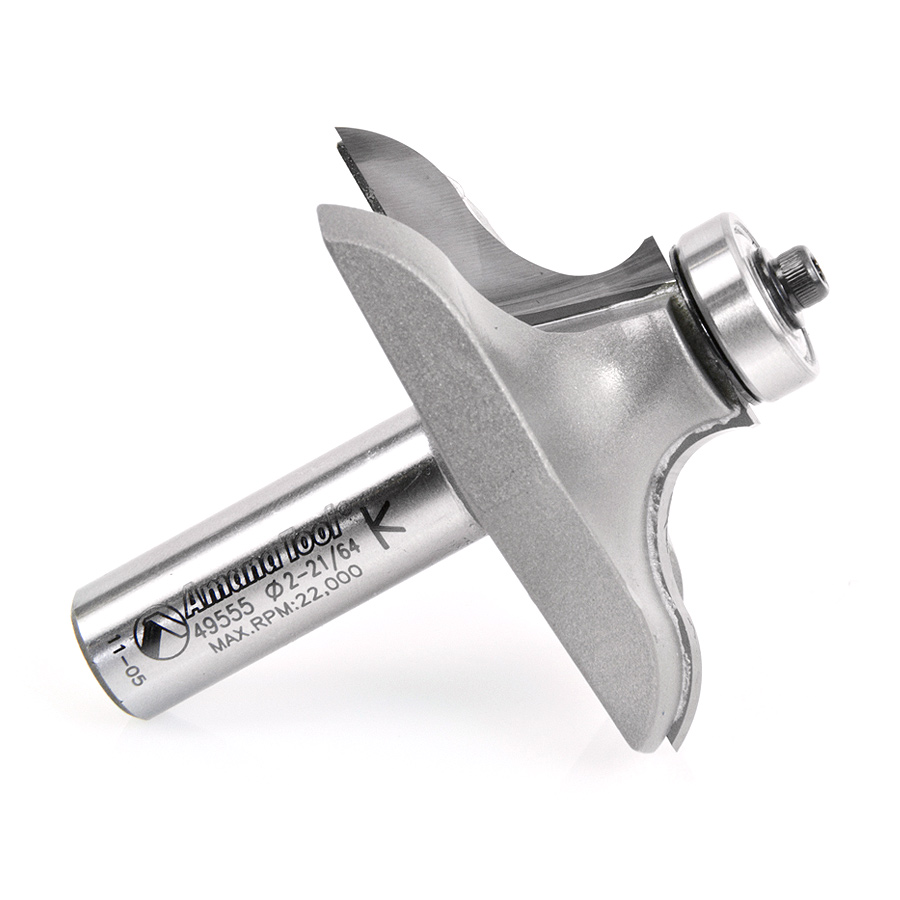

49555 Carbide Tipped Table Edge Reverse Curve 1/2 x 1/4 Radius x 2-21/64 Dia x 55/64 x 1/2 Inch Shank

Amana 49555 Carbide Tipped Table Edge Reverse Curve 1/2 x 1/4 Radius x 2-21/64 Dia x 55/64 x 1/2 Inch Shank

Name: Amana 49555 Carbide Tipped Table Edge Reverse Curve 1/2 x 1/4 Radius x 2-21/64 Dia x 55/64 x 1/2 Inch Shank
SKU: Amana 49555
Availability: InStock

Original price was: $179.40.Current price is: $134.55.

TABLE EDGE REVERSE

UPC: 738685495551 SKU: Amana 49555 Categories: Amana Tool, Profiling Router Bits, Router Bits, Table Edge Router Bits

Item Description

Profiles are designed for 3/4″ thick tops.

This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail and reduce the visual thickness of the top.

The broad curves of this ogee create a wide, elegant table edge. Notice that the curve continues under the top slightly to make a large tabletop appear thin.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
49555	47718	67096	67202

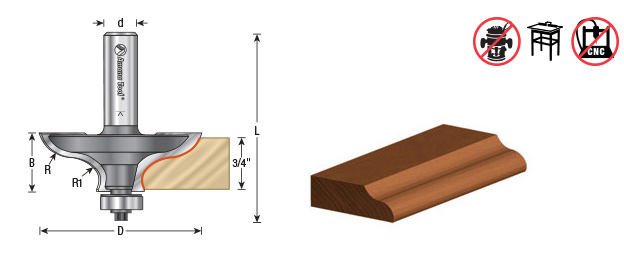

Specifications

Diameter (D)	2-21/64
Radius (R)	1/2
Cutting Height (B)	55/64
Shank (d)	1/2
Overall Length (L)	2-3/4
Replacement Bearing	47718
R1	1/4
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1-57/64	3/8 (9.53mm)	5/16 (7.94mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	49559
2-3/8	1/16 (1.59mm)	–	27/32 (21.43mm)	1/2 (12.70mm)	2-25/32	49563

Weight	0.39 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
