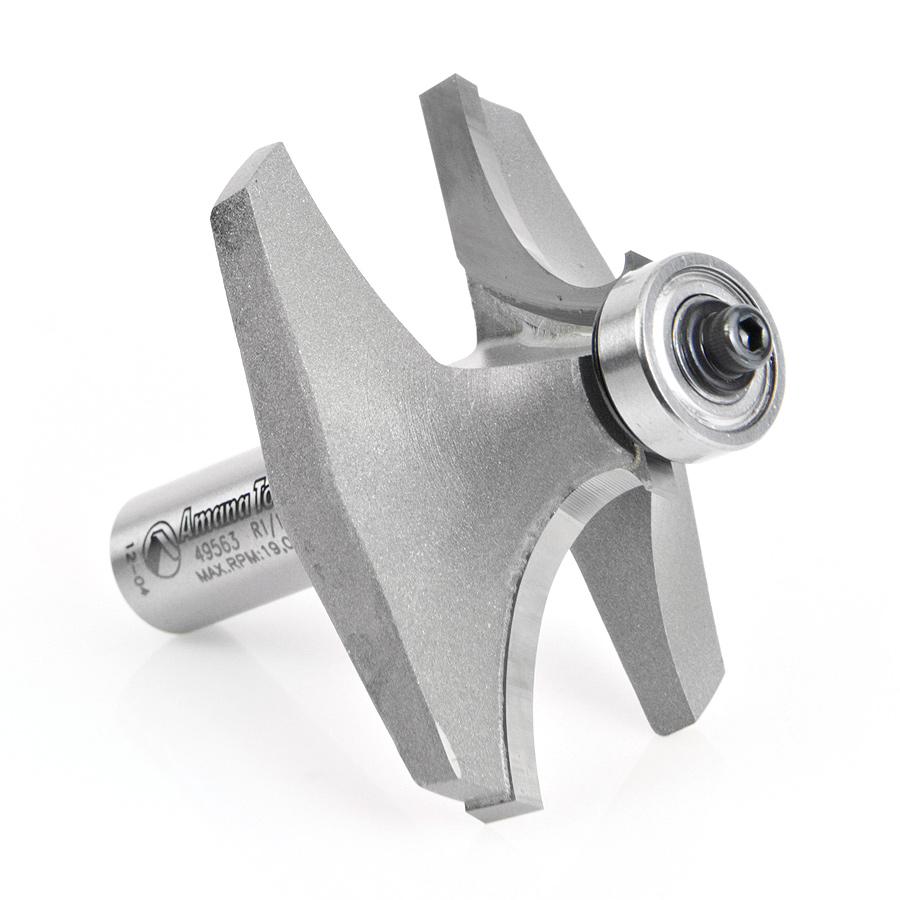

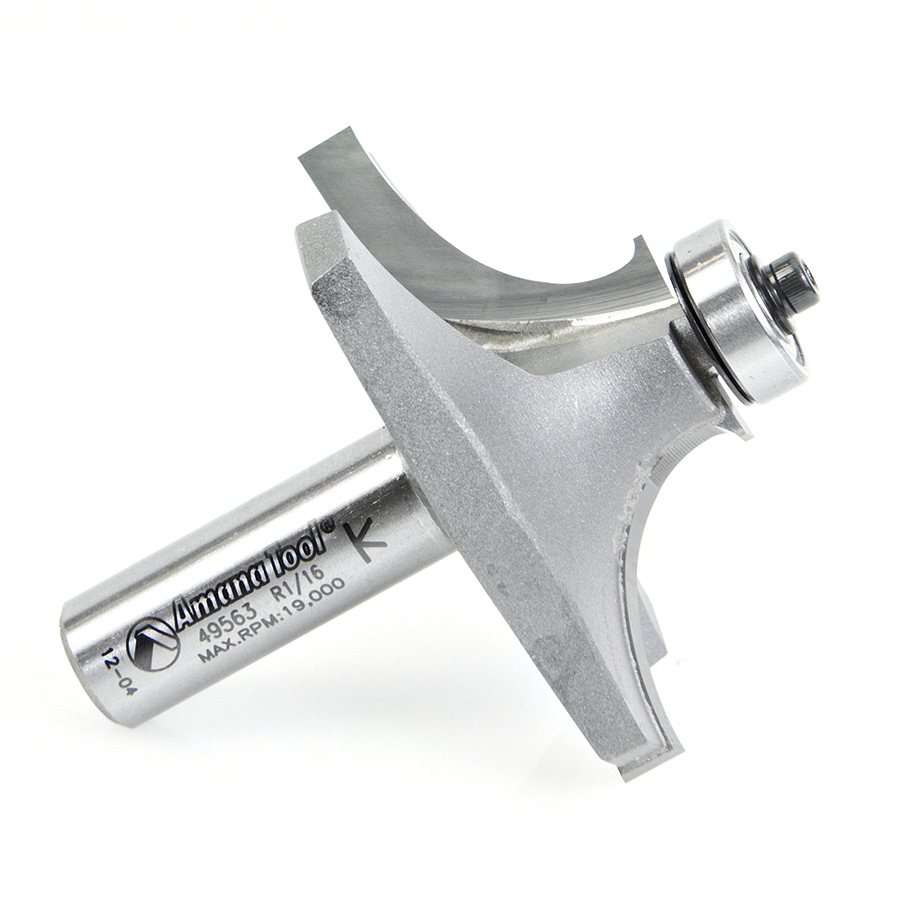

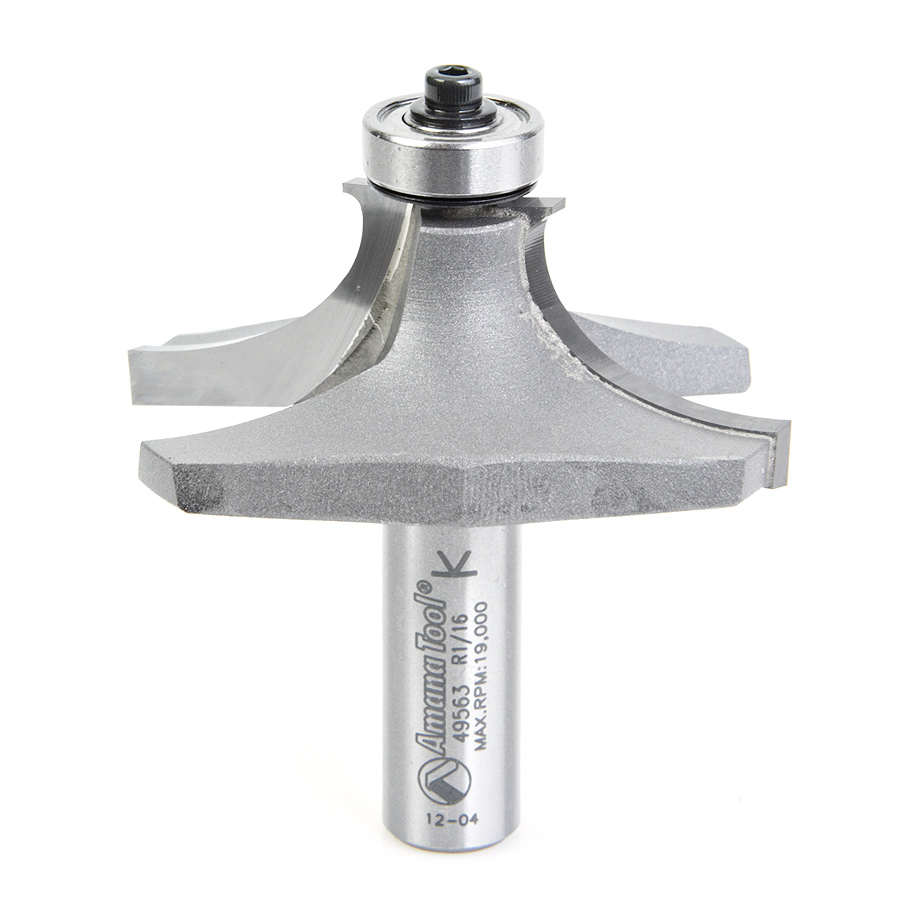

49563 Carbide Tipped Table Edge Thumbnail 1/16 Radius x 2-3/8 Dia x 27/32 x 1/2 Inch Shank

Amana 49563 Carbide Tipped Table Edge Thumbnail 1/16 Radius x 2-3/8 Dia x 27/32 x 1/2 Inch Shank

Name: Amana 49563 Carbide Tipped Table Edge Thumbnail 1/16 Radius x 2-3/8 Dia x 27/32 x 1/2 Inch Shank
SKU: Amana 49563
Availability: InStock

Original price was: $153.75.Current price is: $115.32.

TABLE EDGE THUMBNAIL

UPC: 738685495636 SKU: Amana 49563 Categories: Amana Tool, Profiling Router Bits, Router Bits, Table Edge Router Bits

Item Description

Profiles are designed for 3/4″ thick tops.

This selection of table edge profiles offers a wide variety of designs from which to choose. All will shape away the hard edge, add detail and reduce the visual thickness of the top.

This bit cuts a classic thumbnail profile. It’s just right for the edges of large tables and chest lids.

Replacement Parts

Tool No.	Bearing(s)	Screw	Flat Washer
49563	47718	67096	67202

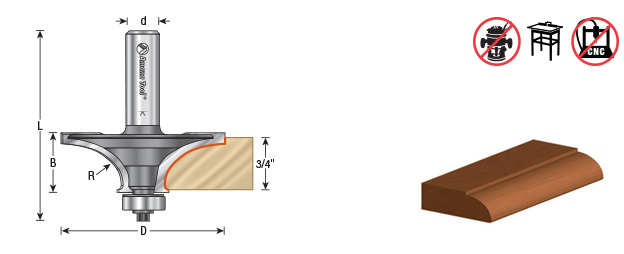

Specifications

Diameter (D)	2-3/8
Radius (R)	1/16
Cutting Height (B)	27/32
Shank (d)	1/2
Overall Length (L)	2-25/32
Replacement Bearing	47718
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	R1	Cutting Height (B)	Shank (d)	Overall Length (L)	Tool No.
1-57/64	3/8 (9.53mm)	5/16 (7.94mm)	7/8 (22.23mm)	1/2 (12.70mm)	2-3/4	49559
2-21/64	1/2 (12.70mm)	1/4 (6.35mm)	55/64 (21.83mm)	1/2 (12.70mm)	2-3/4	49555

Weight	0.44 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
