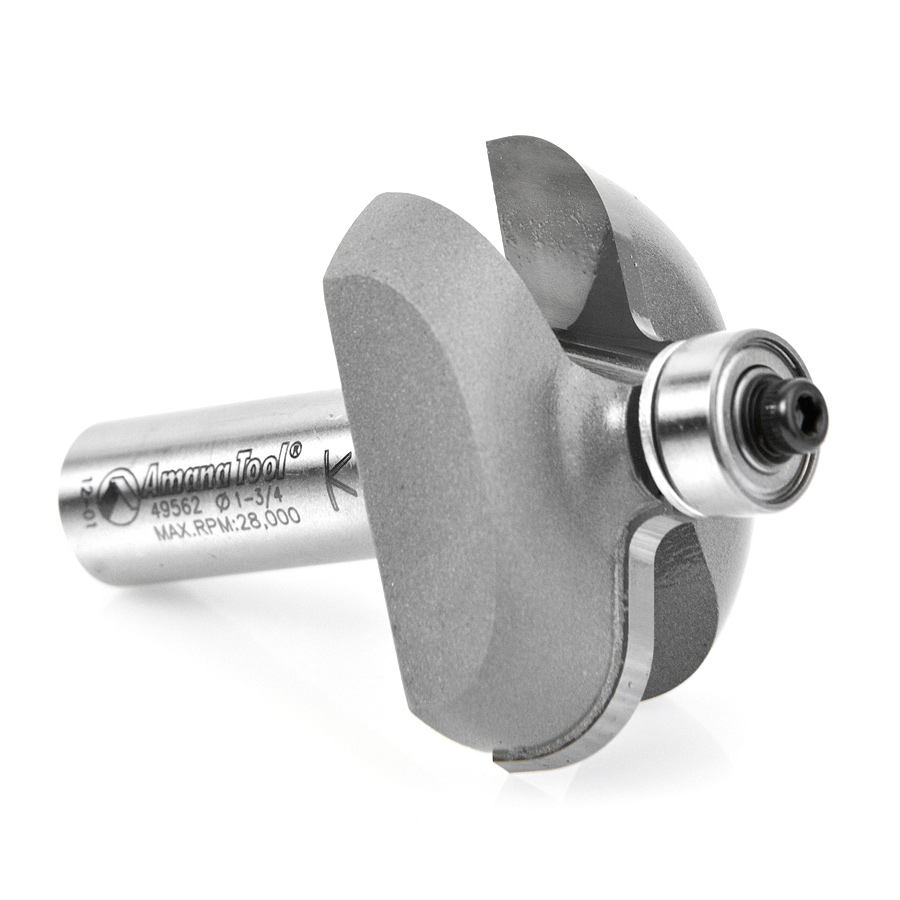

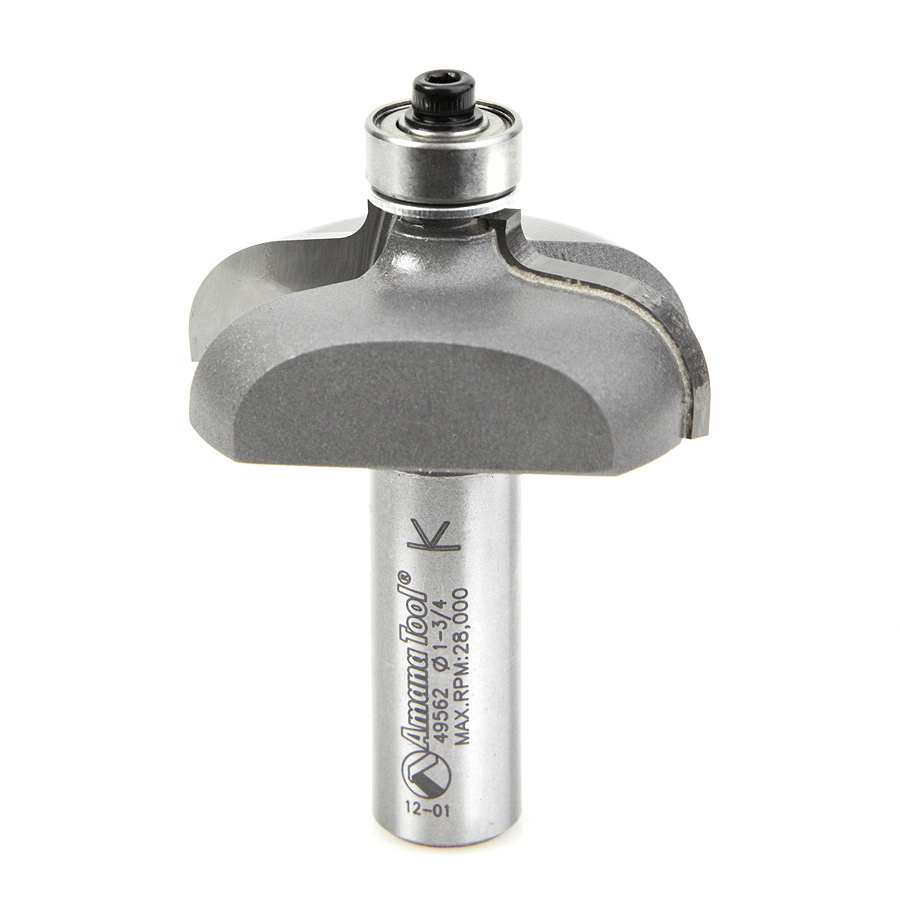

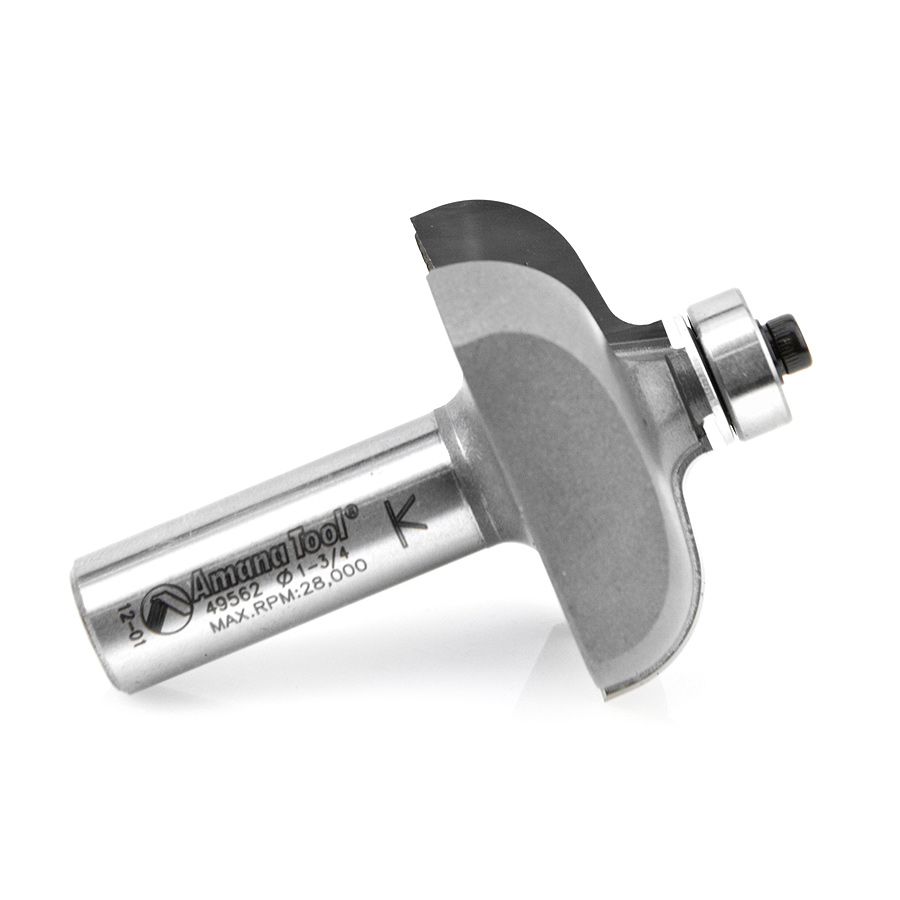

49562 Carbide Tipped Door Edge Detail 3/8 x 1/8 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank

Amana 49562 Carbide Tipped Door Edge Detail 3/8 x 1/8 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank

Name: Amana 49562 Carbide Tipped Door Edge Detail 3/8 x 1/8 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank
SKU: Amana 49562
Availability: InStock

Original price was: $128.10.Current price is: $96.08.

DOOR EDGE DETAIL 1/2 SHANK

UPC: 738685495629 SKU: Amana 49562 Categories: Amana Tool, Cabinet Door Edge Router Bits, Door Making Router Bits, Router Bits

Item Description

Use these bits to shape the edges of cabinet doors. Style #53820 also eliminates the need for a pull to create a clean, uncluttered look.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
49562	47706	67096	67098	67202

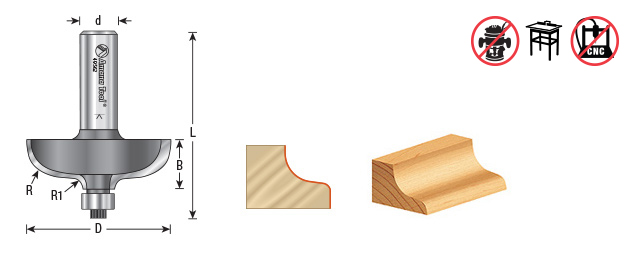

Specifications

Diameter (D)	1-3/4
Radius (R)	3/8
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Bearing	47706
R1	1/8
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	R1	D2	Flutes	D1	Tool No.
2 (50.80mm)	3/8 (9.53mm)	1-3/16	1/2 (12.70mm)	2-1/2	1/8 (3.18mm)	31/32 (24.61mm)	2	23/32 (18.26mm)	53820

Weight	0.34 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
