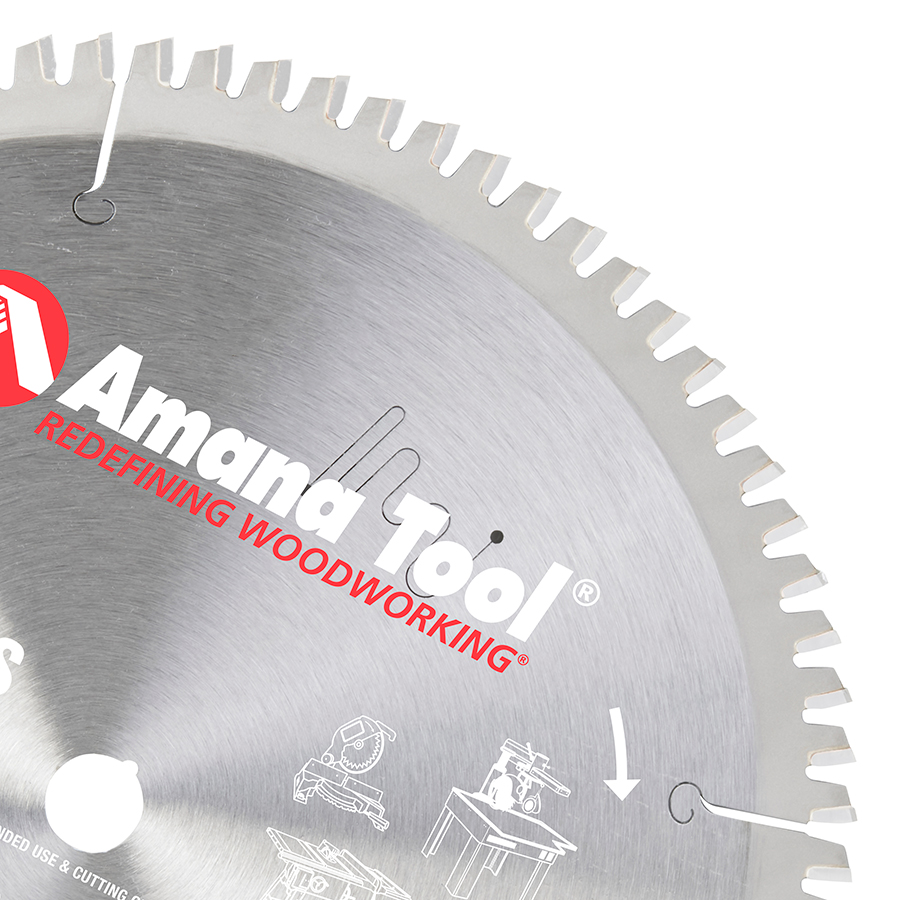

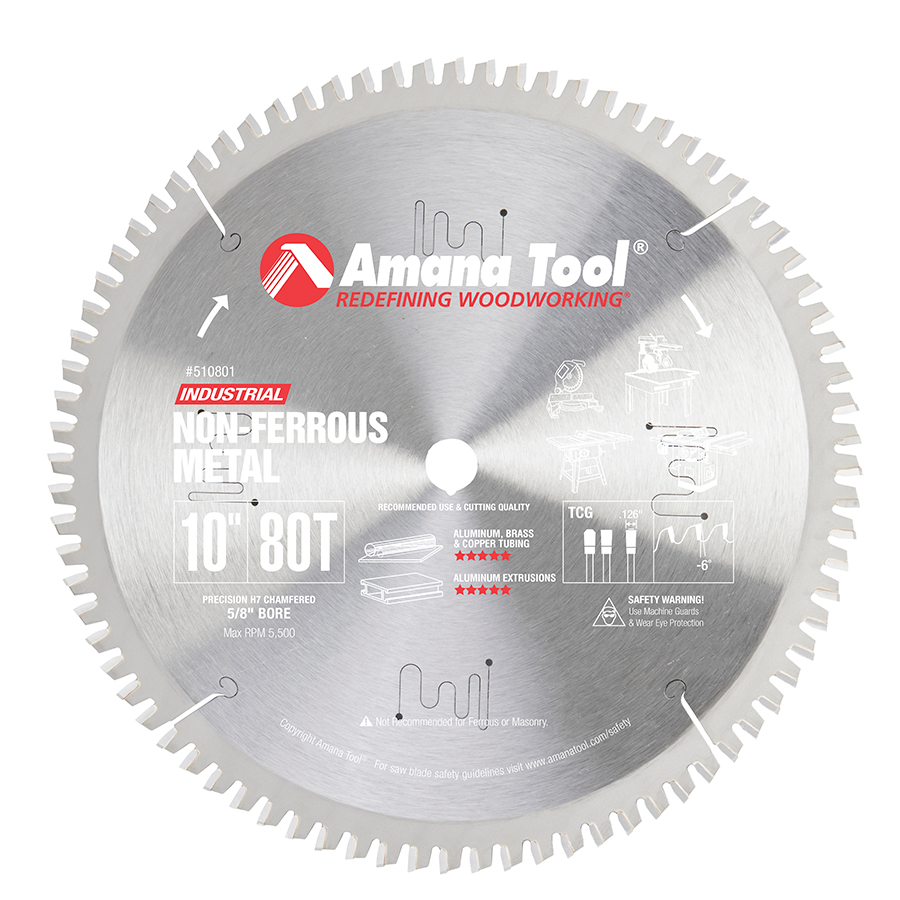

510801 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 80T TCG, -6 Deg, 5/8 Bore

Amana 510801 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 80T TCG, -6 Deg, 5/8 Bore

Name: Amana 510801 Carbide Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 80T TCG, -6 Deg, 5/8 Bore
SKU: Amana 510801
Availability: InStock

Original price was: $189.75.Current price is: $142.32.

10″/80T NON FERROUS TCG GRIND

UPC: 738685510803 SKU: Amana 510801 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	10 (250mm)
Teeth	80
(d) Bore	5/8
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.126 (3.2mm)
Plate (C)	.102 (2.6mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Machine	Tool No.
7	58	TCG	-6°6	.110	.087	5/8 (15.88mm)	–	–	575601
8	64	TCG	-6°6	.110	.087	5/8 (15.88mm)	–	–	586401
10	100	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	–	510101
10	80	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	510801-30
10	80	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	–	510801C
12	96	TCG	-6°6	.126	.102	1 (25.40mm)	–	–	512961
12	96	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	512961-30
14	100	TCG	-6°6	.146	.118	5/8 (15.88mm)	–	Pistorious	514101-5/8HD
14	108	TCG	-6°6	.126	.102	1 (25.40mm)	–	–	514108
14	108	TCG	–	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	514108-30
15	100	TCG	-6°6	.120	.098	1 (25.40mm)	–	Hitachi	515101
16	120	TCG	-6°6	.150	.126	1 (25.40mm)	–	–	516121
18	120	TCG	-6°6	.150	.126	1 (25.40mm)	–	–	518121
20	120	TCG	-6°6	.174	.134	1 (25.40mm)	–	–	520121
20	120	TCG	–	.174	.152	30mm	2/7/42, 2/9/46 & 2/10/60	–	520121-30

Weight	2.5 lbs
