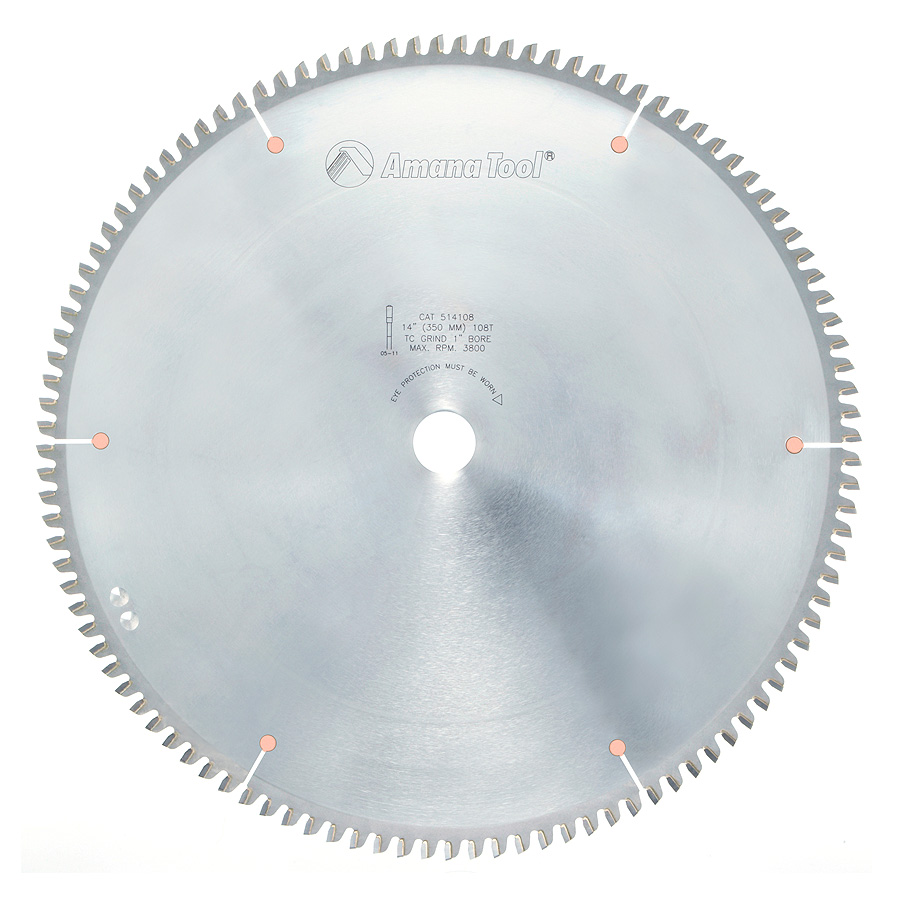

514108 Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

Amana 514108 Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore

Name: Amana 514108 Carbide Tipped Aluminum and Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 1 Inch Bore
SKU: Amana 514108
Availability: InStock

Original price was: $243.45.Current price is: $182.59.

14″/108T NON FERROUS TCG GRIND

UPC: 738685514108 SKU: Amana 514108 Categories: Amana Tool, Non-Ferrous Metal Cutting Saw Blades for Thin Aluminum, Non-Ferrous Saw Blades, Saw Blades

Item Description

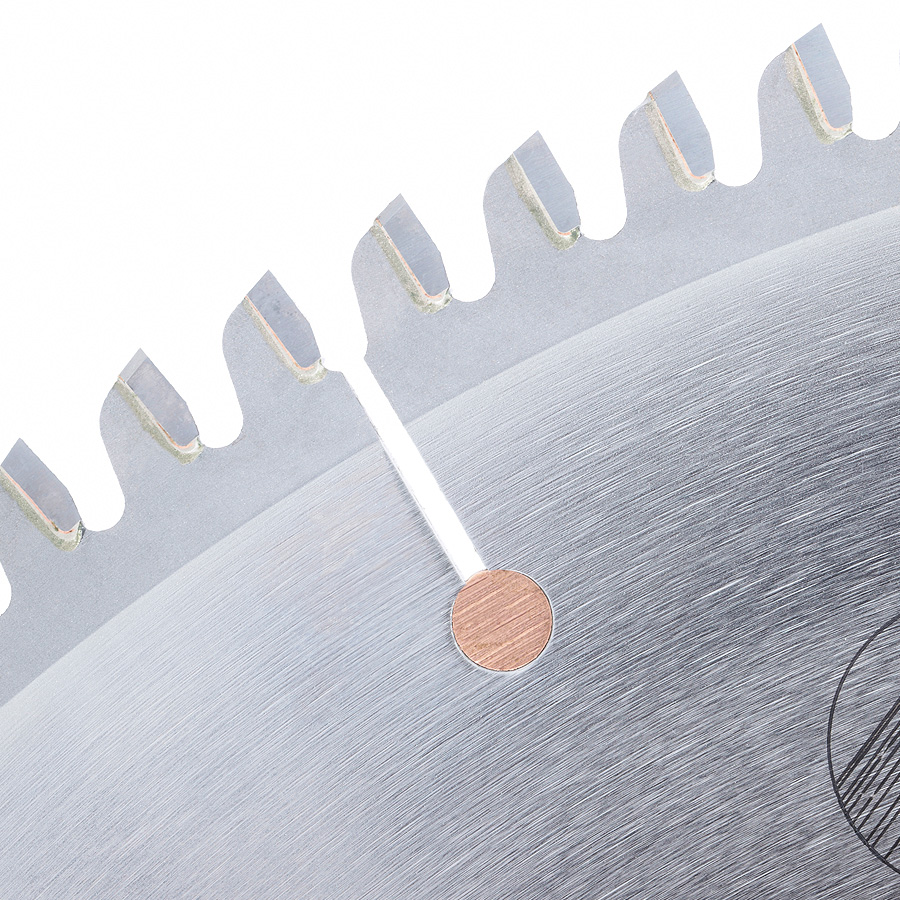

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).

Warning:**Never attempt to cut ferrous metals with these blades.

Clamp down the workpiece.

For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.

Specifications

(D) Diameter	14 (350mm)
Teeth	108
(d) Bore	1
Tooth Grind	TCG
Hook Angle	-6°
Kerf (B)	.126 (3.2mm)
Plate (C)	.102 (2.6mm)

Other Sizes Available

(D) Diameter	Teeth	Tooth Grind	Hook Angle	Kerf (B)	Plate (C)	(d) Bore	Pinholes	Machine	Tool No.
7	58	TCG	-6°6	.110	.087	5/8 (15.88mm)	–	–	575601
8	64	TCG	-6°6	.110	.087	5/8 (15.88mm)	–	–	586401
10	100	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	–	510101
10	80	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	–	510801
10	80	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	510801-30
10	80	TCG	-6°6	.126	.102	5/8 (15.88mm)	–	–	510801C
12	96	TCG	-6°6	.126	.102	1 (25.40mm)	–	–	512961
12	96	TCG	-6°6	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	512961-30
14	100	TCG	-6°6	.146	.118	5/8 (15.88mm)	–	Pistorious	514101-5/8HD
14	108	TCG	–	.126	.102	30mm	2/7/42, 2/9/46 & 2/10/60	–	514108-30
15	100	TCG	-6°6	.120	.098	1 (25.40mm)	–	Hitachi	515101
16	120	TCG	-6°6	.150	.126	1 (25.40mm)	–	–	516121
18	120	TCG	-6°6	.150	.126	1 (25.40mm)	–	–	518121
20	120	TCG	-6°6	.174	.134	1 (25.40mm)	–	–	520121
20	120	TCG	–	.174	.152	30mm	2/7/42, 2/9/46 & 2/10/60	–	520121-30

Weight	5.3 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
