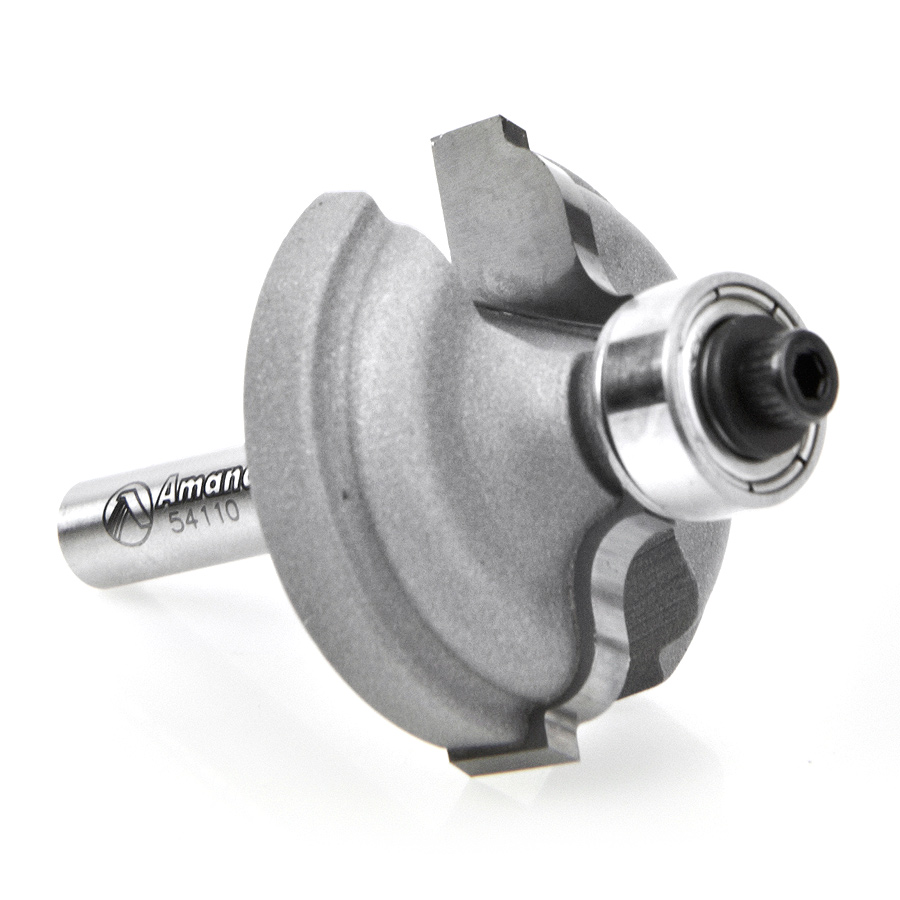

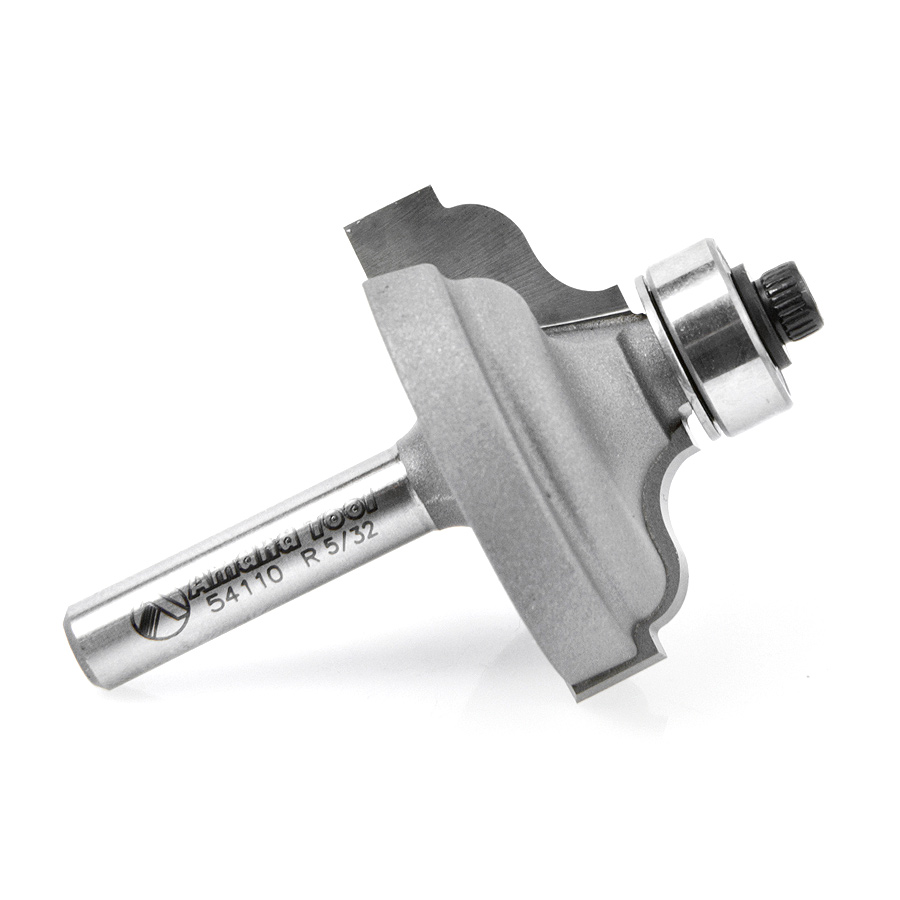

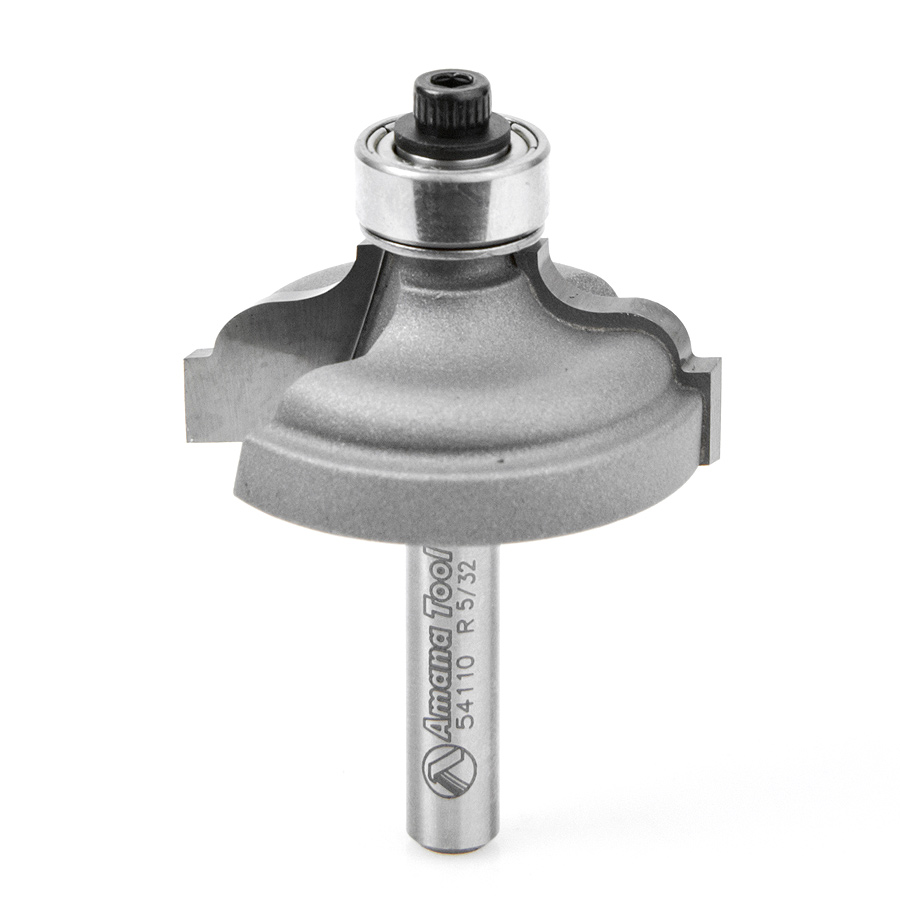

54110 Carbide Tipped Ogee Fillet 5/32 Radius x 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Amana 54110 Carbide Tipped Ogee Fillet 5/32 Radius x 1-3/8 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 54110 Carbide Tipped Ogee Fillet 5/32 Radius x 1-3/8 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 54110
Availability: InStock

Original price was: $64.00.Current price is: $48.00.

OGEE FILLET 1-3/8 DIA. 1/4 SHK

UPC: 738685941102 SKU: Amana 54110 Categories: Amana Tool, Ogee Router Bits, Profiling Router Bits, Router Bits

Item Description

This ogee pattern has a step at the end of the concave portion of the curve.Using the optional 3/8″ bearing #47702 (sold separately) produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Optional Bearing(s)	Screw	Dust Shield	Flat Washer
54110	47706	47702	67096	67098	67101

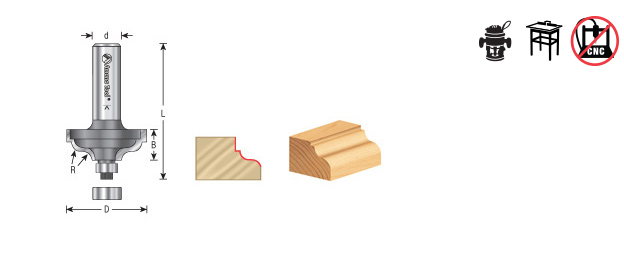

Specifications

Diameter (D)	1-3/8
Radius (R)	5/32
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2-1/16
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Replacement Bearing	Flutes	Tool No.
1-3/8	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/2	47706	2	54112
1-5/8	1/4 (6.35mm)	3/4 (19.05mm)	1/2 (12.70mm)	2-5/8	47706	2	54114
2-1/4	3/8 (9.53mm)	15/16 (23.81mm)	1/2 (12.70mm)	2-7/8	47706	2	54127

Weight	0.12 lbs
