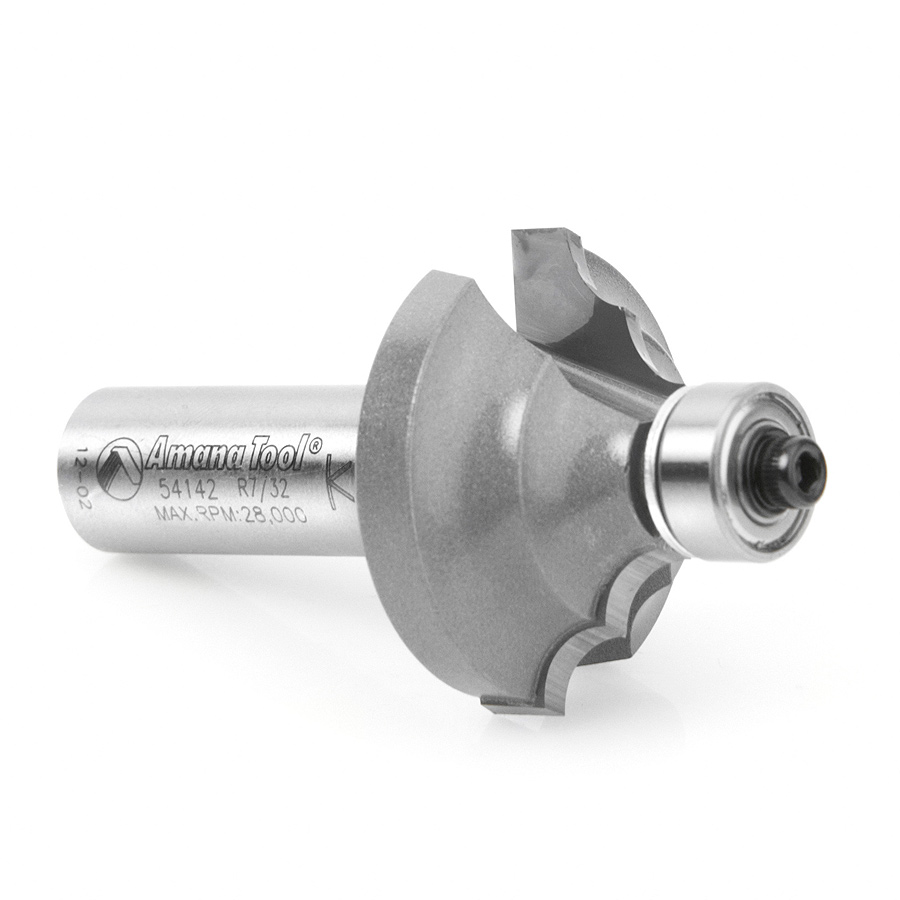

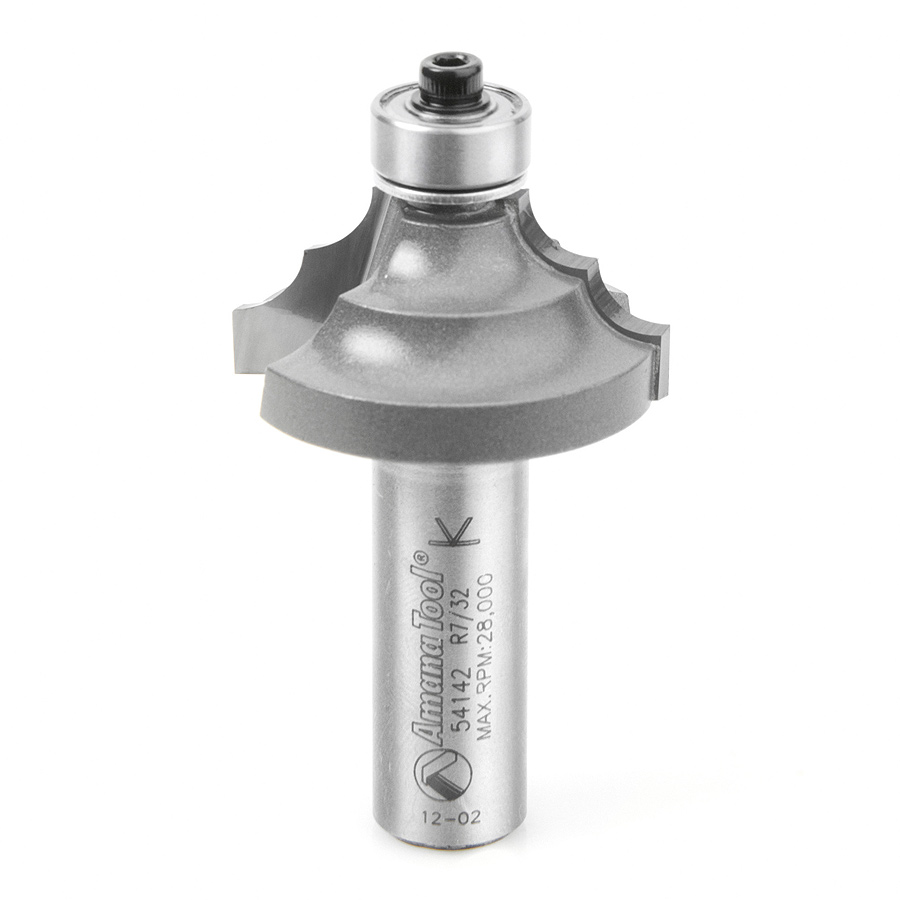

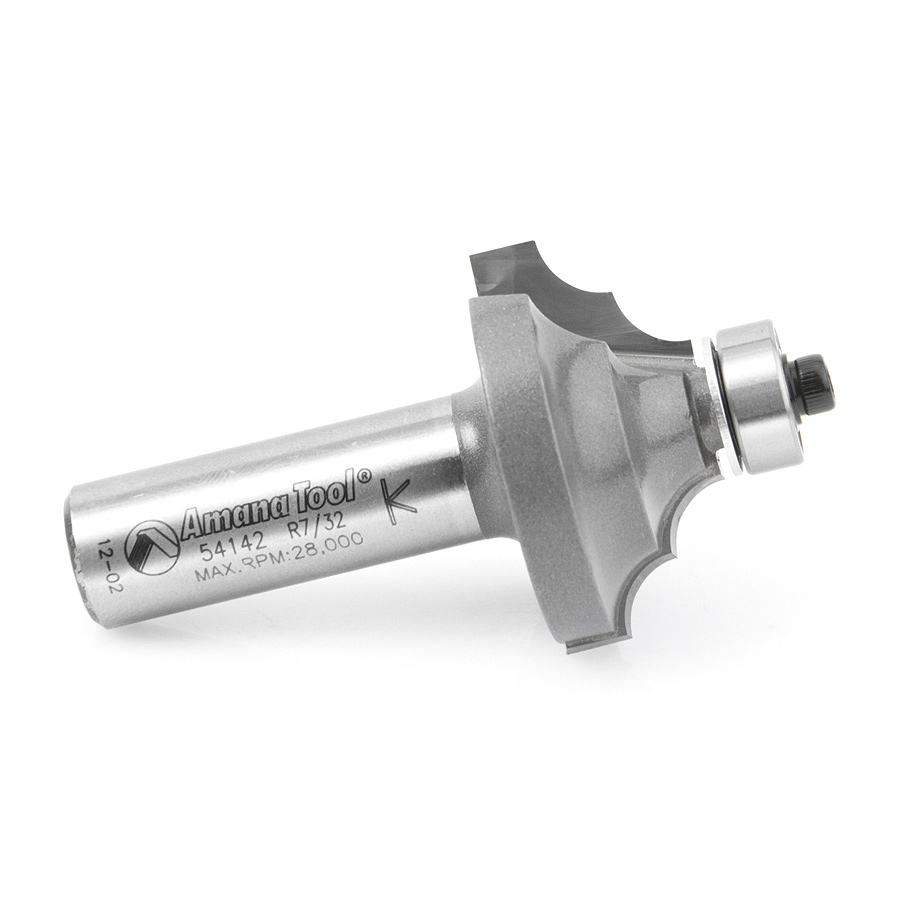

54142 Carbide Tipped Classical Molding 7/32 Radius x 1-3/8 Dia x 11/16 x 1/2 Inch Shank

Amana 54142 Carbide Tipped Classical Molding 7/32 Radius x 1-3/8 Dia x 11/16 x 1/2 Inch Shank

Name: Amana 54142 Carbide Tipped Classical Molding 7/32 Radius x 1-3/8 Dia x 11/16 x 1/2 Inch Shank
SKU: Amana 54142
Availability: InStock

Original price was: $102.45.Current price is: $76.84.

CLASSICAL MOULDING 1/2 SHANK

UPC: 738685941423 SKU: Amana 54142 Categories: Amana Tool, Classical Molding Router Bits, Profiling Router Bits, Router Bits

Item Description

A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8″ bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54142	47706	67096	67098	67202

Specifications

Diameter (D)	1-3/8
Radius (R)	7/32
Cutting Height (B)	11/16
Shank (d)	1/2
Overall Length (L)	2-9/16
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
1-1/8	5/32 (3.97mm)	1/2 (12.70mm)	1/4 (6.35mm)	2 (50.80mm)	2	47706	54136
1-1/8	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/4	2	47706	54140
1-3/8	7/32 (5.56mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/16	2	47706	54138

Weight	0.2 lbs
