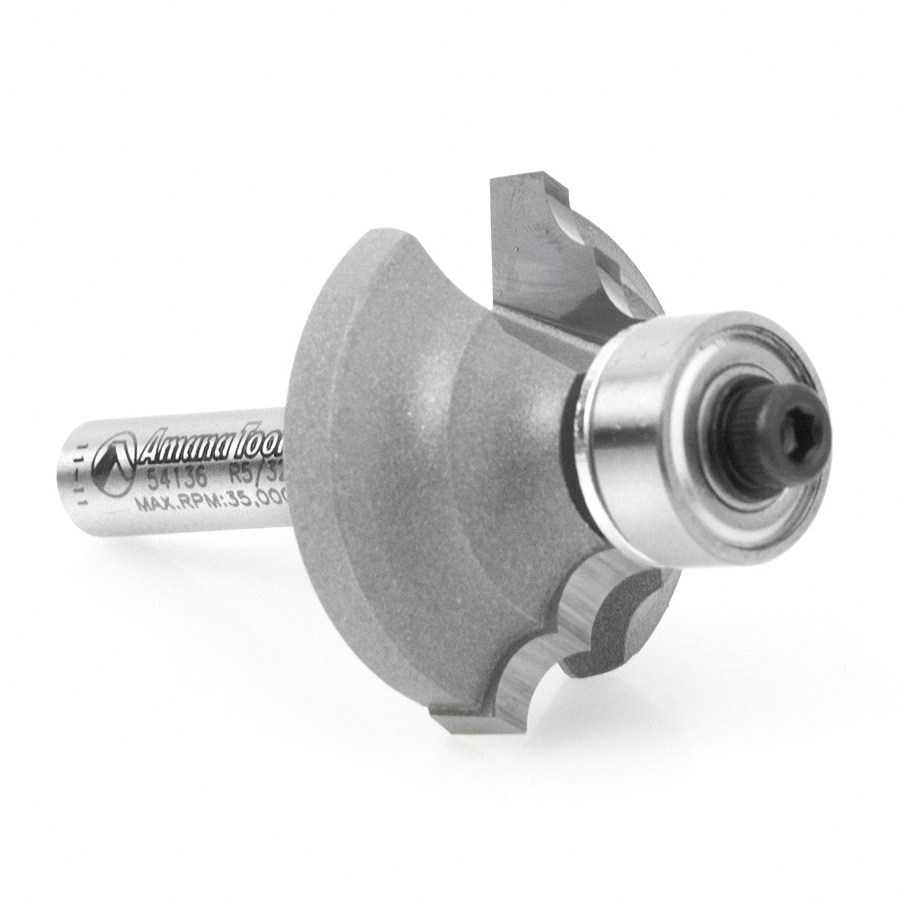

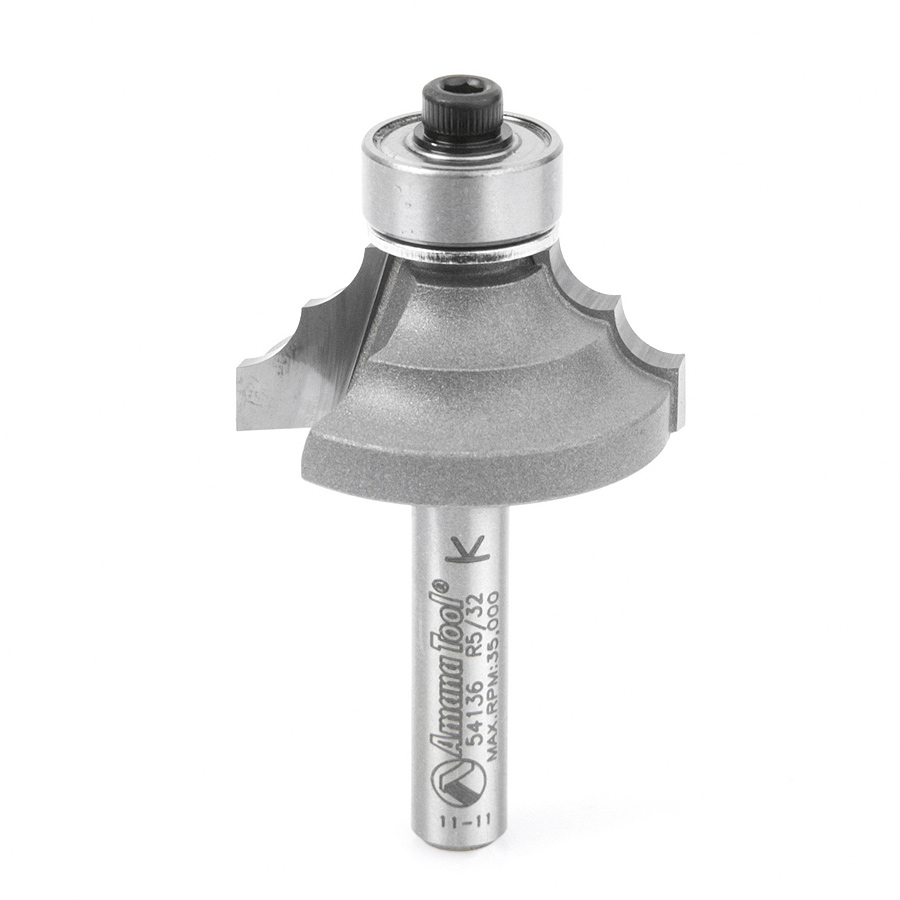

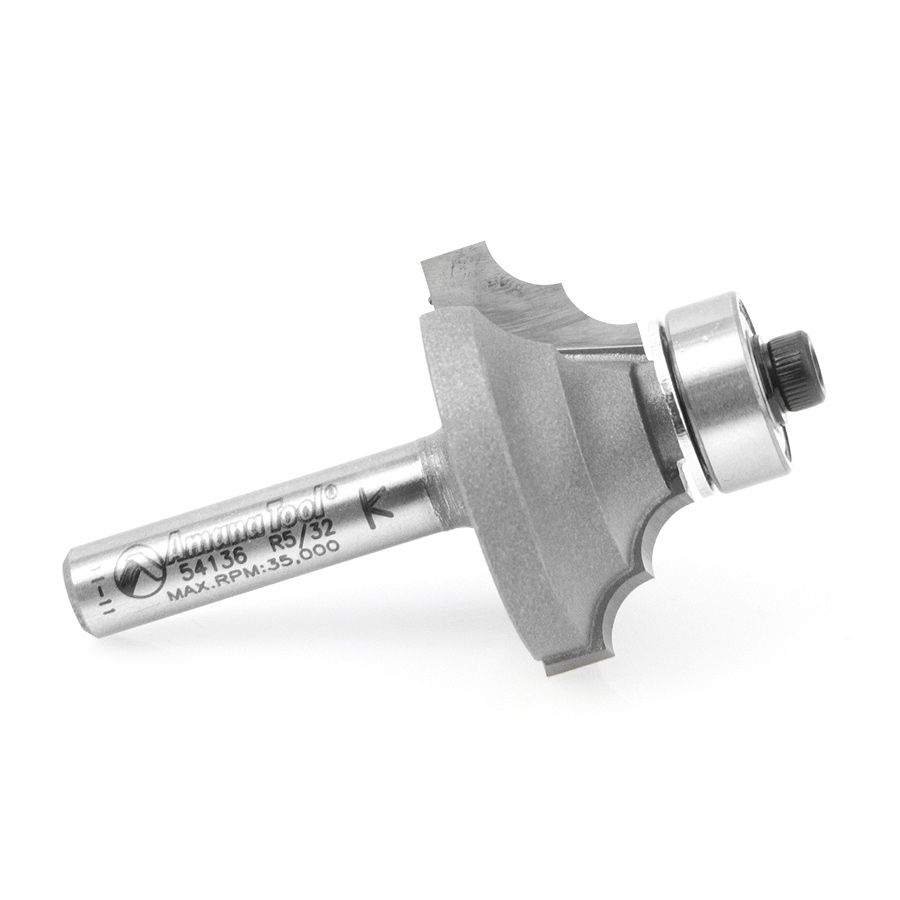

54136 Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank

Amana 54136 Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank

Name: Amana 54136 Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/4 Inch Shank
SKU: Amana 54136
Availability: InStock

Original price was: $97.35.Current price is: $73.02.

CLASSICAL MOULDING 1/4 SHANK

UPC: 738685941362 SKU: Amana 54136 Categories: Amana Tool, Classical Molding Router Bits, Profiling Router Bits, Router Bits

Item Description

A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8″ bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54136	47706	67096	67098	67202

Specifications

Diameter (D)	1-1/8
Radius (R)	5/32
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	Radius (R)	Cutting Height (B)	Shank (d)	Overall Length (L)	Flutes	Replacement Bearing	Tool No.
1-1/8	5/32 (3.97mm)	1/2 (12.70mm)	1/2 (12.70mm)	2-1/4	2	47706	54140
1-3/8	7/32 (5.56mm)	11/16 (17.46mm)	1/4 (6.35mm)	2-3/16	2	47706	54138
1-3/8	7/32 (5.56mm)	11/16 (17.46mm)	1/2 (12.70mm)	2-9/16	2	47706	54142

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
