Sale!

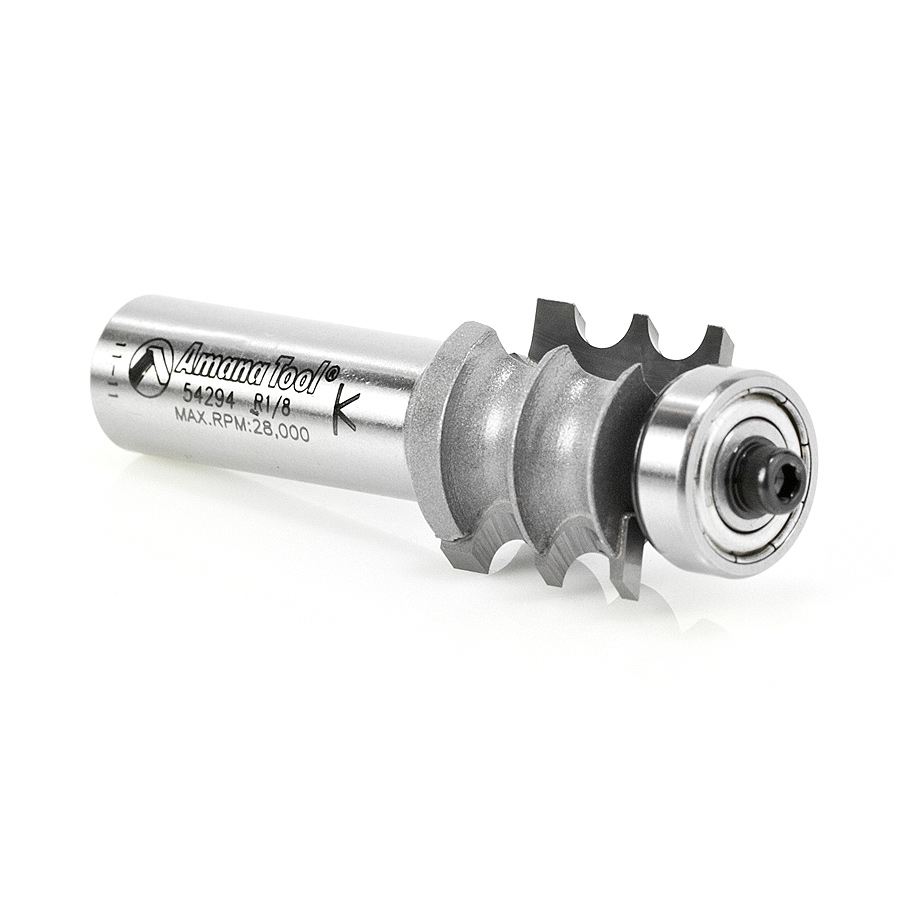

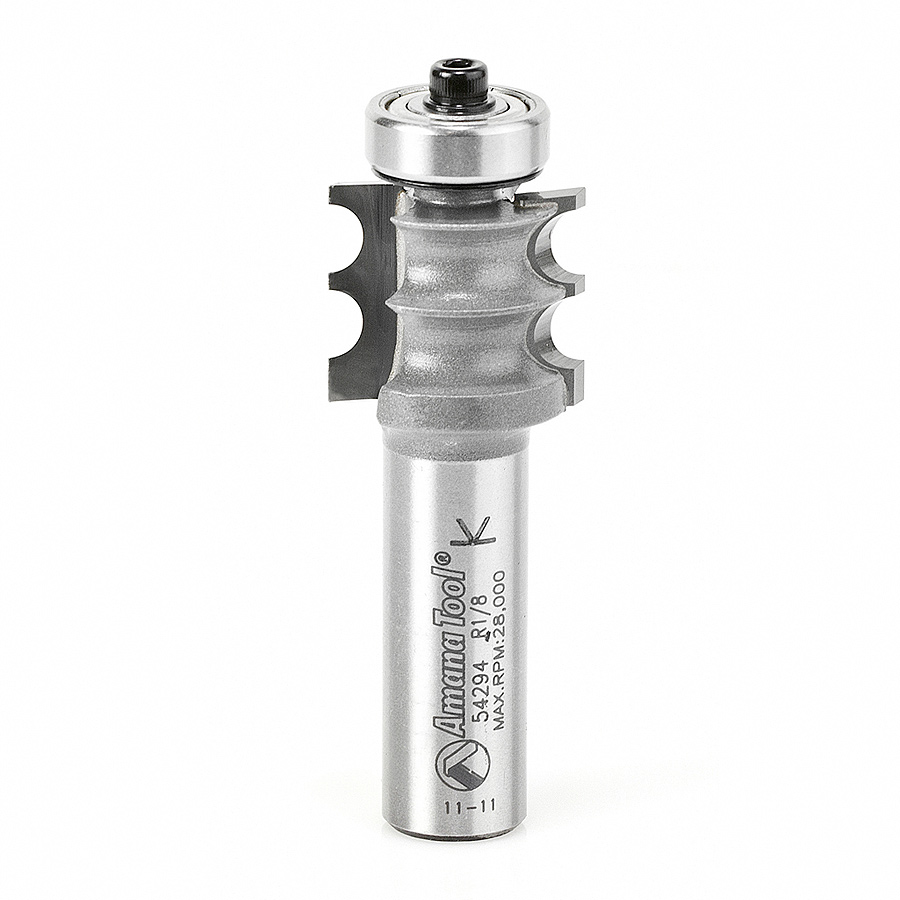

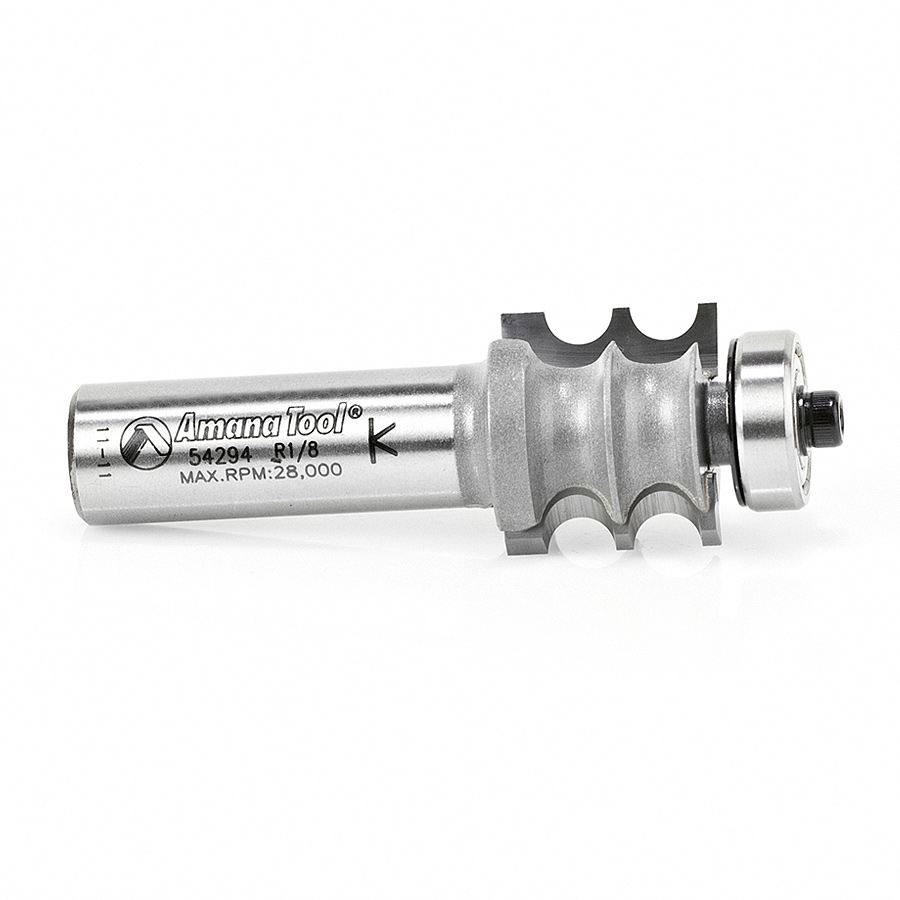

54294 Carbide Tipped Double Beading 1/8 Radius x 7/8 Dia x 3/4 x 1/2 Inch Shank

Amana 54294 Carbide Tipped Double Beading 1/8 Radius x 7/8 Dia x 3/4 x 1/2 Inch Shank

Original price was: $108.90.Current price is: $81.68.

EDGE FORMING BIT 1/2 SHANK

Item Description

Produce pairs of beads on the edges of shelving or narrow molding strips. Use in a handheld or table-mounted router.

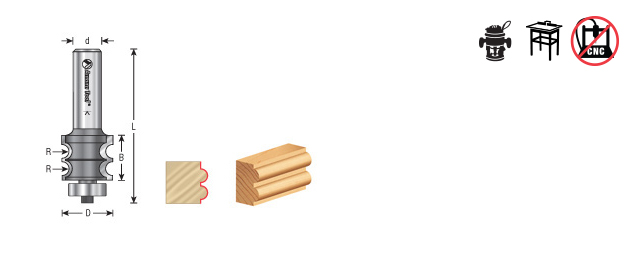

Specifications

Diameter (D)	7/8
Radius (R)	1/8
Cutting Height (B)	3/4
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Bearing	47716
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
45/64 (17.86mm)	5/8 (15.88mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-11/16	54161
49/64 (19.45mm)	11/16 (17.46mm)	3/32 (2.38mm)	25/64 (9.92mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-3/4	54163
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/4 (6.35mm)	2-1/8	54160
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/2 (12.70mm)	2-1/2	54162
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/4 (6.35mm)	2-1/4	54164
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/2 (12.70mm)	2-5/8	54166
1-1/4	1-1/8	1/4 (6.35mm)	23/32 (18.26mm)	17/32 (13.49mm)	1/4 (6.35mm)	2-5/16	54168
1-1/4	1-1/8	1/4 (6.35mm)	23/32 (18.26mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-11/16	54170
1-1/2	1-3/8	3/8 (9.53mm)	1 (25.40mm)	25/32 (19.84mm)	1/2 (12.70mm)	2-7/8	54172

Weight	0.18 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
