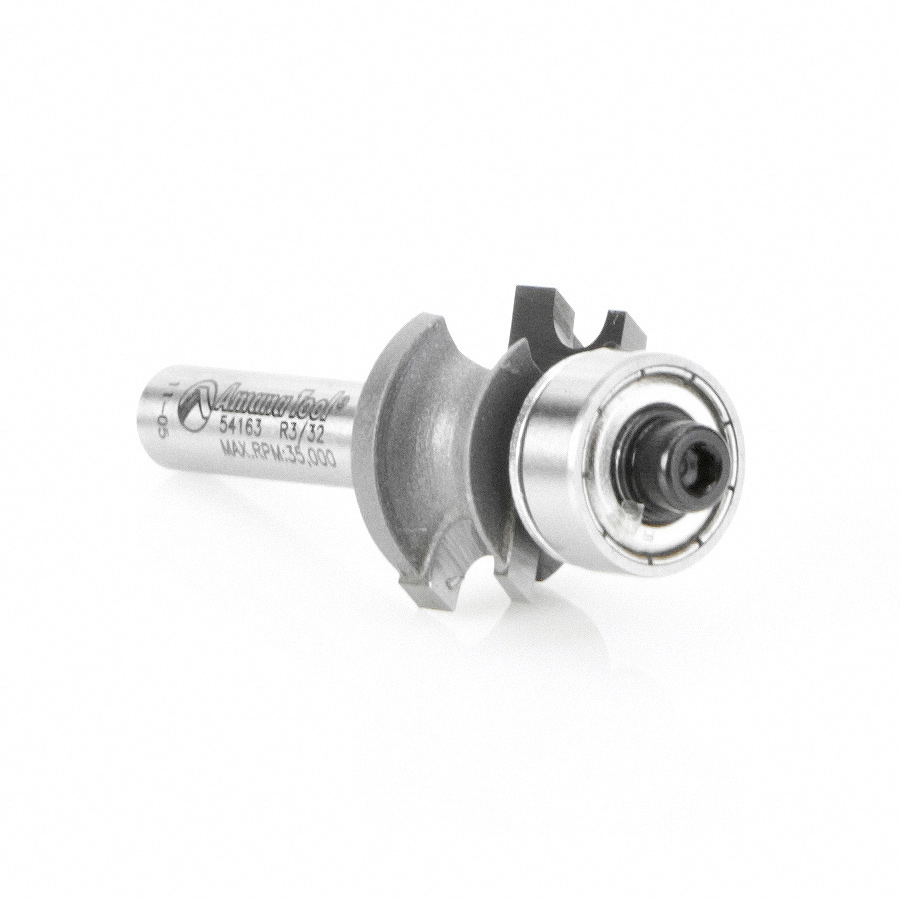

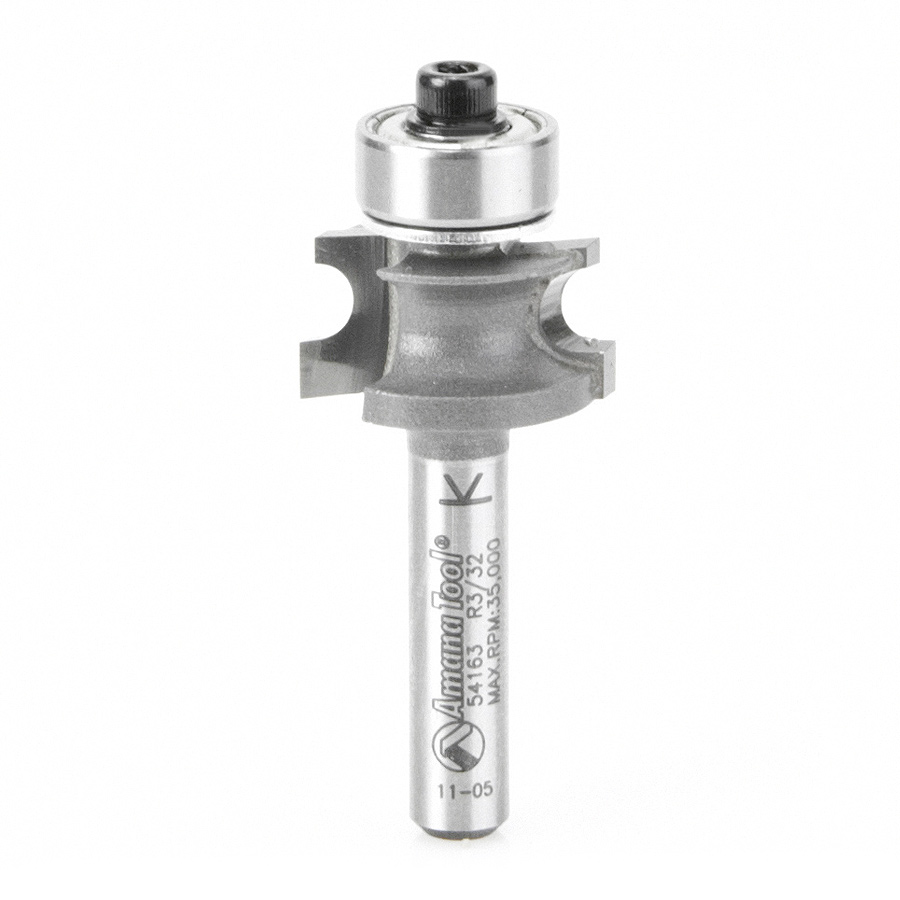

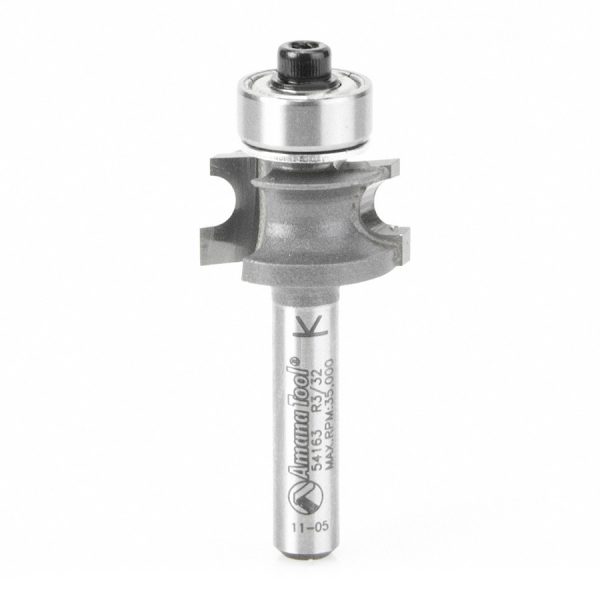

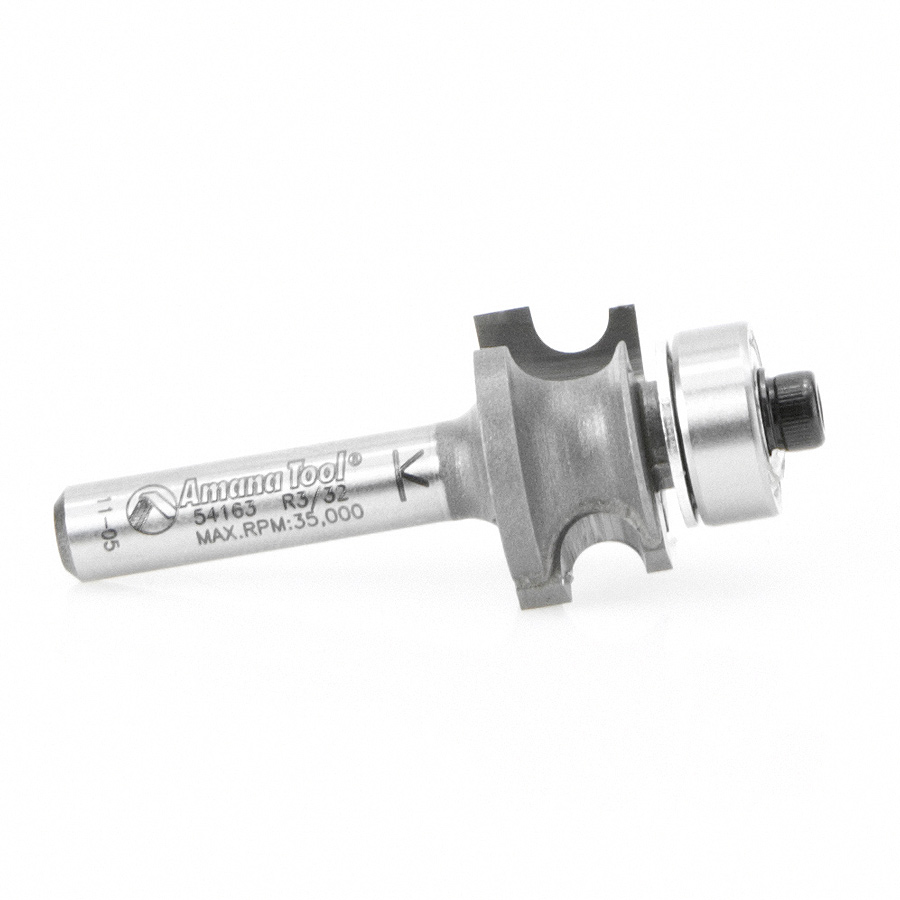

54163 Carbide Tipped Corner Round 3/32 Radius x49/64 Dia x 25/64 x 1/4 Inch Shank

Amana 54163 Carbide Tipped Corner Round 3/32 Radius x49/64 Dia x 25/64 x 1/4 Inch Shank

Name: Amana 54163 Carbide Tipped Corner Round 3/32 Radius x49/64 Dia x 25/64 x 1/4 Inch Shank
SKU: Amana 54163
Availability: InStock

Original price was: $64.00.Current price is: $48.00.

CORNER BEADING 3/32RAD 1/4 SHK

UPC: 738685541630 SKU: Amana 54163 Categories: Amana Tool, Corner Beading Router Bits, Profiling Router Bits, Router Bits

Item Description

Produce three slightly different profiles using this bit – an edge bead with or without a fillet and a full corner bead – by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54163	47706	67096	67098	67202

Specifications

Diameter (D)	49/64
D1	11/16
Radius (R)	3/32
Cutting Height (B)	25/64
B1	3/16
Shank (d)	1/4
Overall Length (L)	1-3/4
Replacement Bearing	47706
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
45/64 (17.86mm)	5/8 (15.88mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-11/16	54161
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/4 (6.35mm)	2-1/8	54160
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/2 (12.70mm)	2-1/2	54162
7/8 (22.23mm)	–	1/8 (3.18mm)	3/4 (19.05mm)	–	1/2 (12.70mm)	2-5/8	54294
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/4 (6.35mm)	2-1/4	54164
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/2 (12.70mm)	2-5/8	54166
1-1/4	1-1/8	1/4 (6.35mm)	23/32 (18.26mm)	17/32 (13.49mm)	1/4 (6.35mm)	2-5/16	54168
1-1/4	1-1/8	1/4 (6.35mm)	23/32 (18.26mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-11/16	54170
1-1/2	1-3/8	3/8 (9.53mm)	1 (25.40mm)	25/32 (19.84mm)	1/2 (12.70mm)	2-7/8	54172

Weight	0.07 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
