Sale!

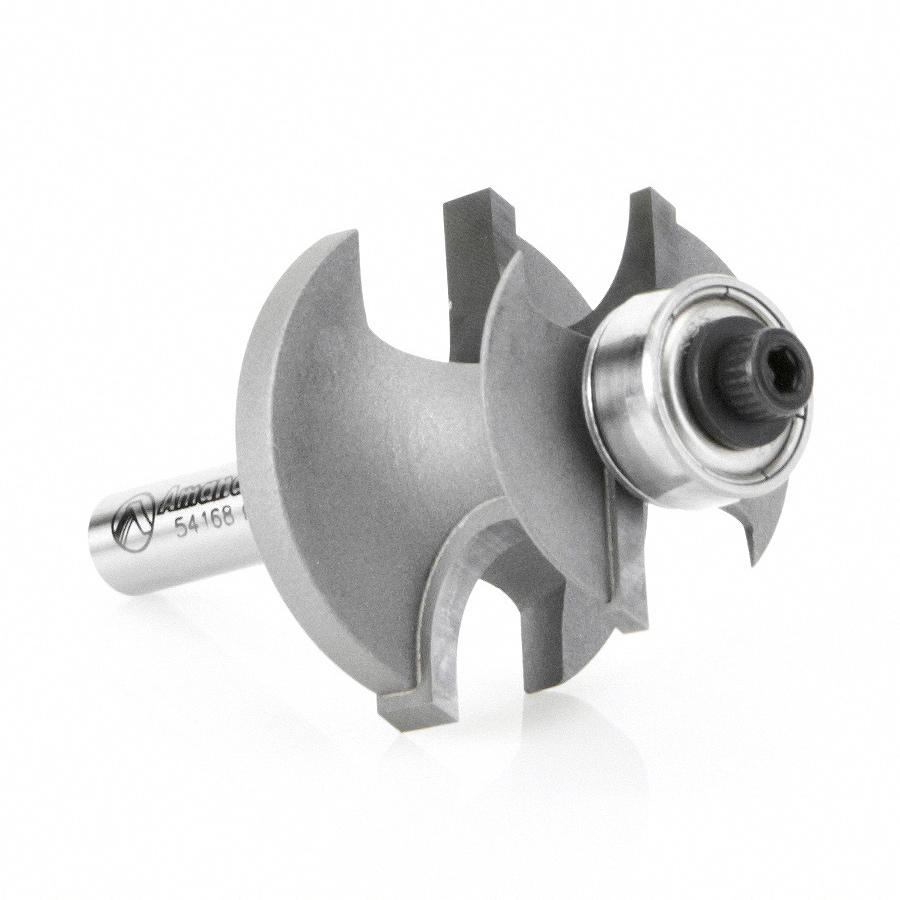

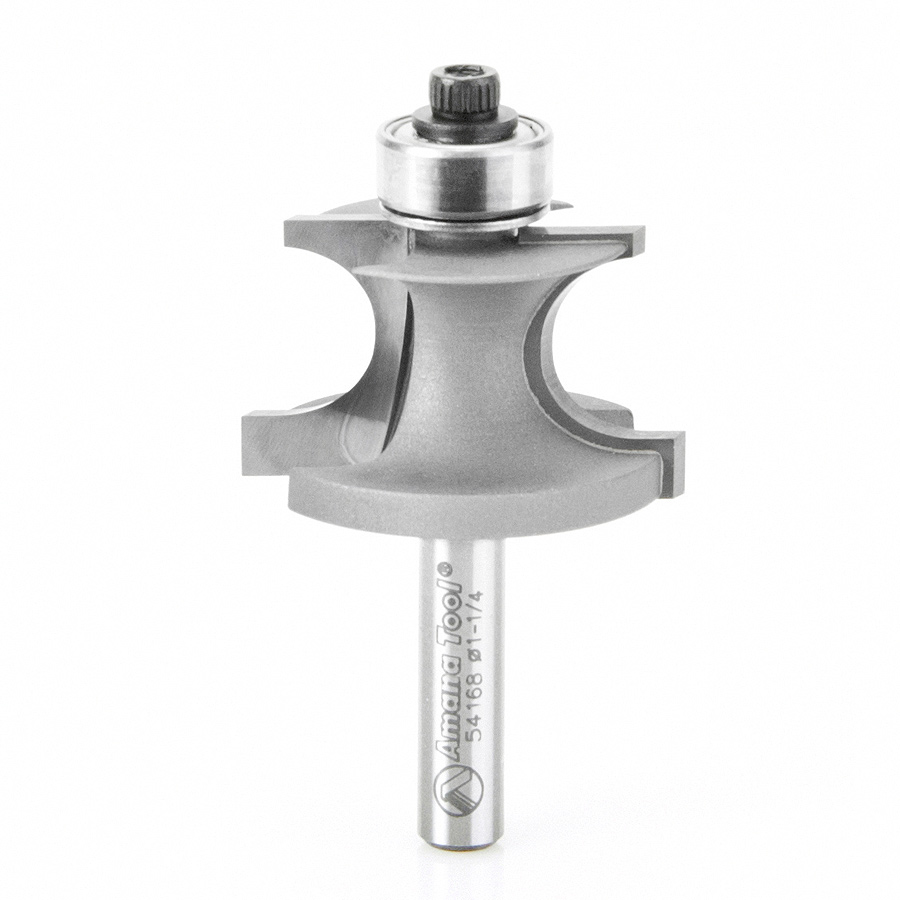

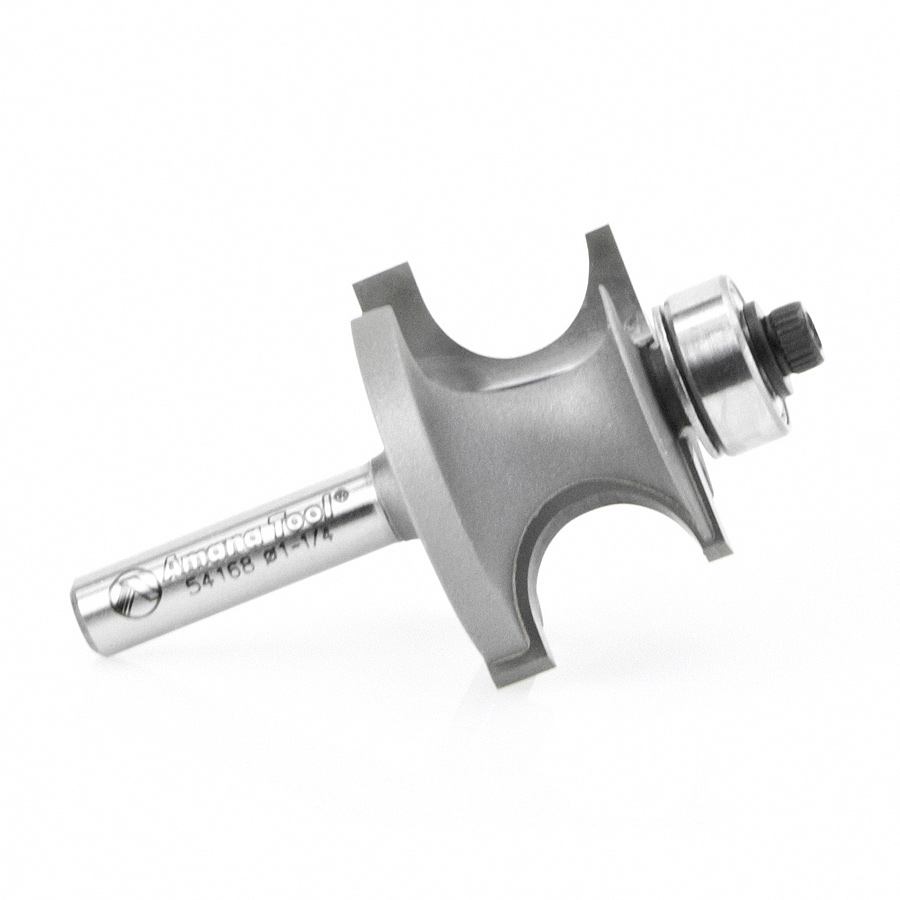

54168 Carbide Tipped Corner Round 1/4 Radius x 1-1/4 Dia x 23/32 x 1/4 Inch Shank

Amana 54168 Carbide Tipped Corner Round 1/4 Radius x 1-1/4 Dia x 23/32 x 1/4 Inch Shank

Name: Amana 54168 Carbide Tipped Corner Round 1/4 Radius x 1-1/4 Dia x 23/32 x 1/4 Inch Shank
SKU: Amana 54168
Availability: InStock

Original price was: $76.85.Current price is: $57.64.

CORNER BEADING 1/4″ RAD 1/4 SK

UPC: 738685941683 SKU: Amana 54168 Categories: Amana Tool, Corner Beading Router Bits, Profiling Router Bits, Router Bits

Item Description

Produce three slightly different profiles using this bit – an edge bead with or without a fillet and a full corner bead – by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.

Replacement Parts

Tool No.	Bearing(s)	Screw	Dust Shield	Flat Washer
54168	47716	67096	67098	67202

Specifications

Diameter (D)	1-1/4
D1	1-1/8
Radius (R)	1/4
Cutting Height (B)	23/32
B1	17/32
Shank (d)	1/4
Overall Length (L)	2-5/16
Replacement Bearing	47716
Flutes	2

Other Sizes Available

Diameter (D)	D1	Radius (R)	Cutting Height (B)	B1	Shank (d)	Overall Length (L)	Tool No.
45/64 (17.86mm)	5/8 (15.88mm)	1/16 (1.59mm)	5/16 (7.94mm)	1/8 (3.18mm)	1/4 (6.35mm)	1-11/16	54161
49/64 (19.45mm)	11/16 (17.46mm)	3/32 (2.38mm)	25/64 (9.92mm)	3/16 (4.76mm)	1/4 (6.35mm)	1-3/4	54163
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/4 (6.35mm)	2-1/8	54160
7/8 (22.23mm)	3/4 (19.05mm)	1/8 (3.18mm)	9/16 (14.29mm)	9/32 (7.14mm)	1/2 (12.70mm)	2-1/2	54162
7/8 (22.23mm)	–	1/8 (3.18mm)	3/4 (19.05mm)	–	1/2 (12.70mm)	2-5/8	54294
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/4 (6.35mm)	2-1/4	54164
1-1/8	1 (25.40mm)	3/16 (4.76mm)	11/16 (17.46mm)	13/32 (10.32mm)	1/2 (12.70mm)	2-5/8	54166
1-1/4	1-1/8	1/4 (6.35mm)	23/32 (18.26mm)	17/32 (13.49mm)	1/2 (12.70mm)	2-11/16	54170
1-1/2	1-3/8	3/8 (9.53mm)	1 (25.40mm)	25/32 (19.84mm)	1/2 (12.70mm)	2-7/8	54172

Weight	0.14 lbs
