Sale!

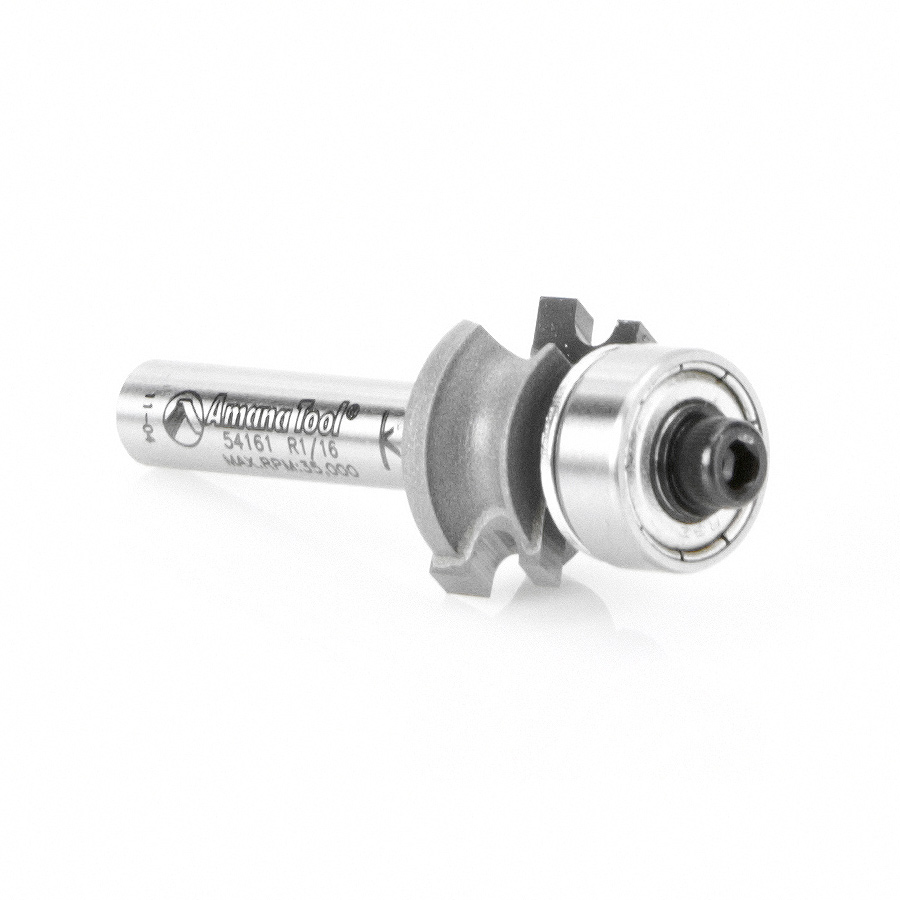

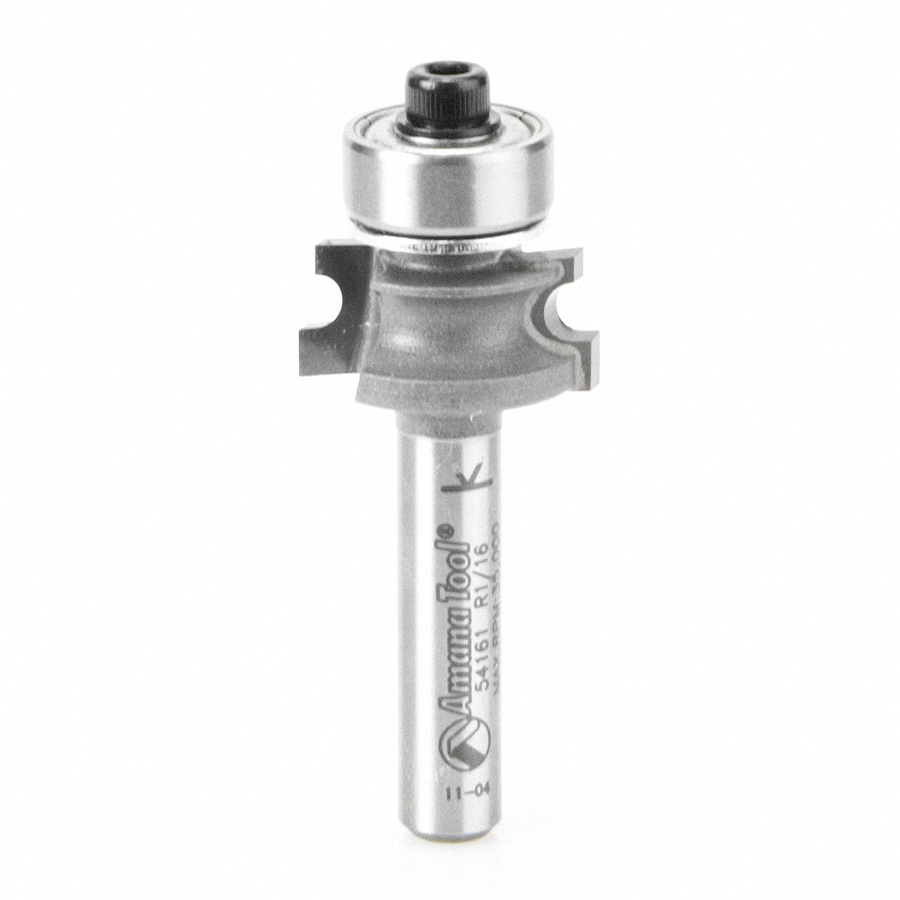

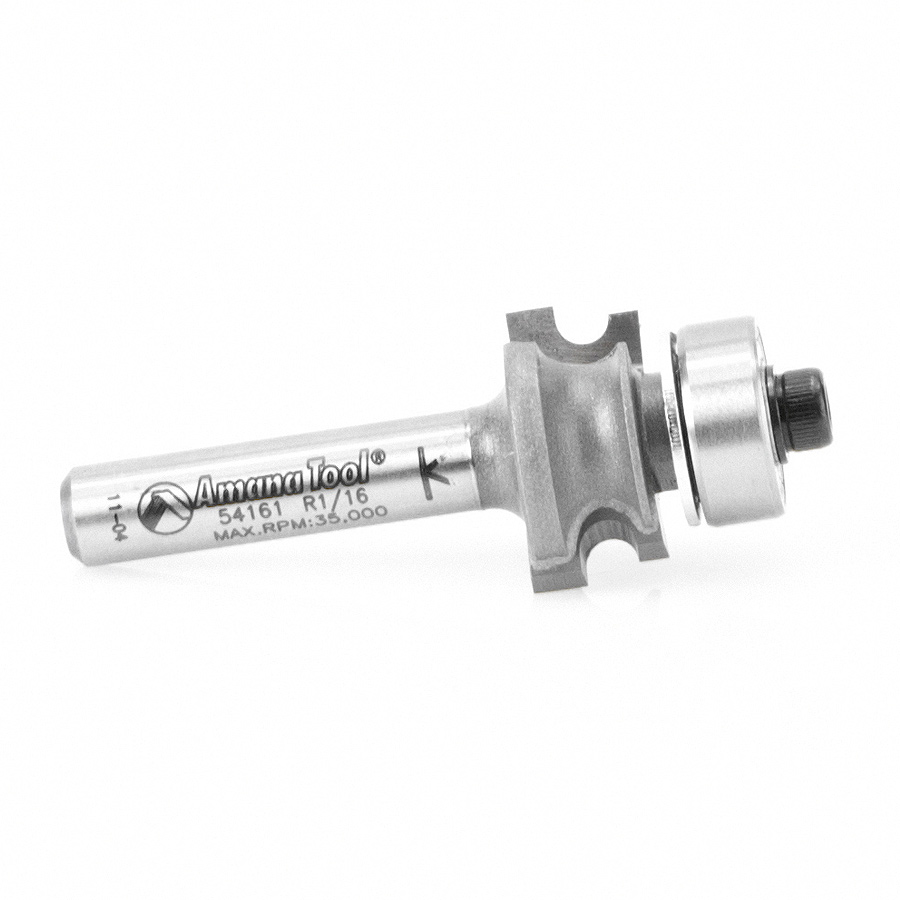

Amana 54161 Carbide Tipped Corner Round 1/16 Radius x 45/64 Dia x 5/16 x 1/4 Inch Shank
Original price was: $64.00.$48.00Current price is: $48.00.
CORNER BEADING 1/16RAD 1/4 SHK
Item Description
Produce three slightly different profiles using this bit – an edge bead with or without a fillet and a full corner bead – by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.
Replacement Parts
| Tool No. | Bearing(s) | Screw | Dust Shield | Flat Washer |
|---|---|---|---|---|
| 54161 | 47706 | 67096 | 67098 | 67202 |

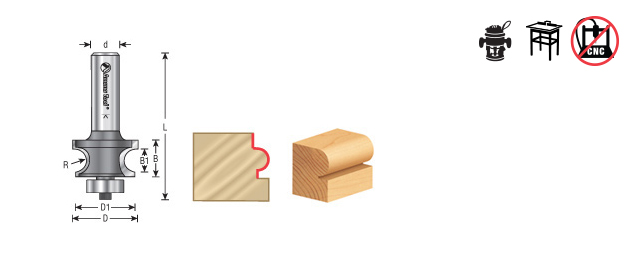

Specifications
| Diameter (D) | 45/64 |
|---|---|
| D1 | 5/8 |
| Radius (R) | 1/16 |
| Cutting Height (B) | 5/16 |
| B1 | 1/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-11/16 |
| Replacement Bearing | 47706 |
| Flutes | 2 |
Other Sizes Available
| Diameter (D) | D1 | Radius (R) | Cutting Height (B) | B1 | Shank (d) | Overall Length (L) | Tool No. |
|---|---|---|---|---|---|---|---|
| 49/64 (19.45mm) | 11/16 (17.46mm) | 3/32 (2.38mm) | 25/64 (9.92mm) | 3/16 (4.76mm) | 1/4 (6.35mm) | 1-3/4 | 54163 |
| 7/8 (22.23mm) | 3/4 (19.05mm) | 1/8 (3.18mm) | 9/16 (14.29mm) | 9/32 (7.14mm) | 1/4 (6.35mm) | 2-1/8 | 54160 |
| 7/8 (22.23mm) | 3/4 (19.05mm) | 1/8 (3.18mm) | 9/16 (14.29mm) | 9/32 (7.14mm) | 1/2 (12.70mm) | 2-1/2 | 54162 |
| 7/8 (22.23mm) | – | 1/8 (3.18mm) | 3/4 (19.05mm) | – | 1/2 (12.70mm) | 2-5/8 | 54294 |
| 1-1/8 | 1 (25.40mm) | 3/16 (4.76mm) | 11/16 (17.46mm) | 13/32 (10.32mm) | 1/4 (6.35mm) | 2-1/4 | 54164 |
| 1-1/8 | 1 (25.40mm) | 3/16 (4.76mm) | 11/16 (17.46mm) | 13/32 (10.32mm) | 1/2 (12.70mm) | 2-5/8 | 54166 |
| 1-1/4 | 1-1/8 | 1/4 (6.35mm) | 23/32 (18.26mm) | 17/32 (13.49mm) | 1/4 (6.35mm) | 2-5/16 | 54168 |
| 1-1/4 | 1-1/8 | 1/4 (6.35mm) | 23/32 (18.26mm) | 17/32 (13.49mm) | 1/2 (12.70mm) | 2-11/16 | 54170 |
| 1-1/2 | 1-3/8 | 3/8 (9.53mm) | 1 (25.40mm) | 25/32 (19.84mm) | 1/2 (12.70mm) | 2-7/8 | 54172 |
| Weight | 0.06 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
