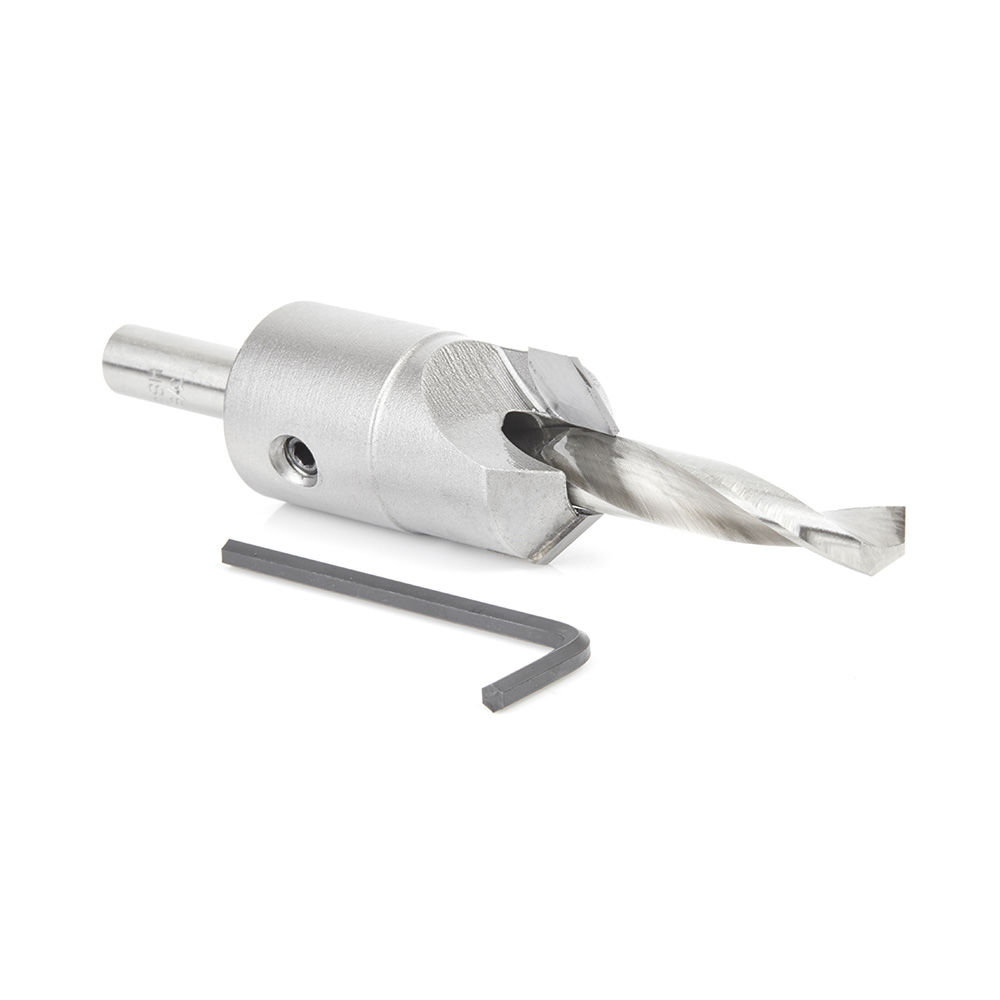

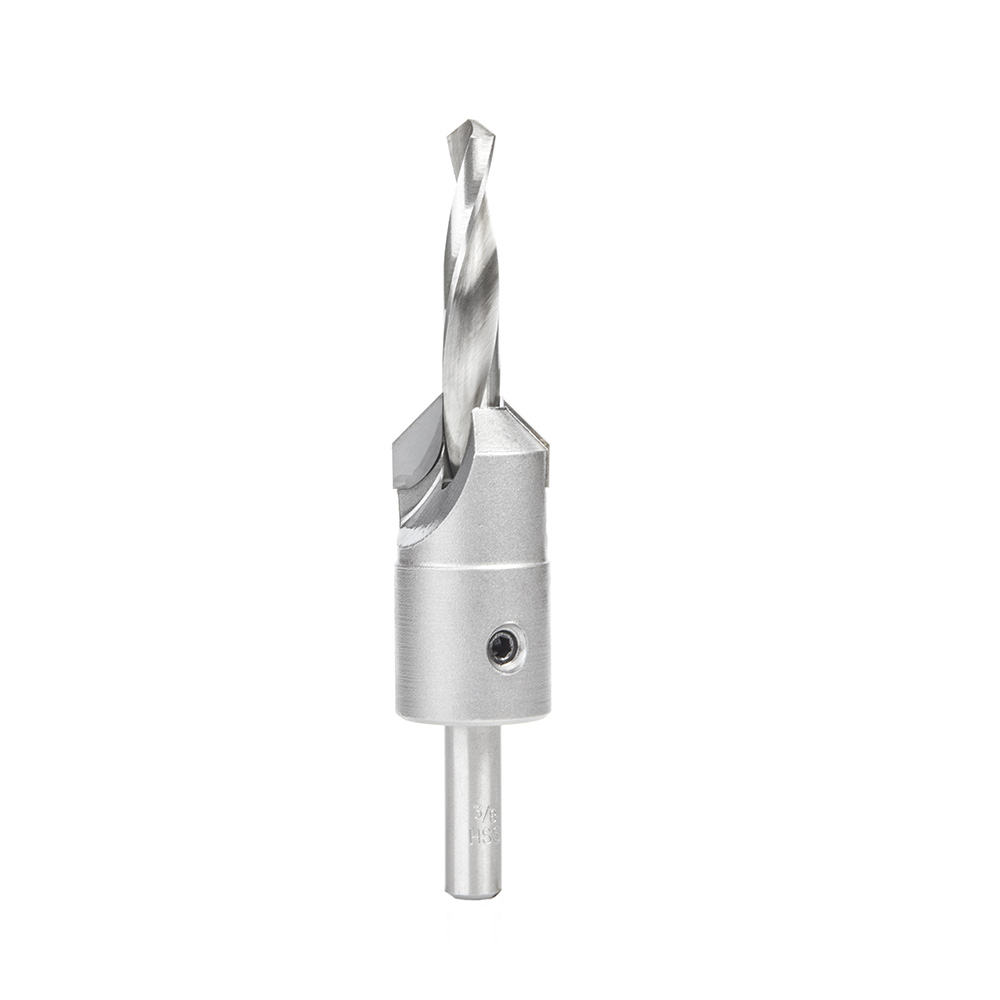

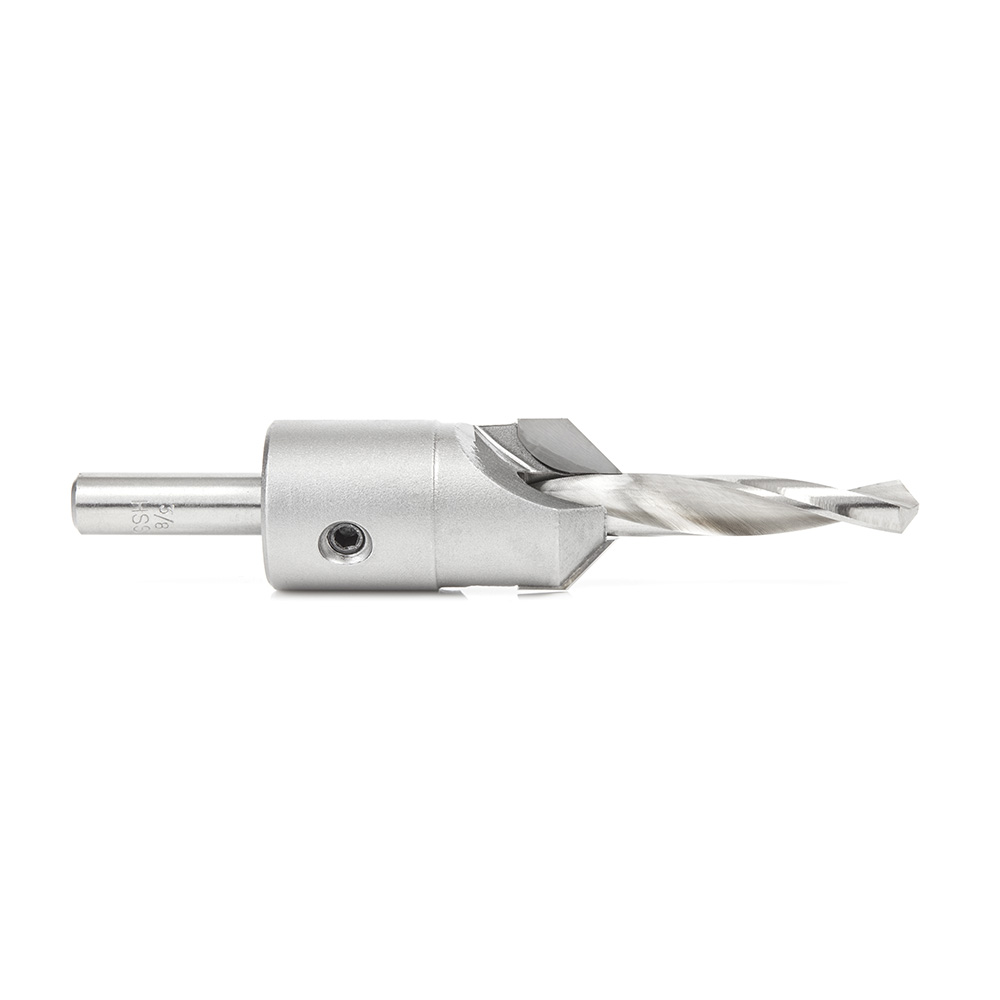

55136 Carbide Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #24 Screw 1 Dia x 3/8 Drill Dia x 3/8 Drill Shank

Amana 55136 Carbide Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #24 Screw 1 Dia x 3/8 Drill Dia x 3/8 Drill Shank

Name: Amana 55136 Carbide Tipped 82 Degree Shankless Countersink with Slow Spiral Drill, #24 Screw 1 Dia x 3/8 Drill Dia x 3/8 Drill Shank
SKU: Amana 55136
Availability: InStock

Original price was: $94.20.Current price is: $70.65.

3/8″ CT COUNTERSINK-SHANKLESS

UPC: 738685551363 SKU: Amana 55136 Categories: Amana Tool, Boring & Drilling Bits, Countersink Bits, Shankless Carbide Tipped Countersink Bits

Item Description

Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Parts

Tool No.	Drill Bit
55136	630-706

Specifications

(a°) Angle	49°
(D) Diameter	1
(d) Shank	3/8
Overall Length (L)	4-15/16
Wood Screw Size	#24
# Wings	2
D1	3/8
Replacement Drill	630-706
L1	2

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(a°) Angle	(d) Shank	Overall Length (L)	L1	Replacement Drill	Tool No.
#20#20#20#20	5/8 (15.88mm)	5/16 (7.94mm)	49°	5/16 (7.94mm)	4-5/8	1-1/2	630-704	55130
#24#24#24#24	3/4 (19.05mm)	3/8 (9.53mm)	49°	3/8 (9.53mm)	4-15/16	1-1/2	630-706	55134

Weight	0.42 lbs
