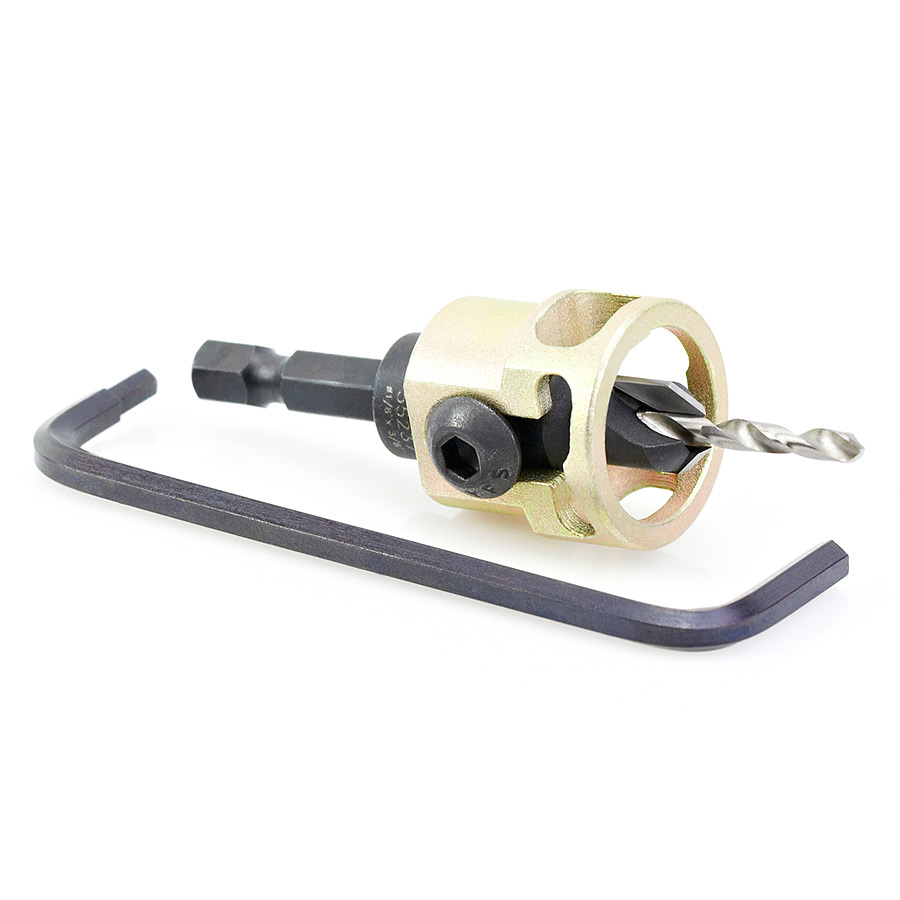

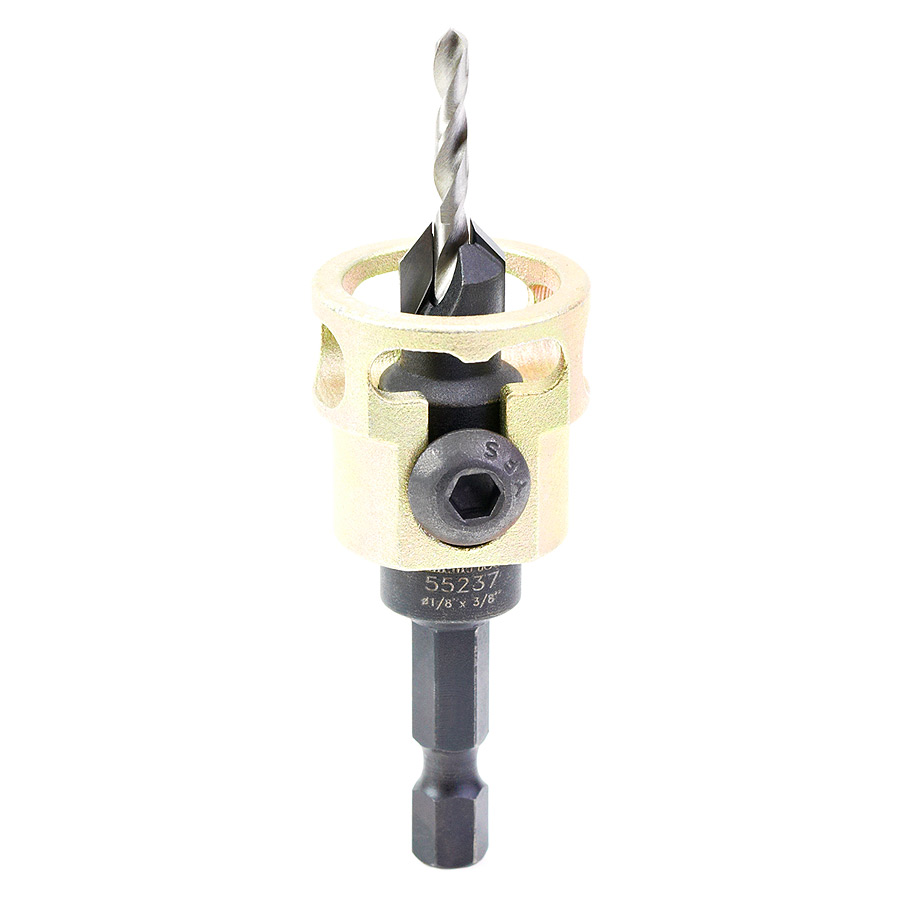

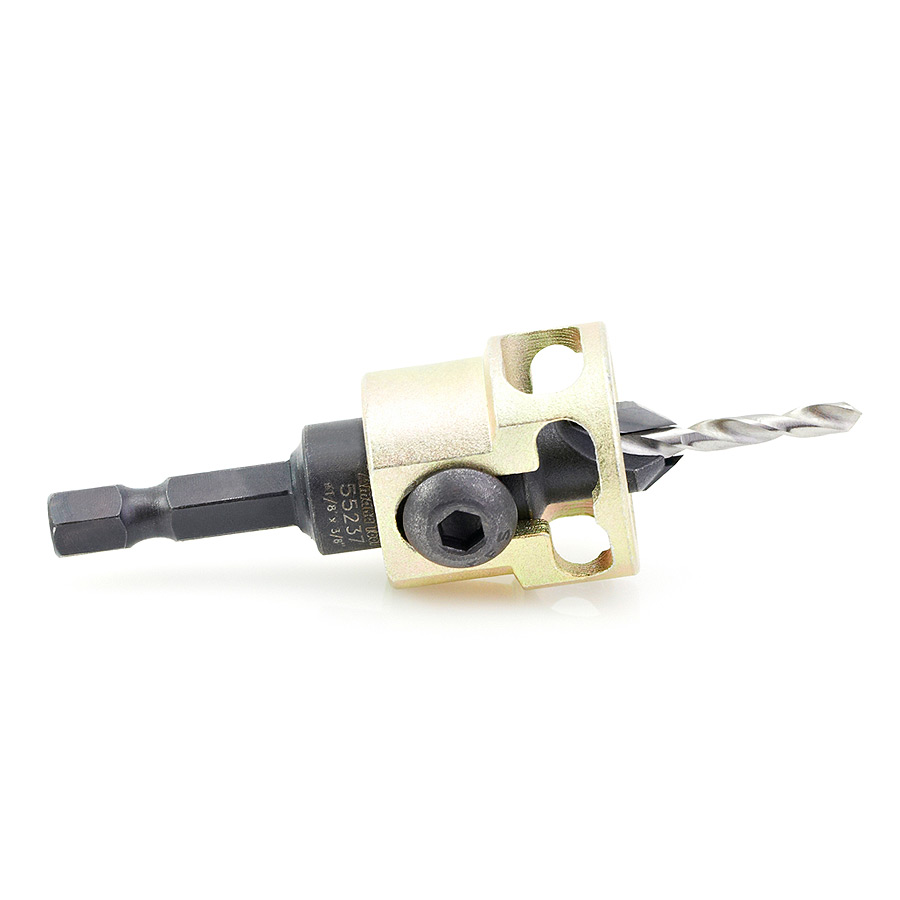

55237 Carbide Tipped Adjustable Countersink with Depth-Stop 3/8 Dia x 49 Degree Angle x 1/4 Shank Includes Repl. Drill Bit 630-226

Amana 55237 Carbide Tipped Adjustable Countersink with Depth-Stop 3/8 Dia x 49 Degree Angle x 1/4 Shank Includes Repl. Drill Bit 630-226

Name: Amana 55237 Carbide Tipped Adjustable Countersink with Depth-Stop 3/8 Dia x 49 Degree Angle x 1/4 Shank Includes Repl. Drill Bit 630-226
SKU: Amana 55237
Availability: InStock

Original price was: $55.90.Current price is: $41.93.

COUNTERSINK/STOP 1/8″ DRILL

UPC: 738685552377 SKU: Amana 55237 Categories: Amana Tool, Boring & Drilling Bits, Carbide Tipped Countersinks Bits, Countersink Bits

Item Description

A new addition to the well known range of Amana Tool® countersinks. Unique adjustable depth-stop developed for quick and easy adjustment of the countersink depth.The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.

Replacement Parts

Tool No.	Drill Bit
55237	630-226

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(d) Shank	1/4
Overall Length (L)	2-3/8
D1	1/8
Replacement Drill	630-226

Other Sizes Available

D1	Replacement Drill	(a°) Angle	(D) Diameter	(d) Shank	Overall Length (L)	Tool No.
–	–	–	3mm	10mm	70mm	204003
–	–	–	3.2mm	10mm	70mm	204032
–	–	–	4mm	10mm	70mm	204004
–	–	–	4.5mm	10mm	70mm	204045
–	–	–	3/16 (4.76mm)	10mm	70mm	204047
–	–	–	5mm	10mm	70mm	204005
–	–	–	5.1mm	10mm	70mm	204051
–	–	–	5.2mm	10mm	70mm	204052
–	–	–	5.5mm	10mm	70mm	204055
–	–	–	6mm	10mm	70mm	204006
–	–	–	1/4 (6.35mm)	10mm	70mm	204007
–	–	–	6.5mm	10mm	70mm	204065
–	–	–	6.7mm	10mm	70mm	204067
–	–	–	7mm	10mm	70mm	204070
–	–	–	7.5mm	10mm	70mm	204075
–	–	–	8.2mm	10mm	70mm	204082
–	–	–	9mm	10mm	70mm	204090
5/32 (3.97mm)	630-230	49°	3/8 (9.53mm)	1/4 (6.35mm)	2-3/8	55239
–	–	–	3/8 (9.53mm)	10mm	70mm	204009
–	–	–	10mm	10mm	70mm	204010
–	–	–	11mm	10mm	70mm	204011
–	–	–	7/16 (11.11mm)	10mm	70mm	204111
–	–	–	12mm	10mm	70mm	204012
–	–	–	1/2 (12.70mm)	10mm	70mm	204013
–	–	–	13mm	10mm	70mm	204130
–	–	–	14mm	10mm	70mm	204014
–	–	–	15mm	10mm	70mm	204015
–	–	–	16mm	10mm	70mm	204016
–	–	–	5/8 (15.88mm)	10mm	70mm	204113

Weight	0.16 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
