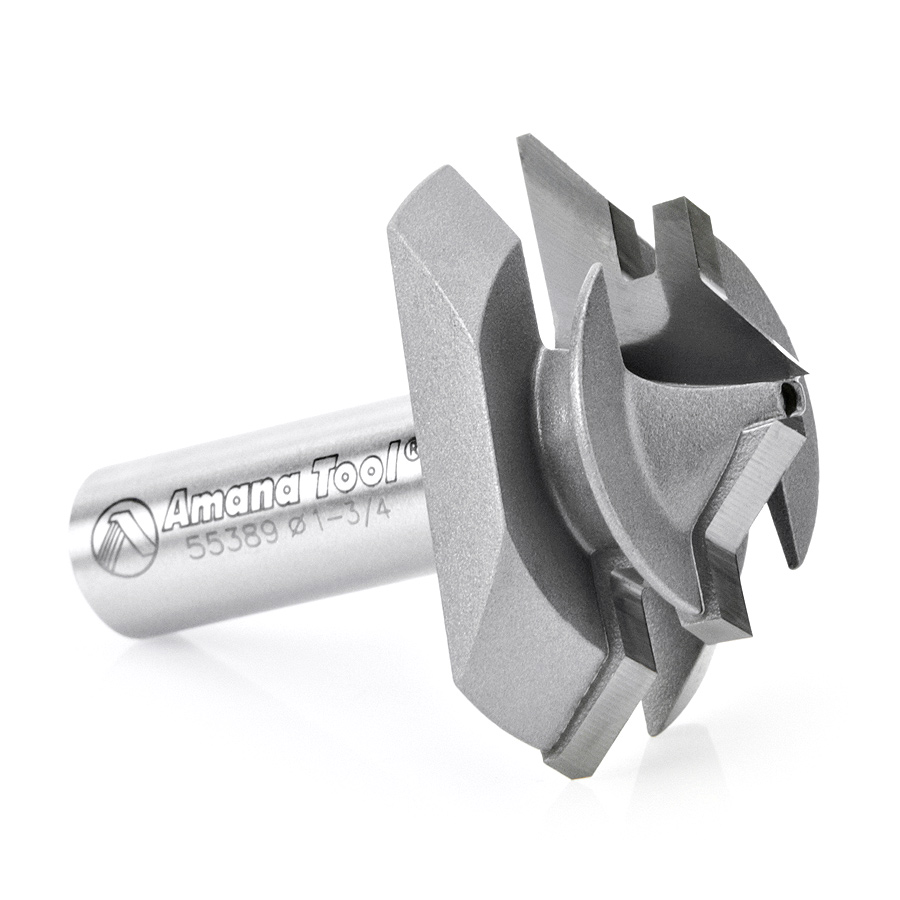

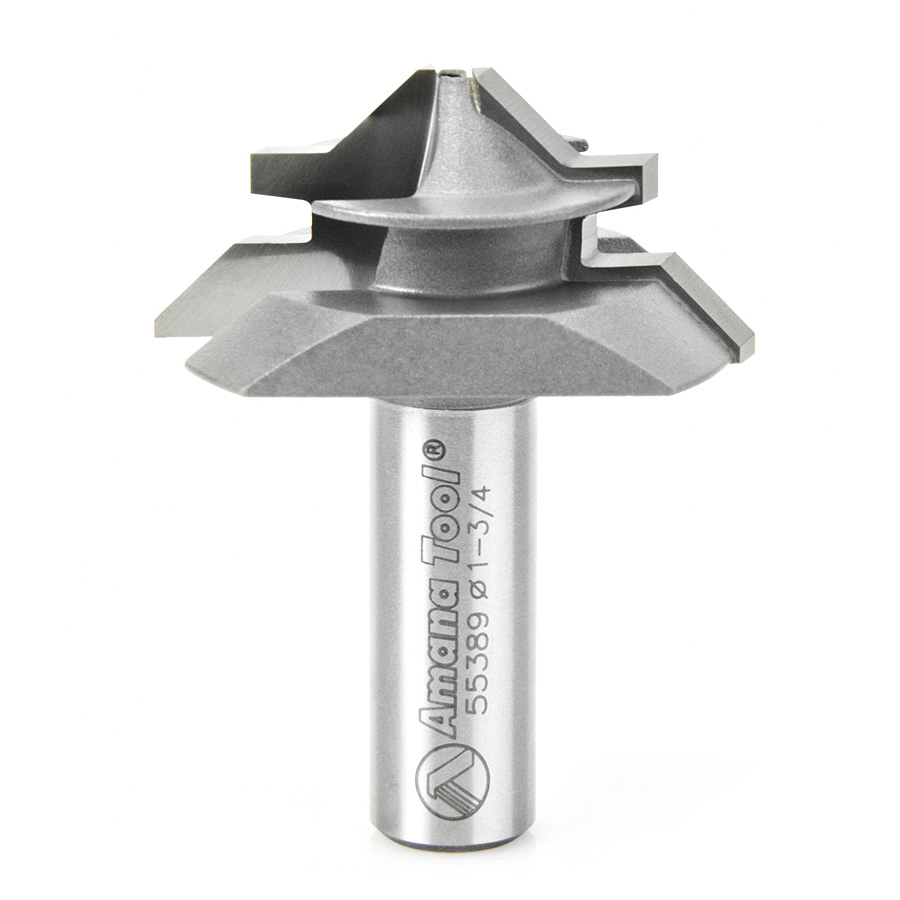

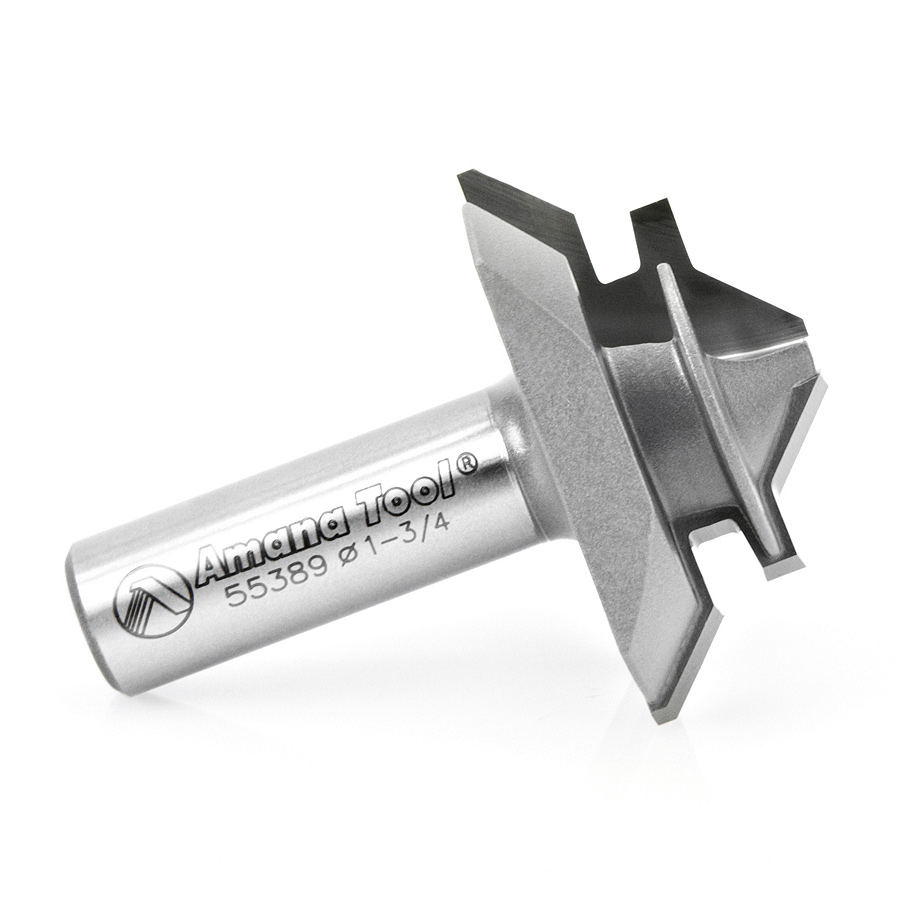

55389 Carbide Tipped Lock Miter 45 Deg x 1-3/4 Dia x 7/8 x 1/2 Inch Shank for 3/8 - 3/4 Material

Amana 55389 Carbide Tipped Lock Miter 45 Deg x 1-3/4 Dia x 7/8 x 1/2 Inch Shank for 3/8 – 3/4 Material

Name: Amana 55389 Carbide Tipped Lock Miter 45 Deg x 1-3/4 Dia x 7/8 x 1/2 Inch Shank for 3/8 - 3/4 Material
SKU: Amana 55389
Availability: InStock

Original price was: $159.45.Current price is: $119.59.

45 DEG. LOCK MITER 1/2″ SHANK

UPC: 738685553893 SKU: Amana 55389 Categories: Amana Tool, Jointing Router Bits, Lock Miter Router Bits, Router Bits

Item Description

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.

Specifications

Angle (a°)	45°
Diameter (D)	1-3/4
D1	6.4mm
Cutting Height (B)	7/8
Shank (d)	1/2
Overall Length (L)	2-1/8
Material size	3/8-3/4 Inch
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Material size	Flutes	Max RPM	Tool No.
45°	2-11/16	9.2mm	1-3/16	1/2 (12.70mm)	2-5/8	1/2 – 1	2	18,000	55390
45°	1-5/8	13.2mm	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	3/8-1/2	2	—-	55391
45°	1-1/2	12.1mm	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	5/16-7/16	2	—-	55393

Weight	0.54 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
