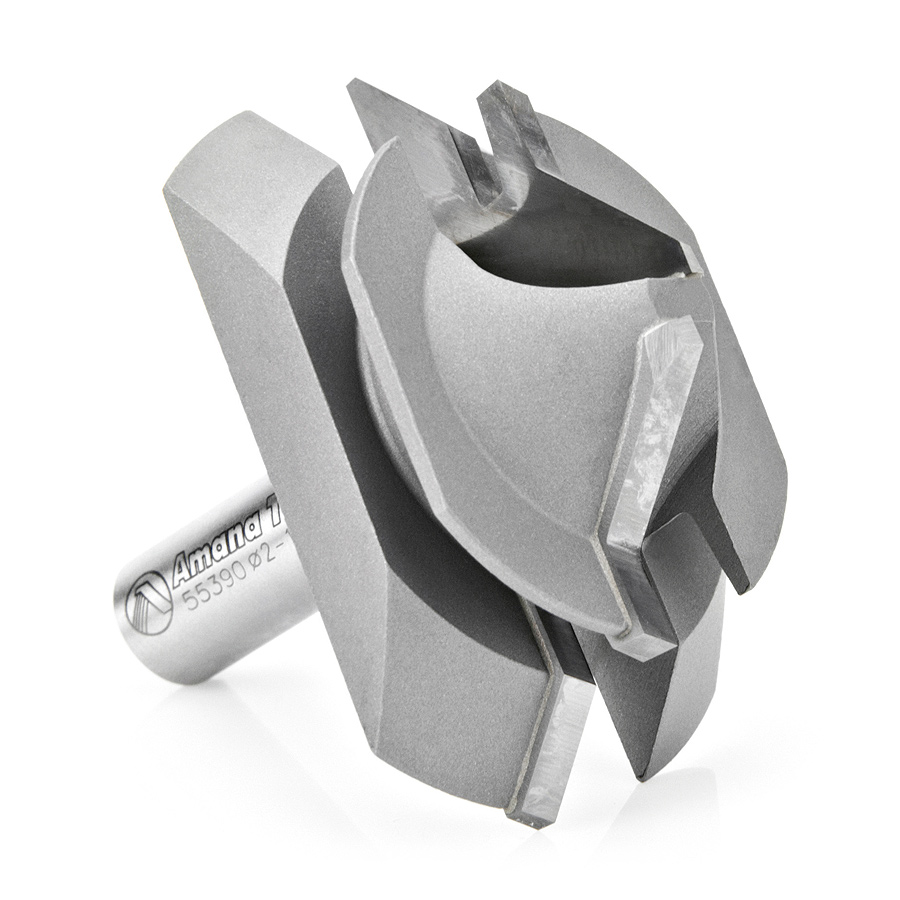

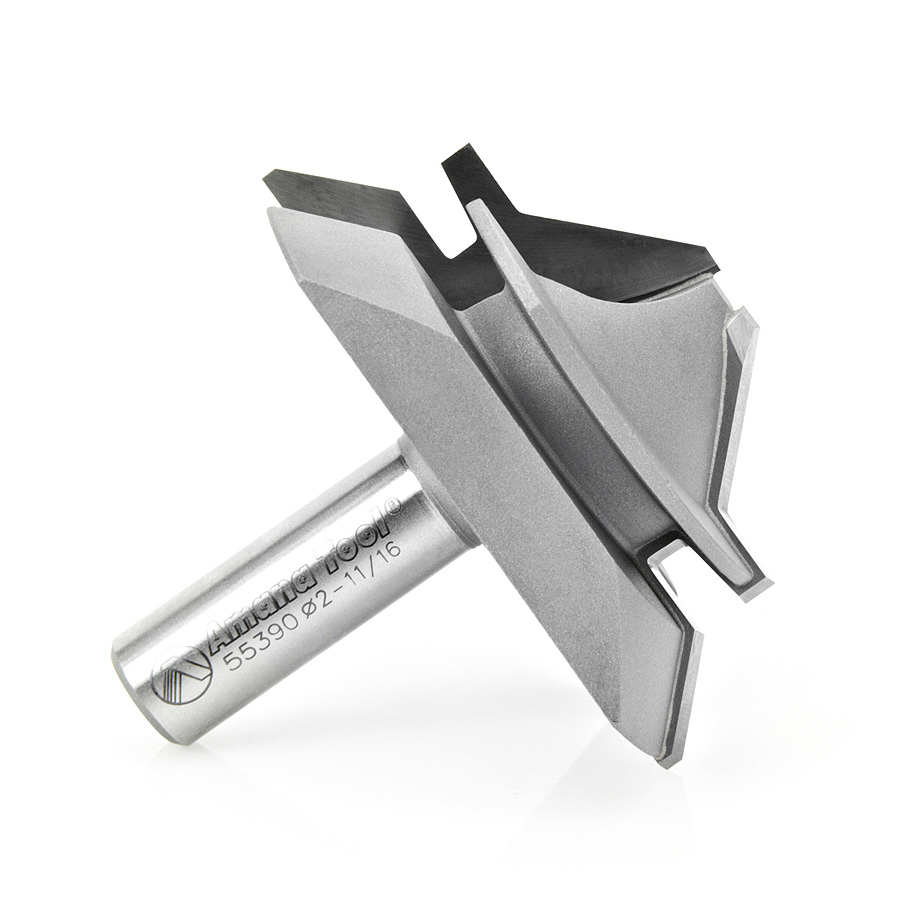

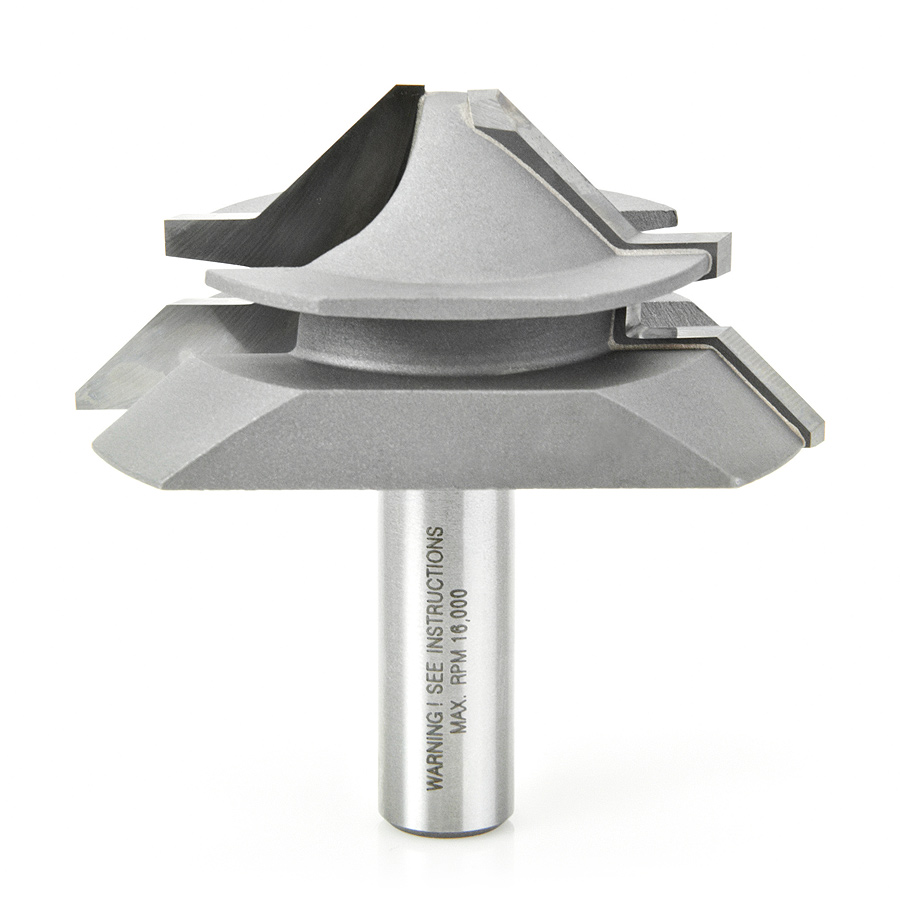

55390 Carbide Tipped Lock Miter 45 Deg x 2-11/16 Dia x 1-3/16 x 1/2 Inch Shank for 1/2 - 1 Inch Material

Amana 55390 Carbide Tipped Lock Miter 45 Deg x 2-11/16 Dia x 1-3/16 x 1/2 Inch Shank for 1/2 – 1 Inch Material

Name: Amana 55390 Carbide Tipped Lock Miter 45 Deg x 2-11/16 Dia x 1-3/16 x 1/2 Inch Shank for 1/2 - 1 Inch Material
SKU: Amana 55390
Availability: InStock

Original price was: $153.75.Current price is: $115.32.

45 DEG. LOCK MITER 1/2″ SHANK.

UPC: 738685953907 SKU: Amana 55390 Categories: Amana Tool, Jointing Router Bits, Lock Miter Router Bits, Router Bits

Item Description

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.

Maximum RPM 18,000.

Specifications

Angle (a°)	45°
Diameter (D)	2-11/16
D1	9.2mm
Cutting Height (B)	1-3/16
Shank (d)	1/2
Overall Length (L)	2-5/8
Max RPM	18,000
Material size	1/2 – 1 Inch
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Material size	Flutes	Max RPM	Tool No.
45°	1-3/4	6.4mm	7/8 (22.23mm)	1/2 (12.70mm)	2-1/8	3/8-3/4	2	—-	55389
45°	1-5/8	13.2mm	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	3/8-1/2	2	—-	55391
45°	1-1/2	12.1mm	1/2 (12.70mm)	1/4 (6.35mm)	1-5/8	5/16-7/16	2	—-	55393

Weight	0.56 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
