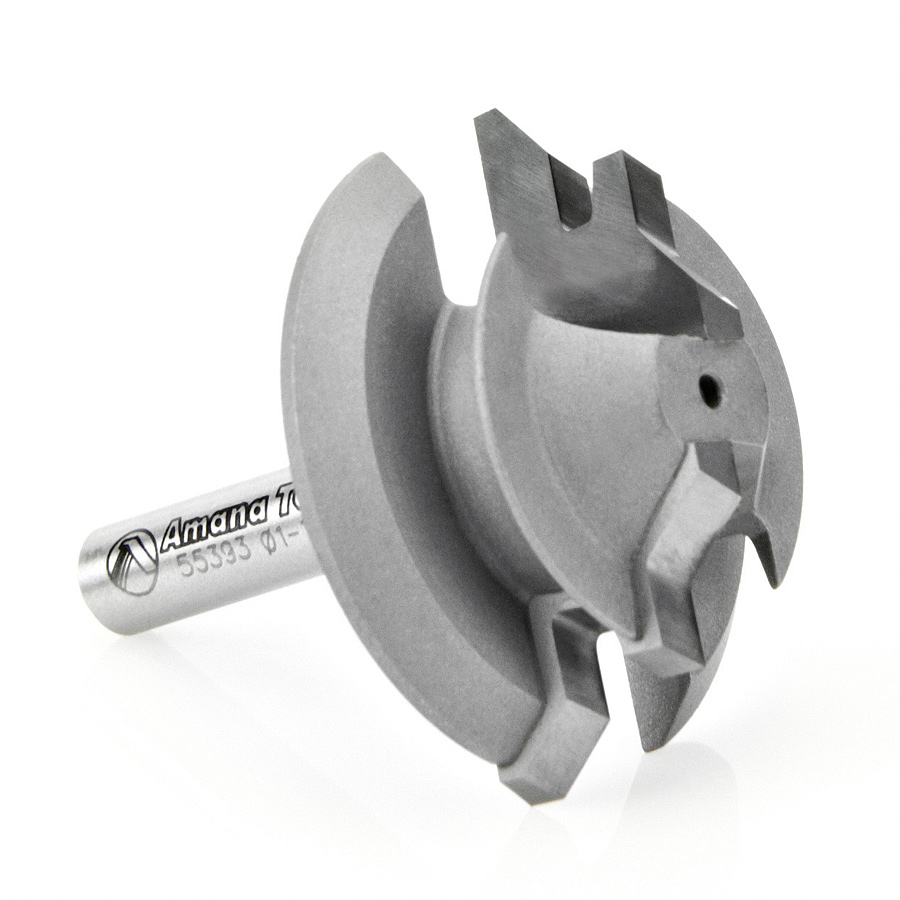

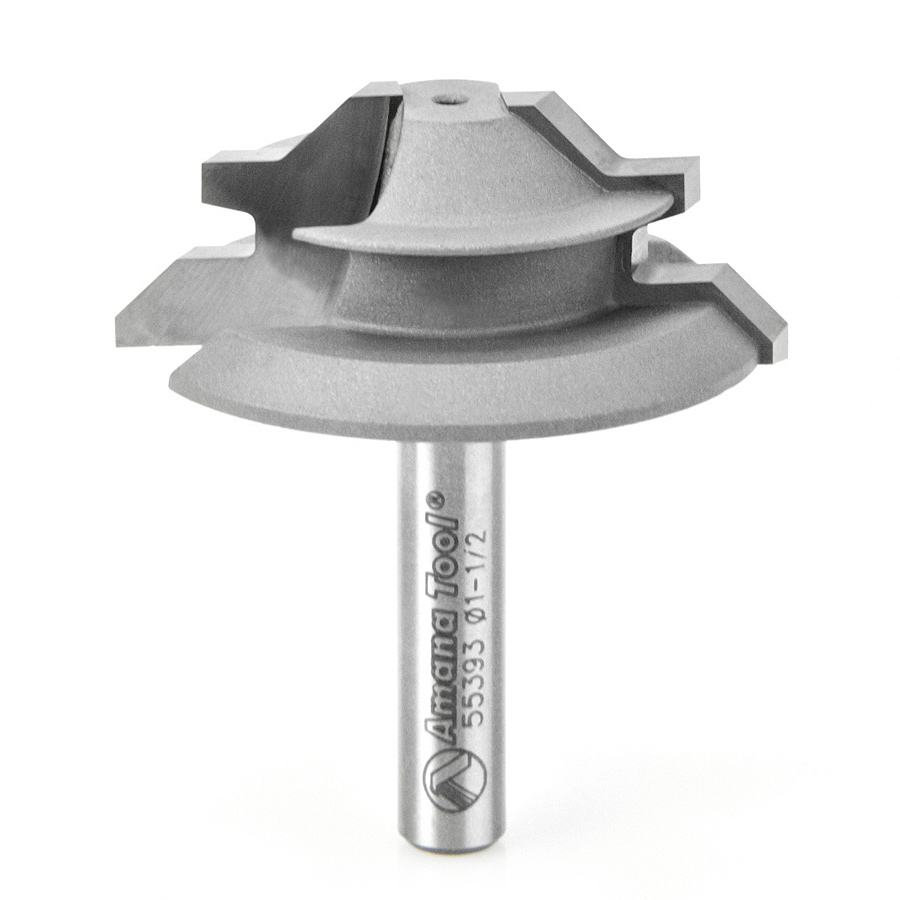

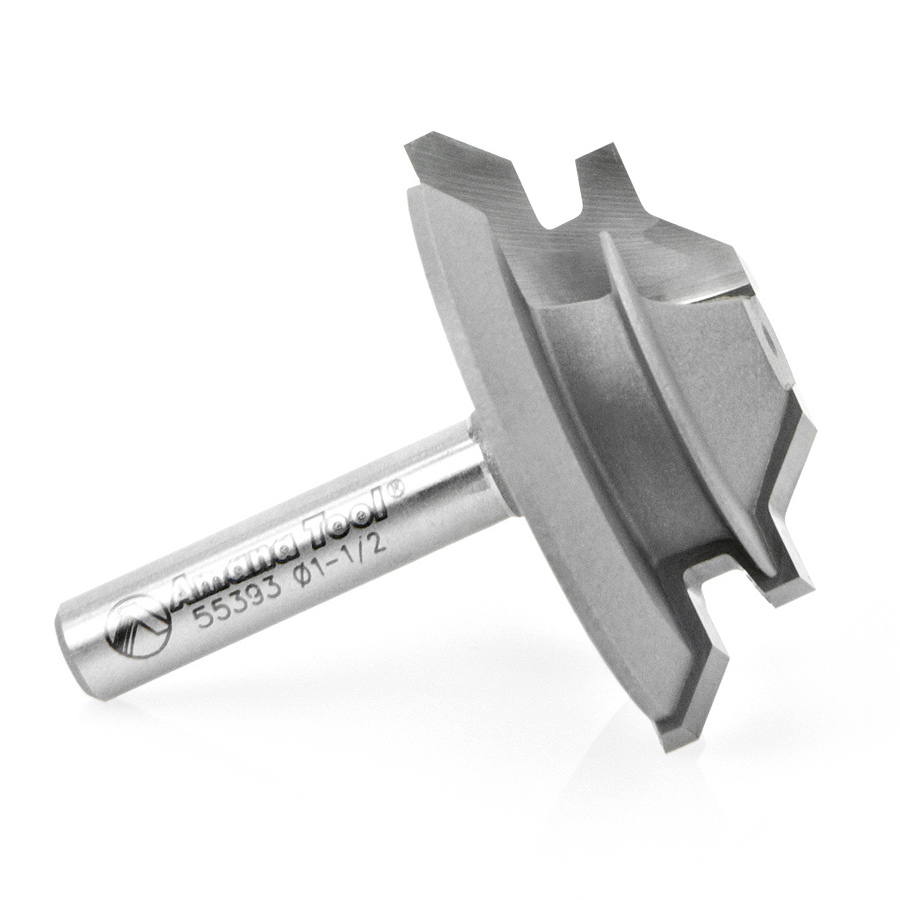

55393 Carbide Tipped Lock Miter 45 Deg x 1-1/2 Dia x 1/2 x 1/4 Inch Shank for 5/16 - 7/16 Material

Amana 55393 Carbide Tipped Lock Miter 45 Deg x 1-1/2 Dia x 1/2 x 1/4 Inch Shank for 5/16 – 7/16 Material

Name: Amana 55393 Carbide Tipped Lock Miter 45 Deg x 1-1/2 Dia x 1/2 x 1/4 Inch Shank for 5/16 - 7/16 Material
SKU: Amana 55393
Availability: InStock

Original price was: $140.40.Current price is: $105.30.

45 DEG. LOCK MITER 1/4″ SHANK.

UPC: 738685553930 SKU: Amana 55393 Categories: Amana Tool, Jointing Router Bits, Lock Miter Router Bits, Router Bits

Item Description

The lock miter is an interlocking edge-to-edge joint, typically used at the corners of casework. Used in a table-mounted router, run at reduced speed, this bit cuts both halves of the joint. The same setup of bit and fence cuts both parts. One part is laid flat on the tabletop and fed across the cutter. The second is braced vertically against the fence and fed across the cutter. For best results use in a table-mounted router.

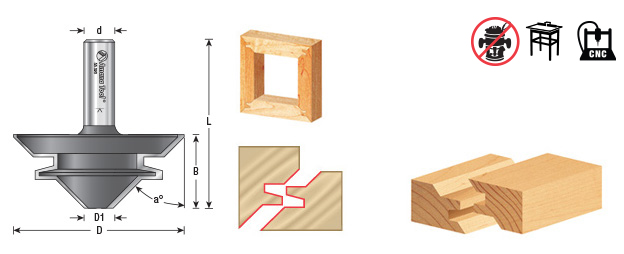

Specifications

Angle (a°)	45°
Diameter (D)	1-1/2
D1	12.1mm
Cutting Height (B)	1/2
Shank (d)	1/4
Overall Length (L)	1-5/8
Material size	5/16-7/16 Inch
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	D1	Cutting Height (B)	Shank (d)	Overall Length (L)	Material size	Flutes	Max RPM	Tool No.
45°	1-3/4	6.4mm	7/8 (22.23mm)	1/2 (12.70mm)	2-1/8	3/8-3/4	2	—-	55389
45°	2-11/16	9.2mm	1-3/16	1/2 (12.70mm)	2-5/8	1/2 – 1	2	18,000	55390
45°	1-5/8	13.2mm	5/8 (15.88mm)	1/4 (6.35mm)	1-3/4	3/8-1/2	2	—-	55391

Weight	0.54 lbs
