55400 Carbide Tipped Tongue & Groove 3/8 Kerf x 1-5/8 Dia x 3/4 x 1/2 Inch Shank Assembly for 1/2 to 3/4 Material

Amana 55400 Carbide Tipped Tongue & Groove 3/8 Kerf x 1-5/8 Dia x 3/4 x 1/2 Inch Shank Assembly for 1/2 to 3/4 Material

Name: Amana 55400 Carbide Tipped Tongue &amp; Groove 3/8 Kerf x 1-5/8 Dia x 3/4 x 1/2 Inch Shank Assembly for 1/2 to 3/4 Material
SKU: Amana 55400
Availability: InStock

Original price was: $135.85.Current price is: $101.89.

TONGUE/GROOVE ASSEMBLY 1/4″KER

UPC: 738685954003 SKU: Amana 55400 Categories: Amana Tool, Jointing Router Bits, Router Bits, Tongue & Groove Router Bits

Item Description

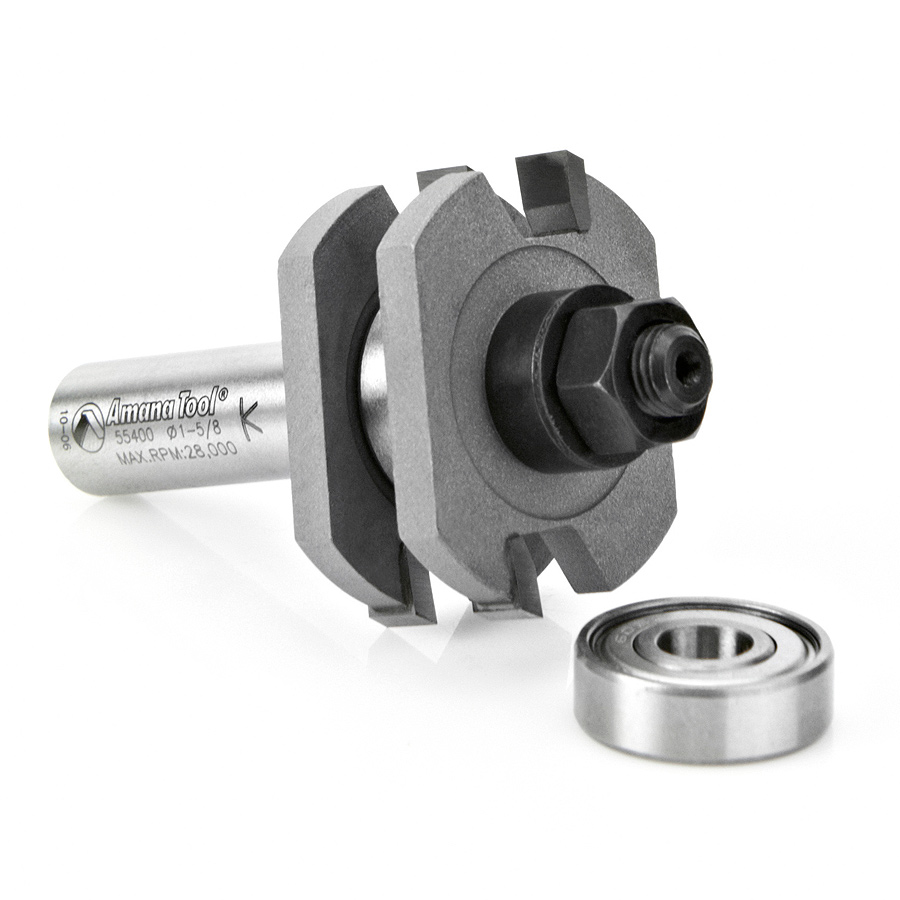

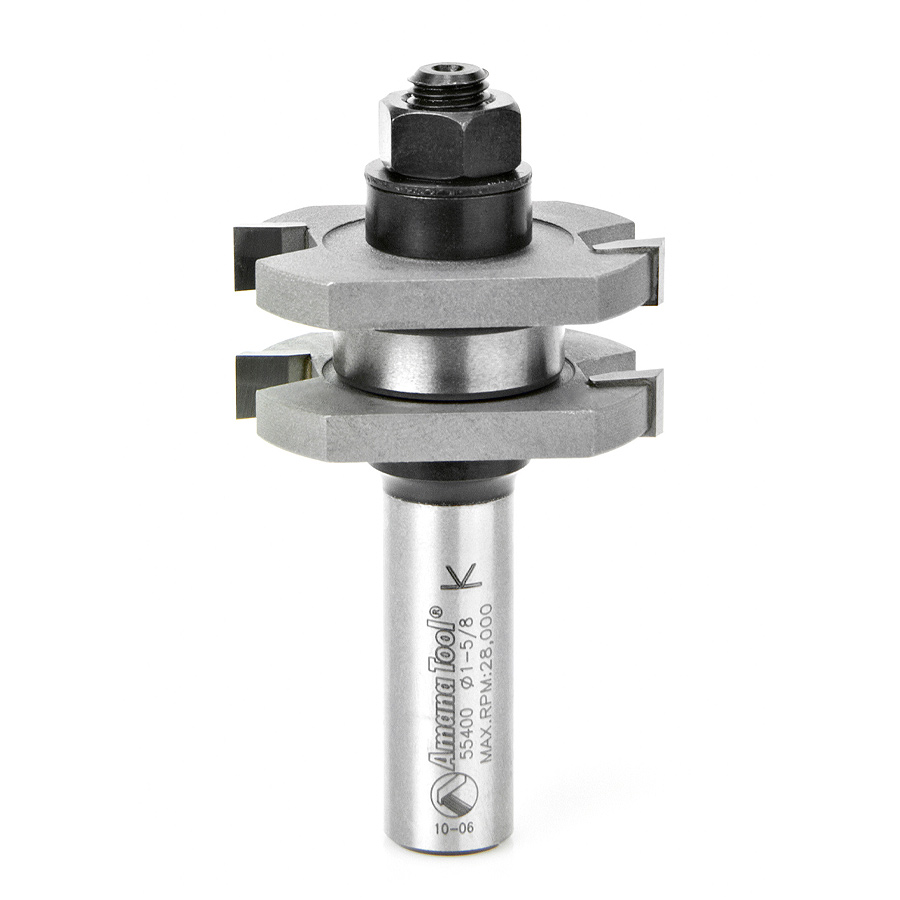

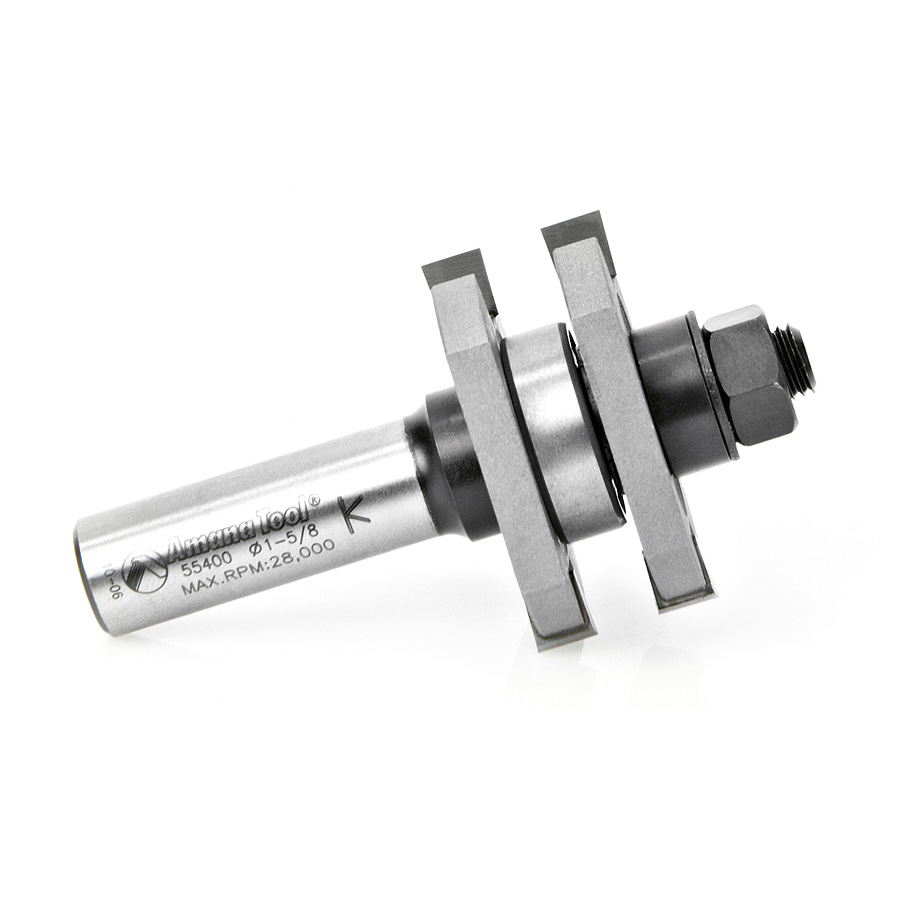

Cut perfectly fitted tongue-and-groove joints on stock between 1/2″ and 3/4″ thick with a table-mounted router and this assembly. The tool consists of an arbor with an integral shank, two identical, removable slotting cutters, and a pair of bearings. To cut tongues, sandwich one bearing between the two cutters (as in drawing A). To cut slots, mount one cutter between the two bearings (as in drawing B). Can be used on 1/2″ through 3/4″ thick material.

Specifications

Diameter (D)	1-5/8
Cutting Height (B)	3/4
B1	1/4
Shank (d)	1/2
Overall Length (L)	3
T	1/4
Replacement Bearing	47708(2)
Material size	1/2" through 3/4" thick
C	3/8
# Wings	2

Other Sizes Available

Diameter (D)	Cutting Height (B)	B1	C	Shank (d)	T	Overall Length (L)	Tool No.
1-5/8	1-1/8	3/8 (9.53mm)	3/8 (9.53mm)	1/2 (12.70mm)	3/8 (9.53mm)	3-3/8	55401

Weight	0.42 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
