55644 Carbide Tipped 82 Degree Countersink Taper for Festool® CENTROTEC® System #8 Screw 3/8 Dia x 7/64 Drill Dia

Amana 55644 Carbide Tipped 82 Degree Countersink Taper for Festool® CENTROTEC® System #8 Screw 3/8 Dia x 7/64 Drill Dia

Name: Amana 55644 Carbide Tipped 82 Degree Countersink Taper for Festool® CENTROTEC® System #8 Screw 3/8 Dia x 7/64 Drill Dia
SKU: Amana 55644
Availability: InStock

Original price was: $52.60.Current price is: $39.45.

QUICK COUNTERSINK TAPER 3/8″ D

UPC: 738685556443 SKU: Amana 55644 Categories: 82 Degree Countersinks for Festool CENTROTEC System, Amana Tool, Countersinks

Item Description

Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.

Excellent for Drilling:

Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic

Warning:** When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Replacement Parts

Drill Bit
630-264

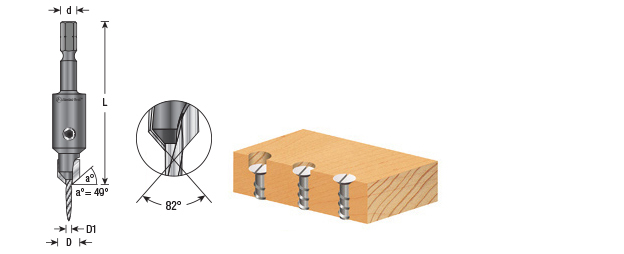

Specifications

(a°) Angle	49°
(D) Diameter	3/8
(d) Shank	CENTROTEC®
Overall Length (L)	2-29/32
Wood Screw Size	#8
D1	7/64
Replacement Drill	630-264
Optional Depth-Stop	608-120

Other Sizes Available

Wood Screw Size	(D) Diameter	D1	(a°) Angle	Overall Length (L)	Replacement Drill	Tool No.
#10#10#10#10	3/8 (9.53mm)	1/8 (3.18mm)	49°	2-29/32	630-266	55646

Weight	0.1 lbs

Brand

Amana Tool

Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
