Sale!

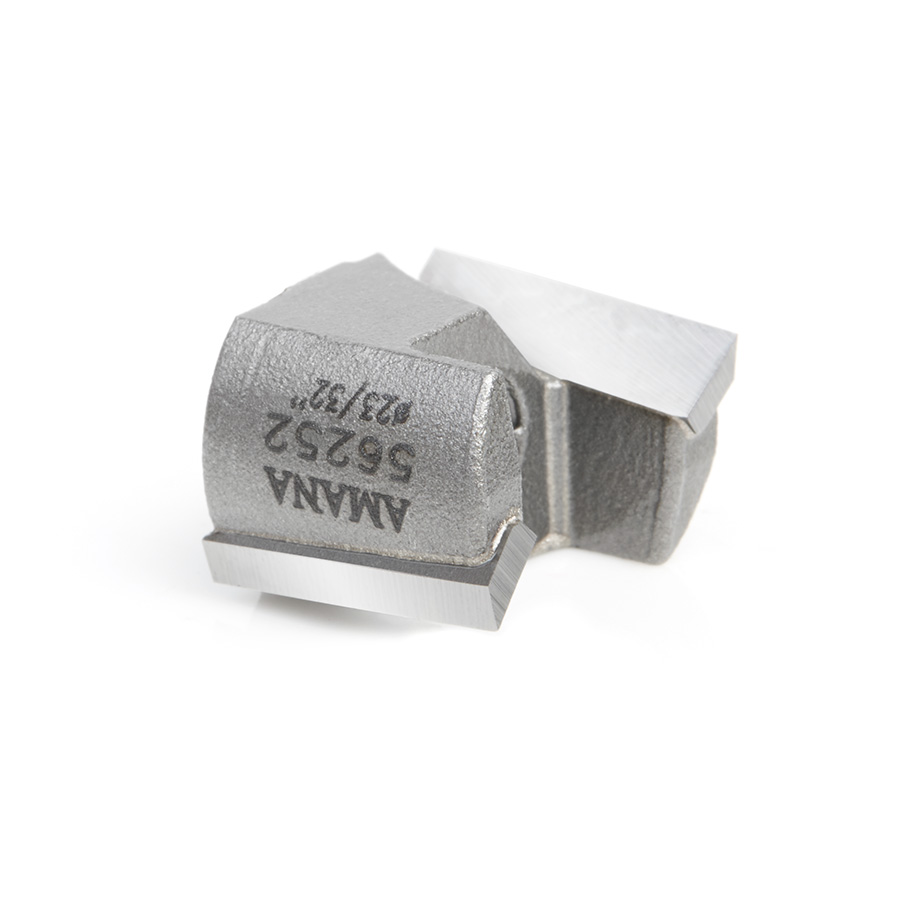

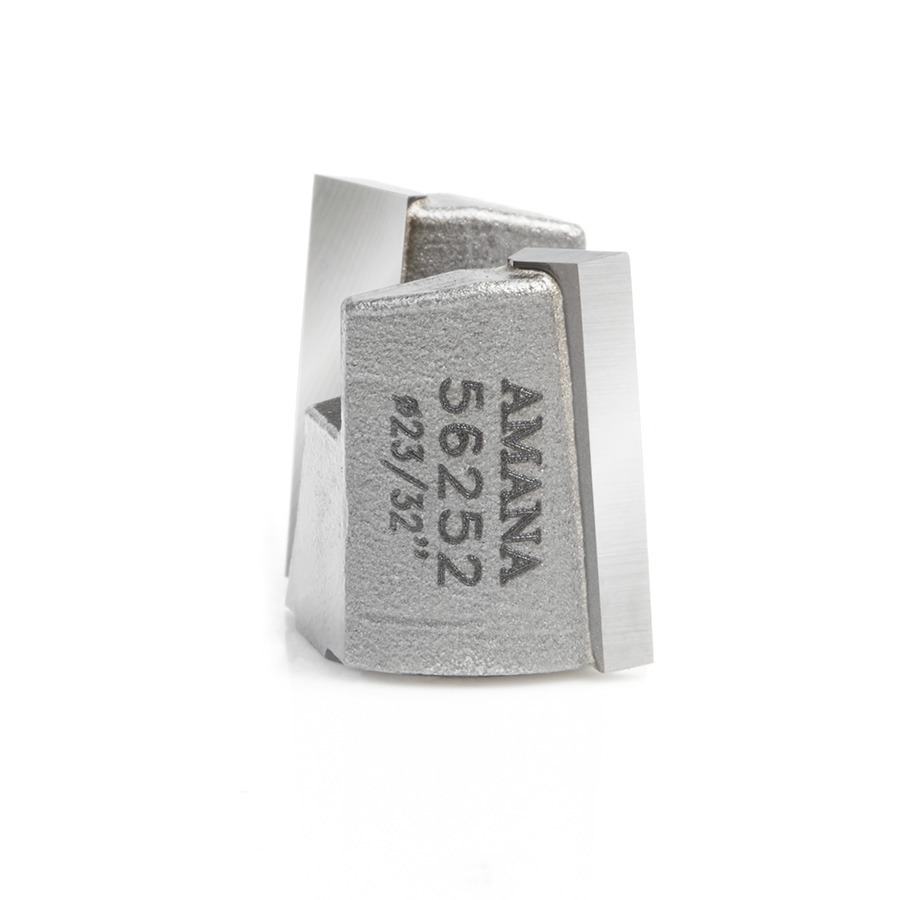

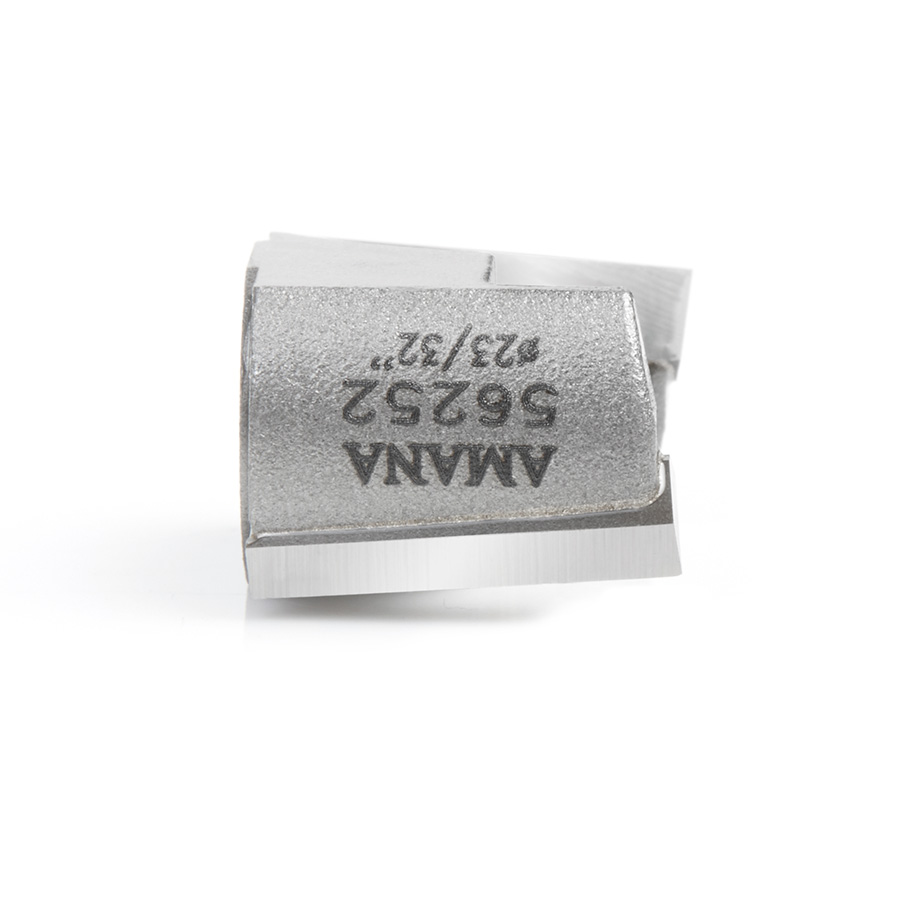

56252 Carbide Tipped Mortising Screw Down Shear Cutter 23/32 Dia x 9/16 Inch x 1/4 - 28 Thread

Amana 56252 Carbide Tipped Mortising Screw Down Shear Cutter 23/32 Dia x 9/16 Inch x 1/4 – 28 Thread

Name: Amana 56252 Carbide Tipped Mortising Screw Down Shear Cutter 23/32 Dia x 9/16 Inch x 1/4 - 28 Thread
SKU: Amana 56252
Availability: InStock

Original price was: $60.65.Current price is: $45.49.

MORTISING SCREW TYPE 23/32″DIA

UPC: 738685562529 SKU: Amana 56252 Categories: Amana Tool, Mortising Router Bits, Router Bits, Straight Plunge Router Bits

Item Description

Mortise doors to fit hinges, locks, lock face plates and for general stock removal. All cutters fit threaded arbors. Long style.

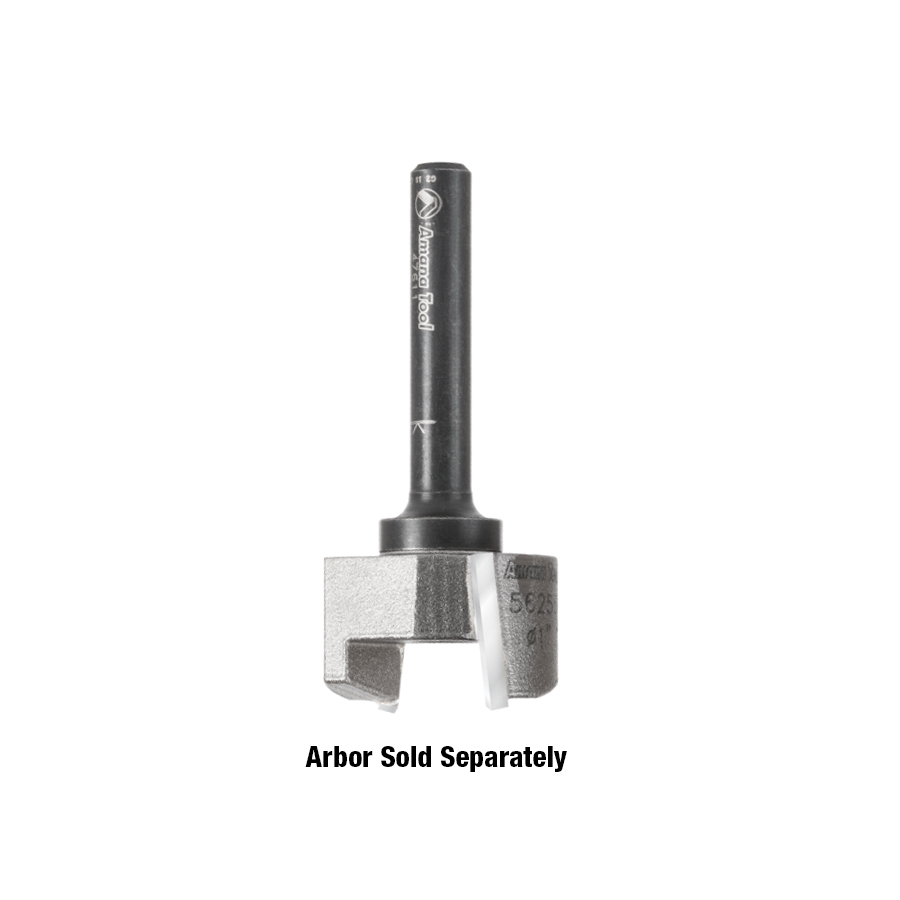

![Image 13: Threaded Arbor for Screw Type Mortising Cutters](http://www.amanatool.com/media/wysiwyg/threaded-arbor.jpg)

[Click here](http://www.amanatool.com/products/router-bits/router-bit-parts-accessories/threaded-arbors-for-screw-type-mortising-cutters.html “Threaded Arbor for Screw Type Mortising Cutters”) to view all available Threaded Arbors for Screw Type Mortising Cutters.

Also suitable for use on vertical panel routers.

Specifications

Diameter (D)	23/32
Cutting Height (B)	9/16
Type	Down Shear
Thread	1/4"-28
Flutes	2

Other Sizes Available

Angle (a°)	Diameter (D)	Cutting Height (B)	B	Shank (d)	Thread	Overall Length (L)	Application	Flutes	Type	Tool No.
9°	3/8 (9.53mm)	3/8 (9.53mm)	–	–	1/4"-28	1-1/4	–	2	–	56281
10°	7/16 (11.11mm)	3/8 (9.53mm)	–	–	1/4"-28	1-1/4	–	2	–	56282
–	1/4-28	–	1/4 (6.35mm)	1/4 (6.35mm)	–	1-13/16	55250	—-	Threaded Arbor	47611
–	1/4-28	–	1/4 (6.35mm)	1/2 (12.70mm)	–	1-3/4	55250	—-	Threaded Arbor	47614
–	1/4-28	–	15/32 (11.91mm)	1/4 (6.35mm)	–	1-13/16	55251	—-	Threaded Arbor	47615
–	5/16-24NF	–	1/4 (6.35mm)	1/4 (6.35mm)	–	1-13/16	55255	—-	Threaded Arbor	47616
–	15/16 (23.81mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55149
–	3/4	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55248
–	13/16 (20.64mm)	9/16 (14.29mm)	–	–	1/4-28	–	–	2	Down Shear	55249
–	3/4 (19.05mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55250
–	1/2 (12.70mm)	0.605"0.61	–	–	1/4"-28	–	–	2	Down Shear	55251
–	7/8 (22.23mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55252
–	1 (25.40mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55254
–	1-1/4	5/8 (15.88mm)	–	–	5/16"-24	–	–	2	Down Shear	55255
–	1-1/8	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55256
–	1-1/4	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55257
–	1-1/4	5/8 (15.88mm)	–	–	1/4"-28	–	–	2	Down Shear	55258
–	5/8 (15.88mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55259
–	1/2	9/16 (14.29mm)	–	–	1/4"-28	.885 (22.61mm)	–	2	Down Shear	55277
–	9/16 (14.29mm)	9/16 (14.29mm)	–	–	1/4"-28	.885 (22.61mm)	–	2	Down Shear	55279
–	19/32 (15.08mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55281
–	3/4 –	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	55285
–	5/8	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	Down Shear	56250
–	11/16 (17.46mm)	9/16 (14.29mm)	–	–	1/4"-28	–	–	2	–	56251
–	1-1/4	11/16 (17.46mm)	–	–	1/4"-28	–	–	2	Down Shear	56254
–	1/8	3/8 (9.53mm)	–	–	1/4"-28	1-7/16	–	2	Straight No Shear	56268
–	1/4 (6.35mm)	1/2 (12.70mm)	–	–	1/4"-28	1.360 (34.54mm)	–	2	Straight No Shear	56270
–	1/4	1/2 (12.70mm)	–	–	1/4"-28	1.360 (34.54mm)	–	2	Straight No Shear	56272
–	9/32 (7.14mm)	1/2 (12.70mm)	–	–	1/4"-28	1.360 (34.54mm)	–	2	Straight No Shear	56273
–	3/8	9/16 (14.29mm)	–	–	1/4"-28	1.360 (34.54mm)	–	2	Straight No Shear	56276

Weight	0.04 lbs
