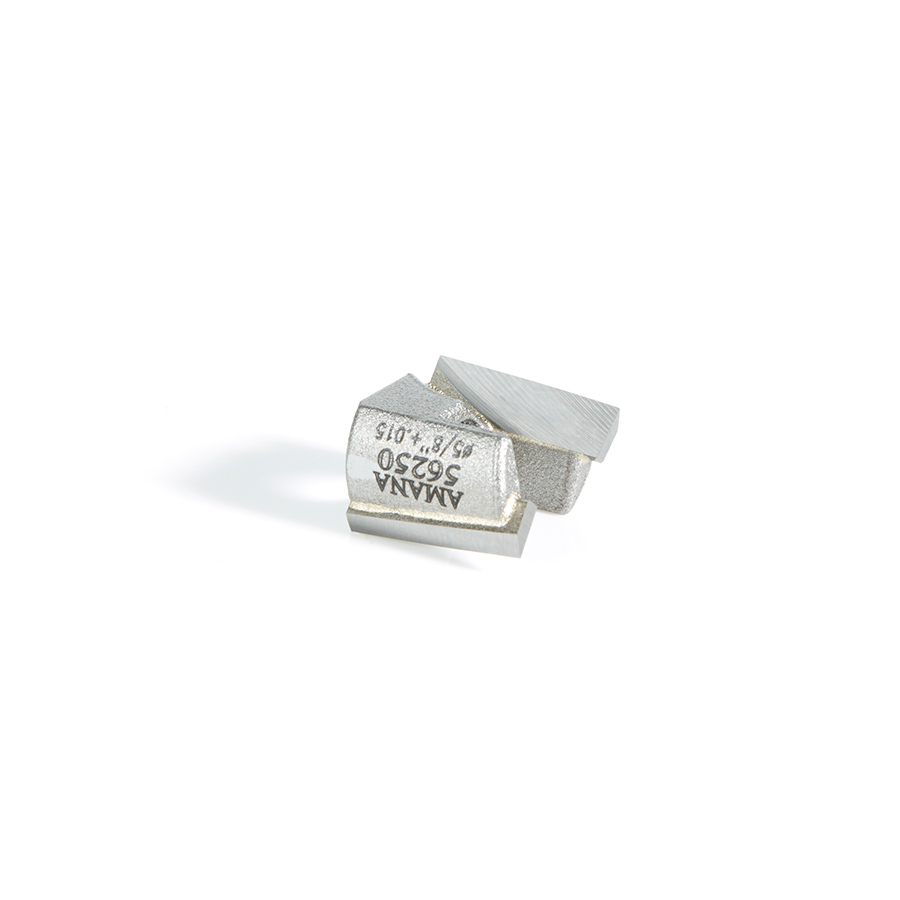

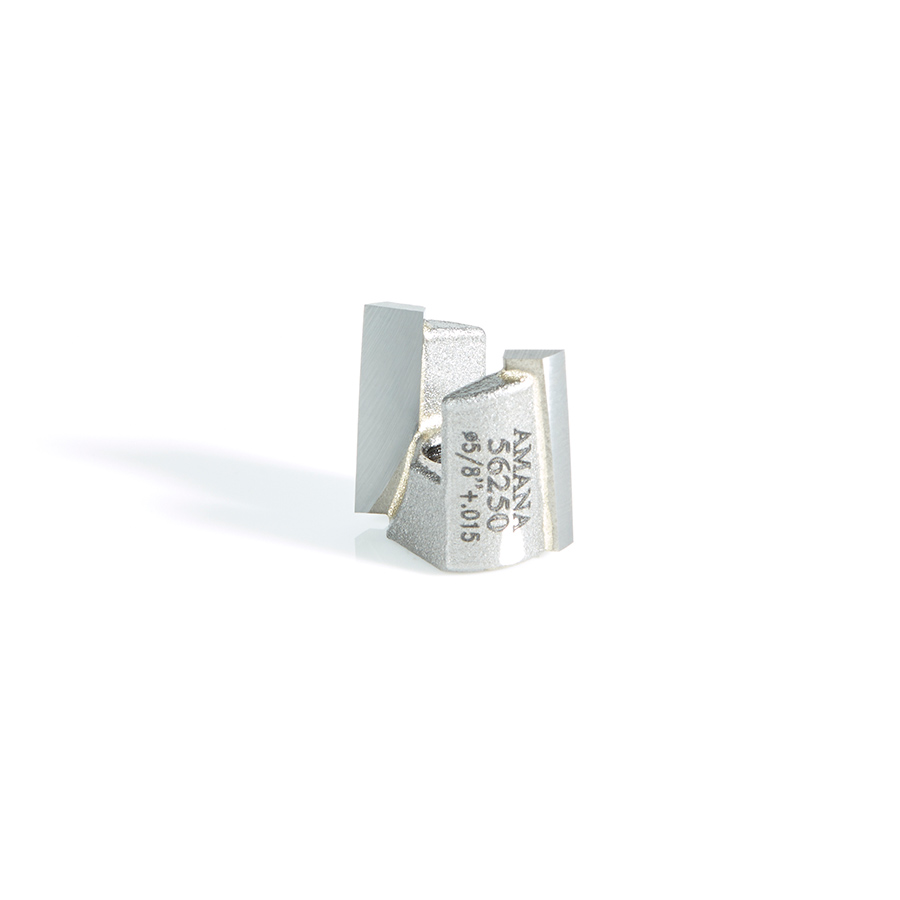

Amana 56250 Carbide Tipped Mortising Screw Down Shear Cutter 5/8 + 0.015 Dia x 9/16 Inch x 1/4 – 28 Thread
Original price was: $59.35.$44.52Current price is: $44.52.
5/8″+.015 REVERSE HELIX CUTTER
Item Description
Mortise doors to fit hinges, locks, lock face plates and for general stock removal. All cutters fit threaded arbors.

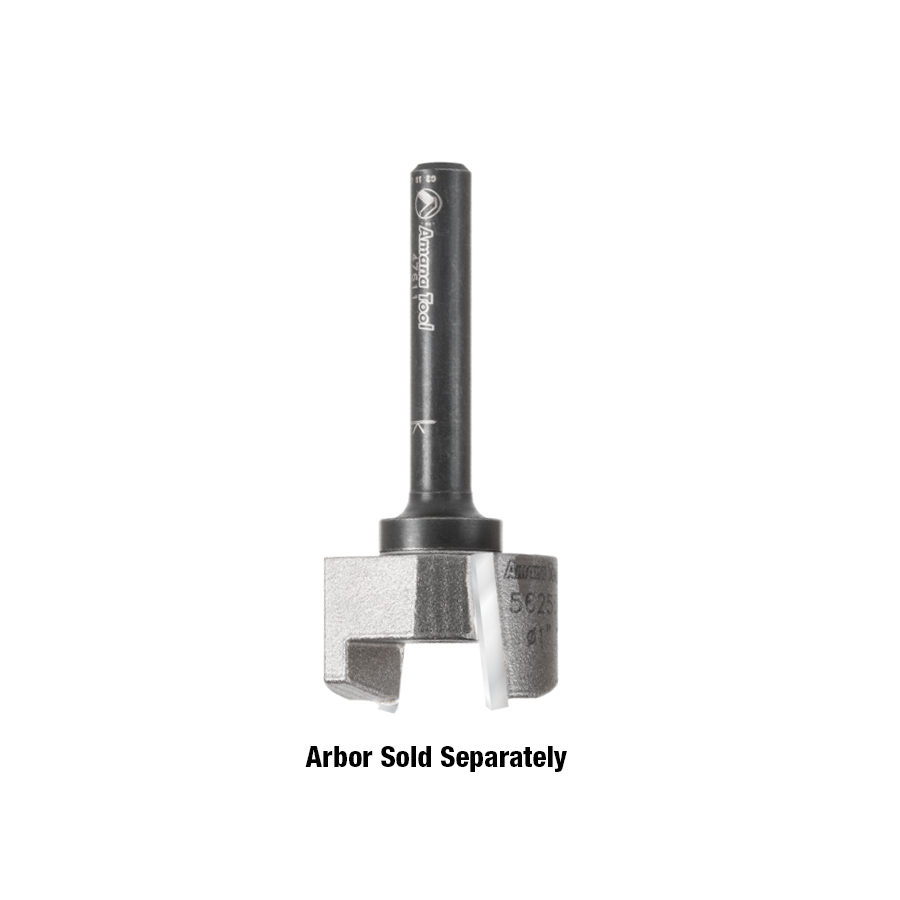

[Click here](http://www.amanatool.com/products/router-bits/router-bit-parts-accessories/threaded-arbors-for-screw-type-mortising-cutters.html “Threaded Arbor for Screw Type Mortising Cutters”) to view all available Threaded Arbors for Screw Type Mortising Cutters.Also suitable for use on vertical panel routers.
Specifications
| Diameter (D) | 5/8 + 0.015 |
|---|---|
| Cutting Height (B) | 9/16 |
| Type | Down Shear |
| Thread | 1/4"-28 |
| Flutes | 2 |
Other Sizes Available
| Angle (a°) | Diameter (D) | Cutting Height (B) | B | Shank (d) | Thread | Overall Length (L) | Application | Flutes | Type | Tool No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 9° | 3/8 (9.53mm) | 3/8 (9.53mm) | – | – | 1/4"-28 | 1-1/4 | – | 2 | – | 56281 |
| 10° | 7/16 (11.11mm) | 3/8 (9.53mm) | – | – | 1/4"-28 | 1-1/4 | – | 2 | – | 56282 |
| – | 1/4-28 | – | 1/4 (6.35mm) | 1/4 (6.35mm) | – | 1-13/16 | 55250 | —- | Threaded Arbor | 47611 |
| – | 1/4-28 | – | 1/4 (6.35mm) | 1/2 (12.70mm) | – | 1-3/4 | 55250 | —- | Threaded Arbor | 47614 |
| – | 1/4-28 | – | 15/32 (11.91mm) | 1/4 (6.35mm) | – | 1-13/16 | 55251 | —- | Threaded Arbor | 47615 |
| – | 5/16-24NF | – | 1/4 (6.35mm) | 1/4 (6.35mm) | – | 1-13/16 | 55255 | —- | Threaded Arbor | 47616 |
| – | 15/16 (23.81mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55149 |
| – | 3/4 | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55248 |
| – | 13/16 (20.64mm) | 9/16 (14.29mm) | – | – | 1/4-28 | – | – | 2 | Down Shear | 55249 |
| – | 3/4 (19.05mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55250 |
| – | 1/2 (12.70mm) | 0.605"0.61 | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55251 |
| – | 7/8 (22.23mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55252 |
| – | 1 (25.40mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55254 |
| – | 1-1/4 | 5/8 (15.88mm) | – | – | 5/16"-24 | – | – | 2 | Down Shear | 55255 |
| – | 1-1/8 | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55256 |
| – | 1-1/4 | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55257 |
| – | 1-1/4 | 5/8 (15.88mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55258 |
| – | 5/8 (15.88mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55259 |
| – | 1/2 | 9/16 (14.29mm) | – | – | 1/4"-28 | .885 (22.61mm) | – | 2 | Down Shear | 55277 |
| – | 9/16 (14.29mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | .885 (22.61mm) | – | 2 | Down Shear | 55279 |
| – | 19/32 (15.08mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55281 |
| – | 3/4 – | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 55285 |
| – | 11/16 (17.46mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | – | 56251 |
| – | 23/32 (18.26mm) | 9/16 (14.29mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 56252 |
| – | 1-1/4 | 11/16 (17.46mm) | – | – | 1/4"-28 | – | – | 2 | Down Shear | 56254 |
| – | 1/8 | 3/8 (9.53mm) | – | – | 1/4"-28 | 1-7/16 | – | 2 | Straight No Shear | 56268 |
| – | 1/4 (6.35mm) | 1/2 (12.70mm) | – | – | 1/4"-28 | 1.360 (34.54mm) | – | 2 | Straight No Shear | 56270 |
| – | 1/4 | 1/2 (12.70mm) | – | – | 1/4"-28 | 1.360 (34.54mm) | – | 2 | Straight No Shear | 56272 |
| – | 9/32 (7.14mm) | 1/2 (12.70mm) | – | – | 1/4"-28 | 1.360 (34.54mm) | – | 2 | Straight No Shear | 56273 |
| – | 3/8 | 9/16 (14.29mm) | – | – | 1/4"-28 | 1.360 (34.54mm) | – | 2 | Straight No Shear | 56276 |
| Weight | 0.04 lbs |
|---|
Brand
Amana Tool
Amana Tool® is an industry leader for over 40 years specializing in industrial quality solid carbide, insert carbide and carbide-tipped cutting tools for the woodworking, plastics, aluminum, composite and metal industry. They provide many solutions for manufacturers, fabricators, display and cabinet professionals as well as hobbyists. Amana Tool’s full line of industrial-quality cutting tools includes saw blades, router bits, shaper cutters, boring bits and much more.
