Sale!

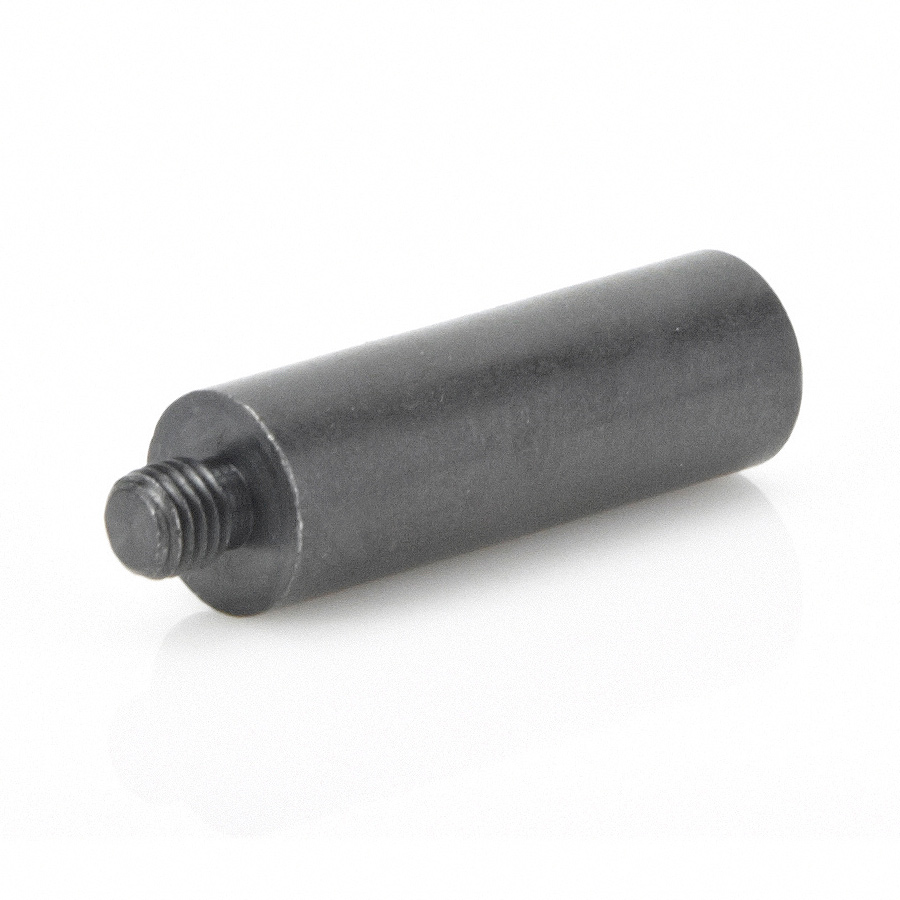

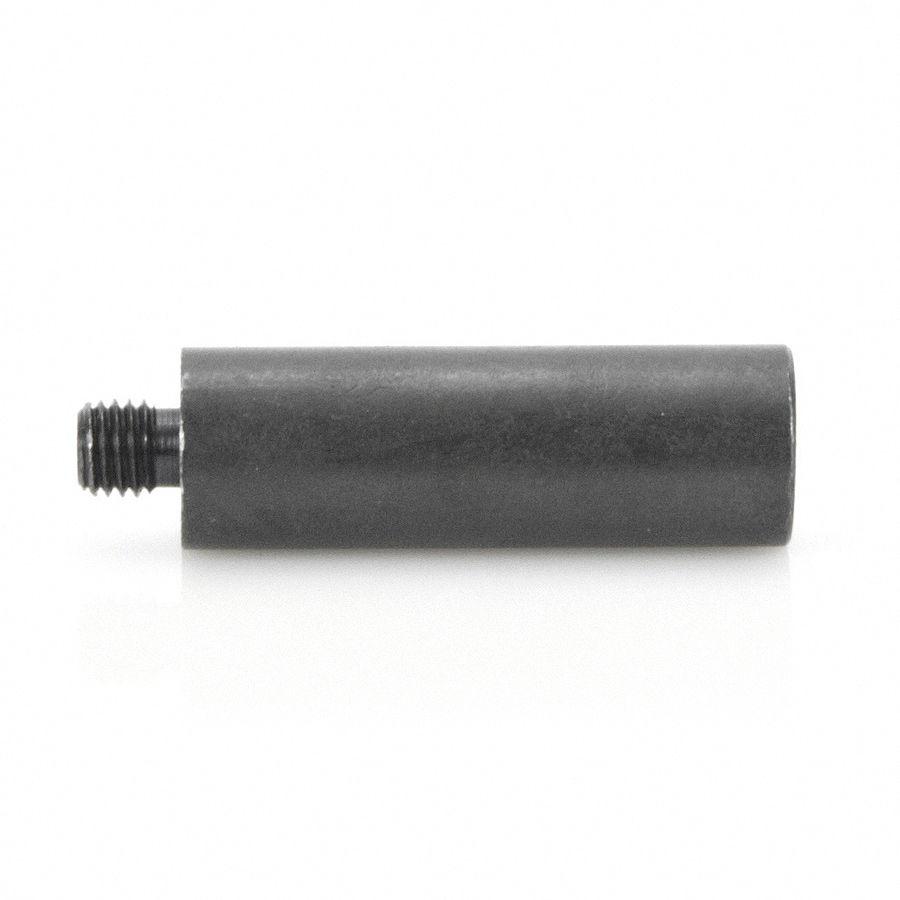

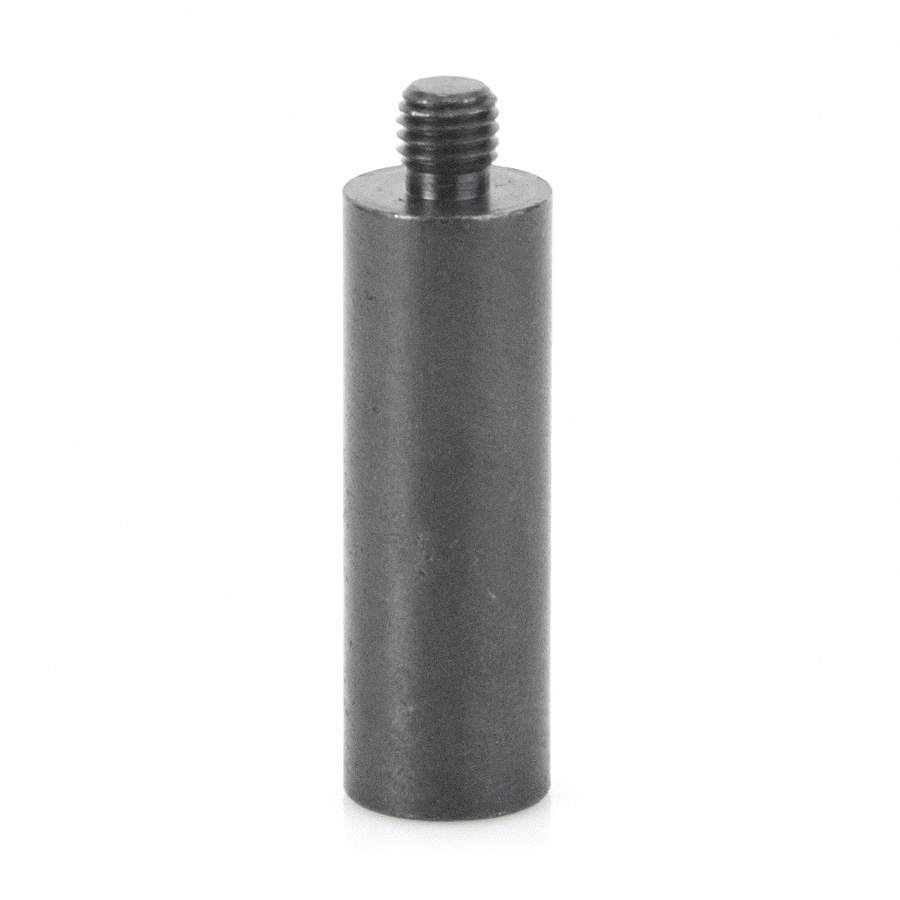

Amana 47614 Threaded Arbors for Screw Type Mortising Cutters 1/4-28 NF Dia x 1/4 Height x 1/2 Inch Shank
Original price was: $12.25.$9.19Current price is: $9.19.
1/2″ ARBOR FOR MORTISING BIT
Item Description
Due to application, these arbors are not furnished with hex nut or washers.
[Click here](http://www.amanatool.com/products/router-bits/straight-plunge-router-bits/mortising-screw-type-cutters.html?p=1 “Mortising Screw Type Cutters”) to view all available Mortising Screw Type Cutters.Specifications

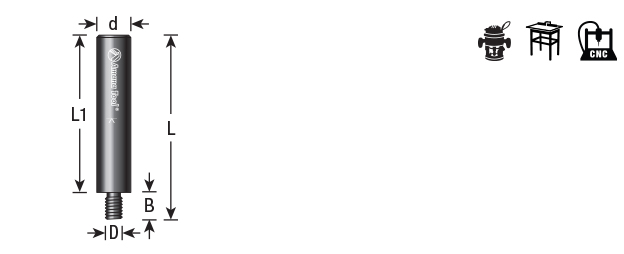

| Diameter (D) | 1/4-28 NF |
|---|---|
| Shank (d) | 1/2 |
| Overall Length (L) | 1-3/4 |
| Type | Threaded Arbor |
| L1 | 1-1/2 |
| Application | Screw Type Mortising Cutters 55250 through 55258. |
| B | 1/4 |
Other Sizes Available
| Application | Diameter (D) | Shank (d) | L1 | B | Overall Length (L) | Tool No. |
|---|---|---|---|---|---|---|
| 55250 | 1/4-28 | 1/4 (6.35mm) | 1-7/16 | 1/4 (6.35mm) | 1-13/16 | 47611 |
| 55251 | 1/4-28 | 1/4 (6.35mm) | 1-1/4 | 15/32 (11.91mm) | 1-13/16 | 47615 |
| 55255 | 5/16-24NF | 1/4 (6.35mm) | 1-7/16 | 1/4 (6.35mm) | 1-13/16 | 47616 |
| – | 3/4 – | – | – | – | – | 55285 |
| – | 1/4 (6.35mm) | – | – | – | 1.360 (34.54mm) | 56270 |
| – | 9/32 (7.14mm) | – | – | – | 1.360 (34.54mm) | 56273 |
| – | 3/8 (9.53mm) | – | – | – | 1-1/4 | 56281 |
| – | 7/16 (11.11mm) | – | – | – | 1-1/4 | 56282 |
| – | 1/2 (12.70mm) | – | – | – | – | 55251 |
| – | 9/16 (14.29mm) | – | – | – | .885 (22.61mm) | 55279 |
| – | 19/32 (15.08mm) | – | – | – | – | 55281 |
| – | 5/8 (15.88mm) | – | – | – | – | 55259 |
| – | 11/16 (17.46mm) | – | – | – | – | 56251 |
| – | 23/32 (18.26mm) | – | – | – | – | 56252 |
| – | 3/4 (19.05mm) | – | – | – | – | 55250 |
| – | 13/16 (20.64mm) | – | – | – | – | 55249 |
| – | 7/8 (22.23mm) | – | – | – | – | 55252 |
| – | 15/16 (23.81mm) | – | – | – | – | 55149 |
| – | 1 (25.40mm) | – | – | – | – | 55254 |
| – | 1-1/8 | – | – | – | – | 55256 |
| – | 1/2 | – | – | – | .885 (22.61mm) | 55277 |
| – | 1/4 | – | – | – | 1.360 (34.54mm) | 56272 |
| – | 1/8 | – | – | – | 1-7/16 | 56268 |
| – | 1-1/4 | – | – | – | – | 55255 |
| – | 1-1/4 | – | – | – | – | 55257 |
| – | 1-1/4 | – | – | – | – | 55258 |
| – | 1-1/4 | – | – | – | – | 56254 |
| – | 3/4 | – | – | – | – | 55248 |
| – | 3/8 | – | – | – | 1.360 (34.54mm) | 56276 |
| – | 5/8 | – | – | – | – | 56250 |
| Weight | 0.1 lbs |
|---|
